Стальной штифт, допуск +/-0,001, длина 50 мм
Стальной штифт, допуск +/-0,001, длина 50 мм
Стальной штифт, допуск +/-0,001, длина 50 мм
Стальной штифт, допуск +/-0,001, длина 50 мм

Стальной штифт, допуск +/-0,001, длина 50 мм

Поделиться:


Цена:4,50 $ - 5,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Product Description


1, Our Pin gauge overview :

Material :
Steel,

carbide steel ,

ceramic ,

stainless steel .


Type :
Pin gauge,plug gauge, smooth pin gauge , hole diameter pin gauge , Go-No gauge , inspection gauge , inspection pin , Go gauge ,No gauge and etc .

2,Precision and specifications :

Pin gauge diameter accuracy ( tolerance):


standard tolerance : +/-0.001mm,


available tolerance :+/-0.0005mm,+/-0.002mm,+0.005mm,-0.005mm;


Custom-made as customer's required .

Pin gauge Roundness :


standard roundness :0.0008mm,

precision roundness :0.0003mm,


Metric and inch are available .

.

Size range(step) : step 0.01mm,0.02mm,0.025mm,0.05mm,0.10mm,0.50mm,1.00mm and so on .




Product Name
Steel Pin Gauge
Material
SKD11 Steel
Tolerance
+/- 0.001 mm
Length
50 mm , can be custom-made
Brand
UCEGA
Used
Measuring tool


Title goes here.
This is the comparison with our pin gauge and other suppliers'
Title goes here.
The surface of our pin gauge is mirror.

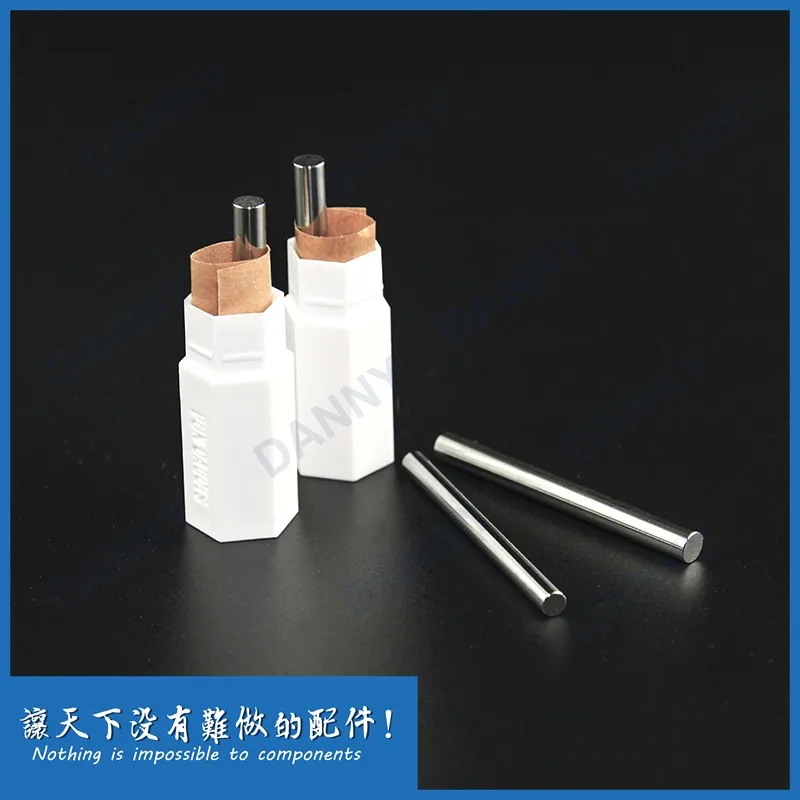

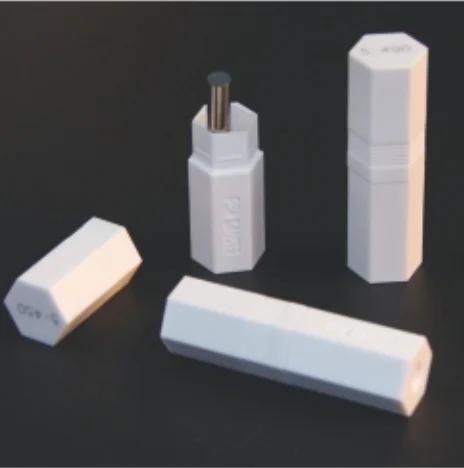

Products Show

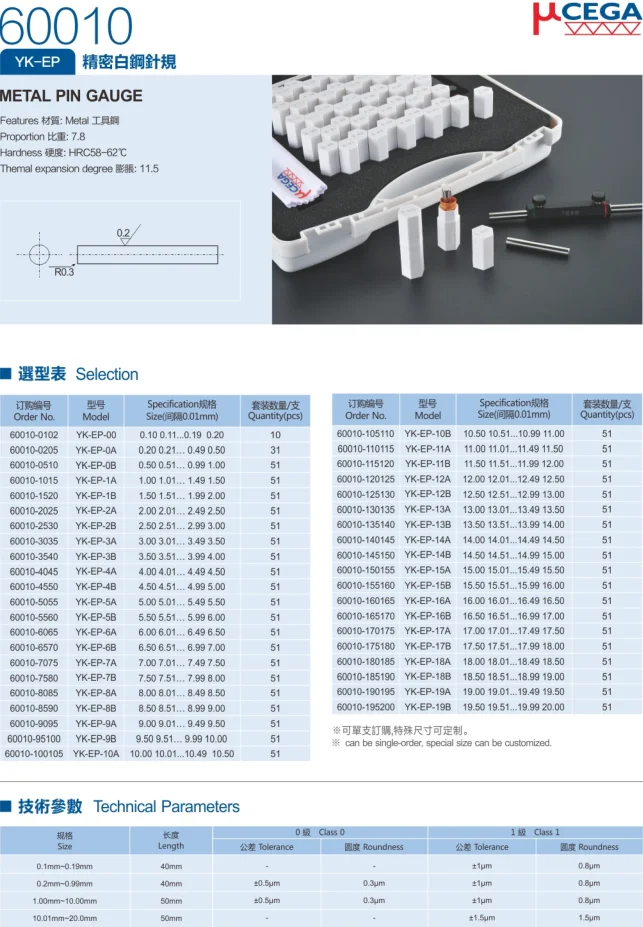

Catalog

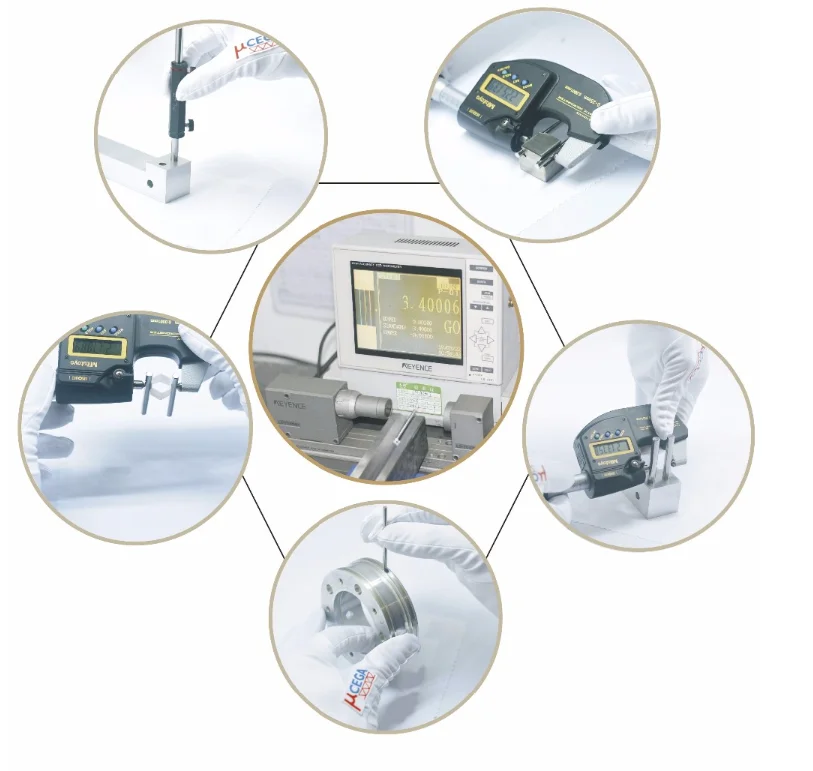

Product Application


Application:


Pin gauge apply for mechanical and electronic processing , to inspect hole diameter,hole distance and intermal thread diameter .Especially for bending width and mild size measurement .It can also be used as go-no pin gauge and hole depth inspection .


Pin gauge is a kind of necessary standard tool for inspection hole,and widely uesd in electronic boards,circuit boards,precision machinery manufacturing and other high precision technology areas .

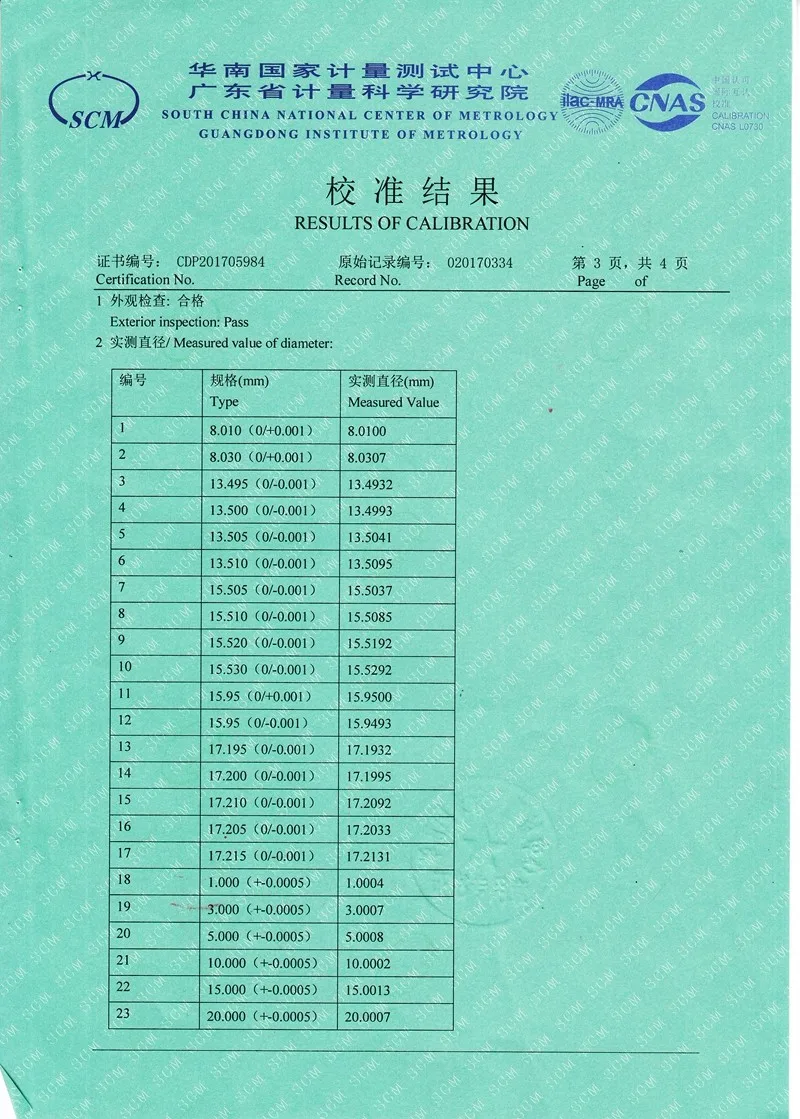

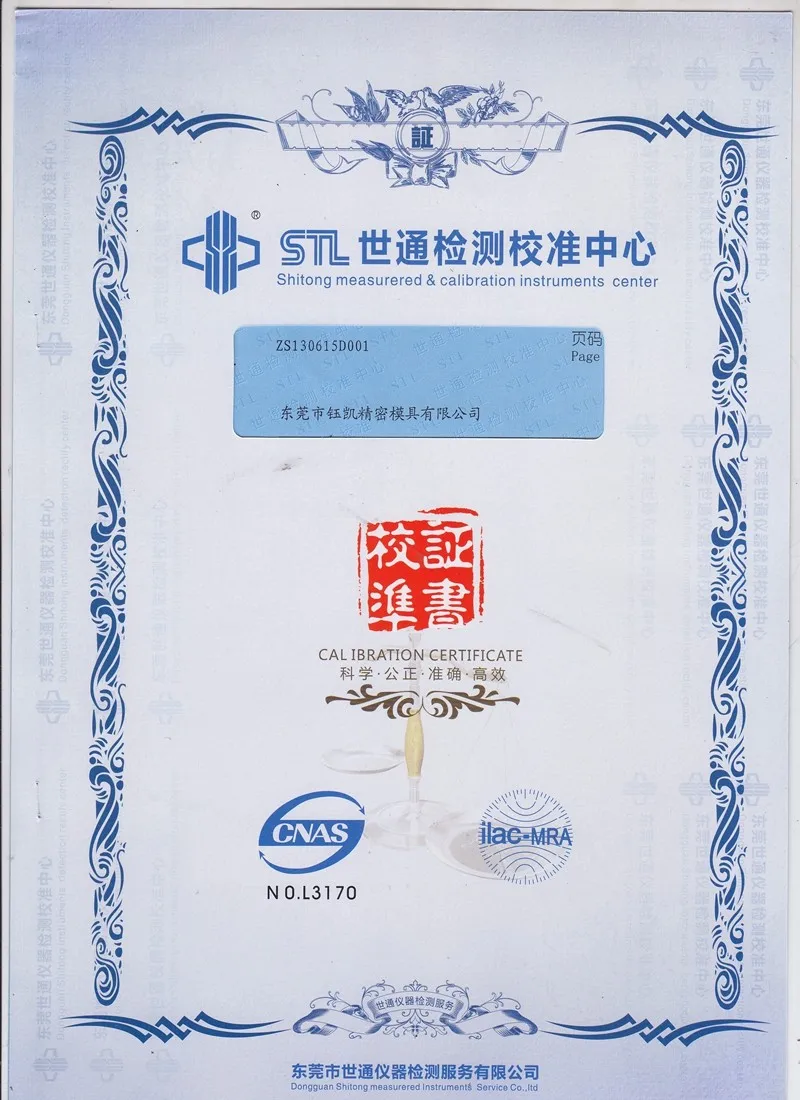

Our Certifications

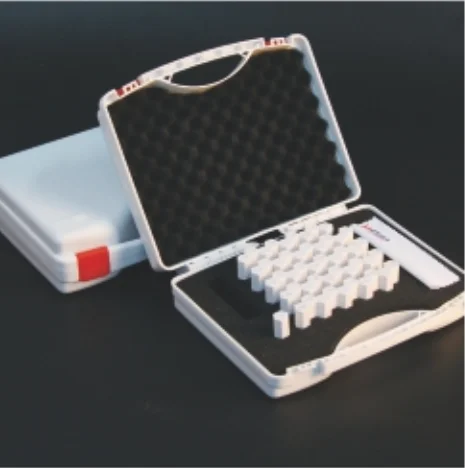

Packing & Delivery

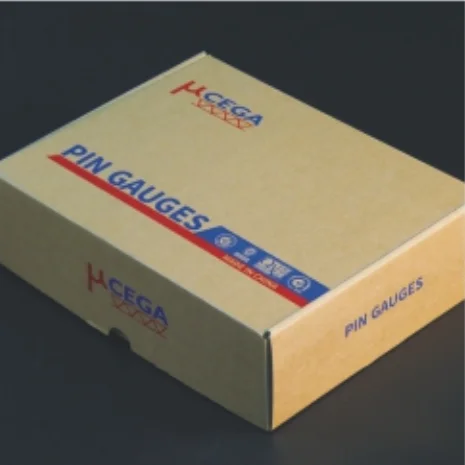

Package : carton box outside

Delivery time : 15 days after receiving payment









Our Company


Factory

Our Factory

Workshop

Our Workshop



QC department

Our QC department

Exhibition

Our exhibition





FAQ



Q. Are you a factory or a trading company?
A: We?are a factory which has been specialized in cnc and grinding machining & precision parts for more than?19 years.

Q. Where is your factory and how can?I visit it?
A: Our factory is located in?Dongguan city and we can pick you up from Shenzhen.

Q. How long can I get some samples for checking and what about the price?
A: Normaly samples will be done within 3-5 days (Standard parts) or 5-7 day (Non-standard parts). The sample cost depends on all information (size, material, finish, etc.). We will return the sample cost if your order quantity is good.

Q. How is the warranty of the products quality control?
A: We have QC department with nice QC system, we will always provide QC report and certification to customer for checking.

Q.How to get an accurate quotation?
A: Just send the inquiry to us, we will reply you ASAP.
