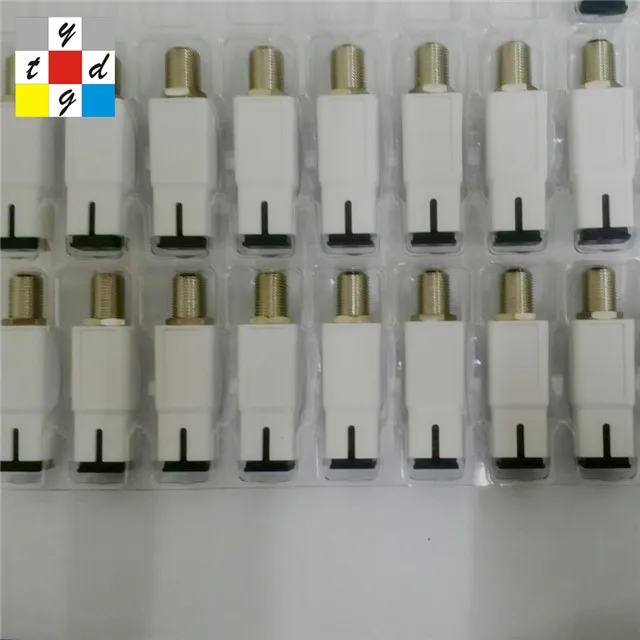

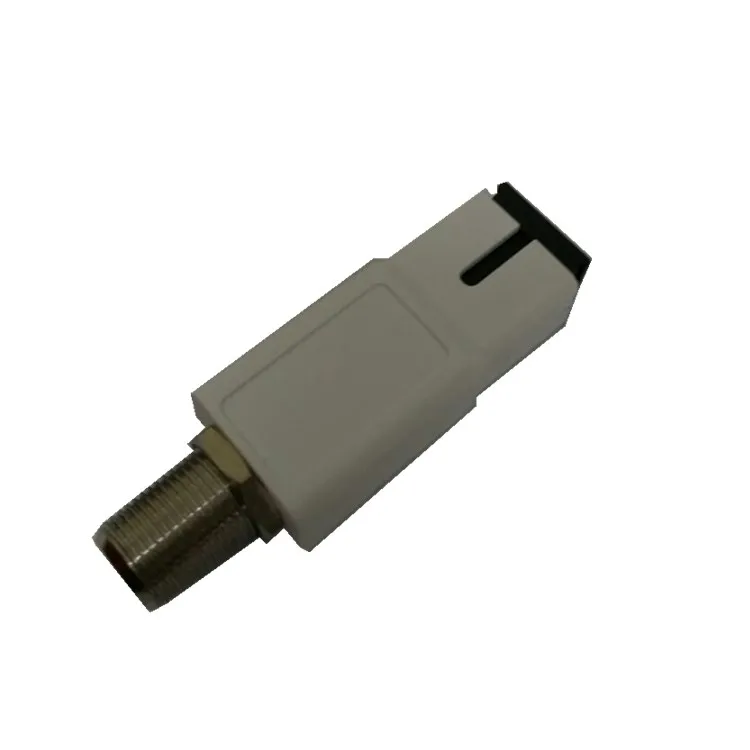

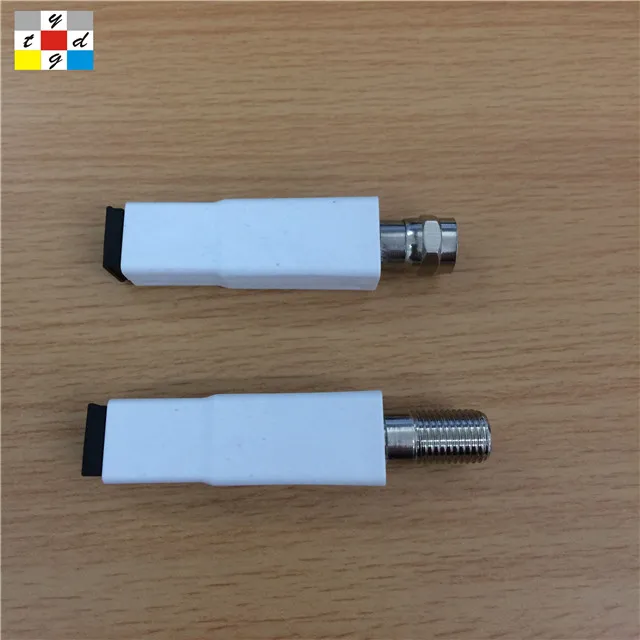

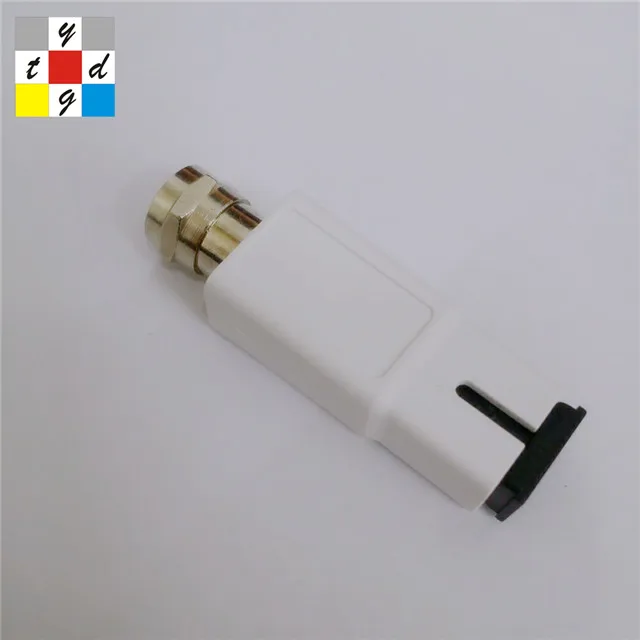

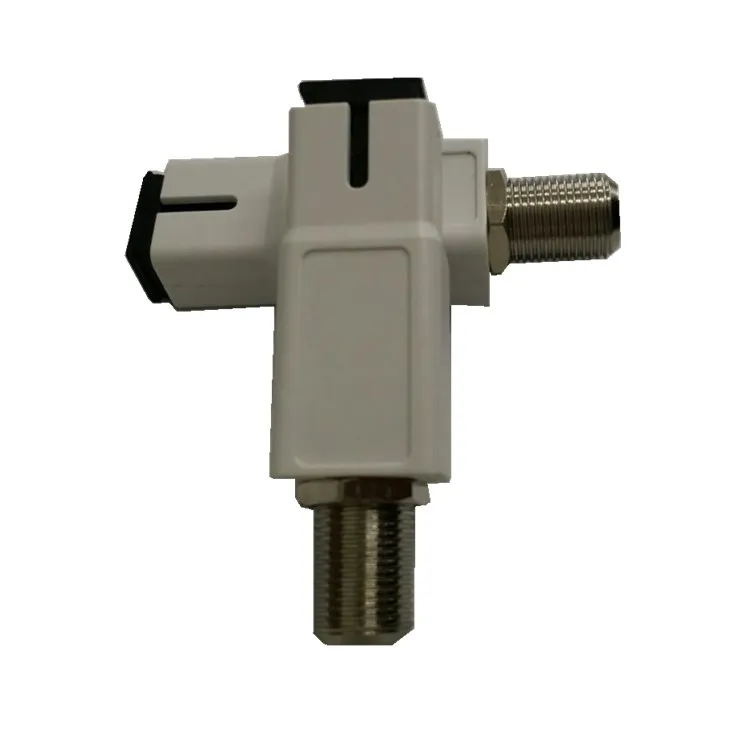

Мини-Пассивный кабель Tv приемник Оптический Ftth
- Категория товара: Radio & TV Broadcasting Equipment >>>
- Поставщик (Оптовый магазин): Yantai,Yatai,Photoelectricity,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

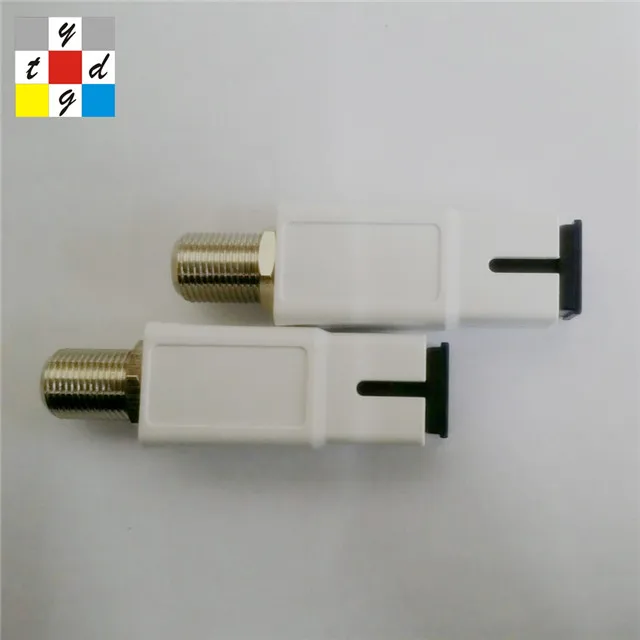

CATV Female male AGC FTTH passive micro node
Product Description
FTTH CATV optical receiver without power is a specialty product which is specially designed for FTTH-Fiber to the home network structure. Compact and reasonable internal circuit structure, The performance indicators are good.
Now we are working together with Wahway for a oversea FTTH node project-The largest communication Chinese company and Fortune 200.
Optical parameter | |
Parameter | Index |
optical input power (dBm) | -15 ~ 0 |
loss (dB) | >45 |
optical wavelength (nm) | 1310 ~ 1550 |
optical connector type | SC/APC |
| Link Path parameter | |
| C/N (dB) | ≥ 51 |
| C/CTB(dB) | ≥ 65 |
| C/CSO(dB) | ≥ 62 |
| RF parameter | |
frequency range (MHZ) | 47 ~ 1000 |
flatness in band (dB) | 1.5 |
output level (dBμV) | 46(-15dBm test) 56(-10dBm test) 66(-5dBm test) 70(-3dBm test) 76(0dBm test) |
| RF output reflection (dB) | ≥ 16 |
| RF out resistance (Ω) | 75 |
| MER (dB) | 30(-15dBm test) 35(-10dBm test) 37(-5dBm test) 37(-3dBm test) 36(0dBm test) |

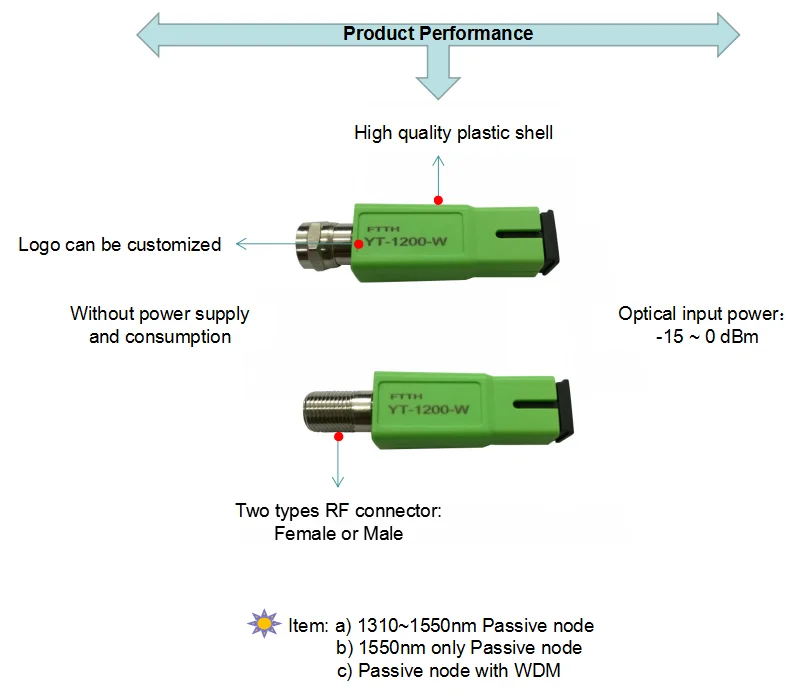

Detail image
Company Information
Yantai Yatai Photoelectricity Equipment Co.,Ltd was founded in 1997. We are a hi-tech enterprise engaged in research, development, production and sale of optoelectronic products, with advanced proprietary intellectual property rights. 150 workers,1000 square meter non-dust workshop, 20 years experience, many domestic and overseas government projects for CATV, ISO certificated, this is how we keep good quality and reliable cooperation for global valued customers.

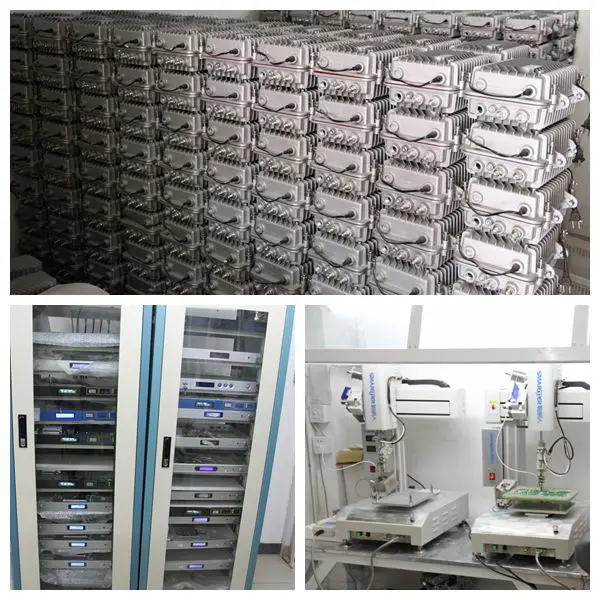

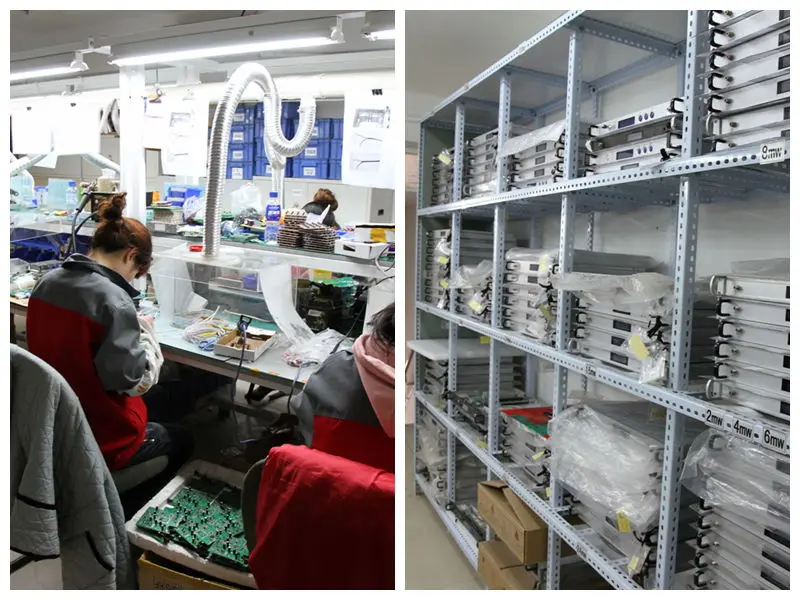

Workshop
Packaging & Shipping
How to contact us?
