TPR сырье два рулона резиновой открытой смесительной мельницы с ISO , CE , SGS

Описание и отзывы

Характеристики

Basic Info

Model No.: XK-550-22                                               Warranty: 1 Year

Control Type: PLC                                                      Automatic Grade: Automatic

Power Source: Electric                                                Type: Open Mixing Mill

Main Motor: TECO Motor/TATUNG Motor              Gear Reducer: Hard-tooth Surface Gear Reducer

Low-voltage Apparatus: Omron/Schneider                 Bearing: Sweden Imports

Frequency Converter: Shihlin/ Delta                           PLC Soft Control: Mitsubishi

Safty Devices: The Roller Adopts 360 Degrees Emergency And Reverse braking device.

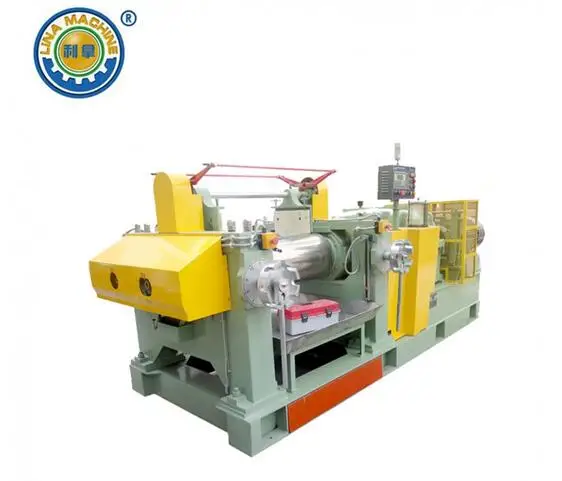

TPR Raw Material Two Roll Rubber Open Mixing Mill with  ISO , CE , SGS

TPR Raw Material Two Roll Rubber Open Mixing Mill is used in many kinds of materials just like NBR, SBR, PP, EVA. The Two Roll Mill is the most dangerous machine in the rubber industry, LINA keep developing and improving the safety system for Water Cooling Open Mixing Mill. The main parts of LINA Rubber Open Mill are imported from Germany, Japan and Taiwan. The design of LINA Two Roll Open Mill takes the lead in China`s rubber and plastic machinery industry. High precision and high safety are LINA`s Rubber Two Roll Milling Machine`s main advantages. PLC intelligent soft control system is easy to import or export data and record. Extremely accuracy in control and measurement of mixing temperature and ratio.The roller adopts 360 degrees emergency and reverse braking devices, infrared automatic detection and ergonomics security to ensure operator`s safety.

Characteristics of TPR Raw Material Two Roll Rubber Open Mixing Mill

 Excellent appearance: LINA new design laboratory roll milling machinewith comprehensive optional functions and securedevices, which ensure the accuracy of formulaand high efficiency.

Safe guaranty: The roller adopts 360 degrees emergency and reverse braking devices, infrared automatic detection and ergonomics security to ensure operator`s safety.

Intelligent operation: LINA Lab Two Roll Open Mill for product test PLC intelligent soft control system is easy to import or export data and record. Extremely accuracy in control and measurement of mixing temperature and ratio.

PLC intelligent control system: 1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code. 2. The control system can be set up to 20 mixing steps, save 20 recipe spaces. 3. The control system is capable of remote importing of the process recipe and data monitoring, and communicating with MES via Ethernet communication interface. 4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.

Specifications of TPR Raw Material Two Roll Rubber Open Mixing Mill

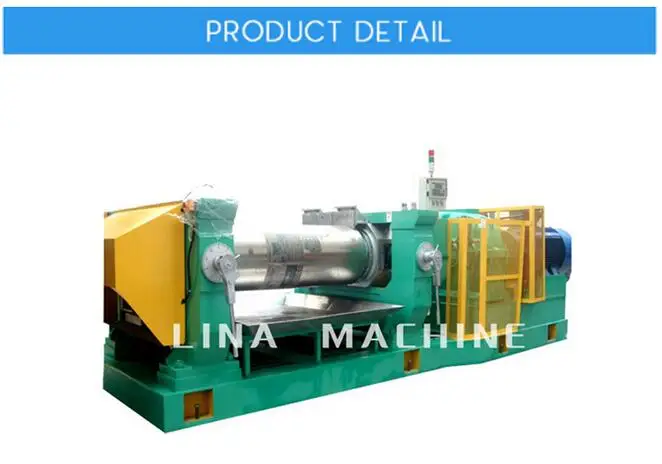

Details of TPR Raw Material Two Roll Rubber Open Mixing Mill with  ISO , CE , SGS

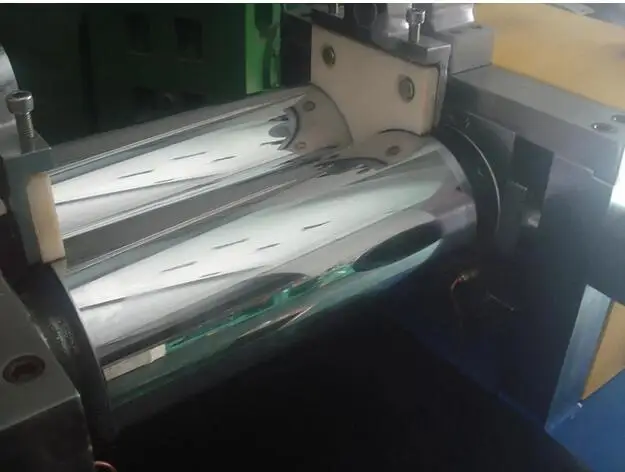

Roller of the open mixing mill

LINA Open Mill New Safety System

1. Infrared Sensor: A infrared sensor device for braking is installed to keep the operator's body and the running Two Roll Open Mill in a safe distance. Many unexpected accidents on the Open Milling Machine are caused by causal and incorrect operations, this infrared sensor is designed to rule the operator's basic actions and protect the user from the roof of the danger.

2. 360 Degrees Emergency Braking Button: Based on human engineering, this safety device is designed to protect the user when an emergency happened. This technology has applied China's National Patent. When touching the button, the rollers will stop immediately and reverse 1/4 round to maximize the protection.

3. Knee-Hitting Safety Device: According to human engineering, this device is installed to brake the rollers when an unexpected emergency occurred.

4. Hand-Pressing Safety Device: This is the basic safety device installed on all types of Rubber and Plastic Two Roll Mill. Once press the button, the rollers will stop immediately and reverse about 1/4 round.

5. Safety Cover: This safety cover is installed on the top of the rolls, to ensure the user's safety when adding other solid, powder or liquid additives into the mixing materials.

Intelligent control panel and PLC control system

1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.

2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.

3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.

4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.

Are you factory or trading company?

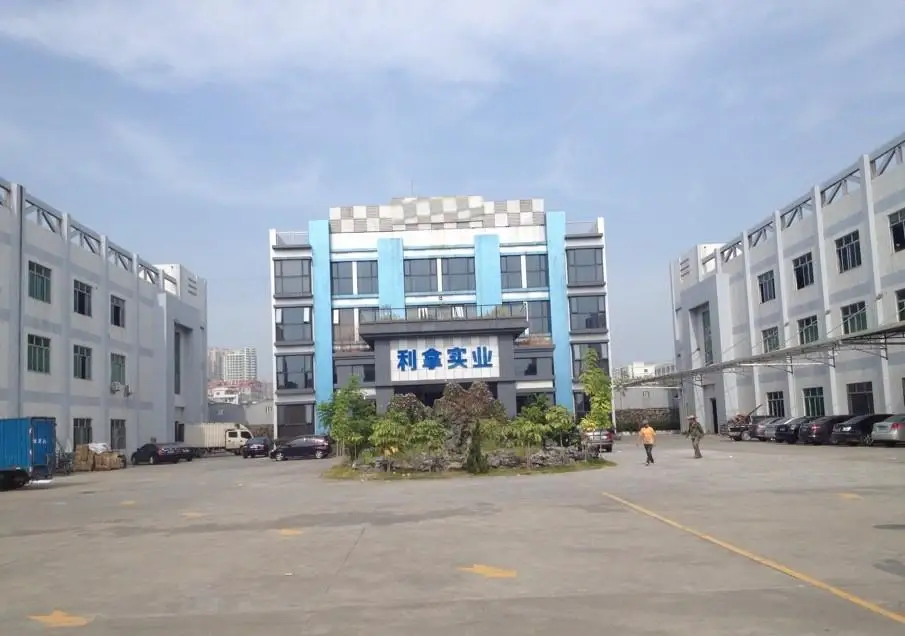

LINA Machinery has been engaged in Rubber & Plastic Mixing Machine for many years. We have workshop and R&D department.

What about the operational guideline?

Training of customer's operator and maintenance personnel and long-term technical consultation is provided.

How about the warranty time?

One year's non-charge warranty period is provided for units in normal operation and long-term spare parts/component are available.

Do you offer the customization of the machine?

Certainly, LINA will give you the most proper recommendation and setting according to your materials and demand.

 Looking for ideal Mass Production Cooling Graphener Mixing Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Mass Production Cooling Type Mill are quality guaranteed. We are China Origin Factory of Mass Production Cooling Type Graphener Machine. If you have any question, please feel free to contact us.

Product Categories : Two Roll Mill > Cooling Type Two Roll Mill
