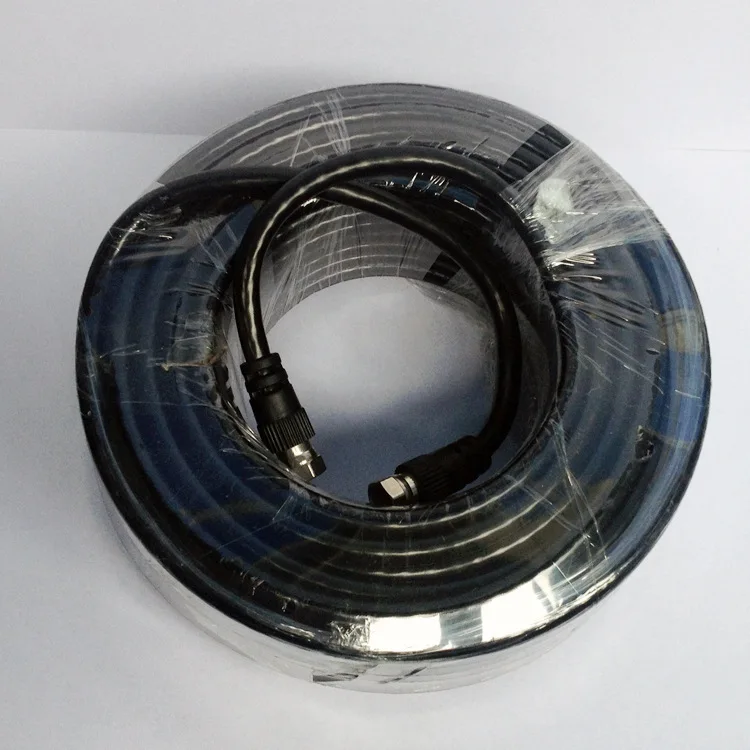

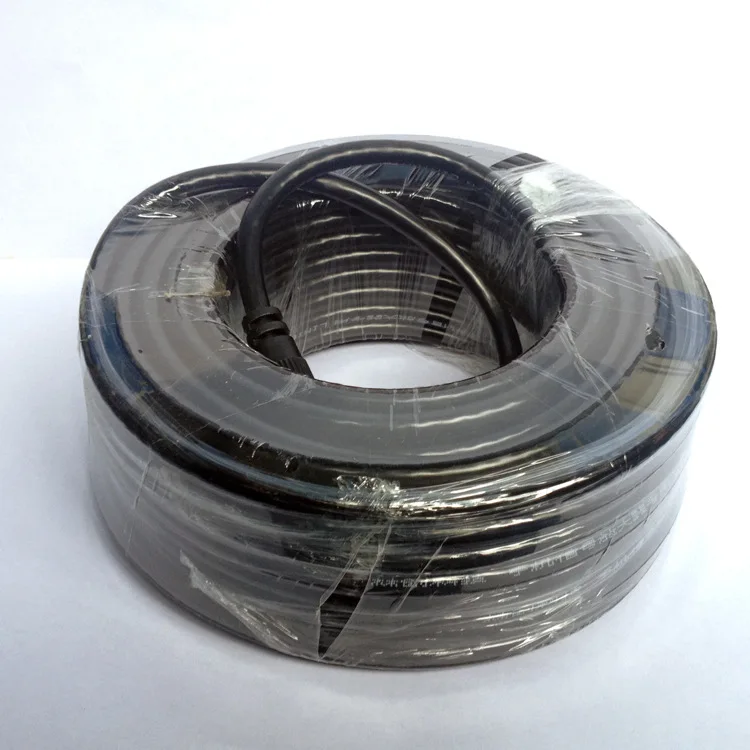

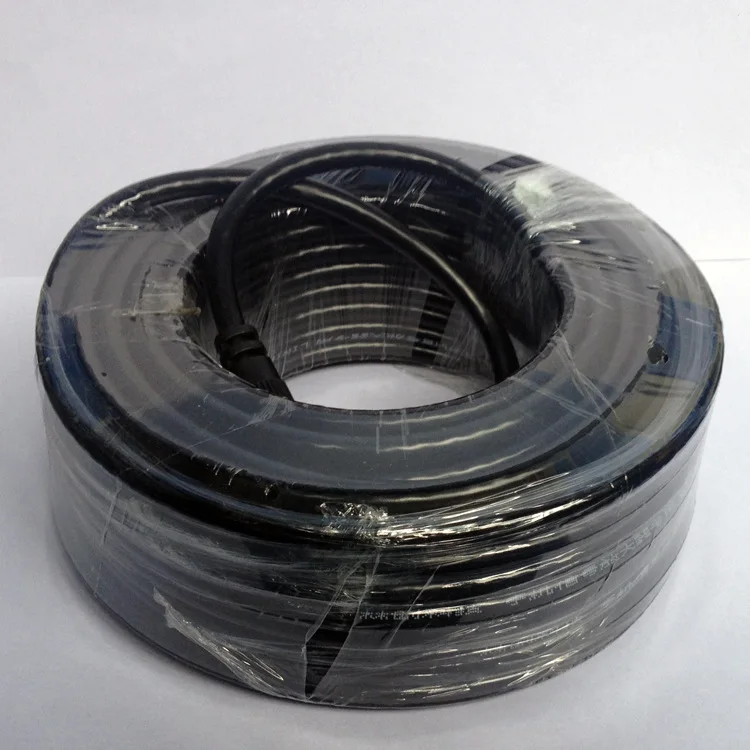

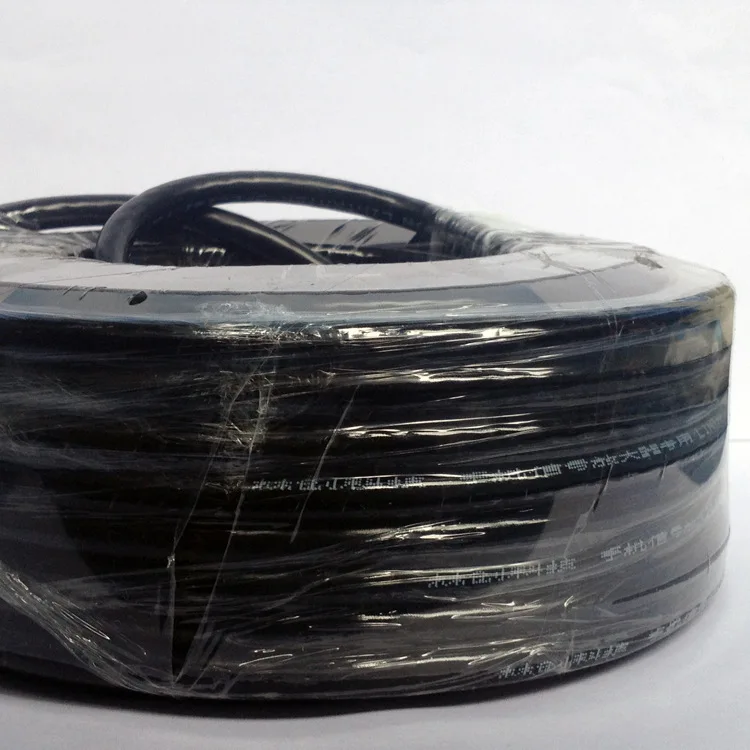

Коаксиальный кабель RG 6 с разъемами F для спутникового ТВ-приемника
- Категория товара: Satellite TV Receivers >>>
- Поставщик (Оптовый магазин): Anhui,Bowei,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

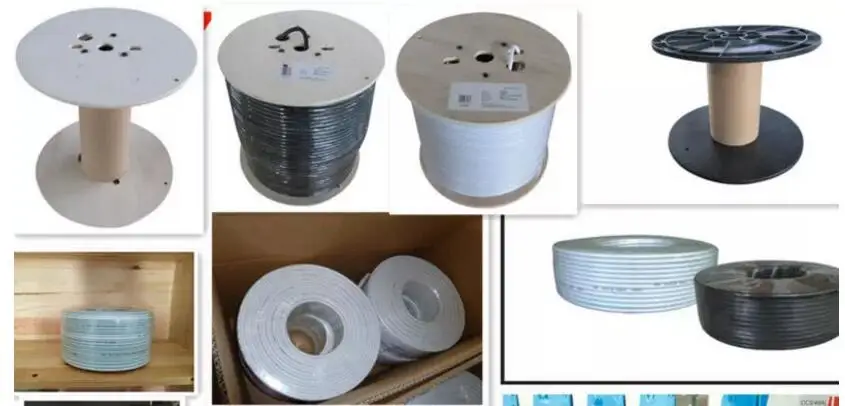

RG6 High Quality 305M Wooden drum coaxial cable
we cancustomize for your requirements , offer OEM and ODM
Product Description
Specifications:
1. Conductor: Solid Copper or TCu or CCA, 0.08mm----1.66mm
2.Insulator: PE
3.Shields: AL-Foil and Metal Weaves
CATV Coaxial Cable
Features:
1.Fast and Reliable Connection
2.Durable and Reasonable Design of the Structure Realizes the High Performance
3.Wide Frequency Range
4.Fine Shields Protect the Data Transmission and Reduce the Interference
5. New Design of the Jacket Shows the Sense of Technology and Smartness
6.Jacket Color in Lucidity, Lucidity Blue , Black,White or as per Your Requirement
Applications:
1.CATV Systems
2.CCTV Monitoring Systems
3.Computer Network Systems
RG Coaxial Cable:
Construction and Dimension | |||||
Item | RG59 | RG58 | RG6 | RG7 | RG11 |
Material of inner conductor | Cu | Cu | Cu | Cu | Cu |
Diameter of inner conductor(mm) | 0.81±0.02 | 19*0.20±0.01 | 1.00±0.02 | 1.29±0.02 | 1.63±0.02 |
Material of dielectric | Foam PE | PE | Foam PE | Foam PE | Foam PE |
Diameter of Dielectric(mm) | 3.66±0.15 | 2.95 | 4.57±0.01 | 5.72 | 7.11 |
Material of Shield | ALfoil+Al brading | BC/TC braiding | ALfoil+Al brading | ALfoil+Al brading | ALfoil+Al brading |
Coverage | 40%--95% | 95% | 40%--95% | 40%--95% | 40%--95% |
Diameter of 1st outer conductor (mm) | 3.90 | - | 4.90 | 5.90 | 7.52 |
Diameter of 2nd outer conductor | 4.12 | -- | 5.00 | - | 7.80 |
Material of Jacket | PVC\\PE | PVC\\PE | PVC\\PE | PVC\\PE | PVC\\PE |
Diameter of Jacket | 6.30 | 4.95 | 6.90 | 8.10 | 10.16 |
RG6 Cable Materials and other mechanical parameters:
ITEM | RG6SM | RG6S | RG6T | RG6Q |
Center conductor | 1.02mm + 0.01mm | 1.02mm + 0.01mm | 1.02mm+ 0.01mm | 1.02mm+ 0.01mm |
Dielectric | 4.75+ 0.05mm Foam PE | 4.75+ 0.05mm Foam PE | 4.75+ 0.05mm Foam PE | 4.75+ 0.05mm Foam PE |
Shield | Bonded AL Foil | Bonded AL Foil | Bonded AL Foil | Bonded AL Foil |
Braid coverage | 60% | 60% | 60% | 60% |
Shield | Al Foil | Al Foil | ||
Braid coverage | 40% | 40% | ||
Jacket | 6.91+0.05mm PVC | 6.91+0.05mm PVC | 7.06+0.05mm PVC | 7.54+0.05mm PVC |
Messenger | 1.30mm |
Detail picture show:

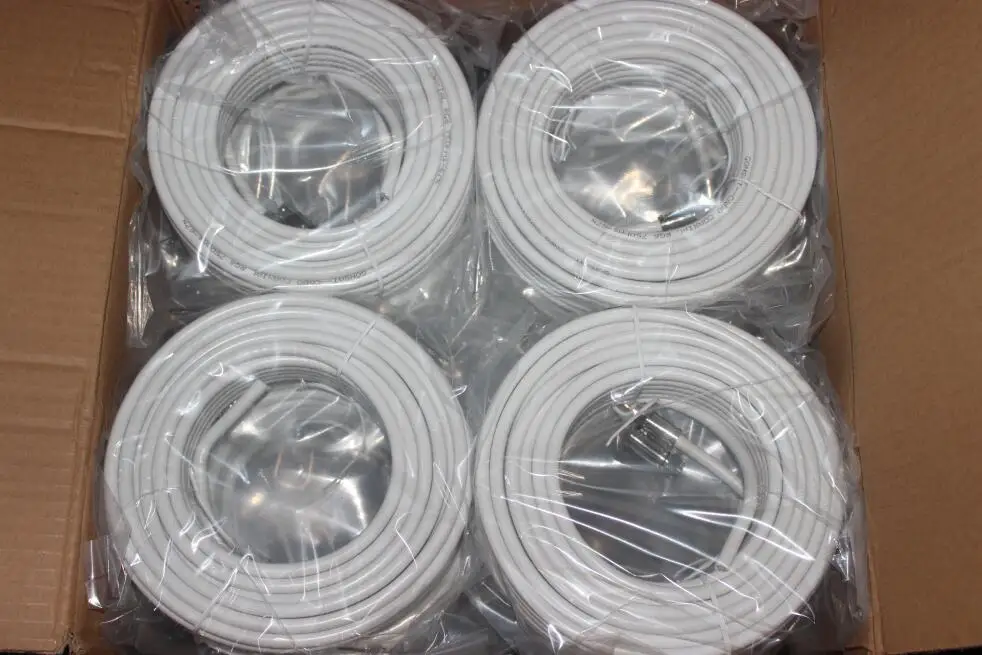

Packing&Shipping:
Packing: Polybag,PE bag,Color bag,head card,blister card,standard export outter carton
Shipping: International express,sea or air shipment
Why choose us:
1. - Prompt Delivery
2. - Advanced Equipments
3. - OEM&Customization
4. - Rich Product Line
5. - Strong R&D Capability
Payment Way:
We accept T/T, Western Union, Paypal, L/C ....(different payment way in different area)
