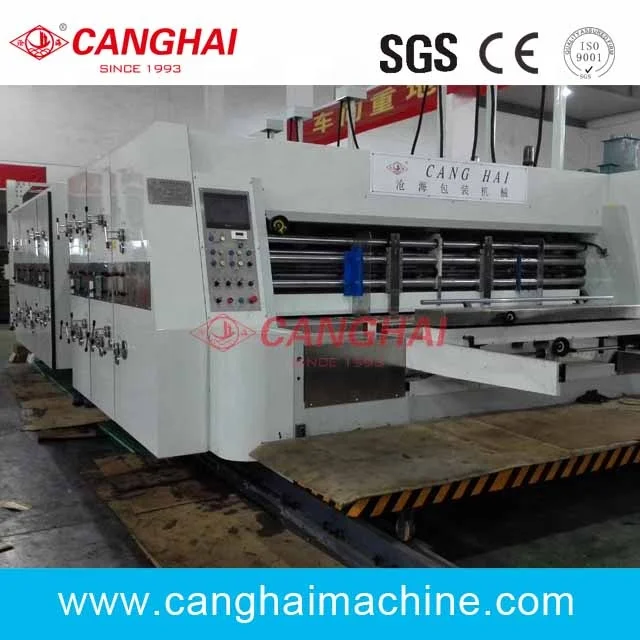

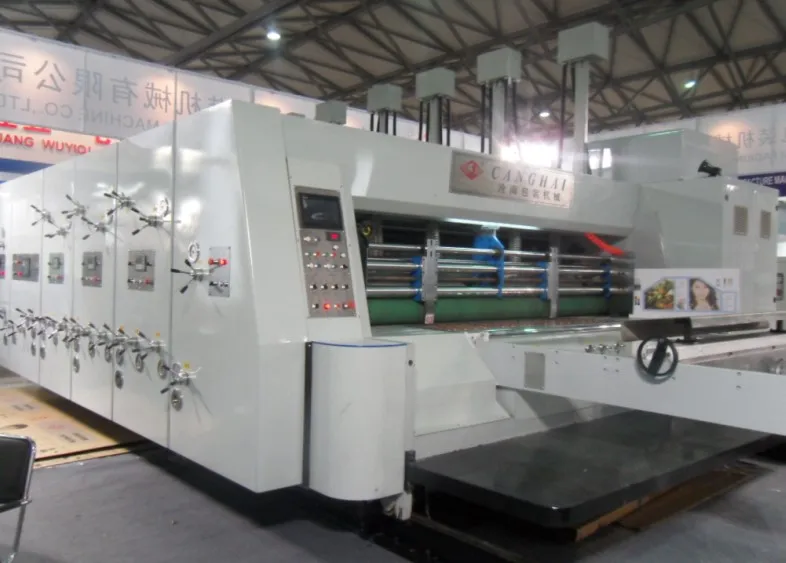

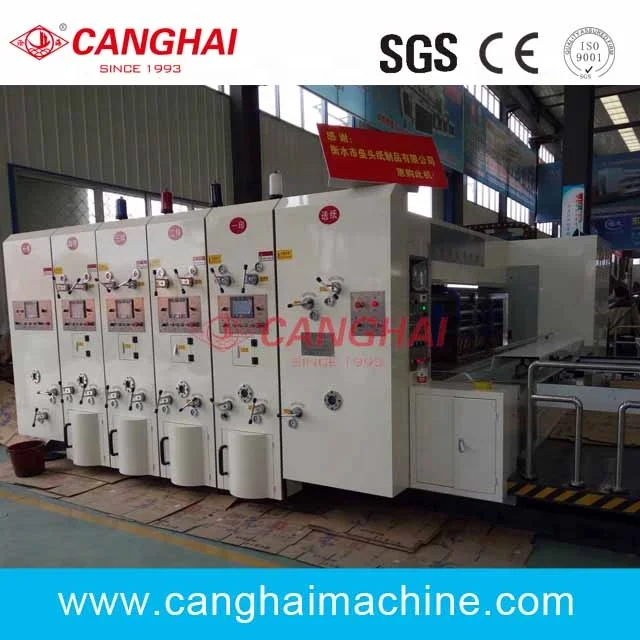

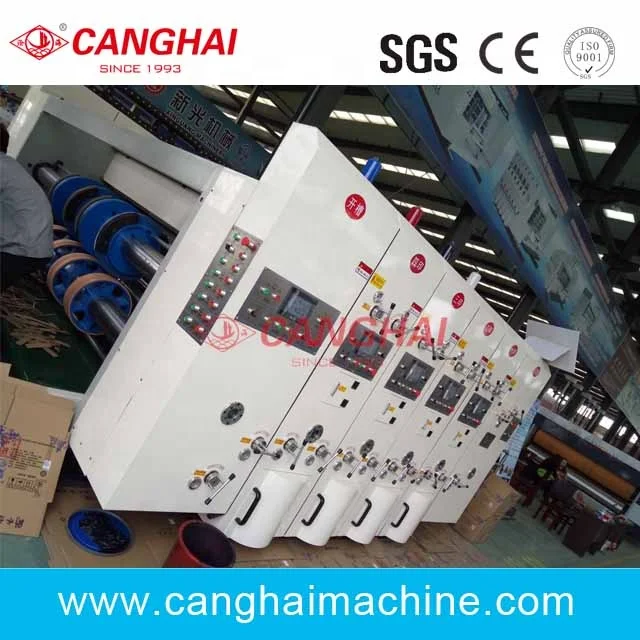

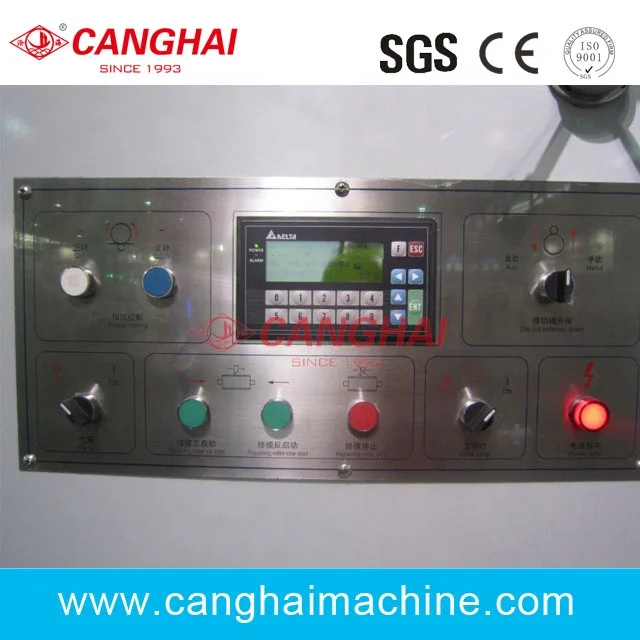

Automatic Front Edge Flexo Printing Slotting Die Cutting Machine

1. Adopt high speed front edge design, CAM box and gear transmission can make sure the high precision of delivery paper board.

2. This machine used three roll sending the paper board, running in stable, ac curate

3. Absorb fan is controlled by mechanical valve and press to suitable for different paper board.

4. Front and size baffle can be adjusted easy.

5. Height of back paper bearing shelf can be adjust free. And it can move front and backward easy.

6. With polyurethane PU delivery gear, with Super wear resistance and durability

7. The PU front paper feed wheel core adapt precision alloy, long service life, high precision

8. Can be send paper board skip.

9. Infrared photoelectric counter, the order processing quantity, display production quantity

1.High precision dynamic balance reticulate roller, line printing effect 180,200,220 by choose.

2.The print phase is with 360 degree adjustment. print phase roller could be adjusted horizontally ranging from +10mm to -10mm

3.The interval of transmission roller, paper press roller, and glue roller adopt the self-lock structure.

4. Brush plate reset, printing ink inspection, fission brake location and water ink clean mechanism.

5. print roller adopt option glue plate or handing plate, has rapid handing plate mechanism.

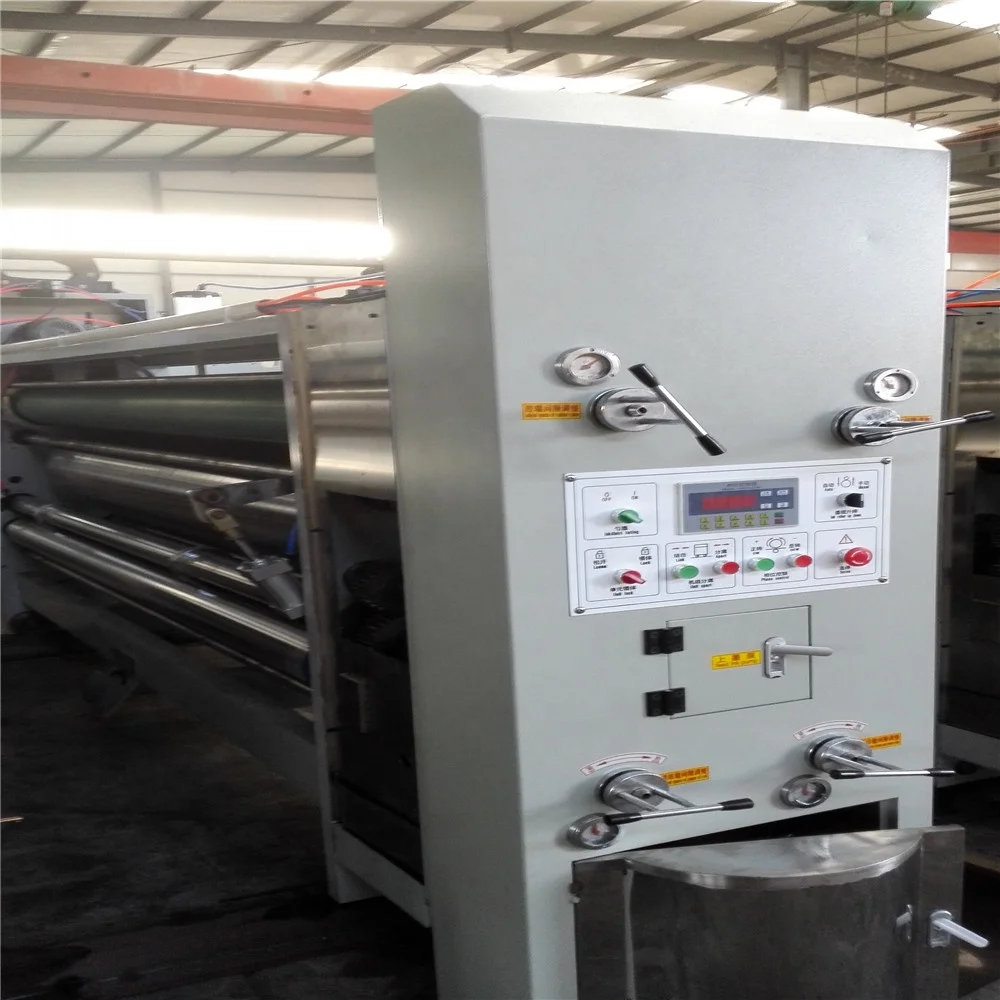

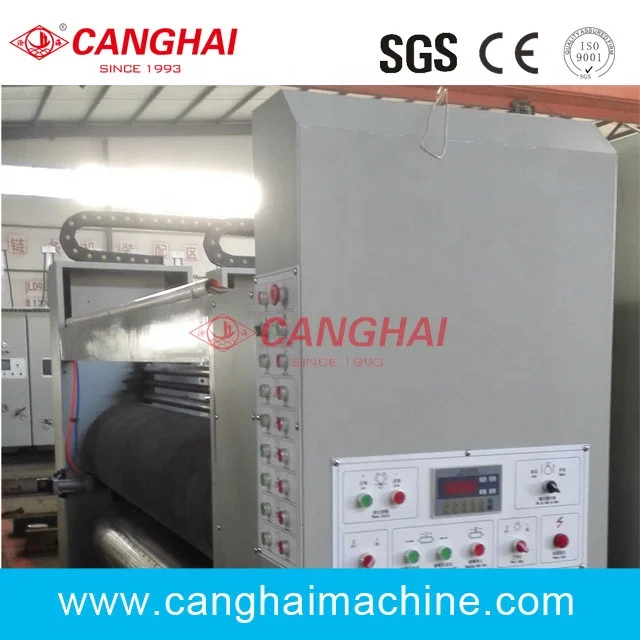

Printing unite

1) The diameter of printing roller is  600 mm (including plate thickness will be 610mm).
2) Printing roller is made in high quality thick-walled seamless steel roll, surface conditioning, grinding, hard chromium plating.  balance correction, smooth operation.
3) hanging tube axis, side lock, so hanging on the bit accurate, convenient and fast.
4) full-groove peg board for hanging bar 10mm.
5) handling print, the foot switch is convenient and flexible electric control reversing.
2,  the embossing roller
1) thick-walled seamless steel pipe, surface grinding, hard chromium plating.
2) balance correction, smooth operation.
3) Gas adjustment between rollers adopt self-locking gear box control,show in dial ranged from 0 to 12mm
3, ink roller

1) thick-walled seamless steel surface after grinding the surface of ground, pressed textured, hard chrome plating.
2) the same network, even on the ink, printing plates and rubber roller to extend service life.
3) pneumatic feeding system with automatic lifting device (network printing and print exposure roll down, stop printing, anilox roller and plate separation increased).
5) The roller gap structure manually adjust the range of 0-12mm.
4 ink distributing rollers
1) High quality seamless steel pipe wrapped durable, corrosion resistant, wear-resistant rubber.
2) special high rubber roller grinding, diameter 2.2-2.5 mm, transfer ink effect.
3) rubber roller gap adjustment lock structure by hand, adjust the range of 0-12mm.
5, Phase adjustment
1) The planetary gear structure.
2) printing phase digitally controlled by computer and electric adjustment of 360 ° (run, stop can be adjusted.) the accuracy is 0.15mm.
3) print roller bits used to adjust the frequency control. Zero and the adjusted version of fast, high precision tune version.
4) the use of electric mechanical horizontal adjustment phase, the control of ± 5 mm.
5) The whole auto-zero in each group, the accuracy is 0.5mm, and then automatically adjusts the phase, try one, and then enter the number of fine-tuning, greatly reducing the waste of cardboard
6, ink loop structure
1) pneumatic diaphragm pump for ink stability, operation and maintenance simple.
2) The ink filter, filter impurities.
7,  the printing phase fixtures
1) Electromagnetic clutch brake type brake mechanism, when the unit adjusting the phase separation, the brake mechanism limits gears to keep the original tooth position of fixed points.
8,direction of rollers adjusted by electrical ,ranged ± 10 mm.

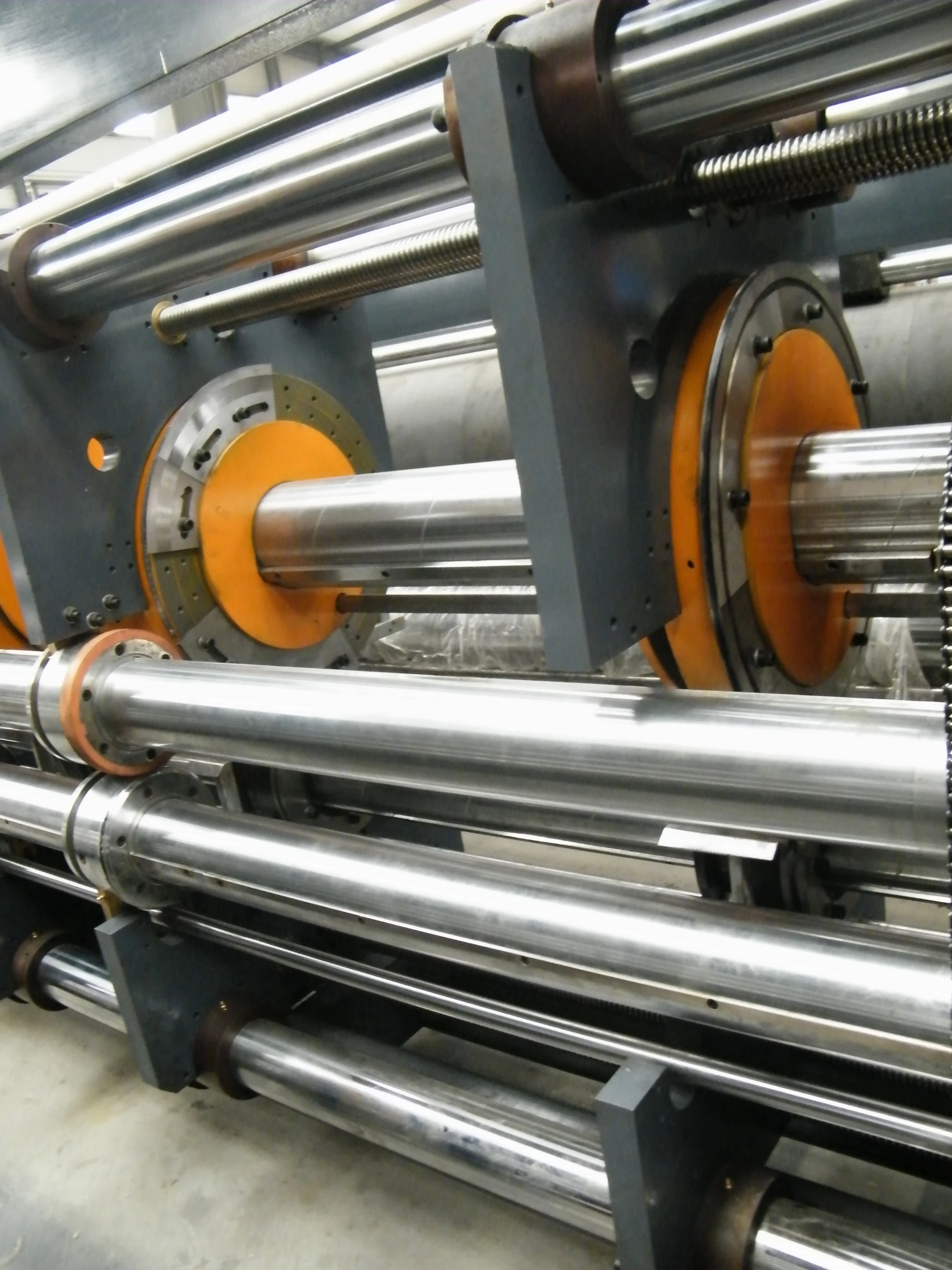

Slotter Unit electic adjust slot

Only the up part with the link plate, when you adjust the up knives, it adjust by moving the link plate, when you adjust the down knives it as this: up knives contact with down knives, then moving the link plate, the up knives will move, the up knives drive the down knives move.

The slot knife thickness 7 millimeter,manfactured by high quality ally,tooth profile cutting sharp,the abration resistance high.

2.The slot knife phasing adjustment organization ,the frequency changer the brake,static 360 degree adjustments.

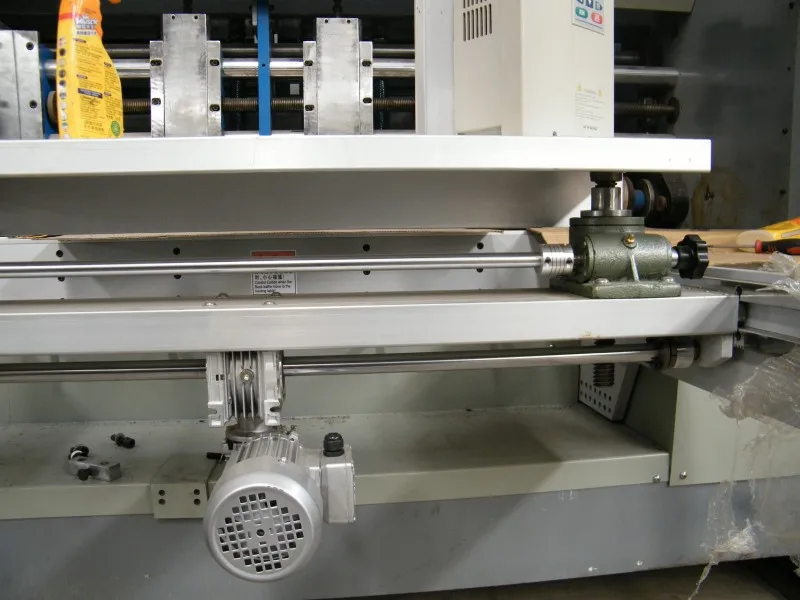

3.The slot knife lateral movement uses the electrically operated control,the adjustment is quick and accurated.

4.Regards the user to need to be possible to match the punch device..

5.Slot department are added the prepress rolling set ,improve the cardboard resistant to compression ability.

6.Compressing wheel disk are added on the press line and cut angle seat, to guarantee the papers junction are smooth, easy to glue box.

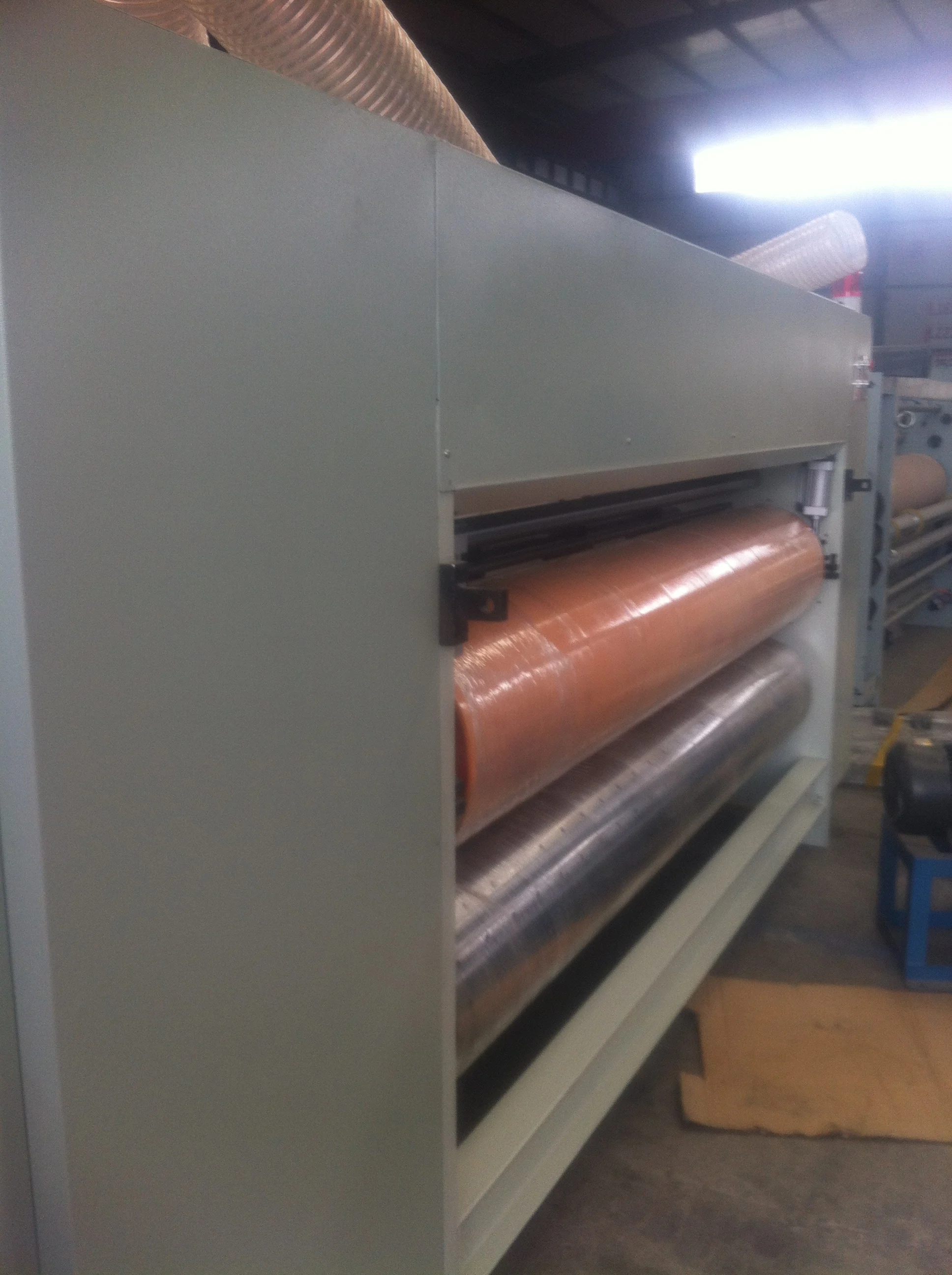

 Die cutting machine

After install the wooden die, if you like this wooden die, you can send us the drawing we can produce for you(this wooden die price not including in the machine price)

1.Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.

2.Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die cut, this can lighten machine load and increase rubber roller and die knife life.

3.Matching with feeding system, it with auto up and down device, the mould roller will up when feeding paper. the mould roller will down when stop feeding paper. To make sure every paper die cut correctly.

4.The mechanical transmission rubber roller move 40mm in left and right side. It also with wear and tear regular could increase the life of rubber roller.

5.Die cut phase adopt phase device and electric digital 360 degree adjustment.

6.Machine with rubber amend device, the rubber roller can be used after many times amend.
