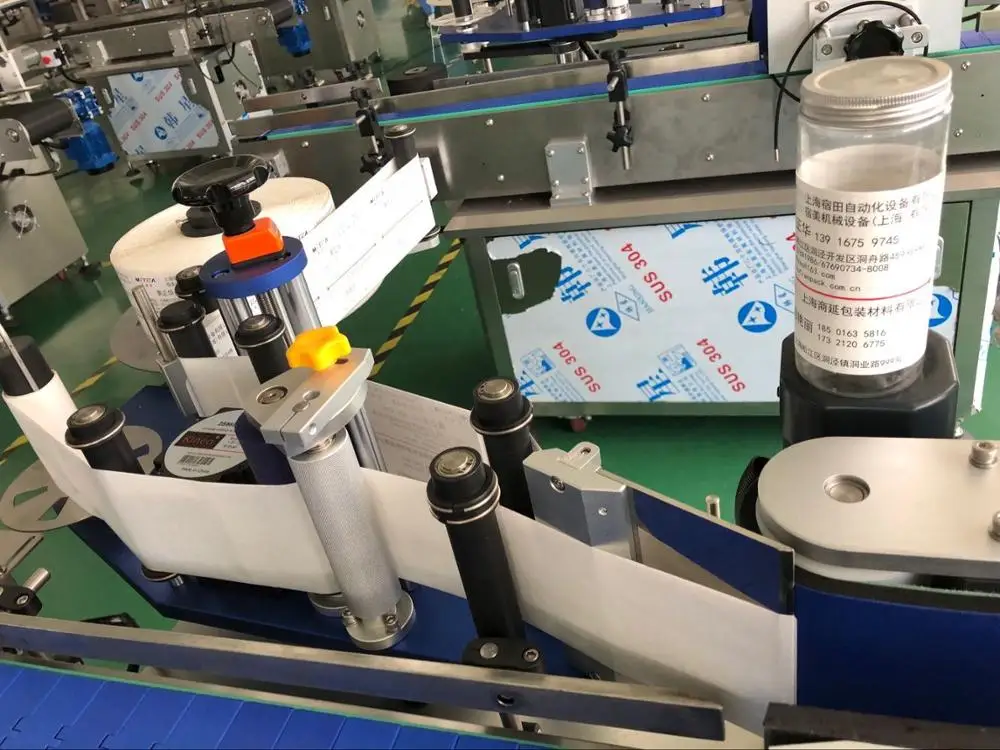

Автоматическая машина для маркировки круглых бутылок
- Категория товара: Машины для этикеток >>>
- Поставщик (Оптовый магазин): Shanghai,Tops,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Automatic Round Bottle Labeling Machine
Descriptive abstract:
TP-DLTB-A is economical, self contained, easy to operate, equipped with auto teach programming touch screen. Built in microchip storing different job setting makes fast and easy changeover. This automatic labeling system is ideal for cylindrical container with diameter from 30mm – 100mm. (above size could be customized made)
Key Features:
l Labeling speed up to 200 CPM
l Touch Screen Control System with Job Memory
l Simple Straight Forward Operator Controls
l Full-set protecting device keep operation steady and reliable
l On-Screen trouble shooting & Help Menu
l Stainless Frame
l Open Frame design, easy to adjust and change the label
l Variable Speed with stepless motor
l Label Count Down (for precise run of set number of labels) to Auto Shut Off

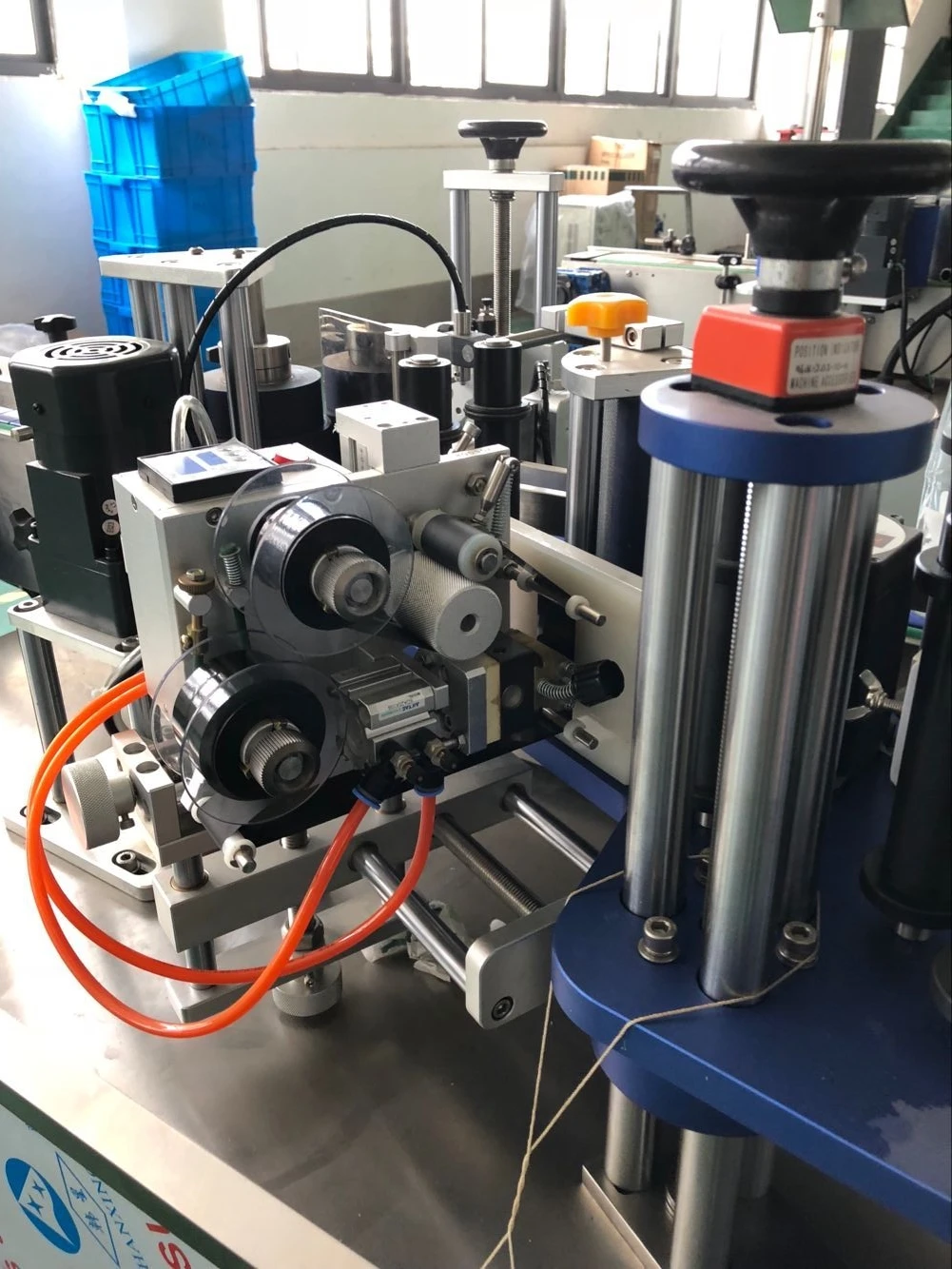

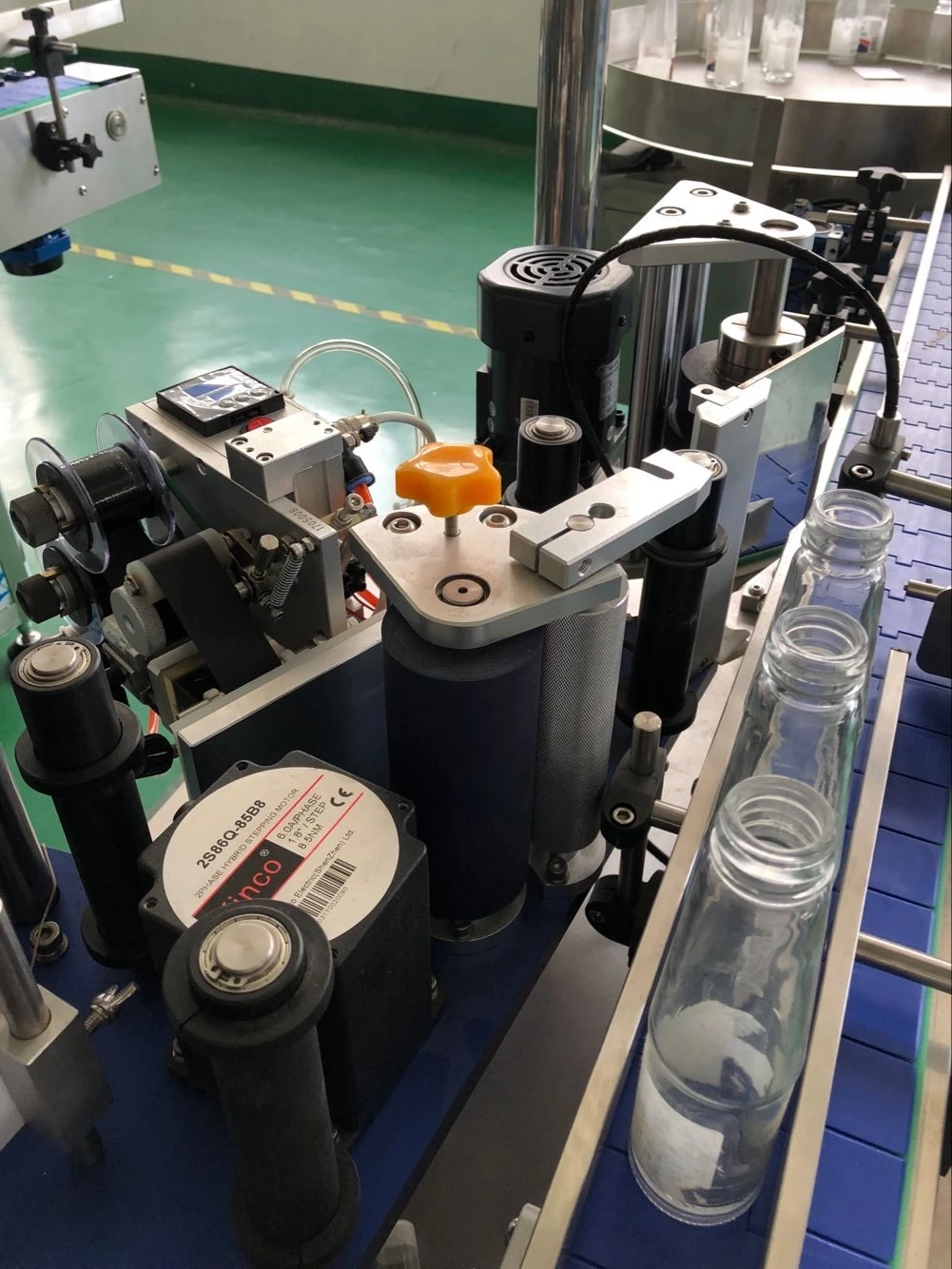

l Stamping Coding Device attached
Specifications:
Speed | 30-200 bottles/minute |
Bottle diameter | 70~120 mm |
Label width(max) | 130 mm |
Label length(max) | 280 mm |
Power source & consumption | 0.3 KW, 220v, 1 Ph, 50-60HZ(Optional) |
Dimensions | 1600mm×1400mm×860 mm ( L × W × H ) |
Weight | 250kg |
Working direction | Left → Right (or Right → Left) |
Labeling speed(max) | 25m/min |
Industry Type(s)
l Cosmetic /personal care
l Household chemical
l Food & beverage
l Nutraceuticals
l Pharmaceuticals
Samples

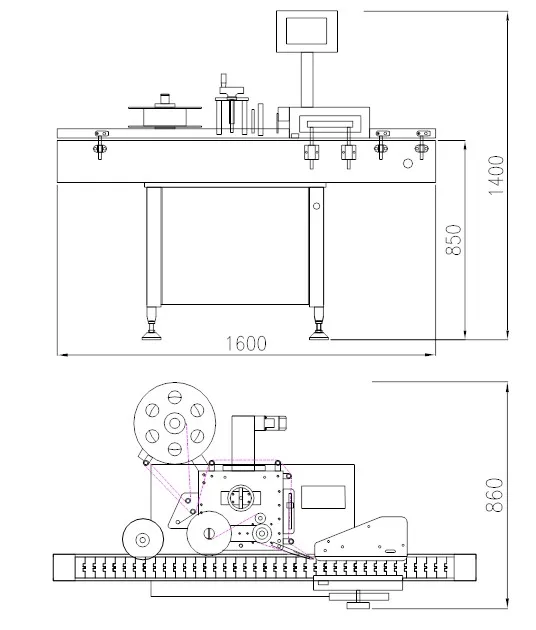

Front and top view

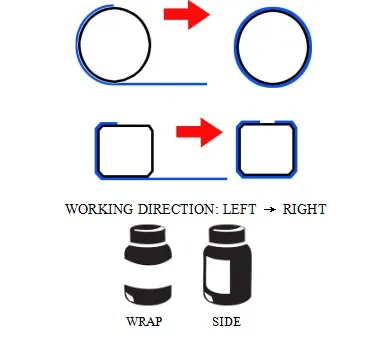

Working direction:

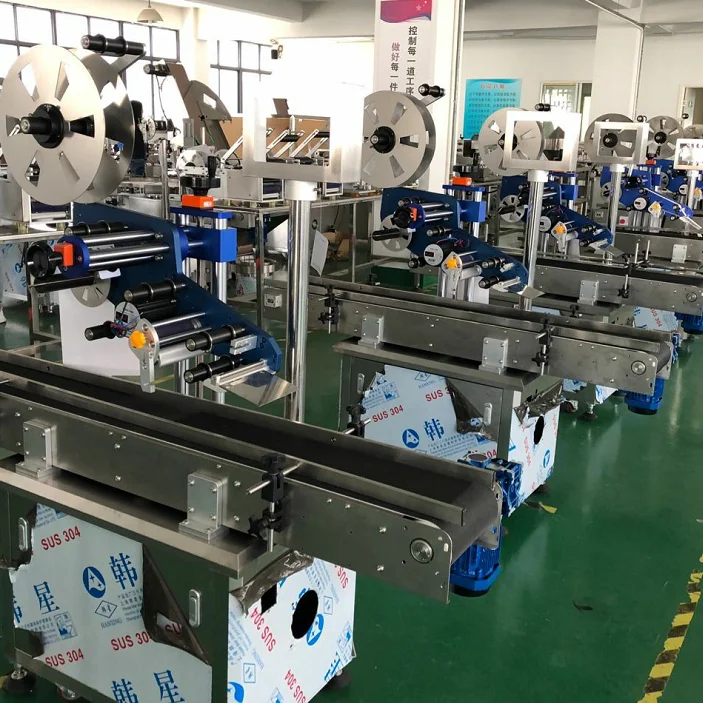

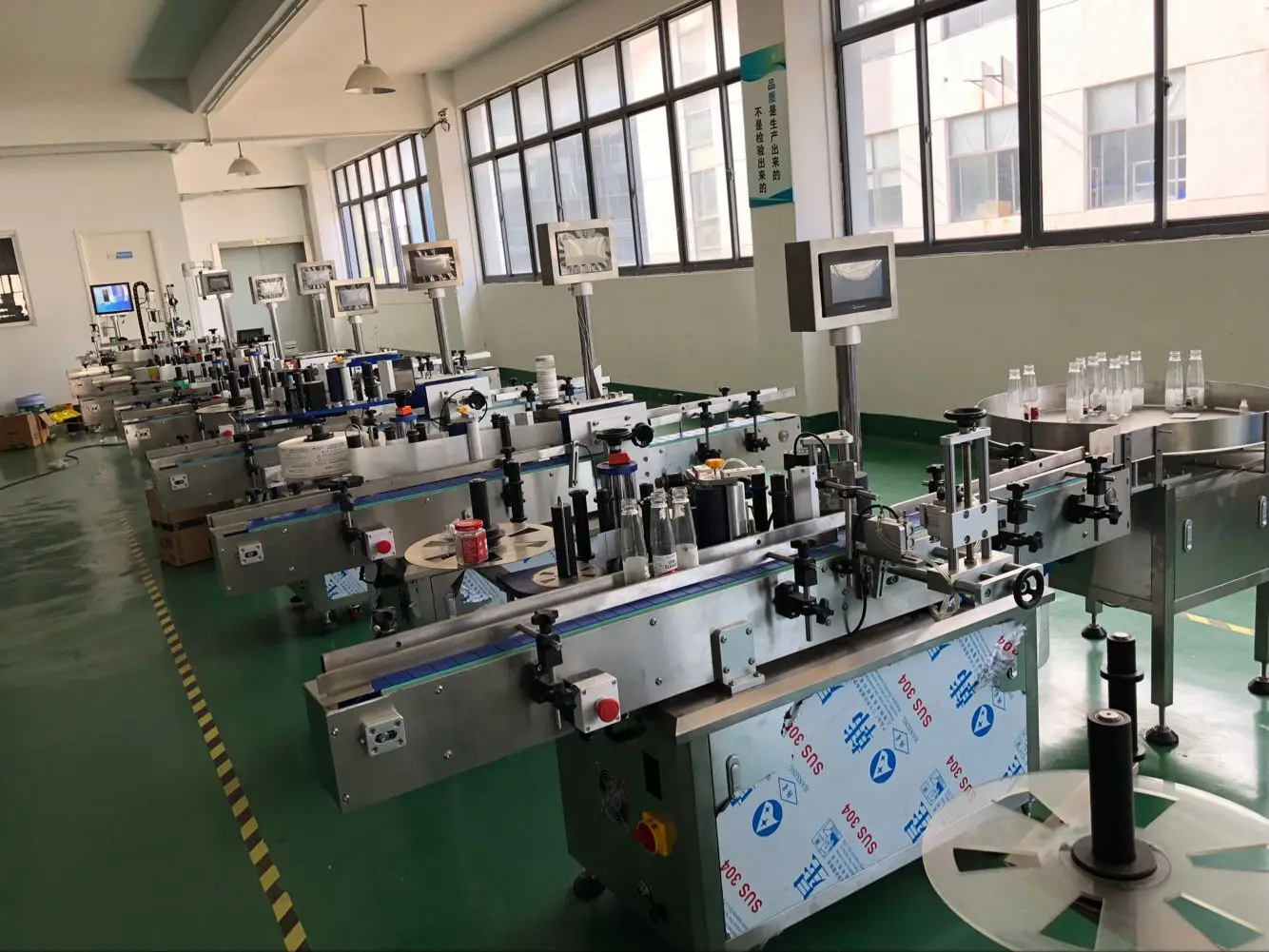

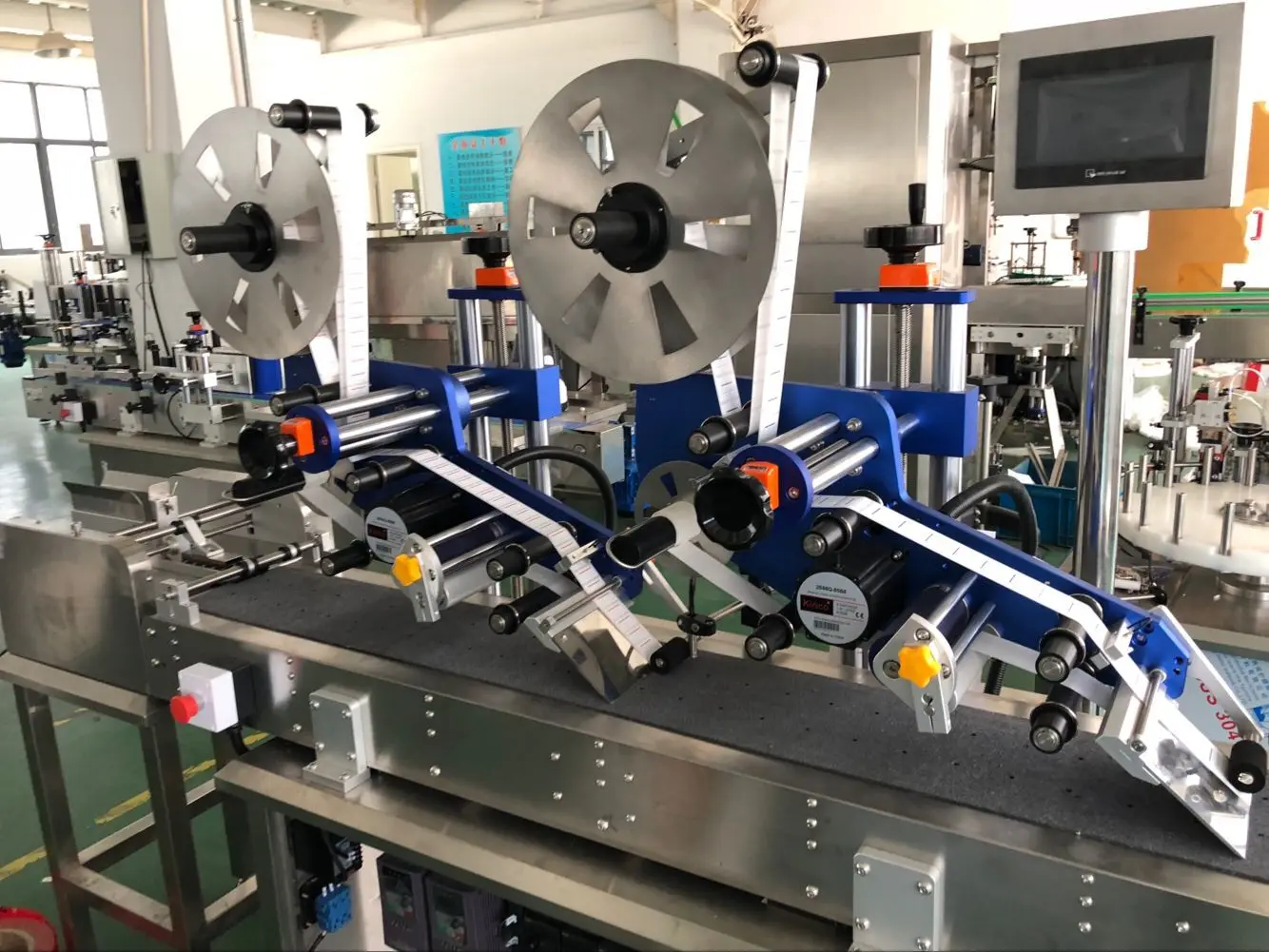

Our showroon:
