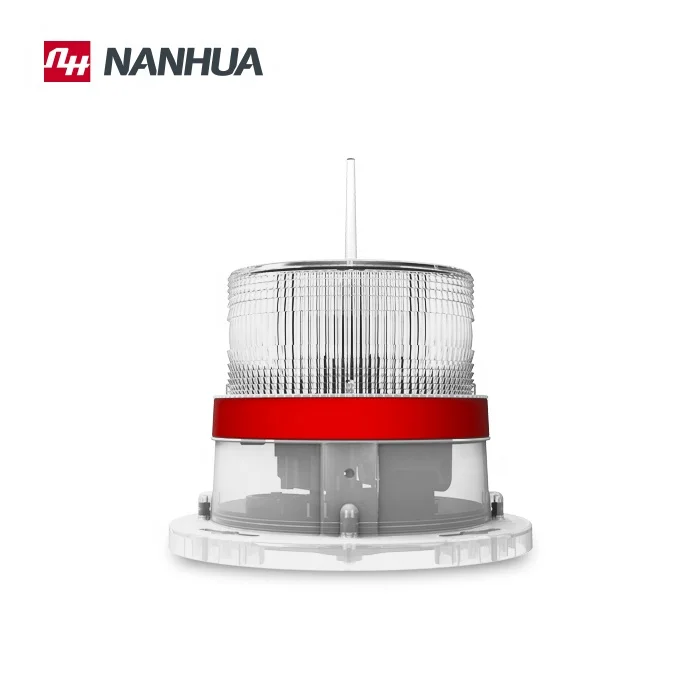

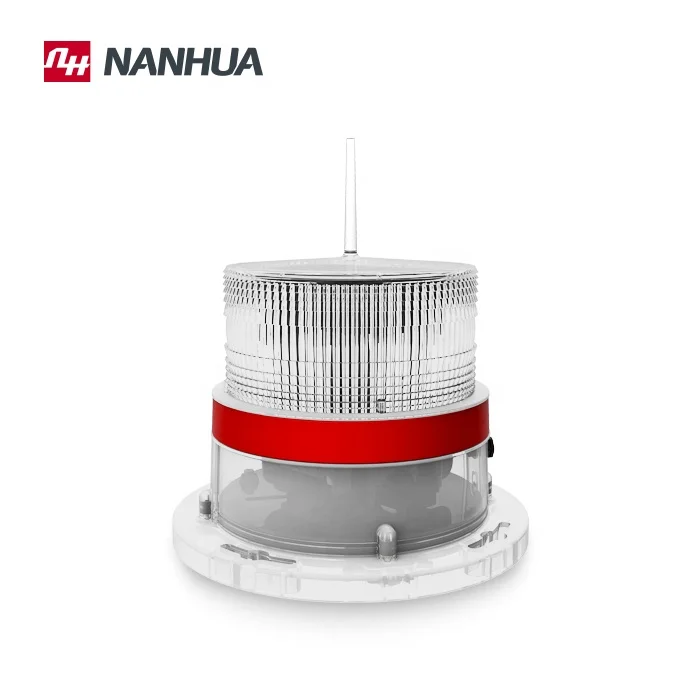

ML201A sola navigation beacon light








solar navigation light



Product Description


ML201A buoy lanterns


Application



  • Ideal for hazard marking, aquaculture, navigation, perimeter lighting & a host of other applications.




Major functions&Features




  • GSM remote control.




  • GPS ( optional).




  • Based on LED technology, its color complies to IALA Recommendations E-200-1.




  • Lamp shade, lamp body integration design, IP68.




  • PC housing, UV resistance, shockproof and corrosion resistance.




  • With bird spike.




  • 256 kinds of flashing rate are available, comply with IALA.




Specifications









































































































Light Characteristics



Intensity



10cd



Visible Range



>2 .5nm



Available colors



Red, amber, green, blue, white



Vertical degree



>9 °



Horizontal degree



360 °



Light source



LED



LED life



≥100,000 hrs



Electrical Characteristics



Autonomy



>20 days(12hour darkness,12.5%duty cycle)



On/off level



300 lux±100lux



Flashing rate



complies to IALA Recommendations, total 256 available flashing rate(available steady burning)



Power Supply



Solar module type



Multicrystalline



Output



1.8 Watts



Battery type



High grade NiMH-Environment friendly



Battery capacity



3.6V/8 AH



Physical Characteristics



Integrated housing



UV resistance PC



Waterproof



IP68



Weight



1.7 KG



Ambient temperature



-30℃ ~ +70℃



Size



H: 170mm, D: 228mm

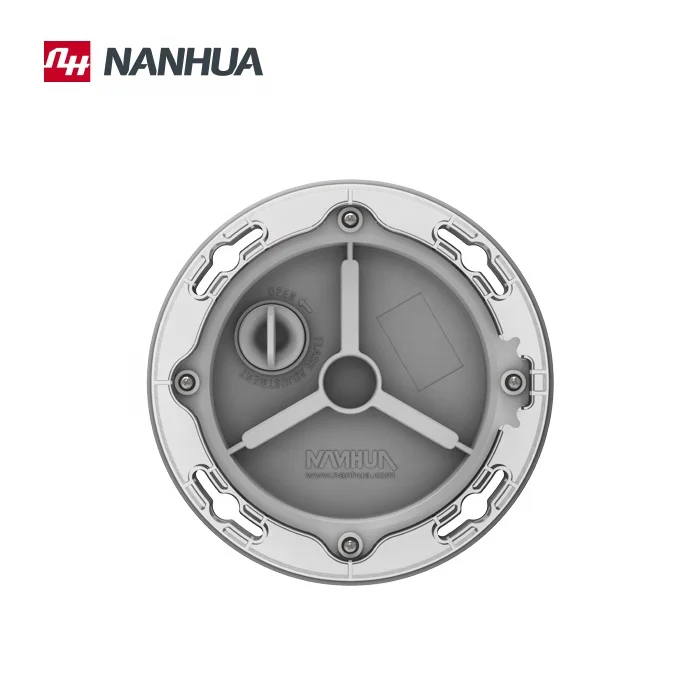

Mounting dimension



Φ200-4XM6



Customized



External power or Infrared control








Installation and operation




  • Solar navigation light must be installed in a place where sunshine can be fully received, to ensure that the solar lights can work continuously.




  • Keep lamps and fixtures installed in the axis perpendicular to the mounting surface, mounting surface should be smooth and have sufficient mechanical strength.




  • If first time using, the light does not burning or weak burning in dark environment, put the solar light exposure to sunlight for 12hours, then it will be normal burning.( When recharging the light, please keep the hand switch on.  If not, recharging is not available)




  • If stored for long periods, manual switch should be put OFF side, and in a low humidity and dry place, every 40 days set the solar lights out exposure under sunlight to ensure the battery capacity. (Please turn on the switch when putting the light in the sun)




  • The light is built in Ni-MH battery. After 450 (15 months) using, the battery capacity will decline to initial battery capacity about 80%, please change the batteries.




  • Any questions in operation please contact us.








Company Information


 NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.





Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.





Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.





NANHUA's products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.









Our Philosophy



NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.



NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.



NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.





Features of Aviation obstacle lights (FAA)







Features of Aviation obstacle lights (ICAO)

































































































Light Type



Colour



Signal type/


(flash rate)



Peak intensity(cd) at given Background Luminance(b)



Day


(Above 500cd/m²)



Twilight


(50-500cd/m²)



Night


(Below 50cd/m²)



Low-intensity,Type A


(fixed obstacle)



Red



Fixed



N/A



N/A



10



Low-intensity,Type B


(fixed obstacle)



Red



Fixed



N/A



N/A



32



Low-intensity,Type C


(mobile obstacle)



Yellow/


Blue



Flashing(60-90fpm)



N/A



40



40



Low-intensity, Type D


(follow-me, vehicle)



Yellow



Flashing(60-90fpm)



N/A



200



200



Low-intensity, Type E



Red



Flashing



N/A



N/A



32



Medium-intensity,Type A



White



Flashing(20-60fpm)



20 000



20 000



2000



Medium-intensity,Type B



Red



Flashing(20-60fpm)



N/A



N/A



2000



Medium-intensity,Type C



Red



Fixed



N/A



N/A



2000



High-intensity, Type A



White



Flashing(40-60fpm)



200 000



20 000



2000



High-intensity, Type B



White



Flashing(40-60fpm)



100 000



20 000



2000
