Линия по производству сварных стальных труб Радиаторы производственная линия машина для испытания
- Категория товара: Pipe Making Machinery >>>
- Поставщик (Оптовый магазин): Cangzhou,Zhiye,Cold,Forming,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

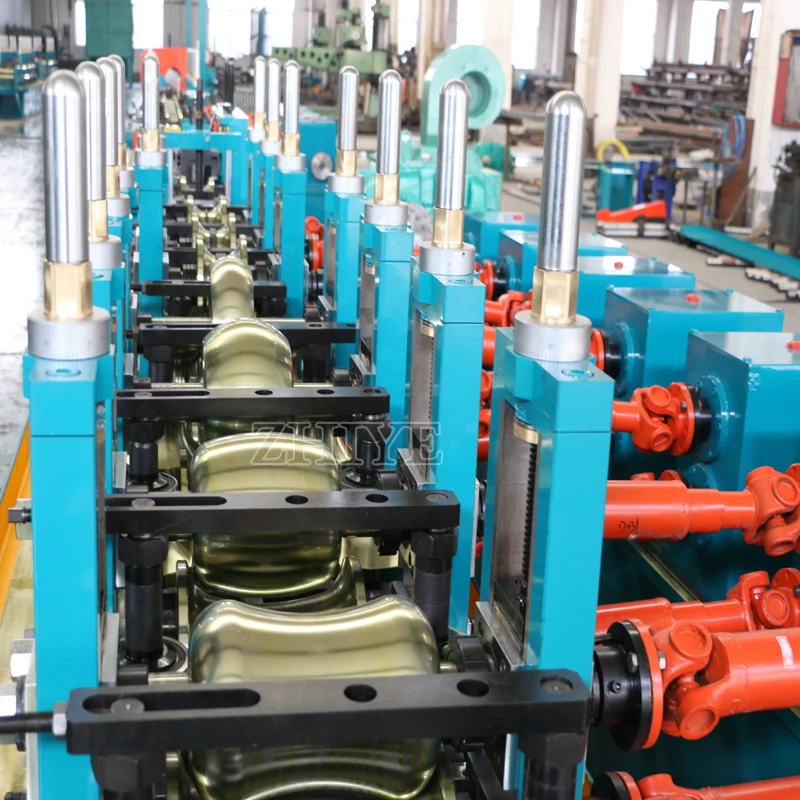

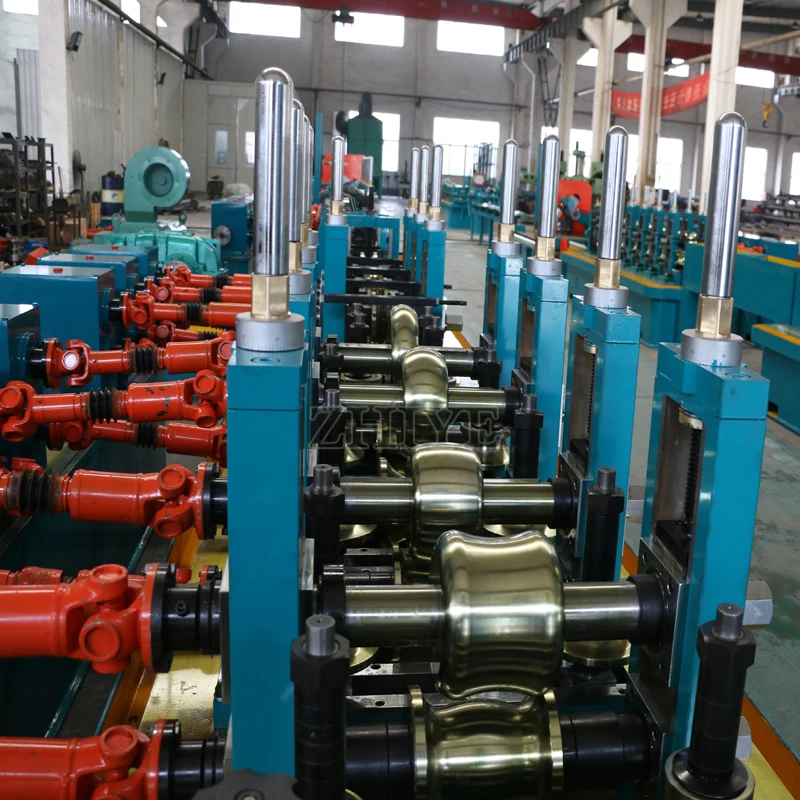

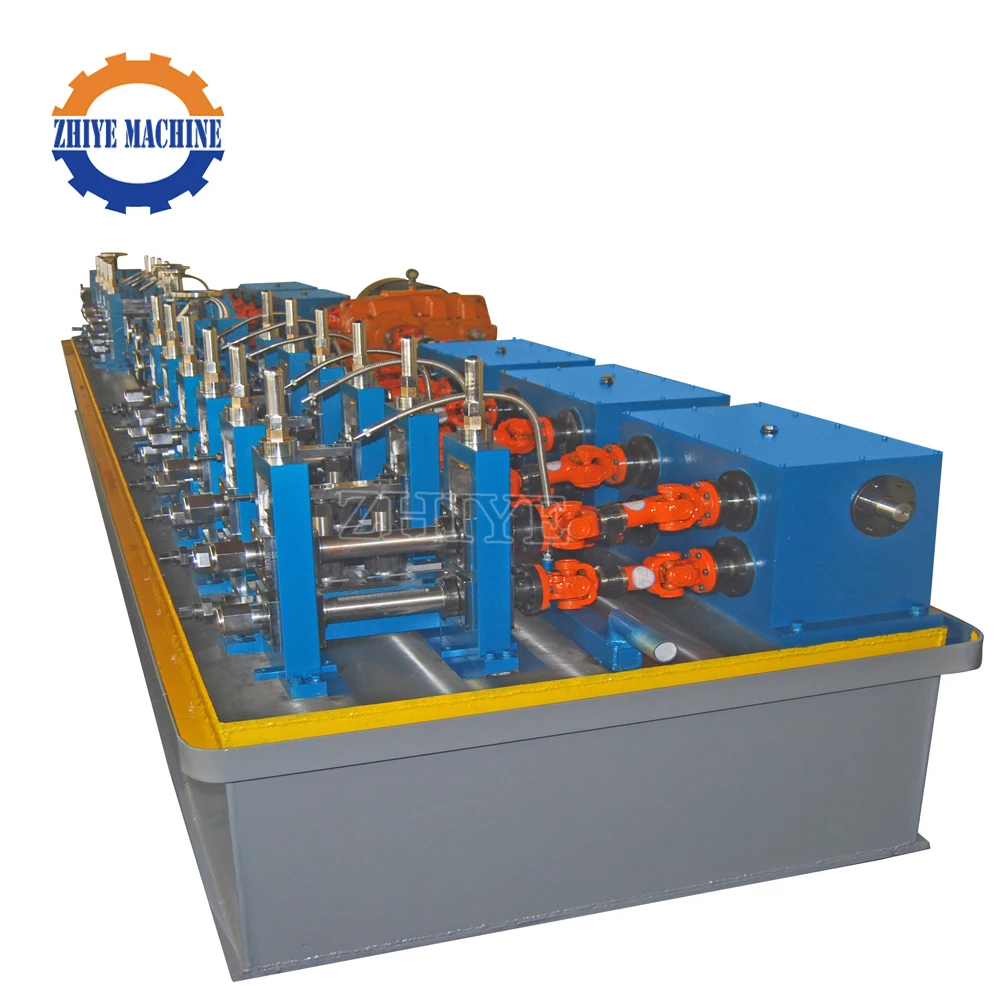

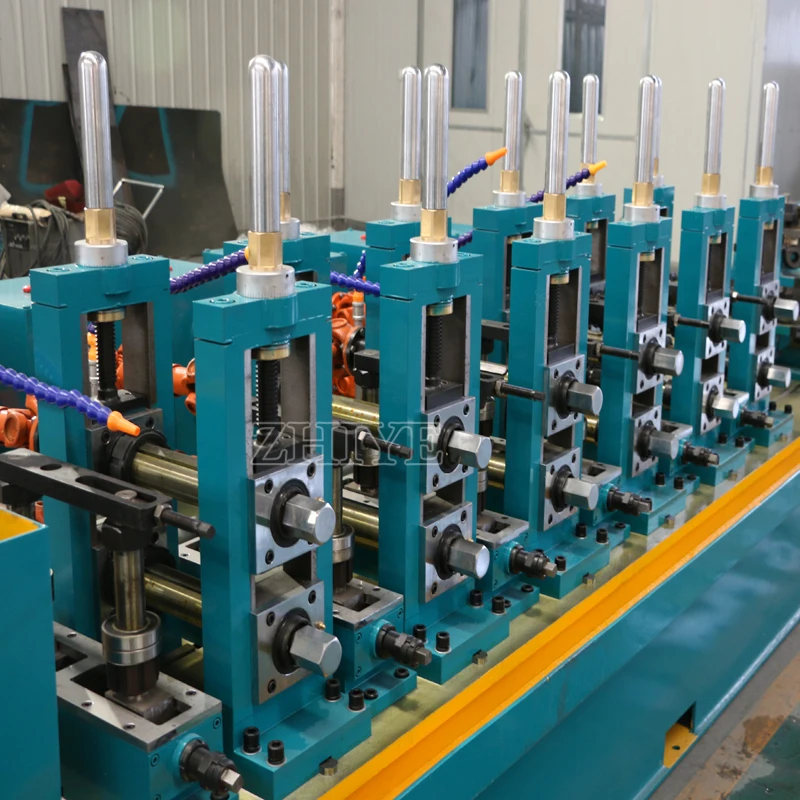

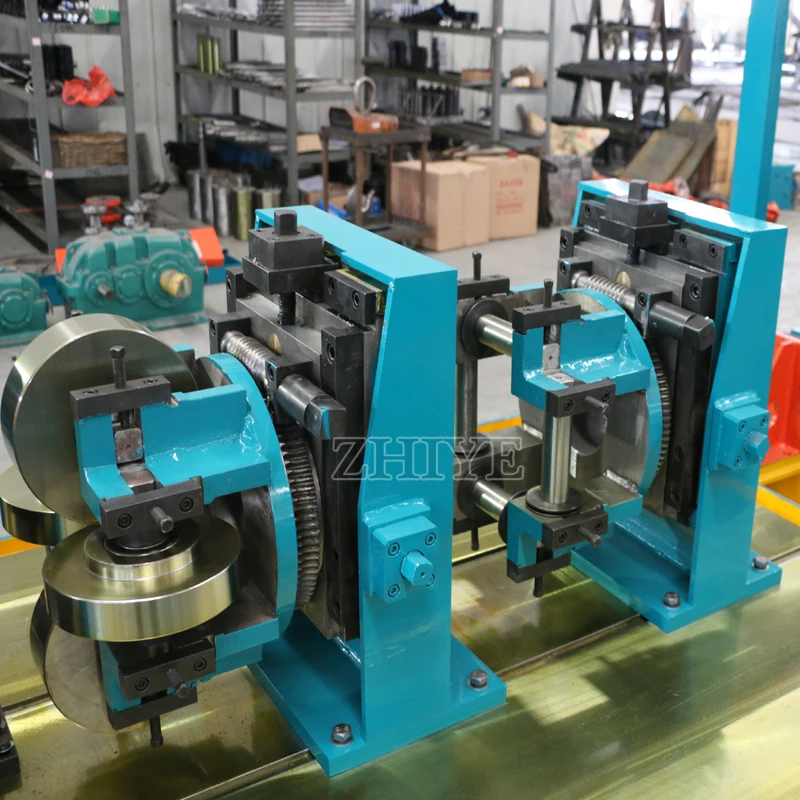

Welded steel pipe production line steel pipe radiators making machine production line in leak testing machine
Products information of High Frequency Welded Pipe Production line carbon steel pipe making machine :
Aluminum Tube Welding Cold Roll Forming Machine
A. Technical Parameter of Automatic Steel Welded Tube Roll Forming Line
1. Machine specification: forming thickness)1-2mm, yield strength≤G250Mpa
2. diameter of the tube: 25mm
3. Forming speed: 5-6M/min
4. Forming roller: about 12 stations
5. Main motor power: 7.5KW
6. Roller material: 45# forged steel, surface coated with chrome
7. Main shaft material: 45# steel
8. Main axis dia.: ¢68mm
9. Hydraulic cutting pressure: 10-12Mpa
10. Cutting method: hydraulic powered, cutting after roll forming.
11. Cutting blade material: Cr12 quenching treatment
12. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
high frequency welding pipe making machine
B. Comprised Parts of Automatic Steel Welded Tube Roll Forming Line
Automatic Tube Welding Cold Roll Forming Machine
A. Technical Parameter of Automatic Steel Welded Tube Roll Forming Line
1. Machine specification: forming thickness)1-2mm, yield strength≤G250Mpa
2. diameter of the tube: 25mm
3. Forming speed: 5-6M/min
4. Forming roller: about 12 stations
5. Main motor power: 7.5KW
6. Roller material: 45# forged steel, surface coated with chrome
7. Main shaft material: 45# steel
8. Main axis dia.: ¢68mm
9. Hydraulic cutting pressure: 10-12Mpa
10. Cutting method: hydraulic powered, cutting after roll forming.
11. Cutting blade material: Cr12 quenching treatment
12. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
high frequency welding pipe making machine
B. Comprised Parts of Automatic Steel Welded Tube Roll Forming Line
| Serial No. | Commodity & Description | Quantity |
| 1 | 3T manual uncoiler | 1 set |
| 2 | feeding guiding | 1 set |
| 3 | Main roll forming machine | 1 set |

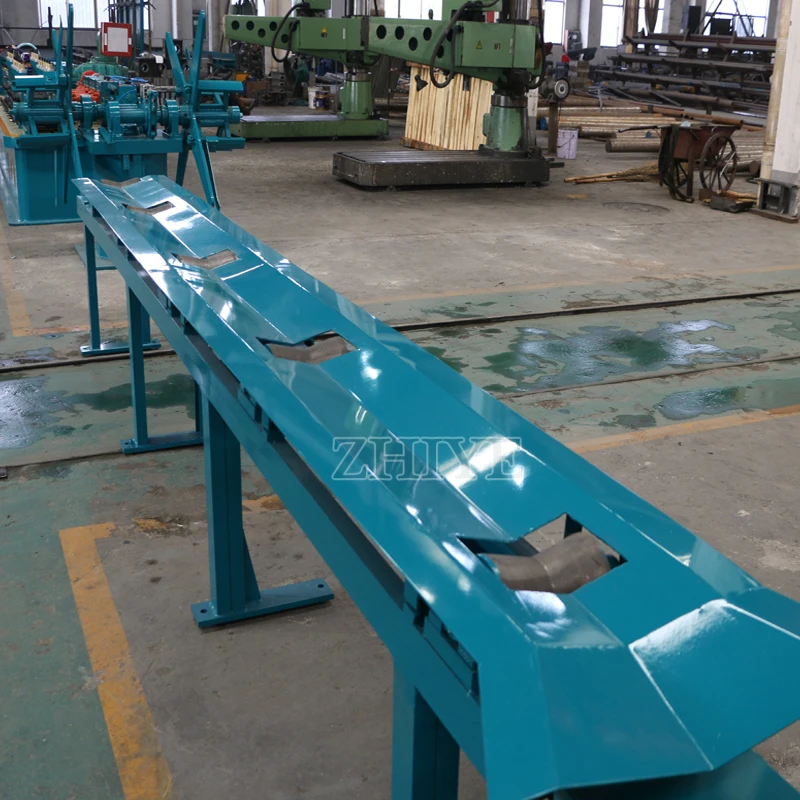

| 4 | Output table | 1 set |
| 5 | Main drive | 1 set |
| 6 | Fly saw cutting | 1 set |
| 7 | Wig welding device | 1 set |
| 8 | Controlling system (including cabinet) | 1 set |
Character main structure of Automatic Steel Welded Tube Roll Forming Line
Main features and components of the Automatic Steel Welded Tube Roll Forming Line
1. Main features of Automatic Steel Welded Tube Roll Forming Line
a. Simple structure & beautiful appearance, because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
b. All the components of Automatic Steel Welded Tube Roll Forming Line are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
d. It is very easy to install the equipment and suitable for producing in the factory.
e. The machine has features of low noise and high efficiency.
application
high frequency welding pipe mill making mahcine
Packaging & Shipping
High Frequency Steel Tube Welding Roll Forming Machine packaging: Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
30 WORKING DAYS AFTER RECEIVED THE DEPOSIT
The Automatic Steel Welded Tube Roll Forming Line packed 20 feet container, it fit for ocean shipping. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.
Company Information
Cangzhou Zhiye Cold Forming Machinery Co.,Ltd has been entitled with the “key private enterprise” by the local government and over the years, we have been dedicated to the research&development as well as the fabrication of the forming machines of metallic plate cold bending roller.
We manufacture all kinds of cold roll forming machines, we main supply trapezoidal roof sheet roll forming machine, glazed tile roller machine, C&Z purlin Rolling Making mahcine and Light steel keel frame former Line.
Of course we also produce 1.double deck roller forming machine 2.Ridge cap cold roll former machine 3.Floor decking rolling forming machine 4.light steel frame roll forming machine 5.roller door shutter roll forming machine 6.sandwich panel roll forming machine 7.U purline roll forming machine 8.Gutter&Downspout roll forming machine 8.shelf&rack roll forming machine 9.welding pipe and tube roll forming machine.
In recent years, our products at large scales have been sold to more than 50 countries and regions, for instance, France, Britain, Australia, The United States, Kazakhstan, Malaysia, Nigeria, Rumania, Albania, etc, and has won the universal appreciation and commendation from the customers all over the world.
Welcome to Contact us and visit us!
Our Services
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician.But the buyer should take all the cost, including Visa, Roundtrip ticket,suitable accommodation and pay the service fee to the technician with $150/days
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
