Product Description


The machine is intended for manufacturing of round pipe of Φ16mm-Φ50mm with thickness of 0.5mm-2.2mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.Finished product will be of round, square or rectangular pipe.


The technical flow of the production line:
{Steel Tape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→Cage loop→→Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit+squeeze roller)+ Removing External and burr Machine→→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table


Size Information


Steel Pipe Specification
Pipe diameter
Ø16-Ø50mm
Pipe Thickness
0.5- 2.2mm
Square Pipe
13X13mm -40X40mm
Rectangle Pipe
10X20mm -30X50mm
Pipe Thickness
0.5 - 1mm
Pipe Length
6-9m
Length Tolerance
0-6mm
Steel Tape Specification
Material
Low Carbon steel (δb≤500Mpa, δs≤235Mpa)
Steel Tape
Φ510-Φ610mm
Outer diameter
Φ900-1500mm
Strip steel width
40mm-160mm
Strip steel thickness
0.5mm-2.2mm
The maximum weight
2 tons
Electricity
Dynamic power
AC380V±10%, 3phases, 50Hz±1.0%
Control Power
AC220V±10%, one phase, 50Hz ±1.0%
Electric installed capacity
Appro. 250KW
Cooling water
Reservoir for High Frequency equipment
15 m³, one set
Reservoir for circulating cooling water
15 m³, one set
Compressed air
Pressure
0.4Mpa
Flow
0.5m3/h
Production capacity
Annual output
10000 ton, according to the yearly working days,daily working hours and the products
Line speed
30-90m/min

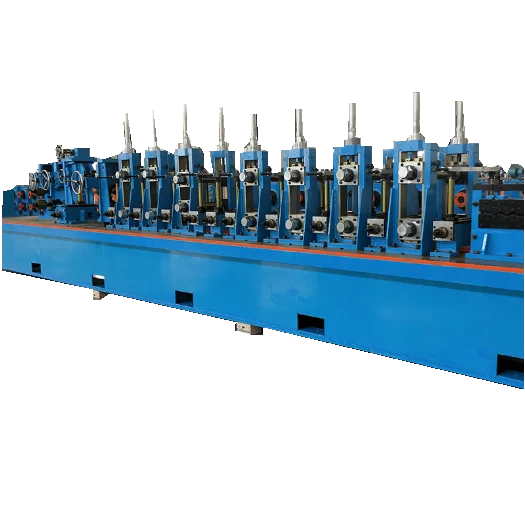

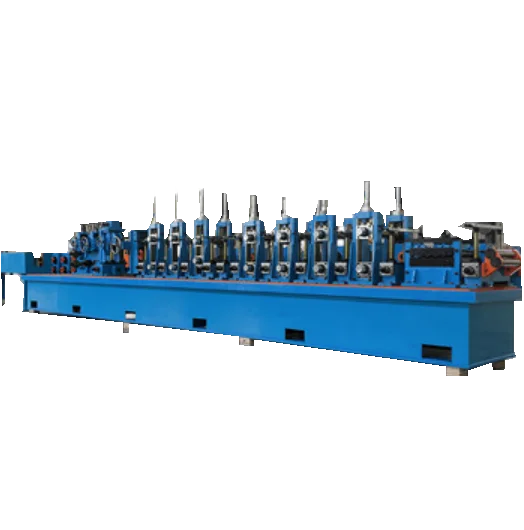

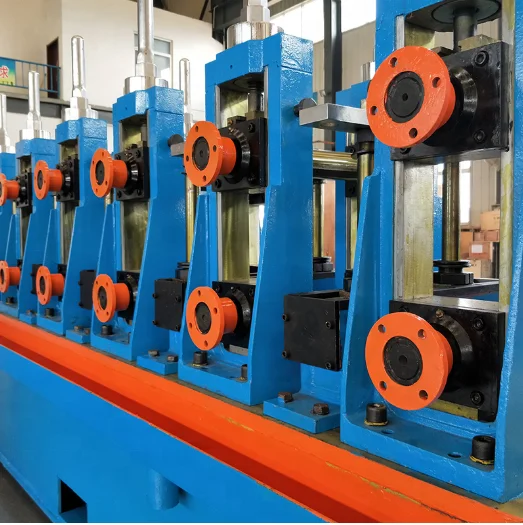

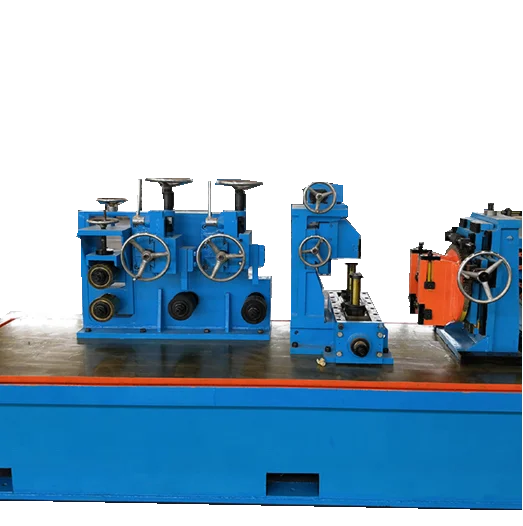

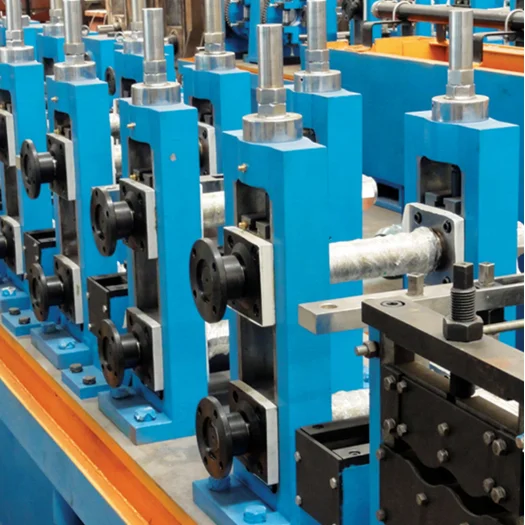

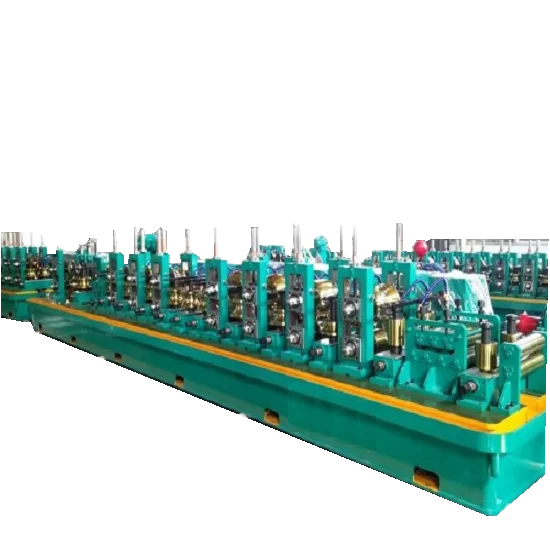

Detailed Images




Company Introduction


Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.


Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
