Солнечных местах монтажными решение дорожный стойки для солнечным энергоцентром
- Категория товара: Solar Energy Products >>>
- Поставщик (Оптовый магазин): Yuens,(Xiamen),New,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Details
Solar Ground Mounting Solution Ground Rack for Solar Farm Systems
GL-2S Ground Screw Mounting System designed to provide an economical and practical mounting solution for large-scale open areas. Available for both framed and frameless modules. Compatible with screwing machine in the open area easily.
Application Case
Foundation Type

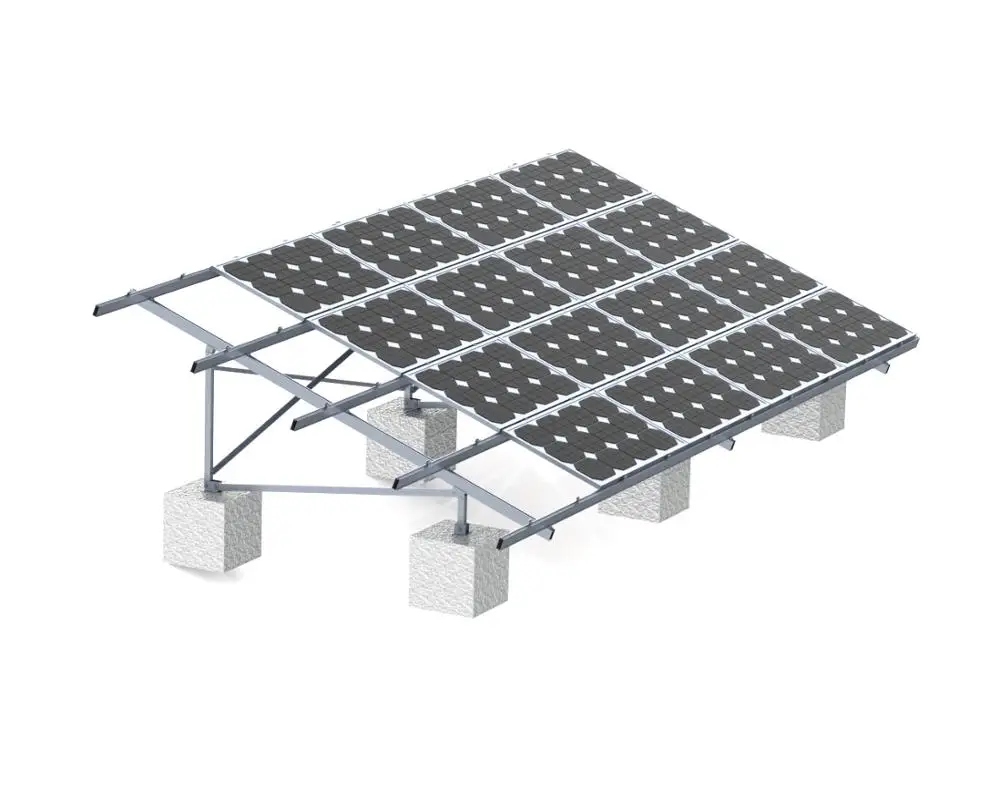

The ground screw can be replaced by concrete block with the anchor bolt. (Click the below picture to know more info.)
Installation Steps
Contact us to get the detail installation manual :-D

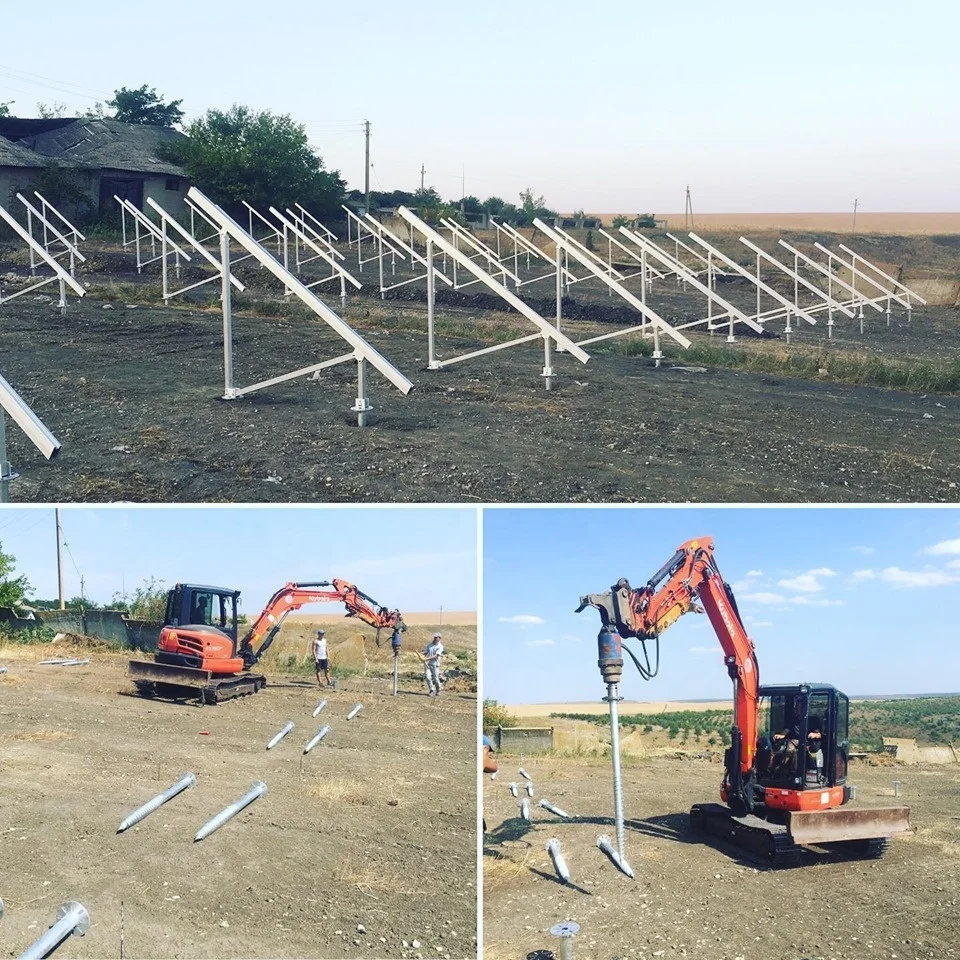

1. Precast ground screw foundations.

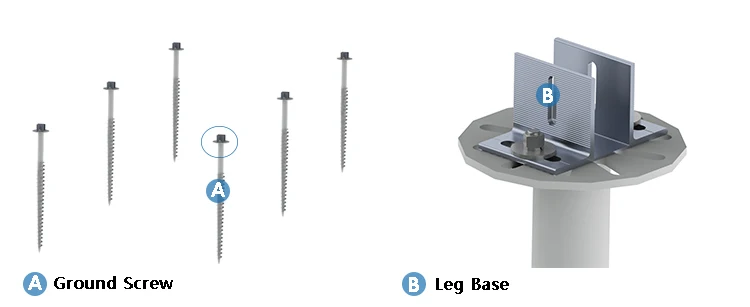

2. Fix the leg bases on flange type ground screws.

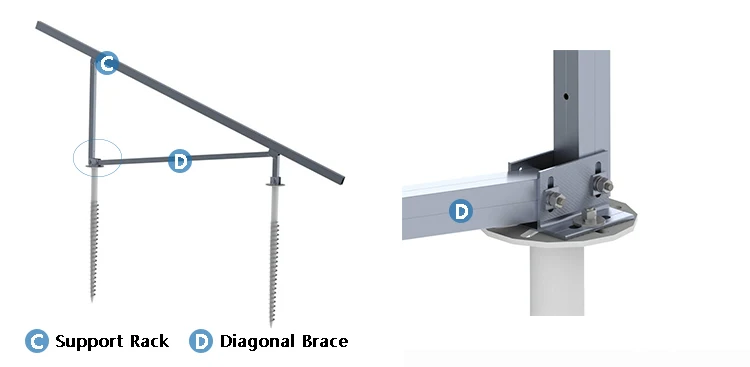

3. Install the pre-assembled support racks and diagonal brace with leg base.
4. Install the triangle fixing components on the rear leg.
5. Connect two rails with rail splice if the rails are not long enough.

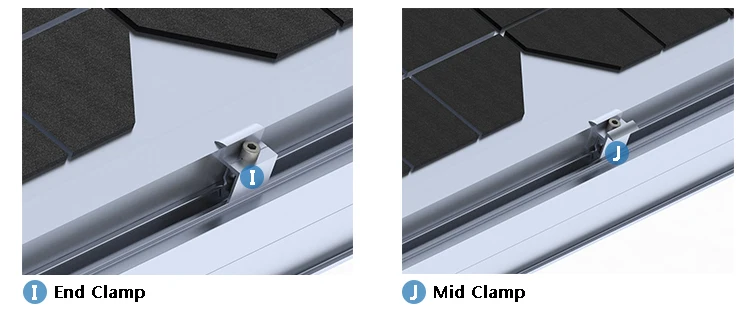

6. Fix the rail on support rack with fixing clamp kits.
9. Well done! You have installed the ground screw mounting system successfully.

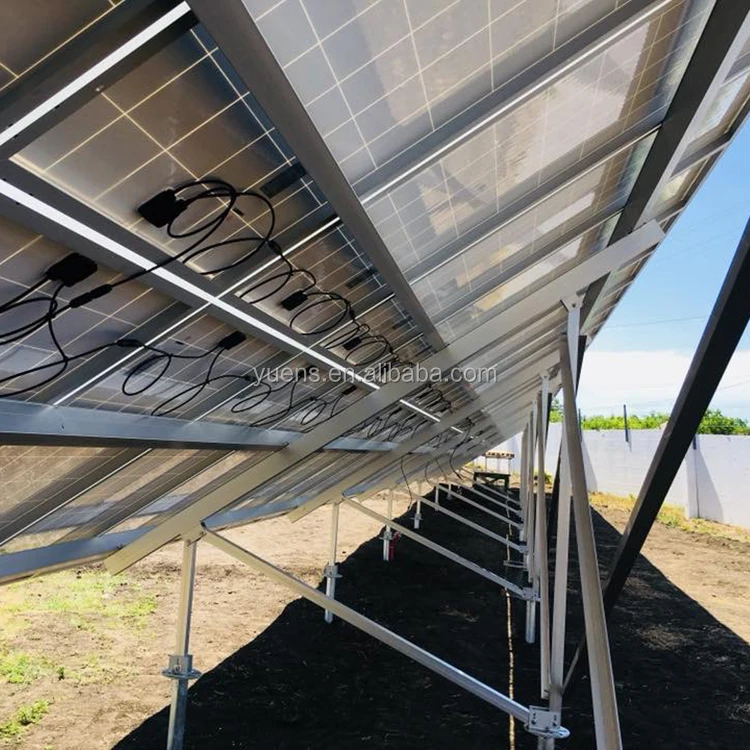

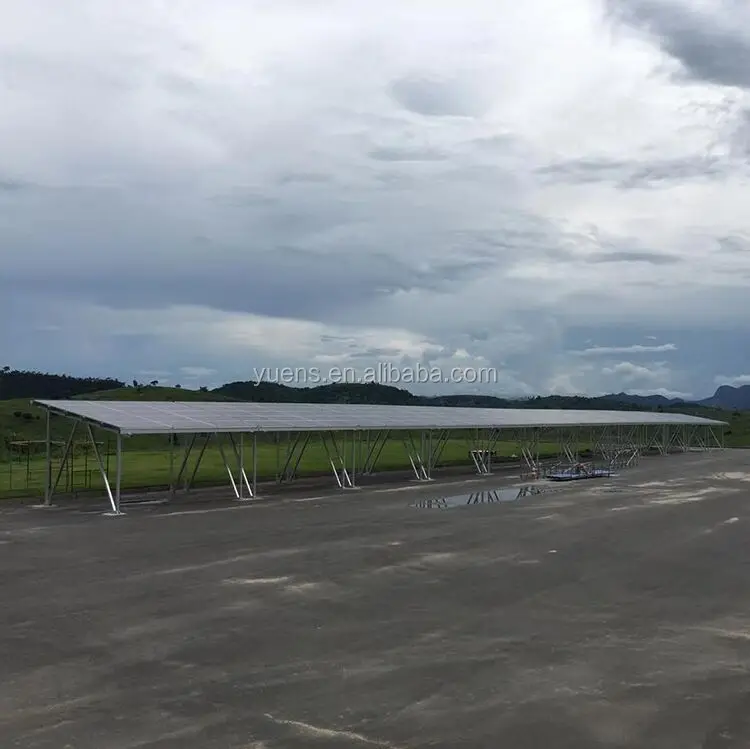

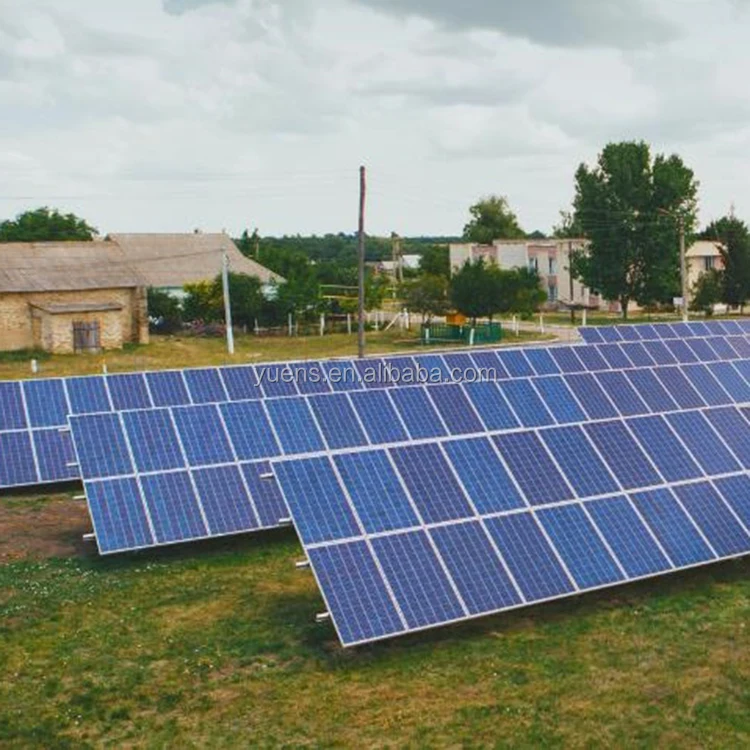

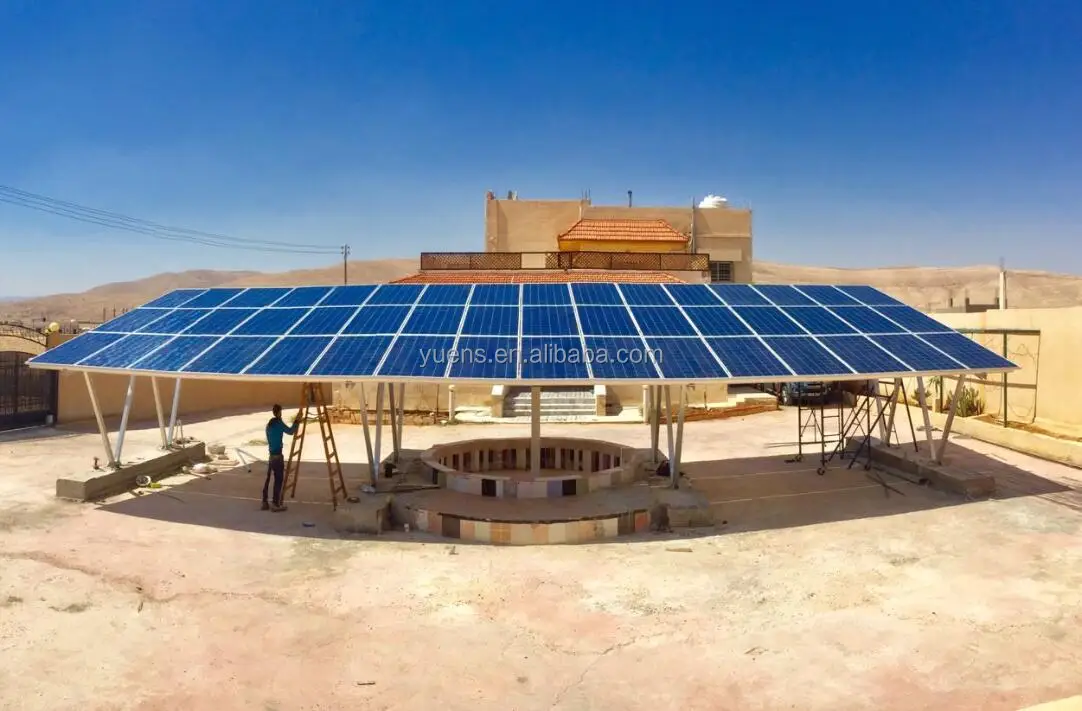

\t\t\t\t\t\t\t\t\tProject Photo \t\t\t\t\t\t\t
Ground Mount Drawing Design
Free bom list and drawing design pls contact me.
Pls provide below datas for design, drawing sample as below
1. The dimension of your common solar panel?(L*W*T) | ||||||||
2. The PV array or installation ground area? | ||||||||
3. Max Wind speed & Snow Load in your area? | ||||||||
4. Optimal tilt angle for your area? | ||||||||
5. What is the mininum ground clearance? | ||||||||
