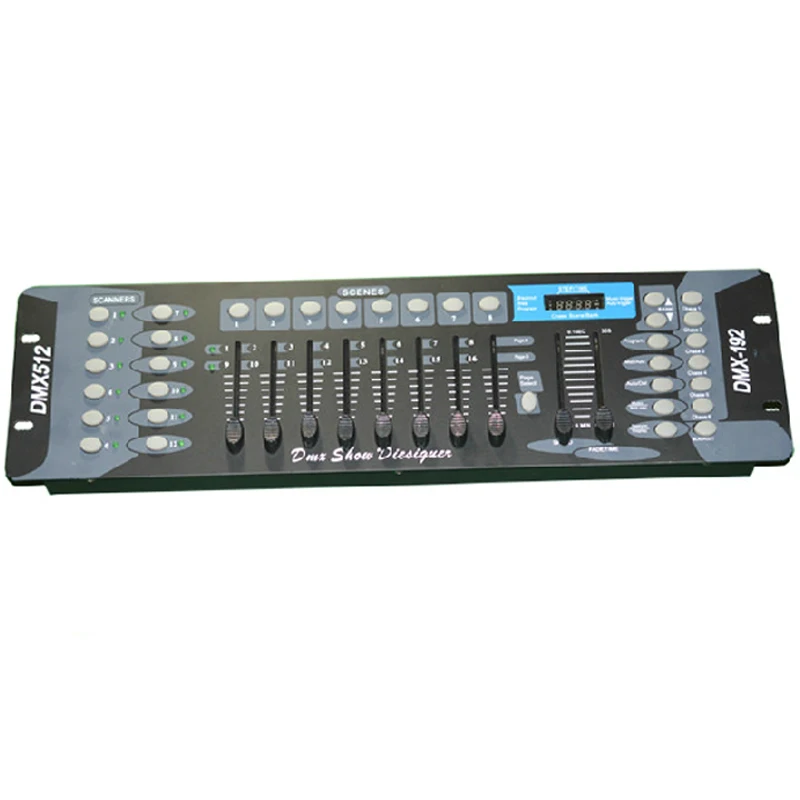

DMX192 консоль Светодиодная лампа Палмер DMX512 консоль сценическое освещение свадебное освещение Управление освещением сценическое затемнение

Описание и отзывы

Характеристики

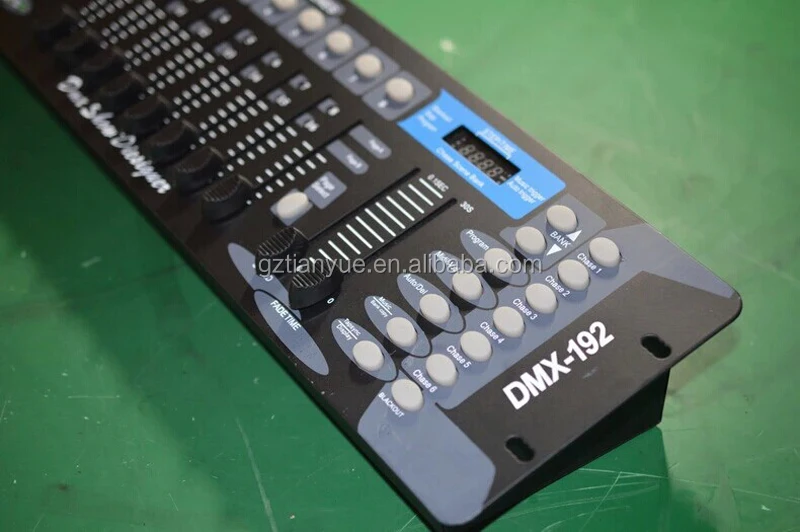

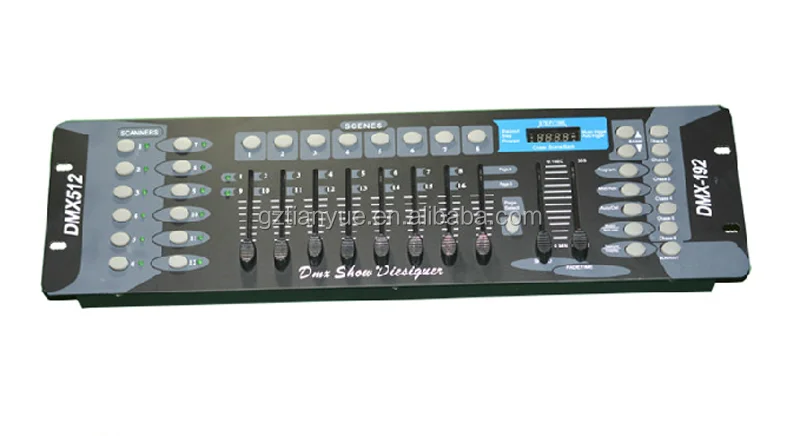

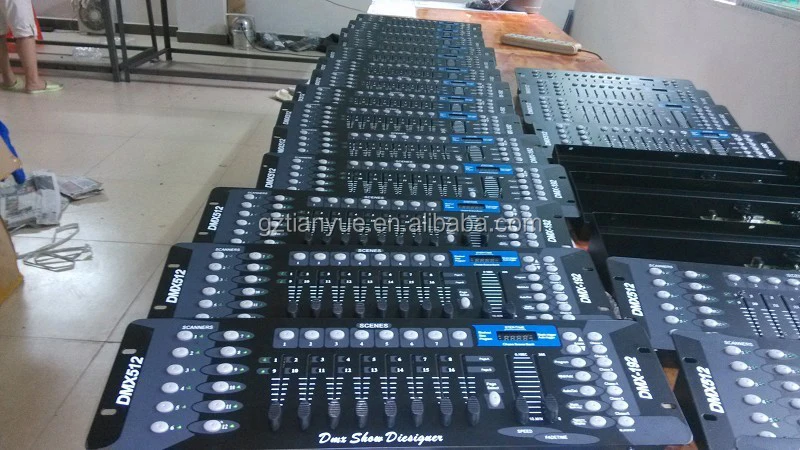

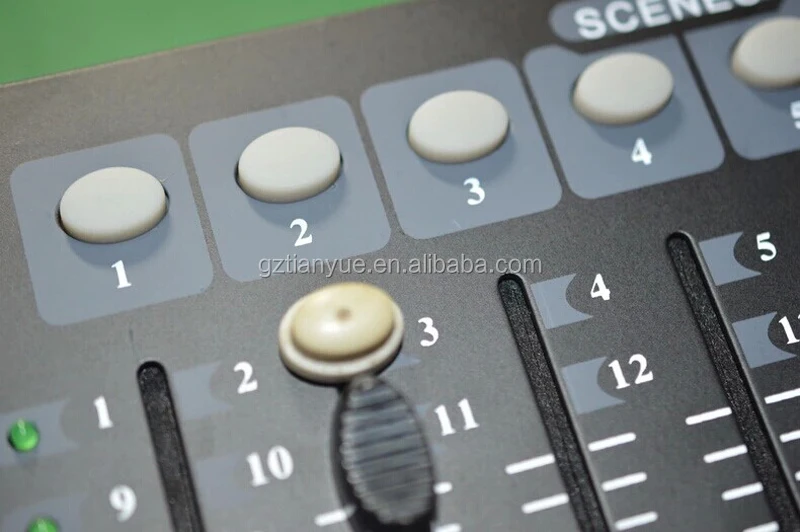

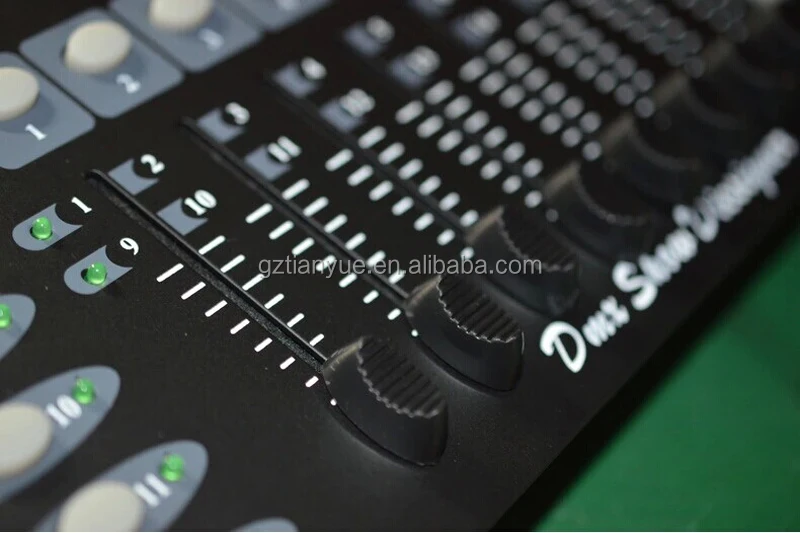

1) the machine is a 192 channel DMX512 signal console with accurate CPU processing technology and DMX polarity selector switch.

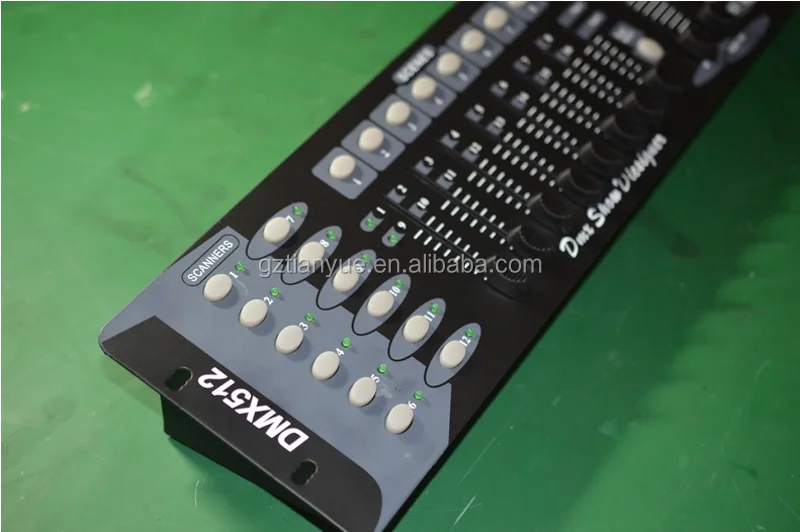

2) there are 12 SCANNER, each SCANNER contains 16 channels, divided into A pages (1-8) and B pages (9-16).
3) you can set the channel position micro step adjustment, or suspend operation, A, B page stack operation.
4) programmable 30 BANK, each BANK contains 8 programmable SCENCE.
5) in programming, when the FINE button is lit, the rocker value can be set when the LED is lit.

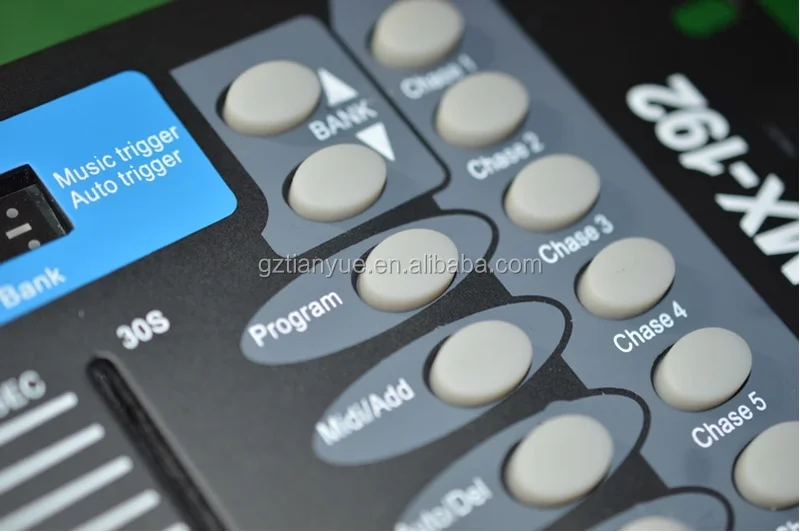

6) programmable 6 CHASES can be superimposed operation;
7) each CHASES can be composed of 240 steps (30 BANK SCENE) with automatic, manual and three modes of operation.
8) in automatic operation mode, FADE can choose to have ALL or X/Y. All of them have SPEED regulation.
9) in each SCANNER, you can set Assigw (rocker) or Review (reverse).
10) the console can transfer the internal programming data, and has the function of Black out output.

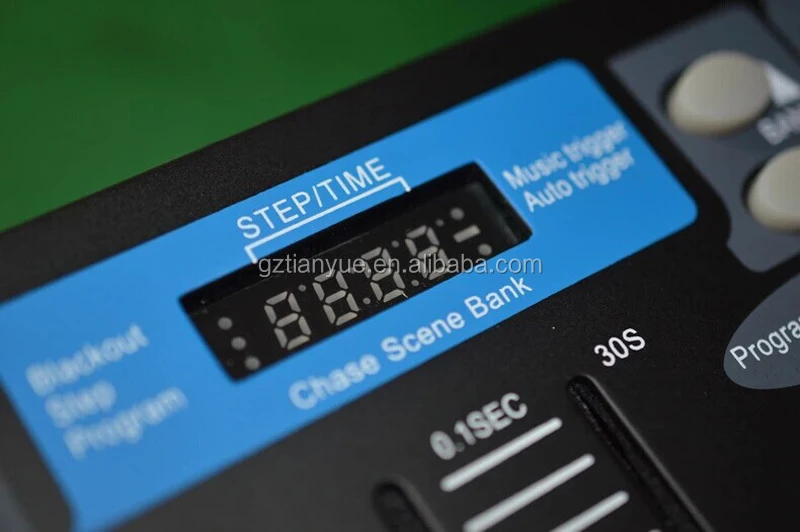

11) the operation steps of backlit English and Chinese display in 8*2LCD LCD display; each button is equipped with corresponding LED indicator.

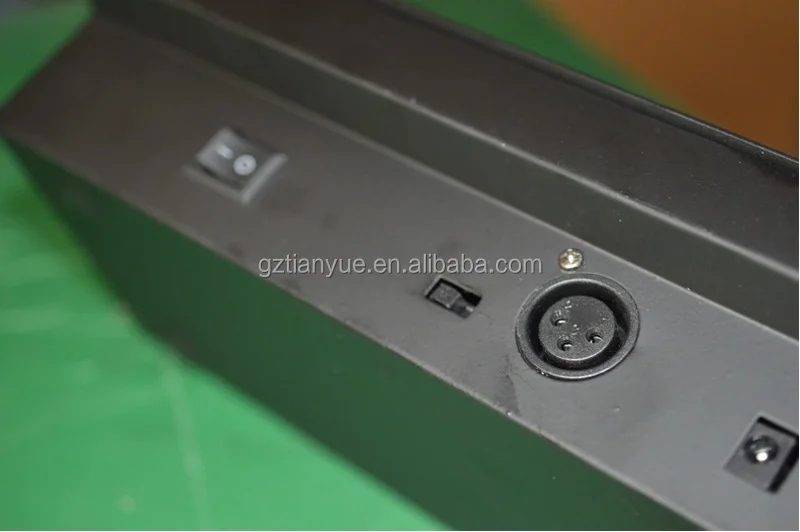

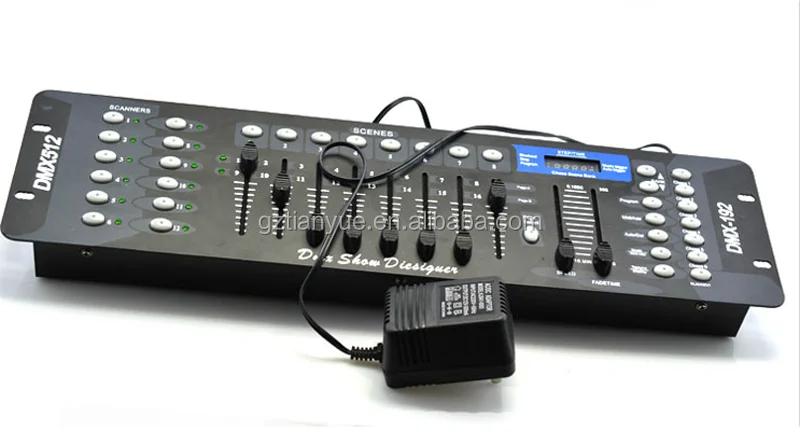

12) DC interface, DC power supply, (input AC120V~230V output DC9~12V 300~500MA).
Size (mm):482 x 178 x 73 1PCS/ packaging
Weight: 2.5kgS
Gross weight: 3.1kg
