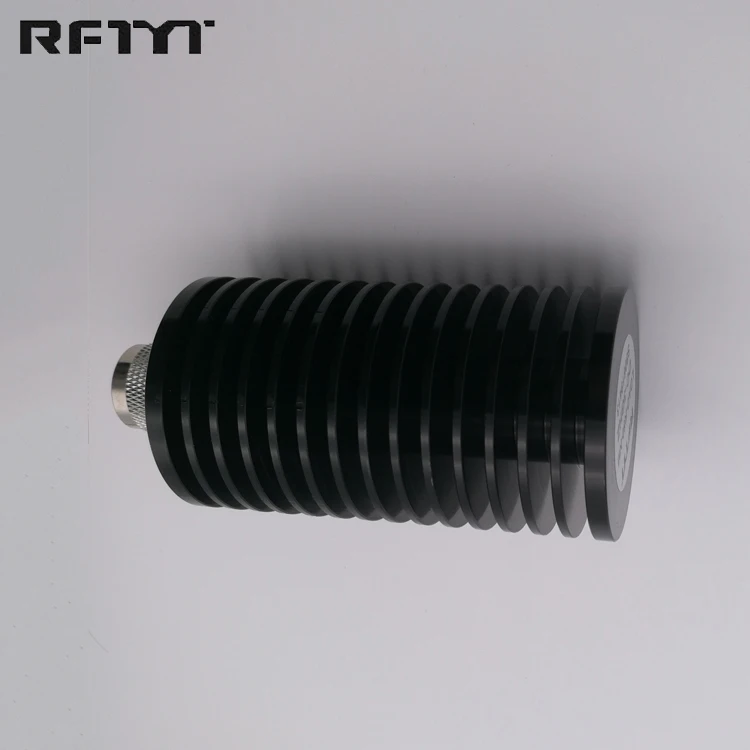

RFTYT мини DIN DC-3GHz 50 Ом порт разъем пустышка прерывания
- Категория товара: Telecom Parts >>>
- Поставщик (Оптовый магазин): Sichuan,Rftyt,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

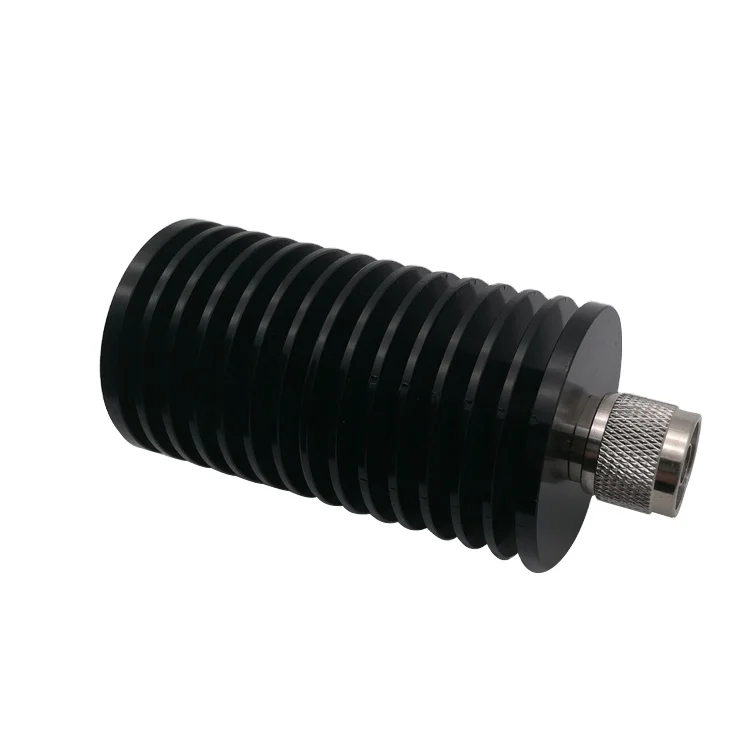

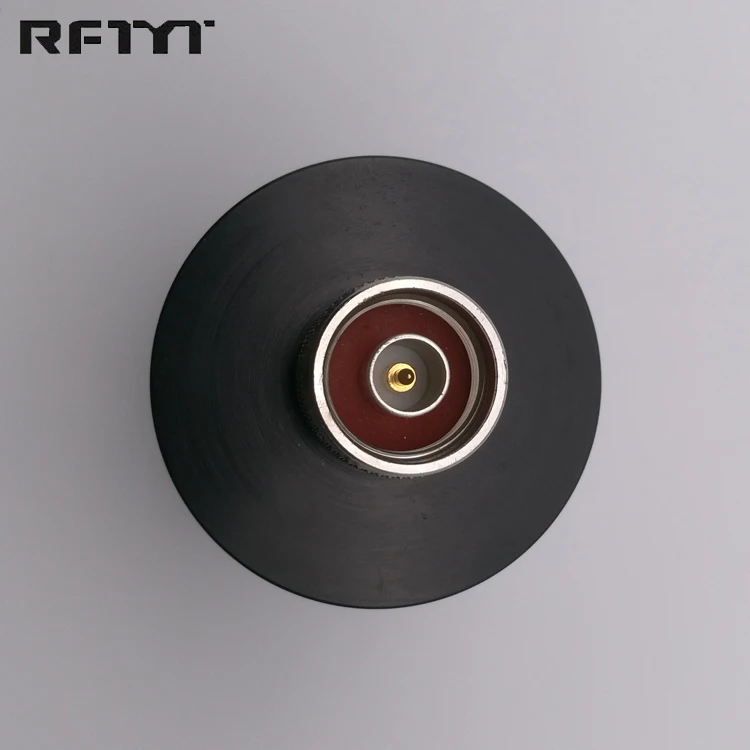

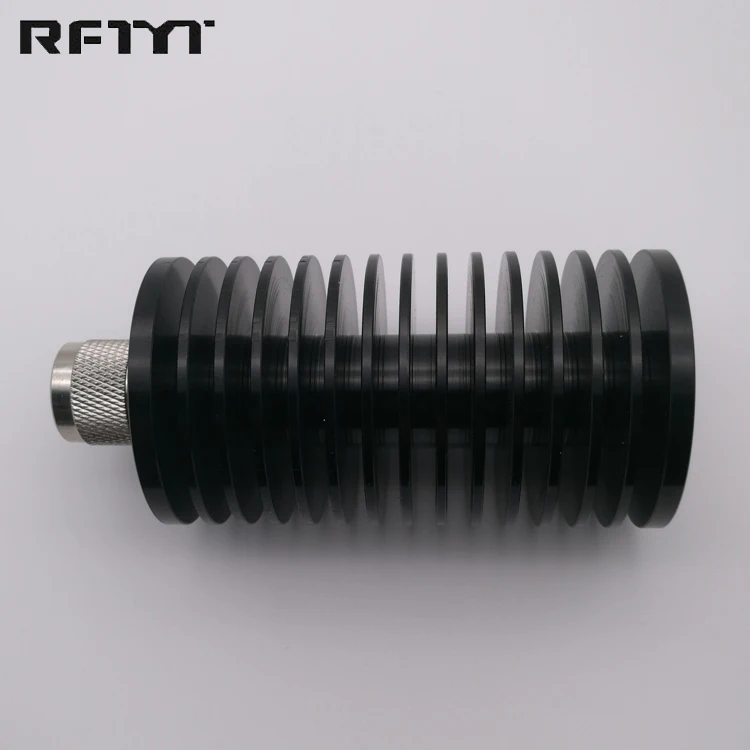

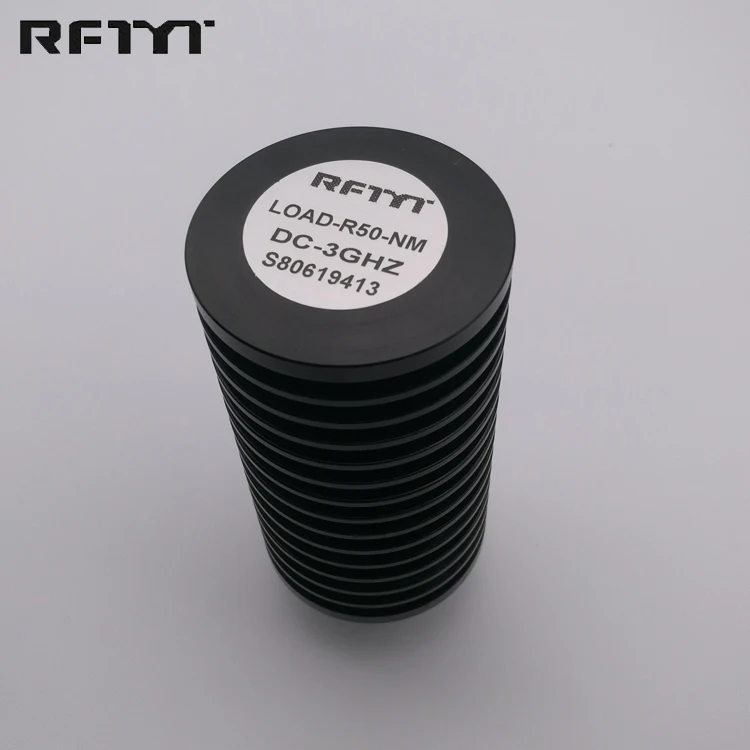

MINI DIN DC-3GHz 50 ohm Port Connector Dummy Termination Load
Product Description
Our Products Features:
1.Good temperature behavior, High aseismatic capability. 2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery. 4.Custom design available upon request.
5.Meet ROHS standard. 6.Guaranteed for one year standard

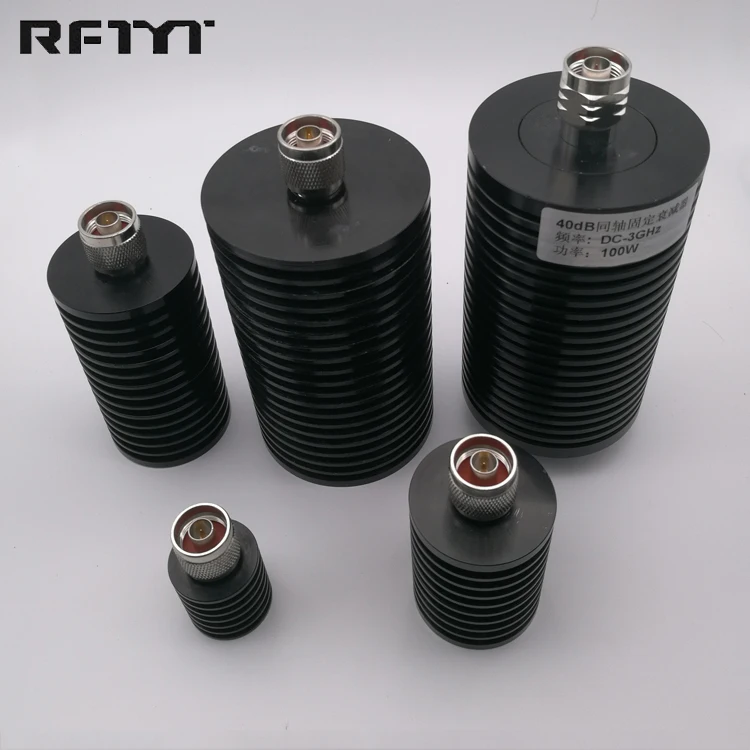

Dummy Load/Coaxial Termination
| Model | Frequency | VSWR | Impedance | Power | Connector Type | Dimension |
| CT-0.5W-RS | DC-3GHz | 1.15 | 50Ω | 0.5W | SMA Male/Female | φ7.5×17.5mm |
| DC-6GHz | 1.15 | |||||
| DC-13GHz | 1.15 | |||||
| CT-2W-RS | DC-3GHz | 1.20 | 50Ω | 2W | SMA Male/Female | φ15×32mm |
| DC-6GHz | 1.25 | |||||
| CT-2W-RN | DC-3GHz | 1.15 | 50Ω | 2W | N Male/Female | φ20×36mm |
| DC-6GHz | 1.25 | |||||
| CT-2W-RT | DC-3GHz | 1.20 | 50Ω | 2W | TNC Male/Female | φ16×28mm |
| DC-6GHz | 1.25 | |||||
| CT-2W-RB | DC-3GHz | 1.20 | 50Ω | 2W | BNC Male/Female | φ15×28mm |
| DC-6GHz | 1.25 | |||||
| CT-5W-RS | DC-3GHz | 1.15 | 50Ω | 5W | SMA Male/Female | φ24×43mm |
| DC-6GHz | 1.25 | |||||
| CT-5W-RN | DC-3GHz | 1.15 | 50Ω | 5W | N Male/Female | φ30×30mm |
| DC-6GHz | 1.25 | |||||
| CT-5W-RT | DC-3GHz | 1.15 | 50Ω | 5W | TNC Male/Female | φ20×33mm |
| DC-6GHz | 1.25 | |||||
| CT-5W-RF | DC-3GHz | 1.15 | 50Ω | 5W | Flange Male/Female | φ14.8×30mm |
| DC-6GHz | 1.25 | |||||
| CT-10W-RS | DC-3GHz | 1.20 | 50Ω | 10W | SMA Male/Female | φ35×40mm |
| DC-6GHz | 1.25 | |||||
| CT-10W-RN | DC-3GHz | 1.15 | 50Ω | 10W | N Male/Female | φ35×40mm |
| DC-6GHz | 1.25 | φ35×40mm | ||||
| DC-8GHz | 1.30 | φ38×48.2mm | ||||
| CT-10W-SN | DC-3GHz | 1.20 | 50Ω | 10W | N Male/Female | 60×60×50mm |
| DC-6GHz | 1.25 | |||||
| CT-20W-RS | DC-3GHz | 1.20 | 50Ω | 20W | SMA Male/Female | φ44×60mm |
| DC-6GHz | 1.25 | |||||
| CT-20W-RN | DC-3GHz | 1.20 | 50Ω | 20W | N Male/Female | φ44×60mm |
| DC-6GHz | 1.25 | |||||
| CT-20W-SN | DC-3GHz | 1.20 | 50Ω | 20W | N Male/Female | 70×60×50mm |
| DC-6GHz | 1.25 | |||||
| CT-30W-RN | DC-3GHz | 1.20 | 50Ω | 30W | N Male/Female | φ45×90mm |
| DC-6GHz | 1.25 | |||||
| CT-30W-SN | DC-3GHz | 1.20 | 50Ω | 30W | N Male/Female | 100×70×50mm |
| DC-6GHz | 1.25 | |||||

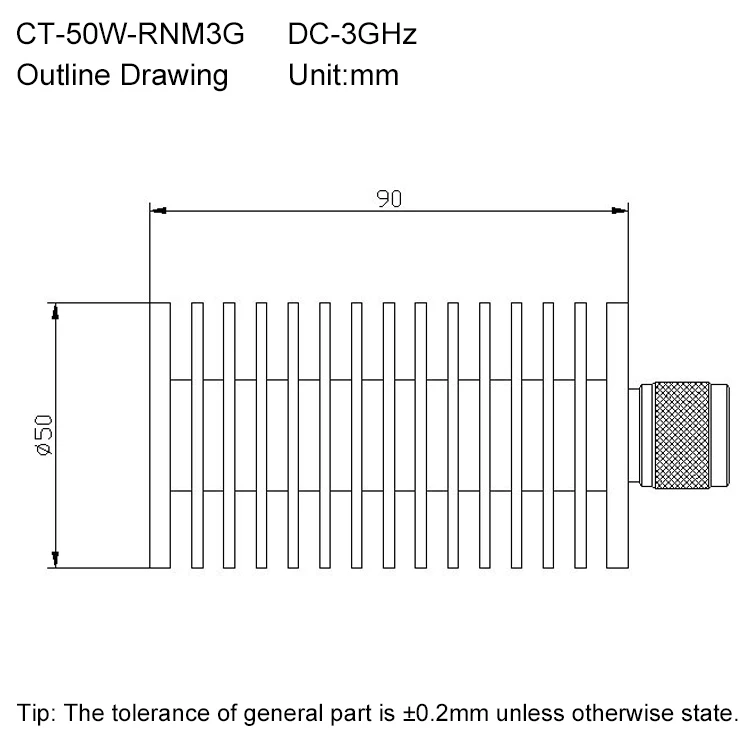

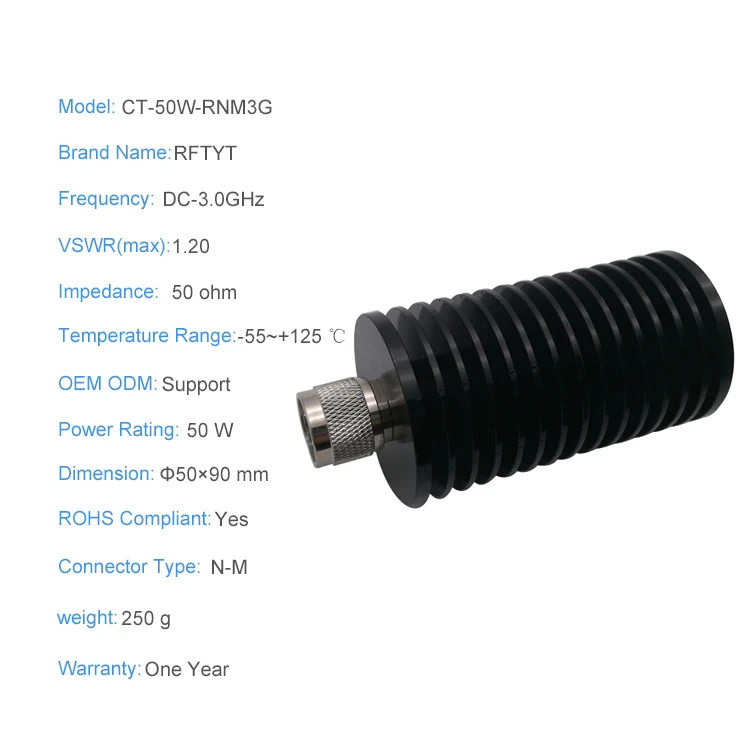

| CT-50W-RN | DC-3GHz | 1.20 | 50Ω | 50W | N Male/Female | φ50×90mm |
| DC-6GHz | 1.25 | |||||
| CT-50W-SN | DC-3GHz | 1.20 | 50Ω | 50W | N Male/Female | 100×85×60mm |
| DC-6GHz | 1.25 | |||||
| CT-100W-RN | DC-3GHz | 1.20 | 50Ω | 100W | N Male/Female | φ75×120mm |
| DC-6GHz | 1.25 | |||||
| CT-100W-SN | DC-3GHz | 1.20 | 50Ω | 100W | N Male/Female | 142×120×65mm |
| DC-6GHz | 1.25 | |||||
| CT-200W-SN | DC-3GHz | 1.20 | 50Ω | 200W | N Male/Female | 200×142×64mm |
| DC-6GHz | 1.25 | |||||
| CT-300W-SN | DC-3GHz | 1.20 | 50Ω | 300W | N Male/Female | 300×200×90mm |
| DC-6GHz | 1.25 | |||||
| CT-500W-SN | DC-3GHz | 1.25 | 50Ω | 500W | N Male/Female | 380×300×85m |
| DC-6GHz | 1.30 | |||||
| CT-1000W-SN | DC-3GHz | 1.30 | 50Ω | 1000W | N Male/Female | 400×410×97mm |
The above form is part of our Dummy Load/Coaxial Termination models .
For more specific parameters, size.Please kindly send your inquiry to us.
(1) The frequency range you need (DC-? GHz)
(2) The power you need (?W)
(3) The connector type you need (like N-M/N-F)
(4) Your special requirements(VSWR , Impedance , Working Temp ... )
