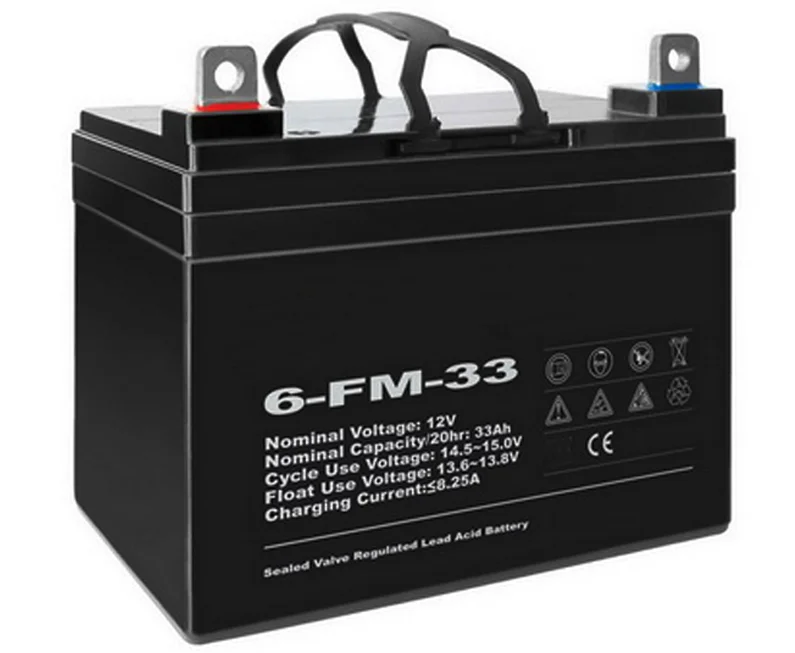

Больше жизни глубокий цикл 12 В 33Ah Agm батареи

Категория товара: Lead Acid Batteries >>>
Поставщик (Оптовый магазин): Ningbo,Cinco,Solar,Co.,Ltd.

Цена:35,00 $ - 45,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

AGM Solar Battery

AGM series battery is specially designed for solar pwer system, UPS system,emergency power and security system applications,Using thick plate and high corrosion resistance grid alloy,matching with high-impact AGM separator,the battery maintains high consistency for better performance and reliable standby service life

Application range: solar energy storage, solar Power system, wind energy systems, UPS, EPS, telecommunication /communication systems,electricity power systems etc.

Products Description

1. Valve regulated design, no free liquid electrolyte,maintenance-free.
2. Designed floating service life:10 years at 25℃.
3. Stable performance and small internal resistance,good high performance for the recycle use.
4. Thickened Sn alloy plate and the grid with corrosion resistance.
5. Self-discharge rate: ≤3%/month.

Product Paramenters

Model			6-FM-33
Nominal Voltage			12V
Nominal Capacity			33Ah
Design life			10years
Dimension	Length	195mm
		Width	130mm
		Height	167mm
		Total Height	167mm
Reference weight			10.0kg

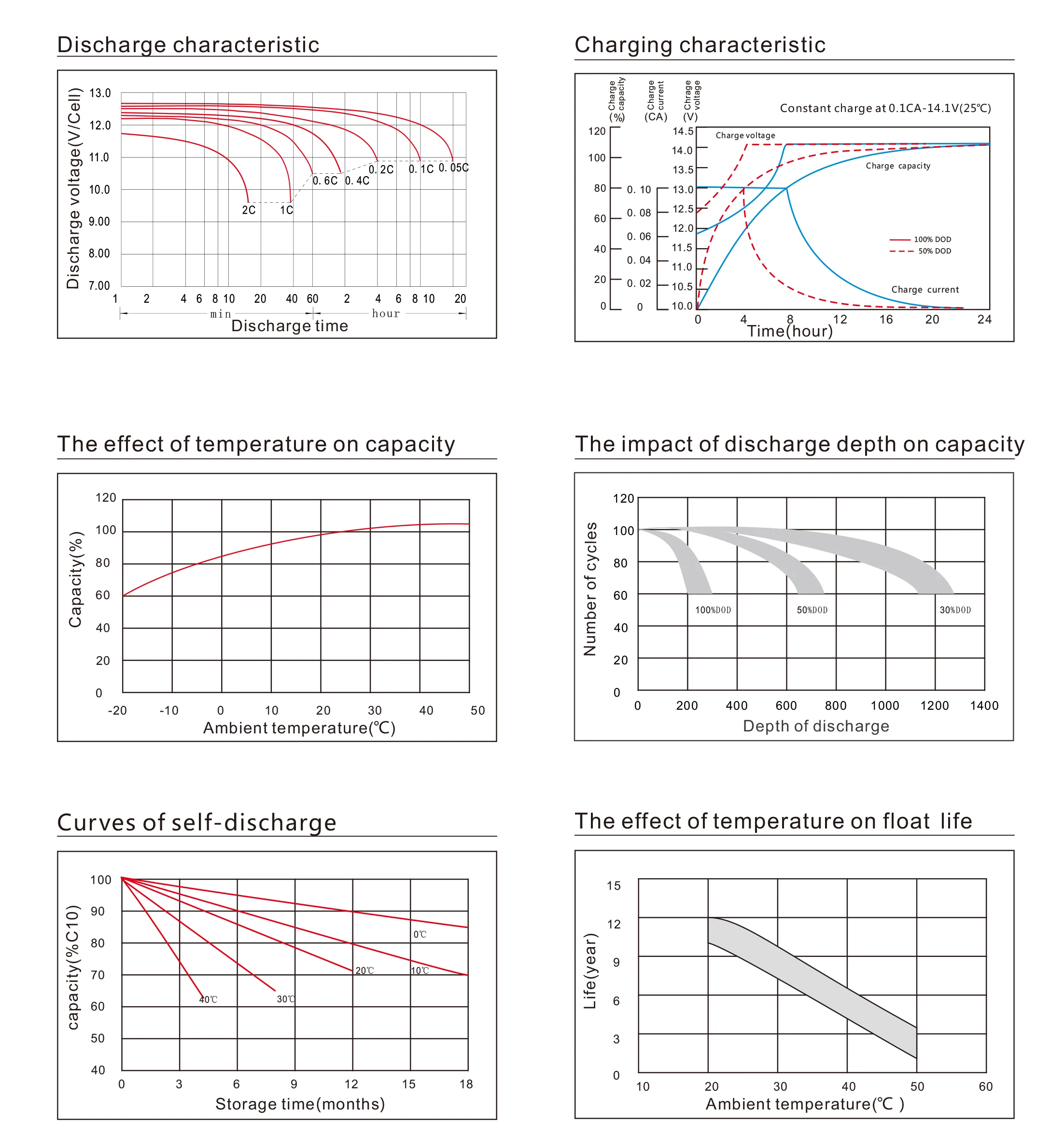

Charateristics
Rated Capacity	10Hour rate	33AH
		3Hour rate	26.6AH
		1Hour rate	21.6AH
Interal resistance(Full charged at 25℃)			13mΩ
Self-discharge (at 25℃.)			3％ of the capacity per mont
Discharge Temperature			-20～50℃
Charge Temperature			-20～50℃
Storage Temperature			-20～50℃
Cyclic charging voltage (at 25℃)			14.4～15.0V
Initinal current (at 25℃)			8.3A
Temperature Compensation			-30mV/℃
Float Use (at 25℃)			13.5-13.8V
Temperature Compensation (at 25℃)			-20mV/℃
Dimension
Rate Capacity	Lengh(mm)	Width(mm)	Height(mm)	Total Height(mm)
AGM 12V 38AH	197	165	170	170
AGM 12V 45AH	197	165	170	170
AGM 12V 50AH	229	138	212	215
AGM 12V 65AH	350	166	175	175
AGM 12V 70AH	260	168	212	215
AGM 12V 80AH	260	168	212	215
AGM 12V 90AH	330	171	216	219
AGM 12V 100AH	330	171	216	219
AGM 12V 120AH	407	170	220	233
AGM 12V 150AH	483	170	241	241
AGM 12V 200AH	522	240	219	222
AGM 12V 220AH	522	240	219	222
AGM 12V 250AH	520	268	220	223
