Бытовой Электрический автоматический распашной ворот DC24V винтового типа с отсоединяемым

Introduction

The Swing Gate Opener is ideal solution if you need security and convenience for your residential  property. Having a 24V DC  motor, it can power gates with a maximum weight of 300kg per leaf! With advanced technology, this gate opener has auto-close  function and compact structure, smooth operation and low noise.

Besides, an emergency release bar enables you to open your gates in case of power failure. This auto-close characteristic can be set to 5, 10 or 60 seconds with the option to disable include and added safety feature that will detect obstacles in opening and closing. It is the essential to select right automation for your swing gates. Don't miss the chance, order now!

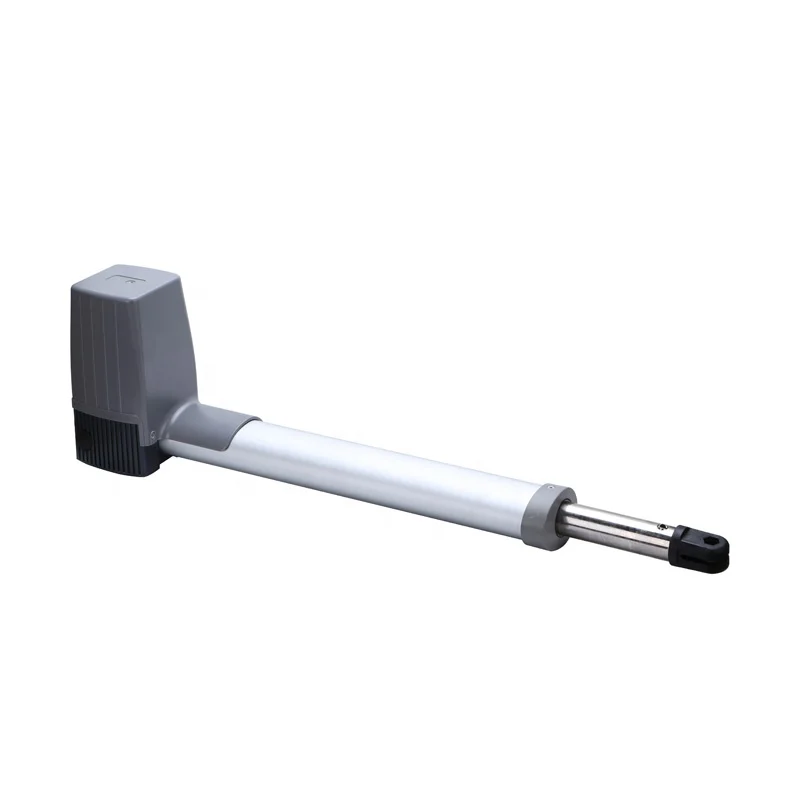

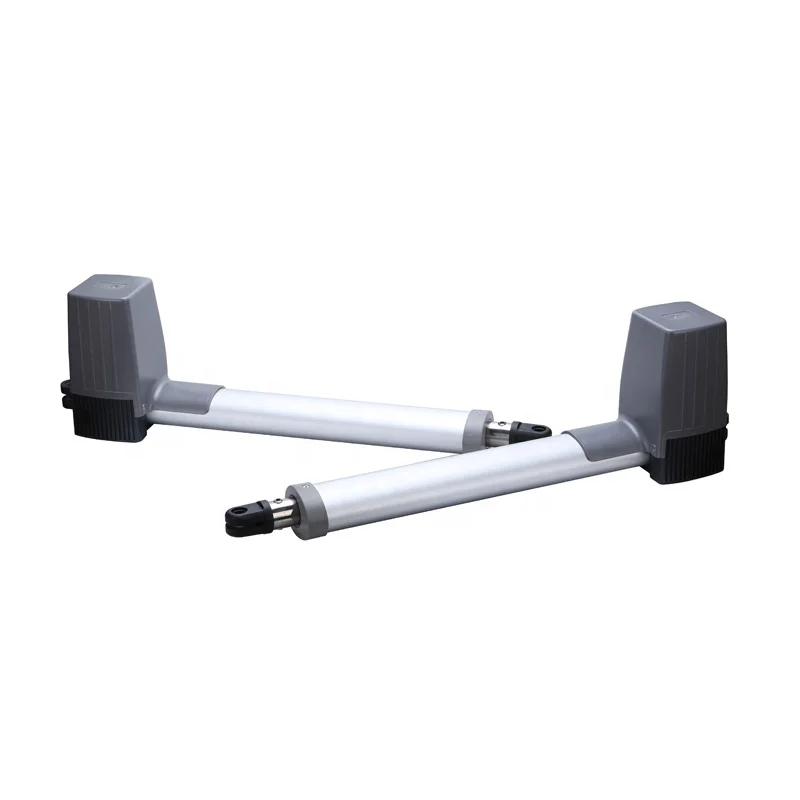

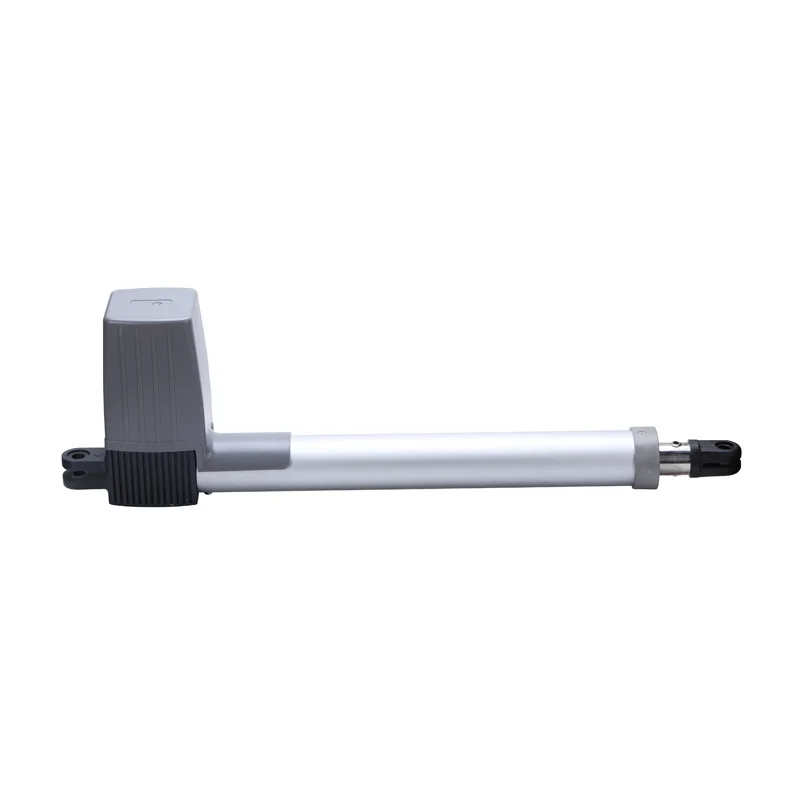

Push rod 24V DC swing gate opener.

Soft start and slow stop function.

Automatic close function, time is adjustable.

The remote control has 4 buttons, corresponding to open/close/stop.

You can add up to 23 extra remotes that can control this system.

 In case of a power outage or an emergency you may also use manual release bar.

 Driving Method Screw driven piston type

Motor Power DC 24V, 140W

Operating Cycle 20 second per 90(approx)

Max. Single-leaf Weight 300KG

Max. Single-leaf Length 2.5M

Gear Box Worm gear

Limit Switch Stop block

Working Temperature -20℃~70℃

Work Duty S2 30min

Power Supply AC 110V/220V, 60Hz/50Hz

Protection Class IP 54

Weight 12KG

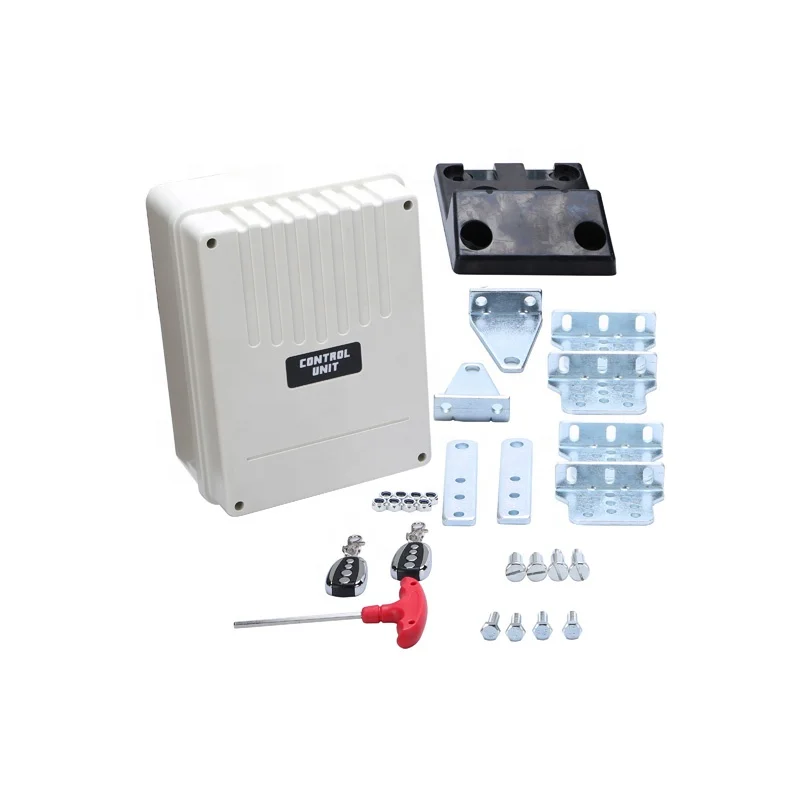

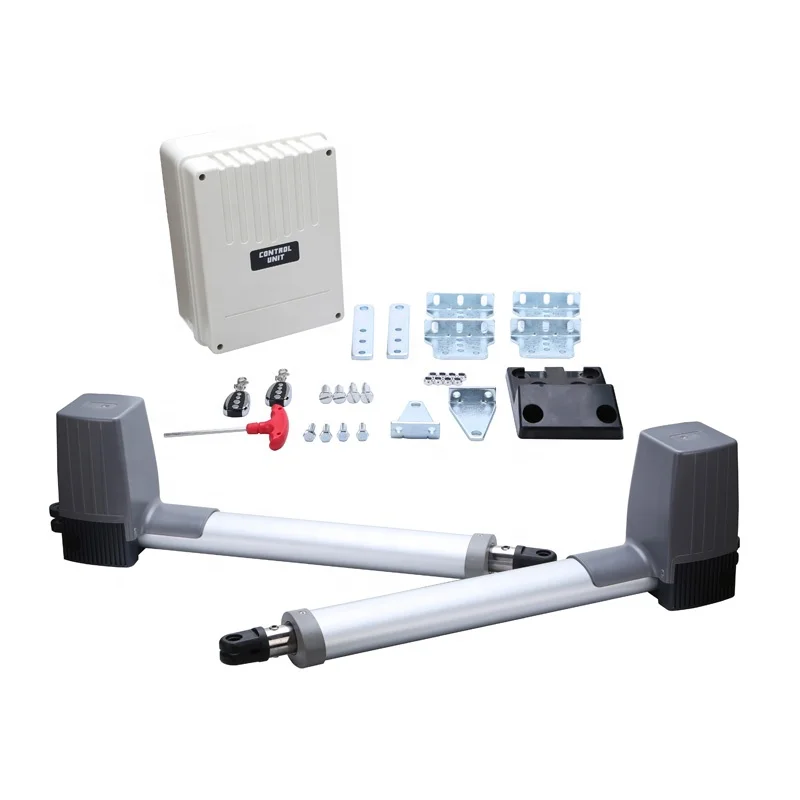

1x User Manual

1x  Motor Arm

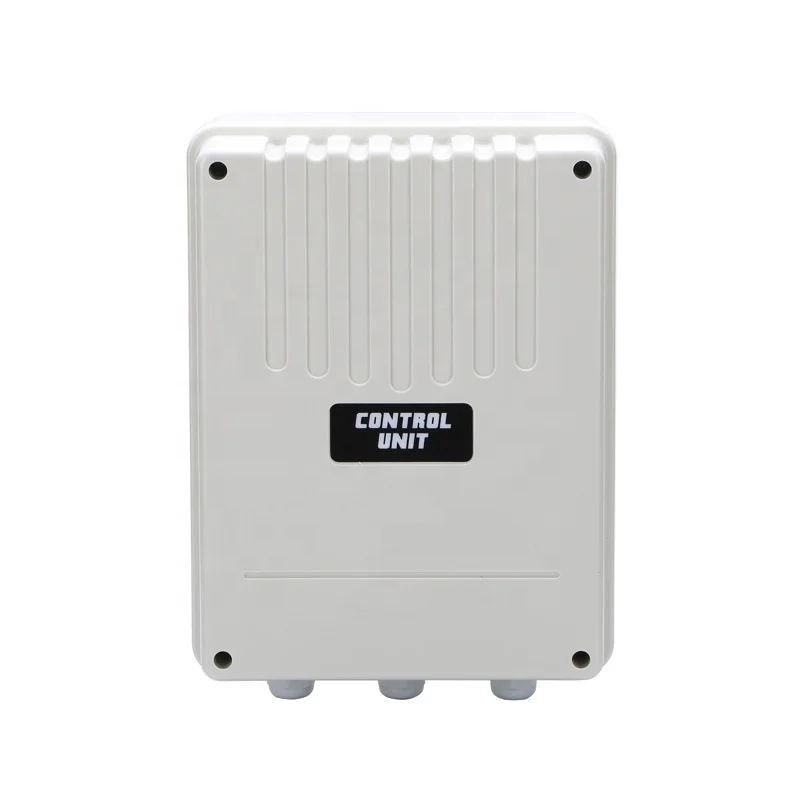

1x control box with board

2x Remote Controls

1x Release Bar

1x Mounting Hardware

1x Installation Parts
