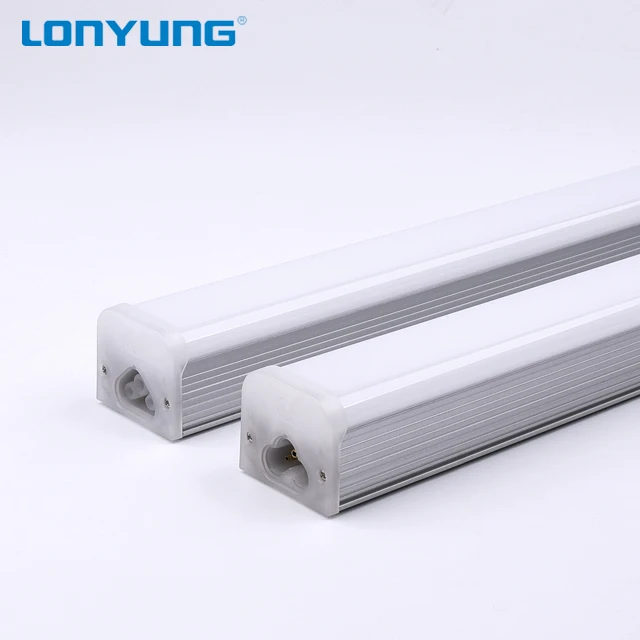

Linkable double t5 led batten linear tube integrated lamp 4ft 30w 8ft 60w led tube light

Features (T5 Led Batten light)
- One-piece Aluminum chassis

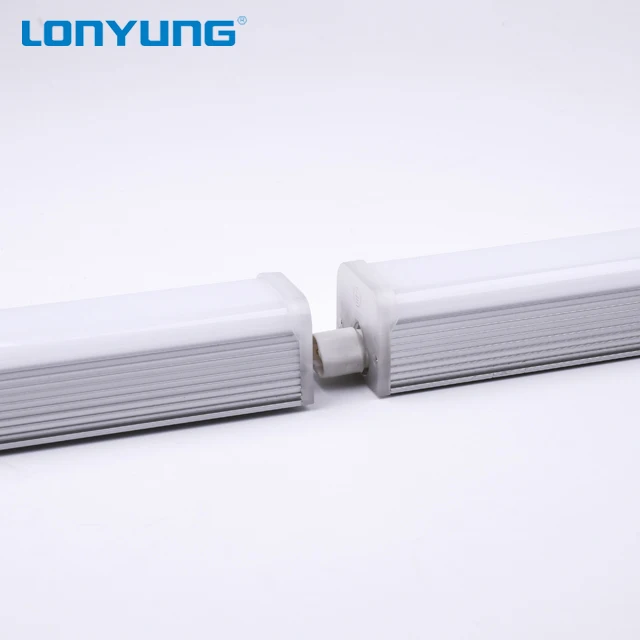

- Patent Male-female linkable design

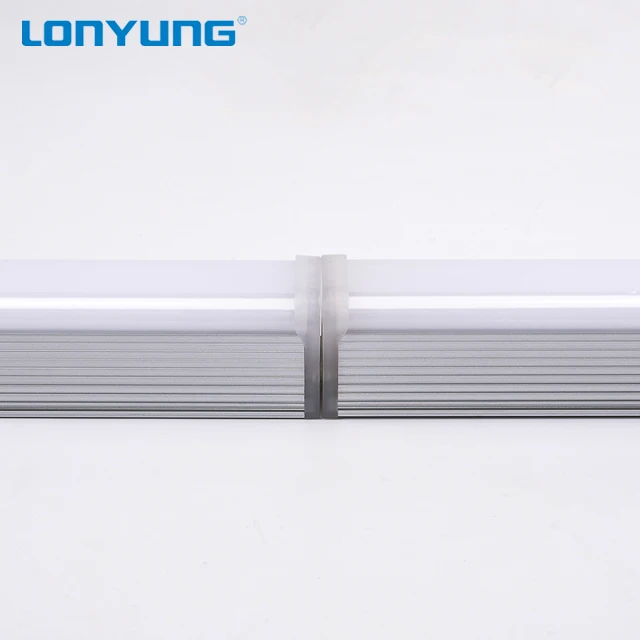

- Seamless & No Dark in-line connection
- ETL TUV SAA approved, DLC Listed
- 0.8mm aluminum housing for excellent heat dissipation
- Universal mounting standard. Come with integral hanging loops and with standard surface mounting application
Technical Specifications (T5 Led Tube light)
- Input Voltage: AC100-277V 50/60Hz / AC100-240V 50/60Hz
- Total harmonic distortion: THD<19%
- Power Factor: PF>0.95
- Efficiency: 100-120LM/W
- Color Index: Ra>82
- IP Rating: IP40
- Switching Time: 100,000
- Lumen maintenance @6000h: >80%
- Operation Temperature: -20°C ~ +50°C
Applications (T5 Led batten light)
- Replaces T8/T12 fluorescent fittings
- Warehouses, factories & food storage
- Supermarket, shopping malls, Office
- Home, Hotel, Parking lot, garage etc




Item No. | Length | Power | LED type | Luminous flux(LM) | CRI | Package |
LY-T5SL600-15W | 2ft/600mm | 15W | SMD2835 | 1500-1800lm | >82 | 735*235*190mm;20pcs/ctn |
LY-T5SL900-25W | 3ft/900mm | 25W | SMD2835 | 2500-3000lm | >82 | 1045*235*190mm;20pcs/ctn |
LY-T5SL1200-30w | 4ft/1200mm | 30w | SMD2835 | 3000-3600lm | >82 | 1345*235*190mm;20pcs/ctn |
LY-T5SL1500-40W | 5ft/1500mm | 40W | SMD2835 | 4000-4800lm | >82 | 1645*235*155mm;20pcs/ctn |
LY-T5SL1800-44W | 6ft/1800mm | 44W | SMD2835 | 4400-5280lm | >82 | 1915*235*155mm;9pcs/ctn |
LY-T5SL2400-60W | 8ft/2400mm | 60W | SMD2835 | 6000-7200lm | >82 | 2520*180*120mm;9pcs/ctn |
Options
-Fuctions: Normal / Triac Dimmable / ON-OFF Switch

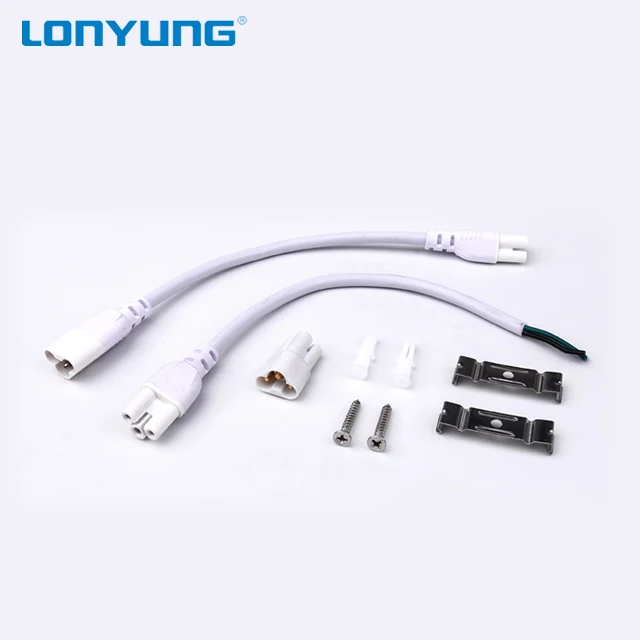

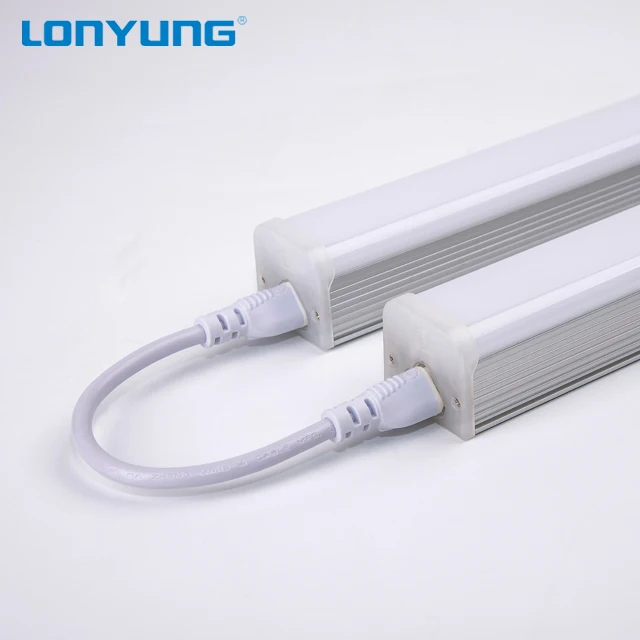

-Connection Way: Lead in wire / M-F Connection / Power on back wiring
-Extention cable: Power cord with plug
-Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
Application Scenarios
T5 Led Tube light 1200mm






Packaging & Shipping
