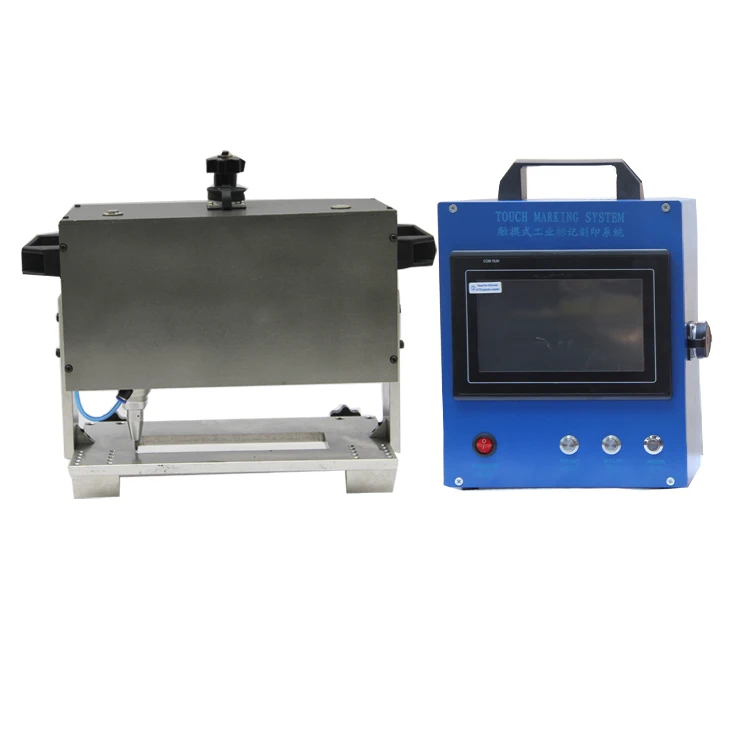

Горячая Распродажа, металлические таблички, точечная маркировка/гравировальная машина/маркер номера vin/маркировочная машина с точечным штифтом
- Категория товара: Metal Engraving Machinery >>>
- Поставщик (Оптовый магазин): Wuhan,Maohe,Tianyu,Laser,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

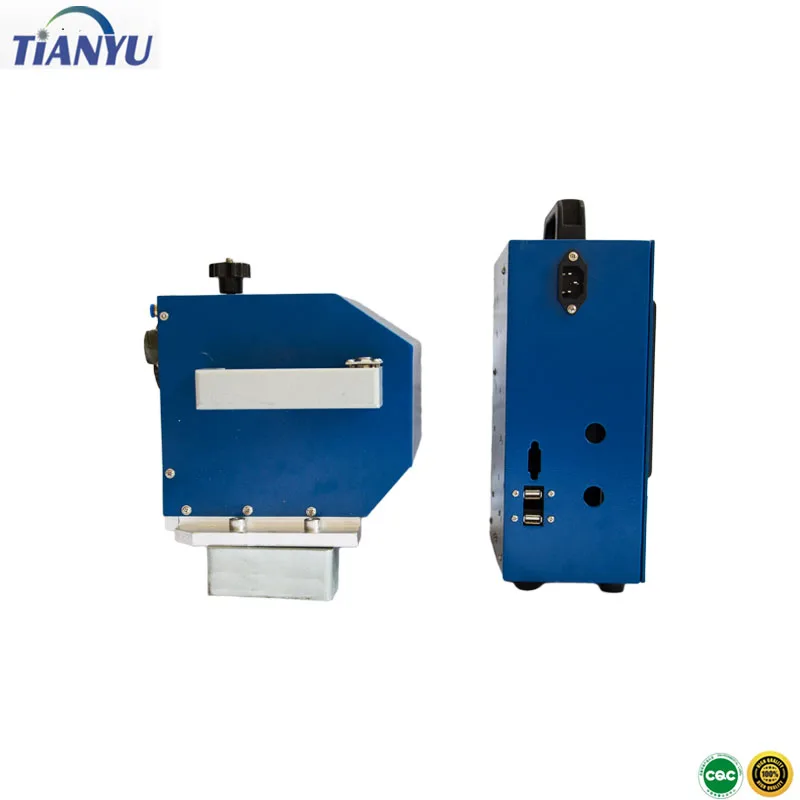

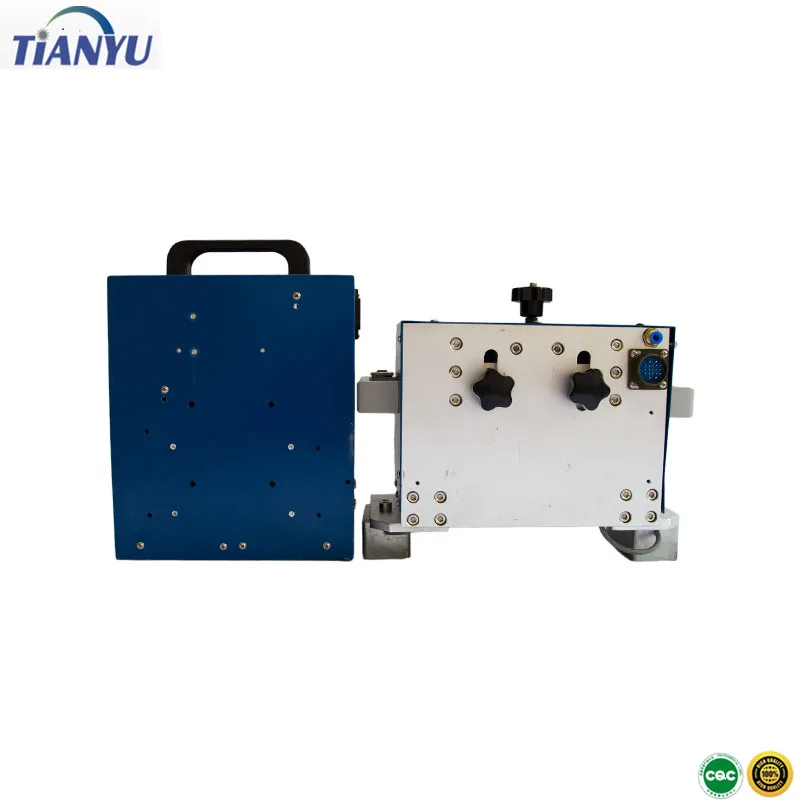

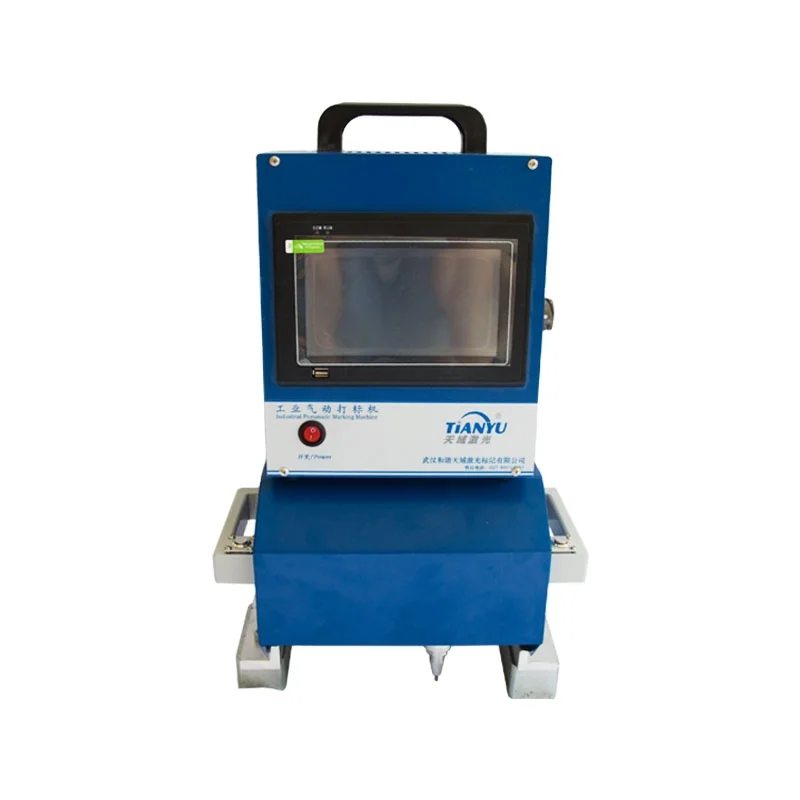

Hot selling Metal Nameplates Dot Peen Marking/Engraving Machine /vin number marker/dot pin marking machine
Product Application
Name plate engraving Machine,used for marking metal nameplate.can marking number, letter,logo. Pneumatic dot peen marking stylus, besides normal marking needs, deep marking(0.1-0.5mm), and high hardness material(HRC82) marking.insert software, directly operation on the touch screen, no need of PC.The model desigened for marking on different kinds of nameplates, you wanna Marking company logo? No problem!! Marking Serial Number? For sure!! Marking Production date? Easy job!!
Product Keywords | Vin number marking machine |
Marking speed | 2-5 characters(2x2mm)/s |
Stroke Frequency | 300times/s |
Marking depth | 0.01 to 1mm (Vary to the material) |
Marking contents | Alphanumeric info, Data Matrix or dot matrix 2D codes, Shift codes, Barcode, Serial Number, Date, VIN Code, Time, Letter, Figure, Logo, Graphics and etc. |
Stylus Pin Hardness | HRA92/HRA93 |
Marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Marking materials | below HRC60 metallic and nonmetallic materials , above HRC60 need special stylus |
Repeat accuracy | 0.02-0.04mm |
Work voltage | AC 110V 60HZ or AC220V 50HZ |
Compressed Air( Pneumatic Air) | 0.2-0.6Mpa |
Connection | USB and RS-232 |
Controller | a. laptop b. windows 6, 32 digits |
Power type | Pneumatic |
Marking directions | up, down, left, right, and the circular arc surface marking |
Main Features
1. Efficient: Easy to start marking, from a single part to mass production,High speed marking (up to 5 characters per second). All kind of metal materials.
2. Precise: Friendly software interface,easy to edit the marking content as you needs.
3. Simple: Multiple fixture options for optimal marking solutions.

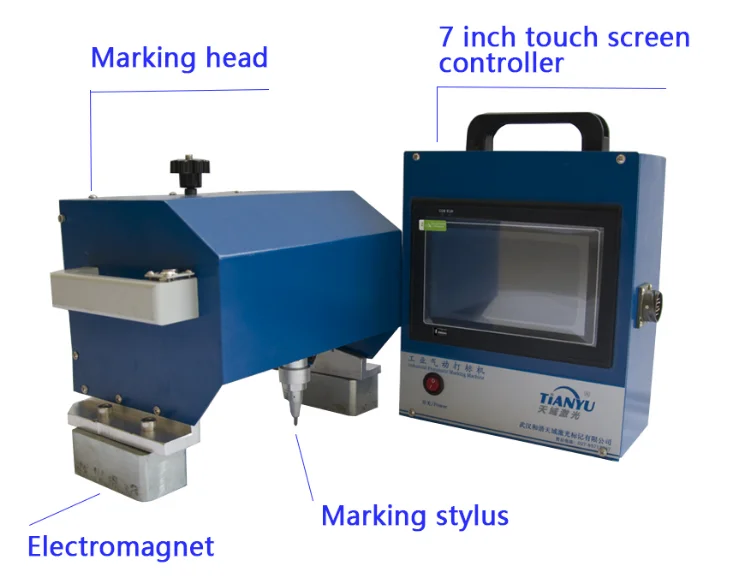

4. Innovative: controller and marking head,designed more suit for handling and moving.
Main Parts

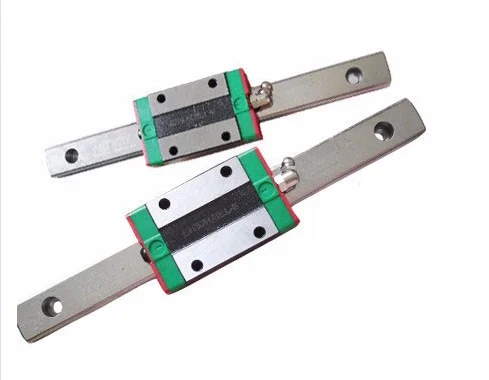

Name: linear guide rail
HIWIN-lead rail high precision marking, make sure printing precision. Used to support and guide moving parts,reciprocating linear motion in the given direction, with a higher rated load than linear bearings,high-precision linear motion under high load conditions.
Name: Marking Needles
Brand: TYLASER
Marking needles is made by hard alloy.
The rigidity reaches 92HRA by using particular technique
Ensure the accuracy of high-speed marking
Lifetime twice than general needles
Name: X shaft Y shaft bracket carriage
The high hardness military aviation aluminum alloy casting bracket has smooth surface after finishing, and it is not easy to generate gaps, so as to improve the marking accuracy.
After dark treatment, the surface can improve wear resistance, dust and good rail protection, and prolong its service life.

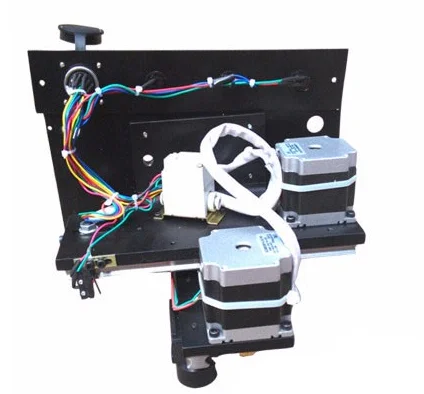

Basic Settings of Dot Peen Marking Machine
Advanced USB interface control technology
Taiwan HIWIN guide rods
Automatic System Trouble Analysis
Japan SMC high-frequency electromagnetic valve
Big torque, small angle stepper motor
High precision power driver
ThorX6 marking software
Software
Multi-languages, serial No., Arabic numerals, arbitrary figure, incrementing serial No., graphics, VIN code, time, date, barcode reading marking, ticket, dot matrix, 2D code(two-dimension code), circumferential parts marking and connected to database marking.
Available in a variety of languages (including English, French, German, Spanish, Swedish, Finnish, Italian, Portuguese, Cyrillic and Czech), the software also contains features such as serial numbering, date and time marking and password protection.Support multiple graphics and fonts,compatible with AutoCAD, CorelDraw.Flexible and user-friendly software, compared with the same numbers.
Database: Marking report available, special fonts and graphics editor.
How to choose a suitable marking stylus?
Stylus length---Pneumatic marking stylus
1. 30mm, 42mm, 45mm: suitable for portable marking machine
2. 56mm, 60mm: suitable for normal marking and bench top marking machine
3. 75mm, 76mm, 110mm: lengthened marking pin are mainly used for narrow parts marking that normal marking pin hard to reach, such as modified motorcycle engine number etc.
Stylus diameter---Pneumatic marking stylus
a.Φ2, Φ2.5: suitable for aluminum etc. Low hardness products
b.Φ3, Φ4: suitable for normal marking requirements
c.Φ5, Φ6, Φ8: a certain depth requirements.
Electrical marking stylus:
Φ2.5, Φ3.5 for choose both model suits for aluminum and stainless steel metal marking.

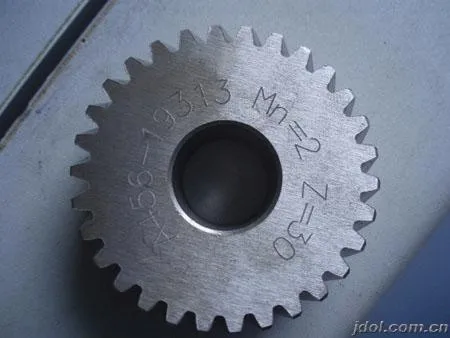

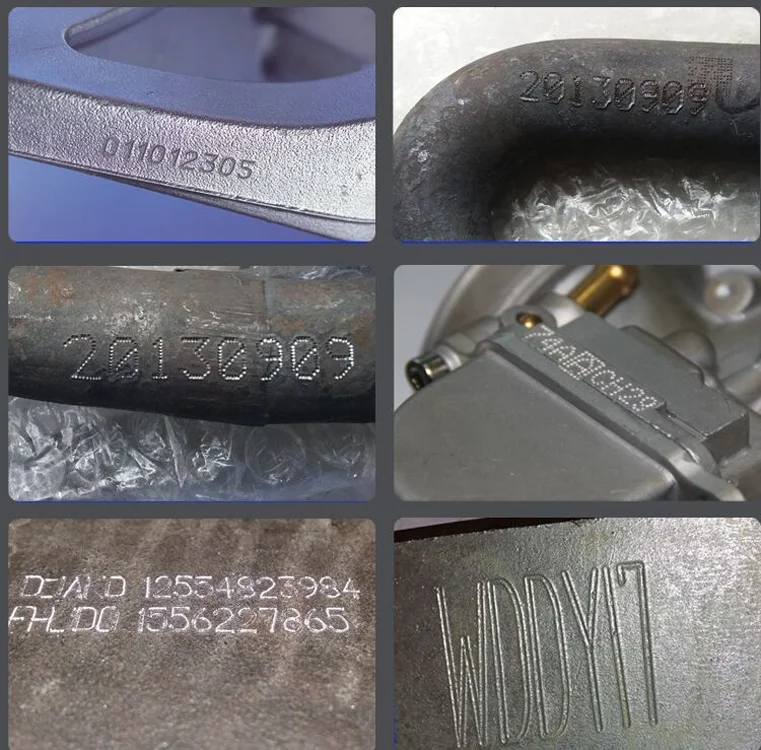

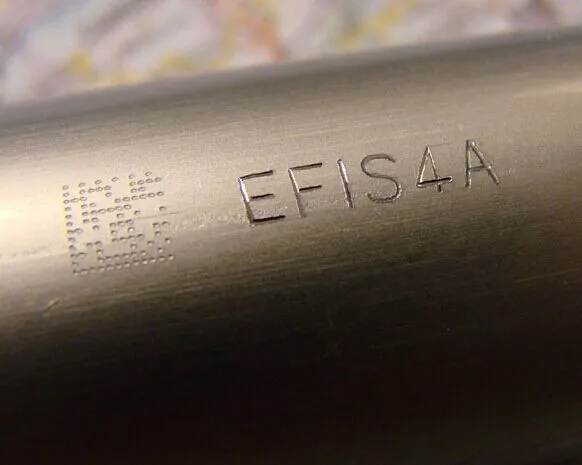

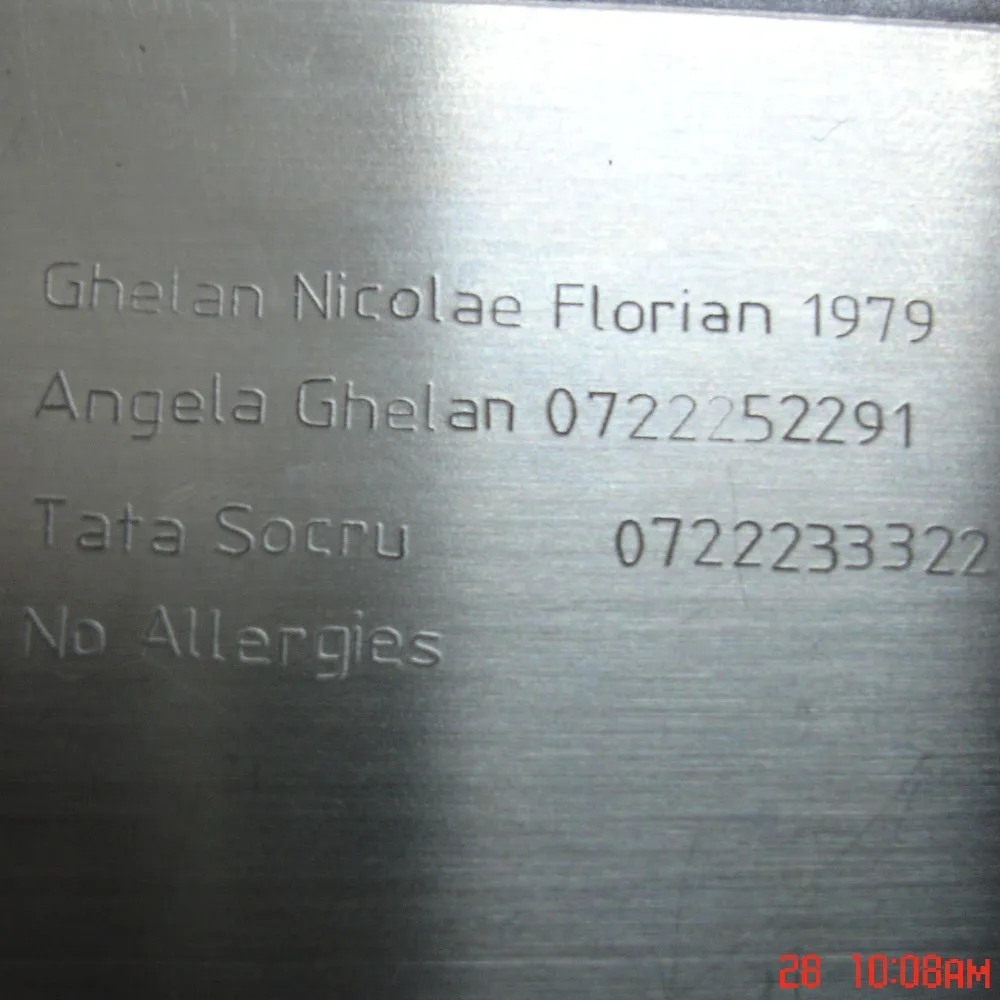

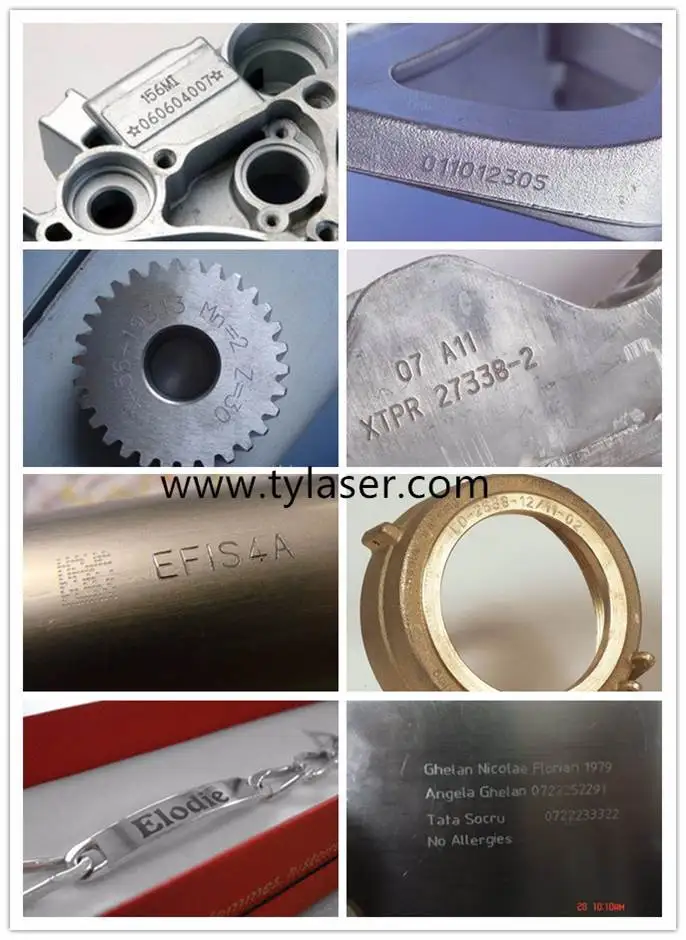

Marking Samples
