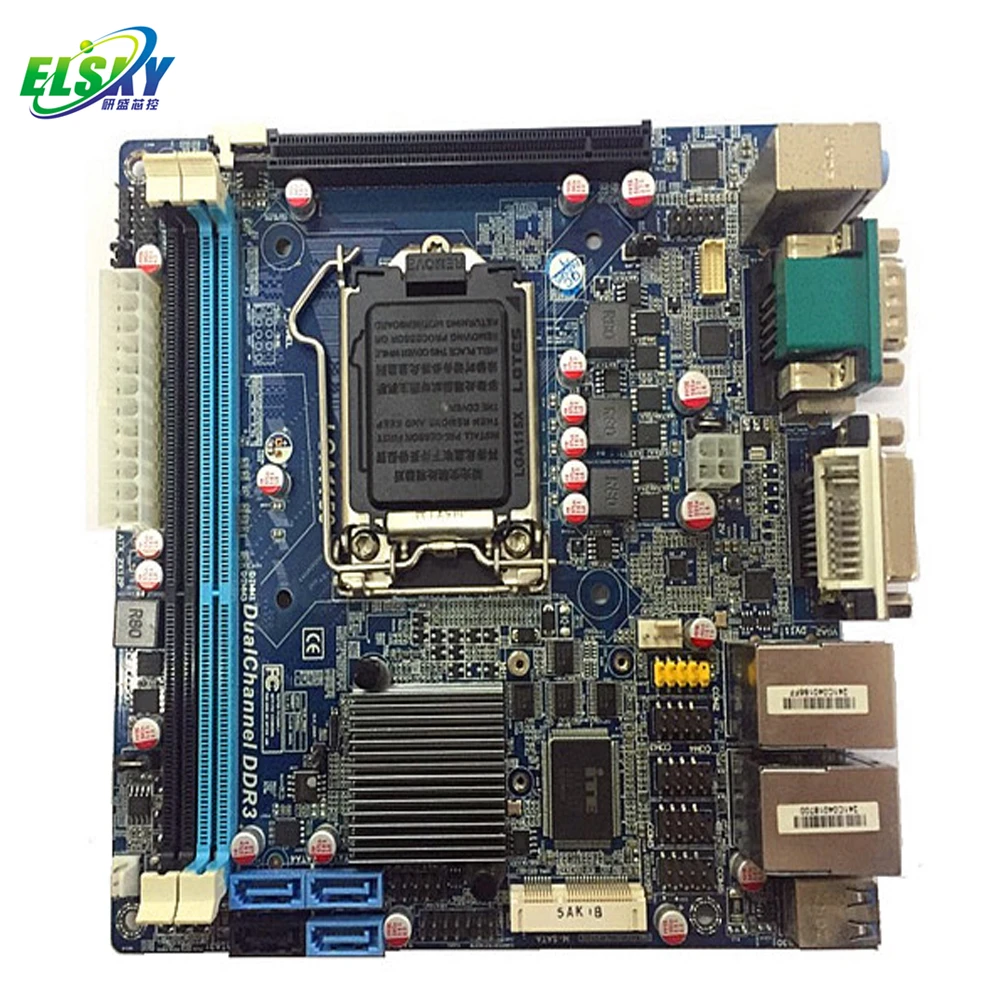

Блок питания ATX H81 1150 Mini-ITX, материнская плата с поддержкой VGA/DVI и двухканальной DDR3 (опция I3/I5/I7) QM8700
- Категория товара: Motherboards >>>
- Поставщик (Оптовый магазин): Shenzhen,Elsky,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specifications
| Motherboard Type | 170x170mm,5.25" |
| Processor | Haswell 1150 Socket ( I3,I5,I7 Option) |
| System Memory | 2 DDR3 1600M DIMM socket supporting up to 16G |
| Chipset | H81/B85 |
| I/O Chip | ITE 8782F-S |
| Ethernet | Realtel 8111E,2x GBE LAN |
| BIOS | 8M AMI BIOS |
| Wake-on-LAN | yes |
| Watchdog | Trigger a system reset when the timer overflows |
| H/W Status Monitoring | Monitor the state of voltage, temperature and rotational speed of the fan |
| Expansion Interface | 1xPCIE,1x MiniPCIE |
| Battery | Lithium battery |
| Power Supply | Standard ATX power supply |
| Size | 170x170 x 35mm |
| Operating Temperature | 0°C-60°C |
| Storage Temperature | (-40°C) ~ 80°C |
| Operating Relative Humidity | 0%~90% (non-condensation) |
| Controller | HD Graphic |
| Video Memory | Support 1080P Full HD and game |
| Resolution | CRT supports up to 2048x1536x32 bpp@85 Hz |
| DVI /HDMI support up to 1920×1080×32bpp@60 Hz | |

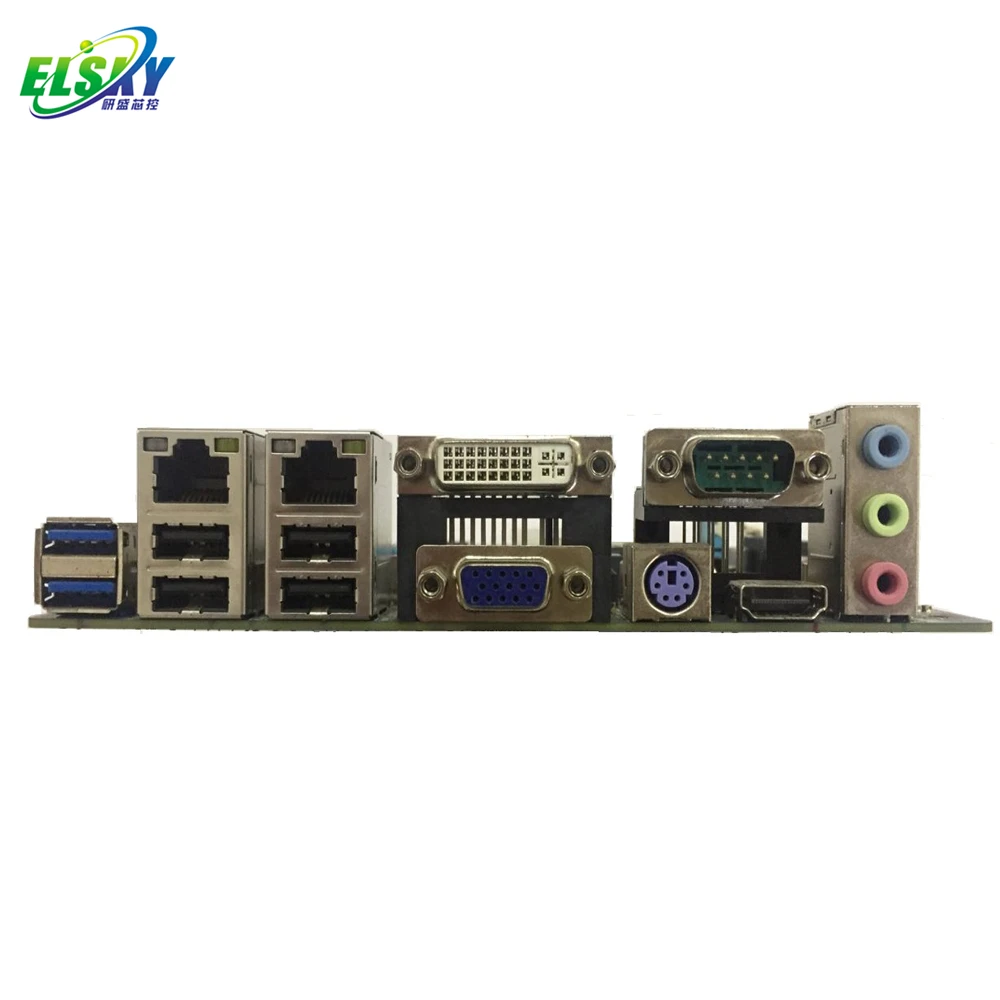

| CRT | 1xVGA |
| LCD | 1x DVI |
| HDMI | 1xHDMI |
| Multi-Display | VGA+DVI+HDMI |
| Storage | 4xSATA |
| Serial Port | 6xRS232 |
| Parallel Port | NC |
| USB | 10x USB |
| Keyboard & Mouse | PS/2 KB/MS |
| Audio | Realtek ALC662 supporting MIC-in, LINE-out.Line-in |
Packaging & Shipping
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 1.0-1.5KG);
5Pieces/Carton(G.W. : 5.0-7.5KG);
10Pieces/Carton(G.W. : 10.0-15.0KG);
