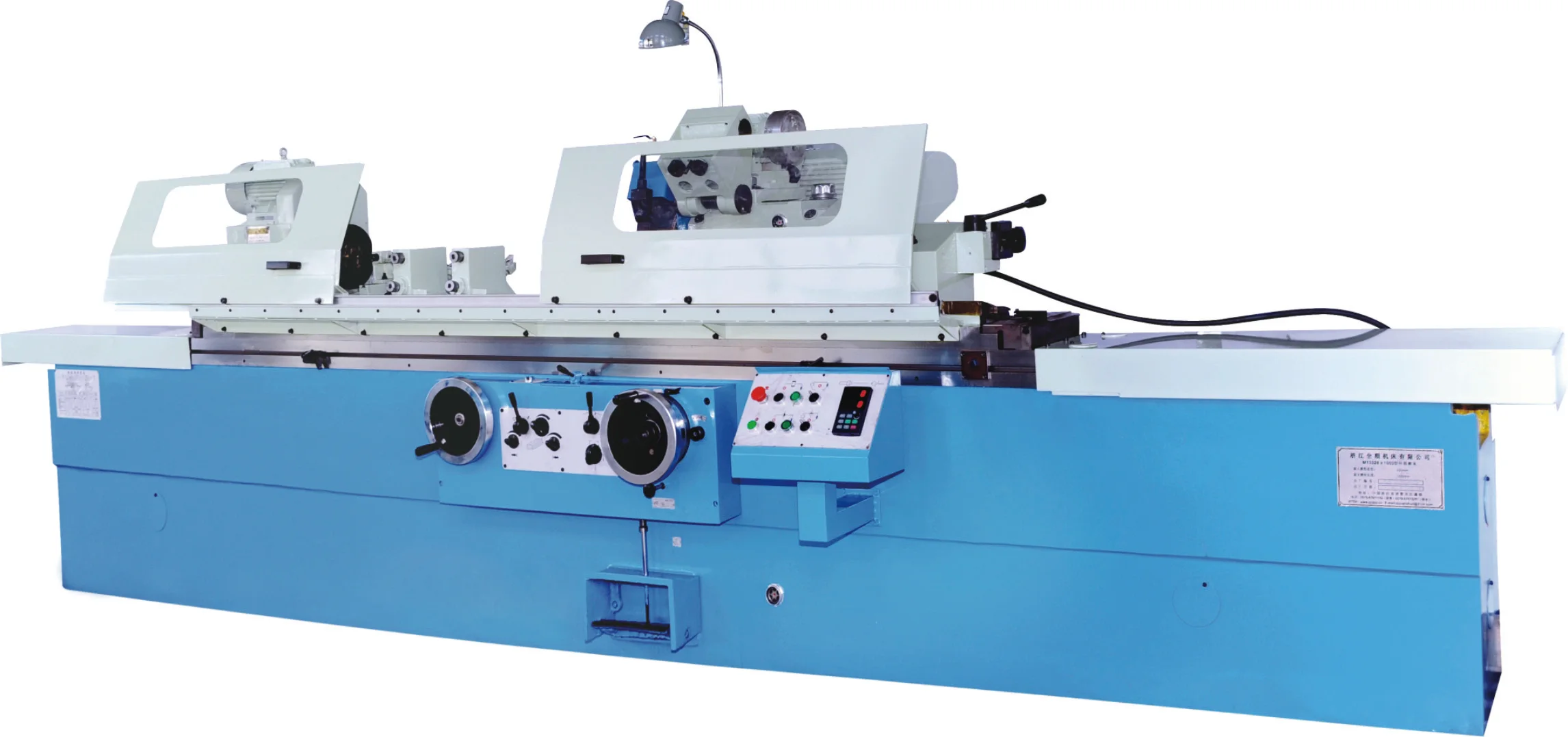

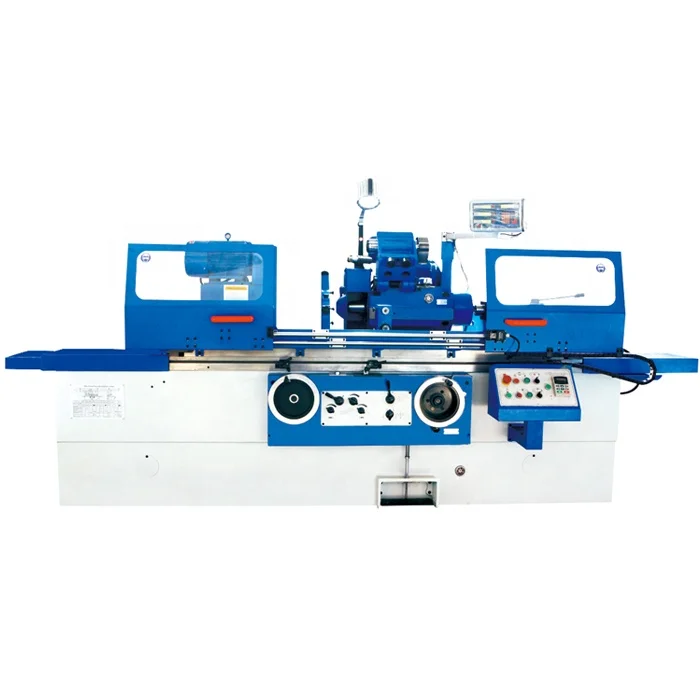

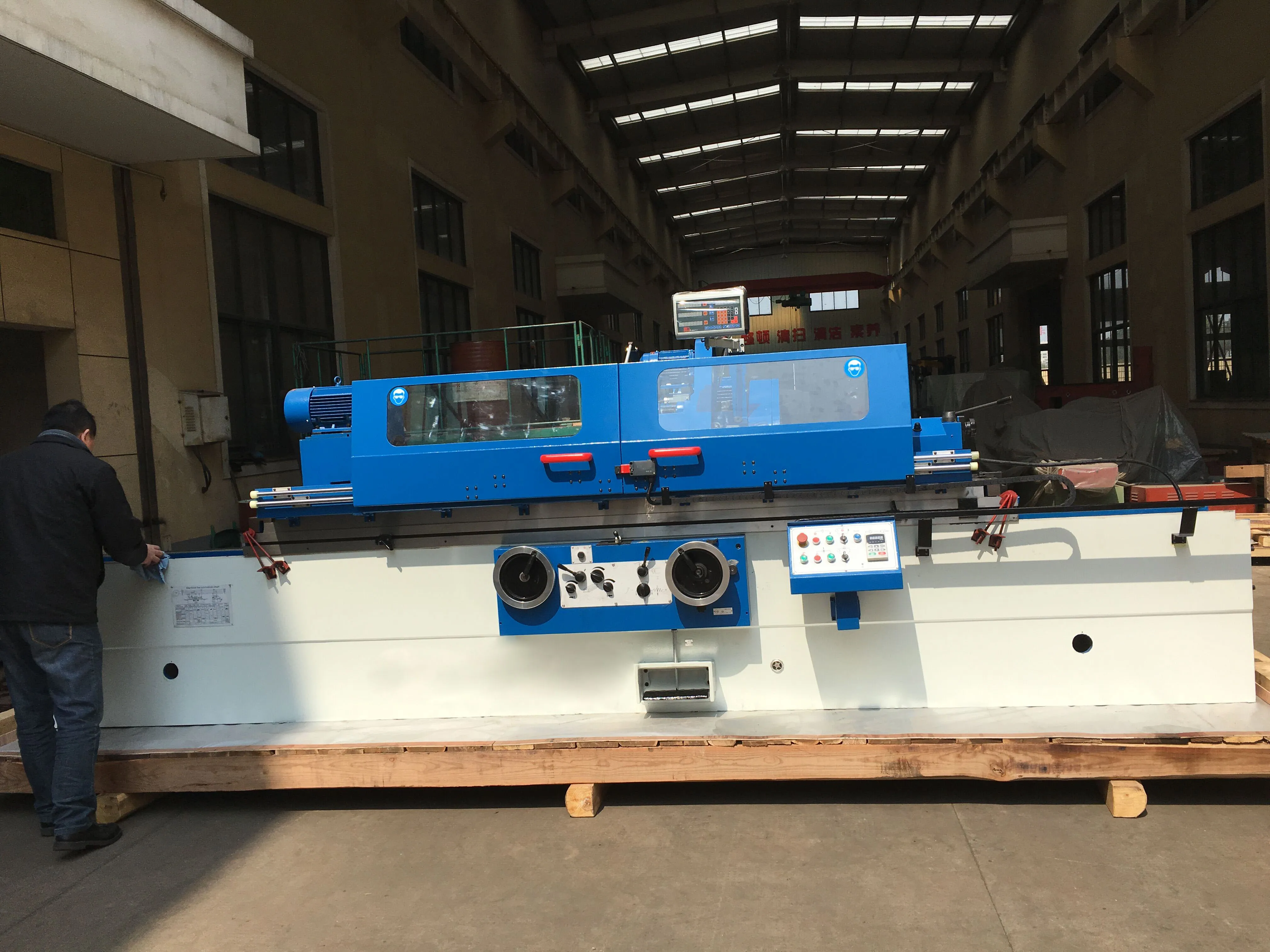

Универсальный цилиндрический шлифовальный станок M1432B 1000 мм

 Features:

\tM1432B Universal Cylindrical Grinder is an improved design of its predecessor,M131W and M1432A,with full retainment of their noteworthy merits .It is operated by hand and can be controlled and actuated either by power or by hydraulic system.

\tIn comparison the machine is superior to M1432A in the following field :Greater rigidity and resistance to temperature change deformation of the machine body ;larger diameter for the grinding wheel spindle ;Two sets of bearing consisting of four-shoes used as wheel spindle bearings. more power of the grinding wheel and use of small orifice lubricant restrictor for better table lubrication .All these improvements result in higher efficiency and better finish in grinding performance.

\tMachine table longitudinal travel, wheelhead rapid approach and withdrawal and automatic periodic cross infeed are driven hydro-electrically by pushing button operation. The machine also has the following functions :hand-operated worktable and wheelhead manually traverse infeed plus hydraulic tailstock quill retraction by foot.

\tThe headstock can be swiveled in counter-clockwise direction in 90 degree range .By swiveling the headstock, or wheelhead or table ,components with different external or internal taper can be ground. By turning down the internal grinding attachment ,internal surface of components can be provided for grinding selection. The chuck mounted using short axis.

\tWorkpiece ,external and internal grinding wheels ,hydraulic and coolant pumps are all driven separately by individual motors.

\tAll the power moving portions of the machine are interlocked by electro hydraulic mechanism to ensure safety in operation .External and internal grinding wheels are guarded in sound and covers.
