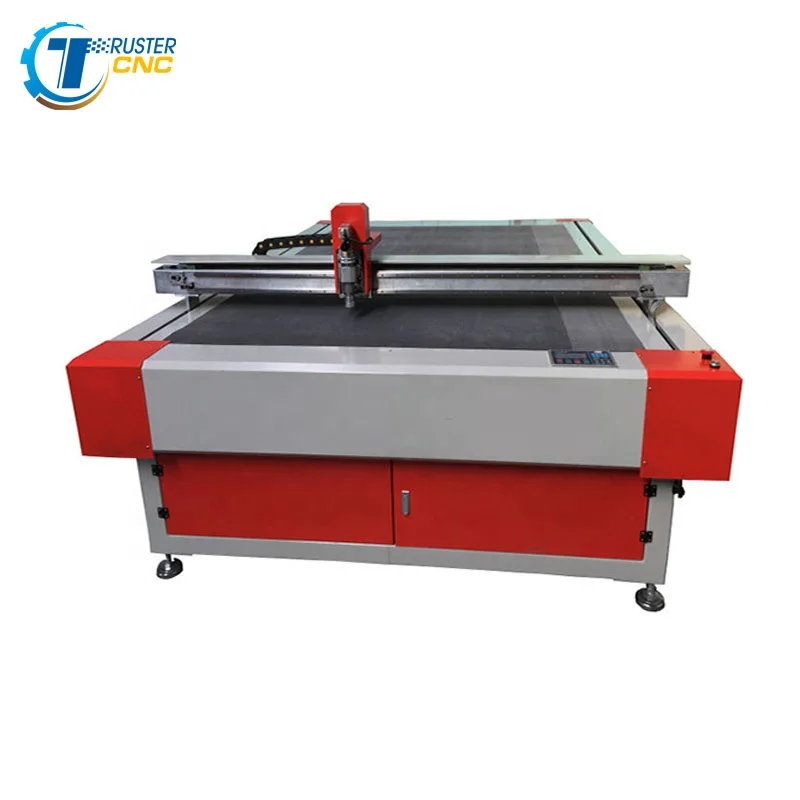

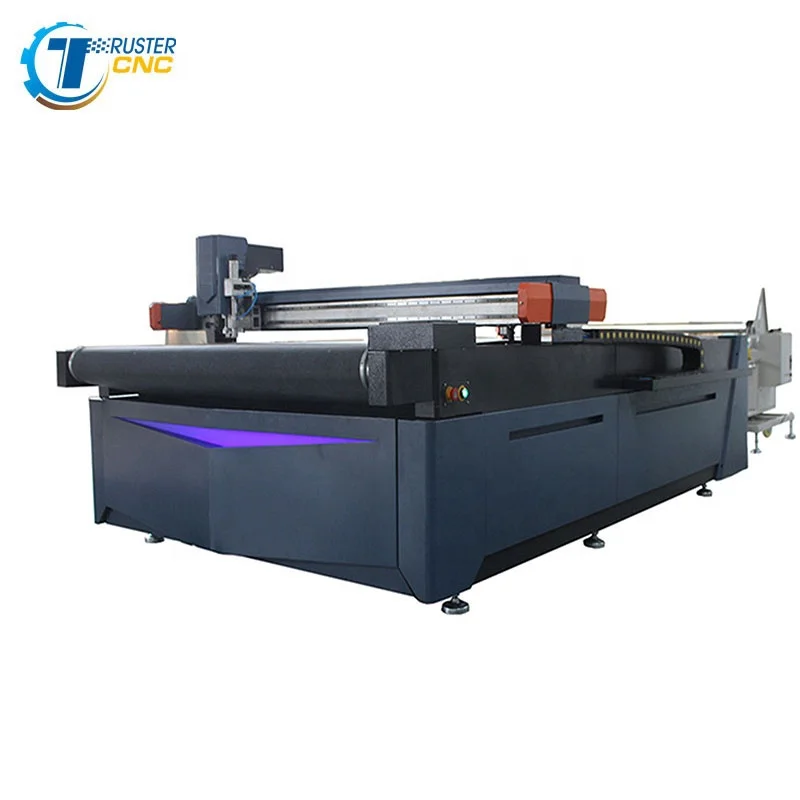

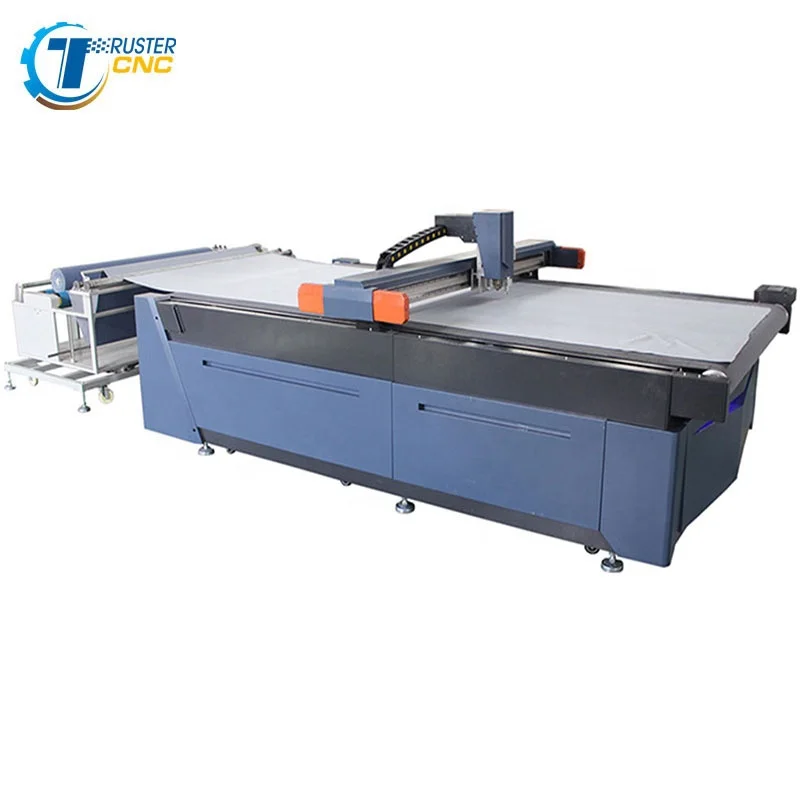

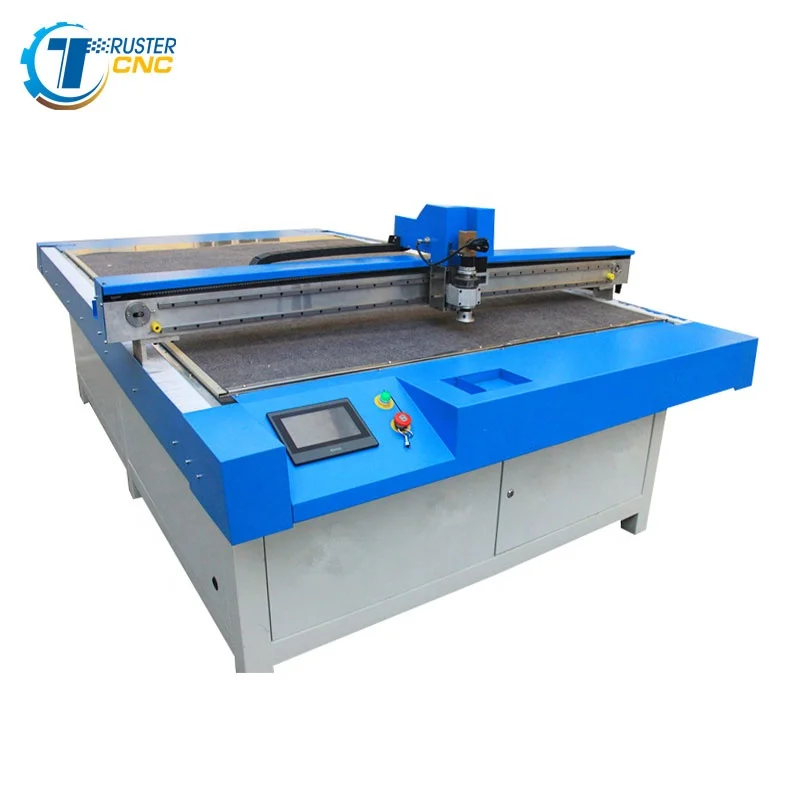

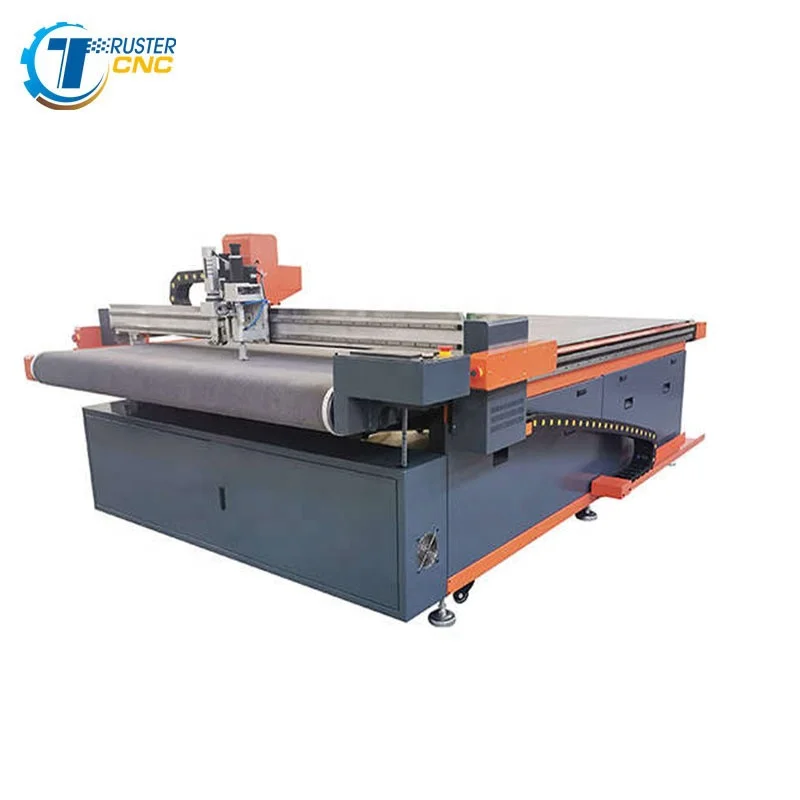

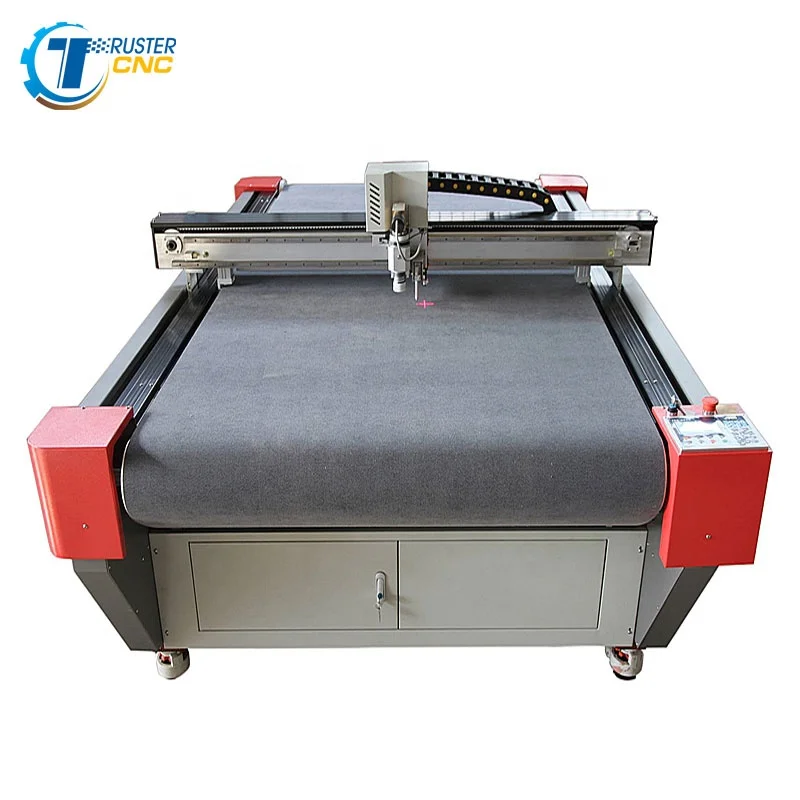

Режущий станок с ЧПУ, резак для кожи, колеблющийся нож, машина по хорошей цене
- Категория товара: Leather Production Machinery >>>
- Поставщик (Оптовый магазин): Jinan,Truster,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
1. Electric shock and head are strong, and vibration frequency is high which can up to 25000 times per minute.
2. The whole machine adopts the high precision module; the response is faster; the positioning accuracy is higher; the overall
performance is more stable.
3. Using Servo-motor from Mitsubishi; With computer controlling, the depth of cutting and creasing can be adjusted precisely
according to the need of box designer and makers.
4. The machines have three types of functional heads: vibration cutting head, creasing wheels, drawing pen. It enable the machine
can cut different materials; corrugated paper, gray board, white cardboard, plastic sheets, composite materials, textiles,
leathers, foam board, sponge etc .
5. Drawing lines, drawing, text annotation, half cutting, full knife cutting,can be completed at the same time, which meets the
low volume, multi order, multi style production target.
6. Programmable multi axis motion controller; stability and operation achieve the leading technical level at home and abroad
2. The whole machine adopts the high precision module; the response is faster; the positioning accuracy is higher; the overall
performance is more stable.
3. Using Servo-motor from Mitsubishi; With computer controlling, the depth of cutting and creasing can be adjusted precisely
according to the need of box designer and makers.
4. The machines have three types of functional heads: vibration cutting head, creasing wheels, drawing pen. It enable the machine
can cut different materials; corrugated paper, gray board, white cardboard, plastic sheets, composite materials, textiles,
leathers, foam board, sponge etc .
5. Drawing lines, drawing, text annotation, half cutting, full knife cutting,can be completed at the same time, which meets the
low volume, multi order, multi style production target.
6. Programmable multi axis motion controller; stability and operation achieve the leading technical level at home and abroad
Specification
Max. Cutting size | 2500*1600mm |
Power | 9KW |
Motor | servo motor |
Multi-functional Tool Head | Thorough cutting/Kiss cutting/Creasing/Plotting/Lasor Locating/Automatic Table-level measuring |
Security configuration | High sensitive infrared induction (optional) |
Travelling speed | Max. 1200mm/s |
Cutting speed | Max. 800mm/s (Depending on different material type) |
Cutting material | Corrugated paper, PVC expansion sheet, kt sheet, thick foam, carton board, paperboard, car sticker, adhesive Sticker, etc. |
Material fixing method | High power vacuum absorption and intellectual partition |
Repeated positioning accuracy | Maximum 0.01mm |
Display mode | Chinese and English liquid crystal touch screen |

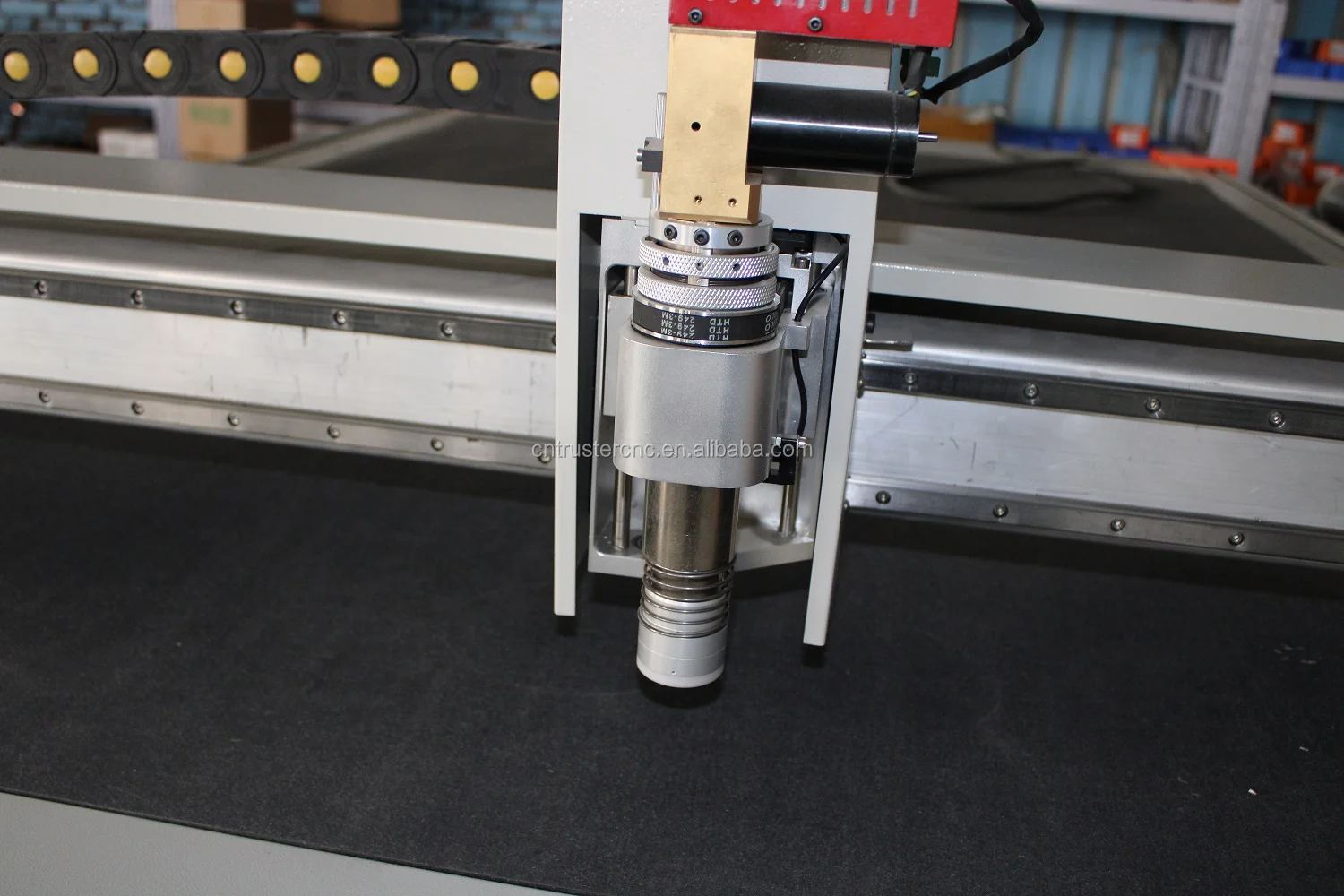

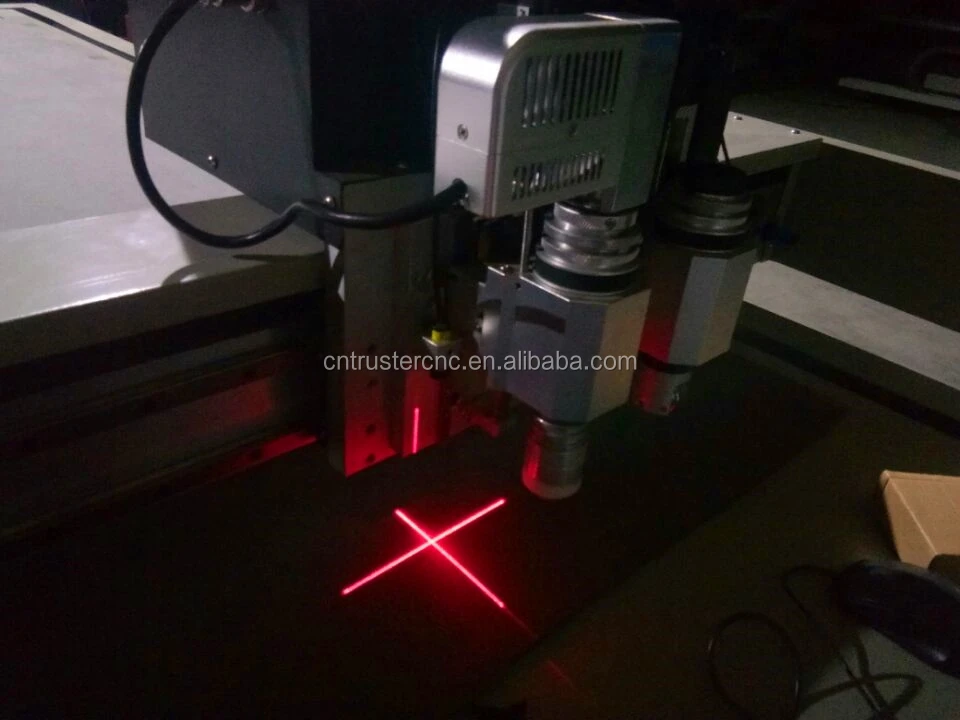

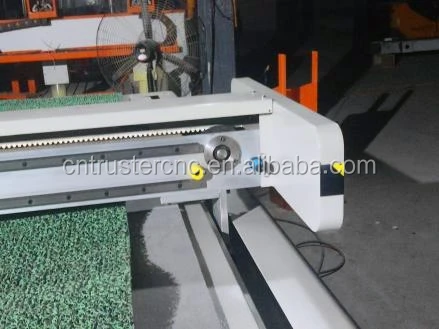

oscillating knife cutting head

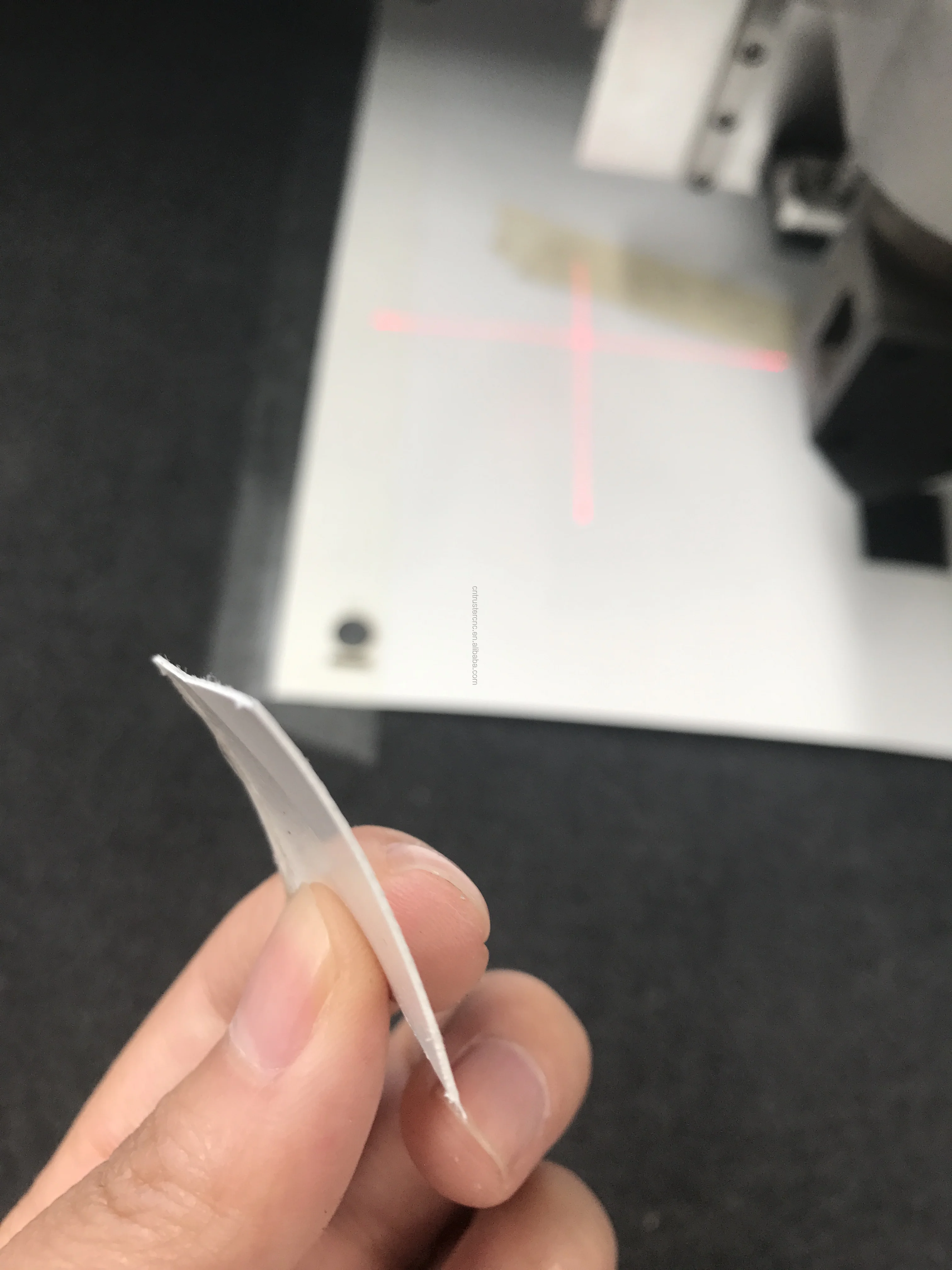

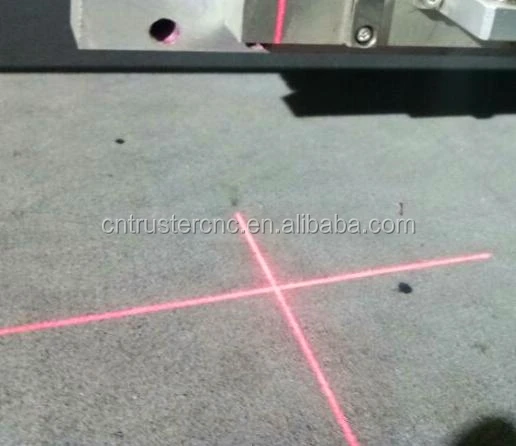

Red light pointer
Safety protector

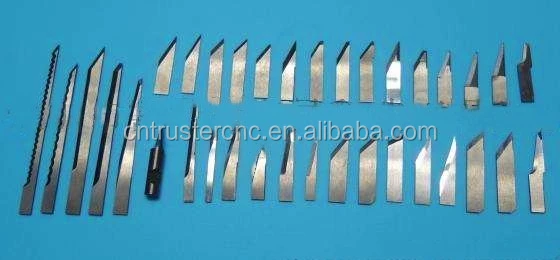

different knives
Shampo reducer
Special vacuum worktable
professional Kinco control panel
electric parts connection

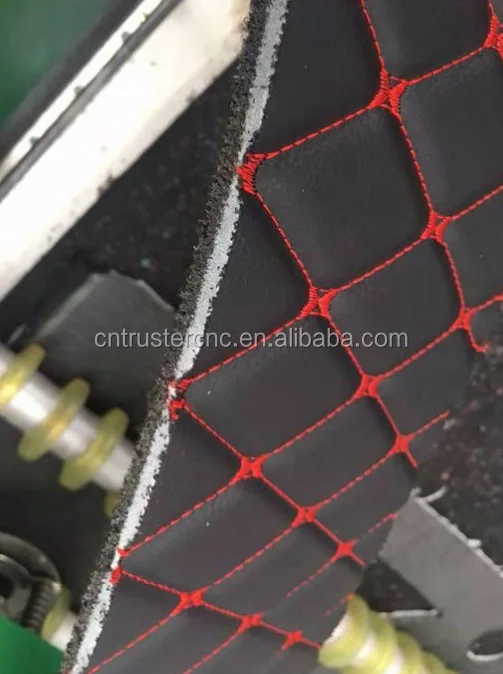

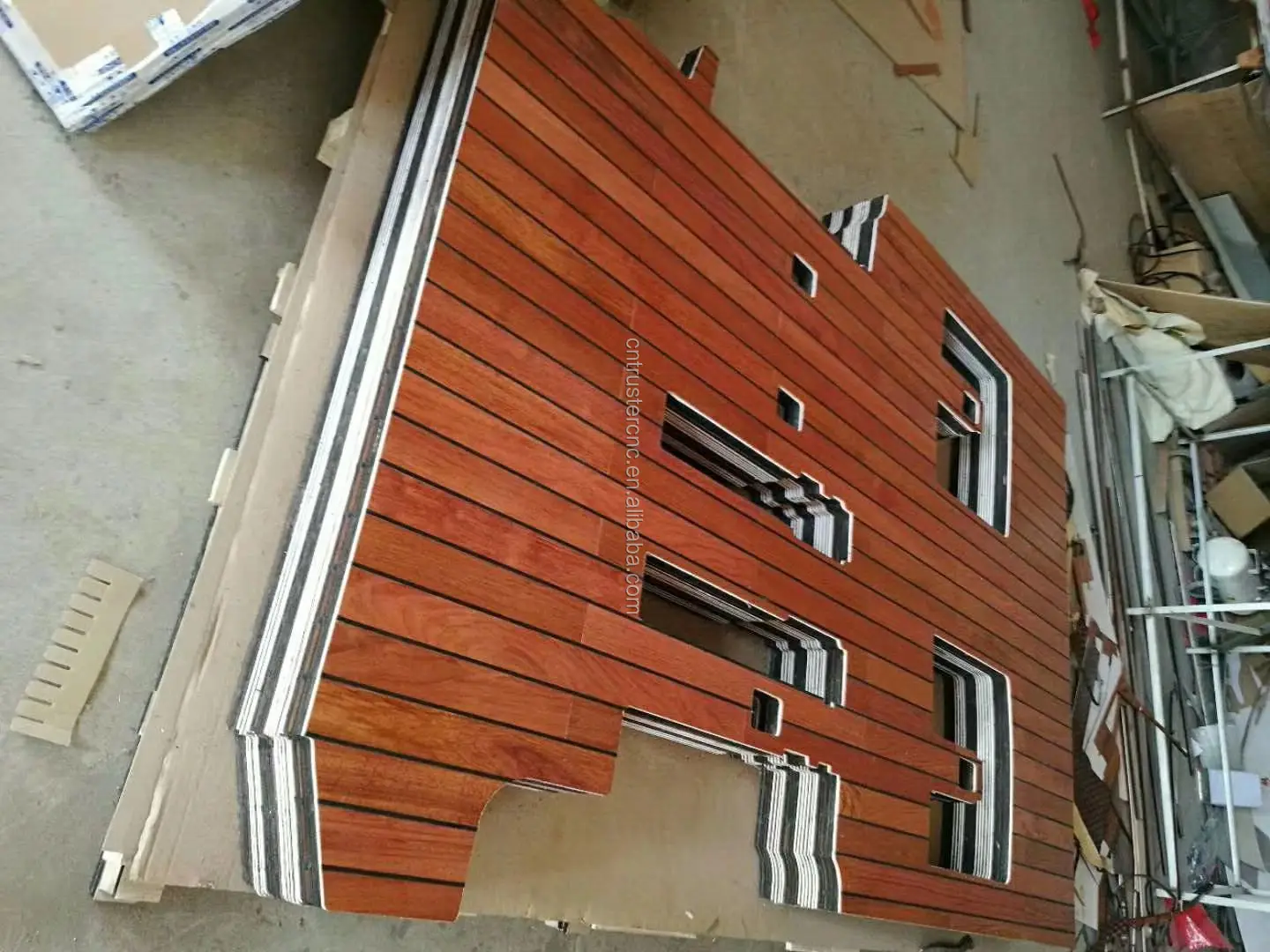

Sample show
It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foam, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It''s widely used for packaging protection, advertising display, terminal insulation, model & mock up making, puzzle and pattern cutting, etc.
Packing & Delivery
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.

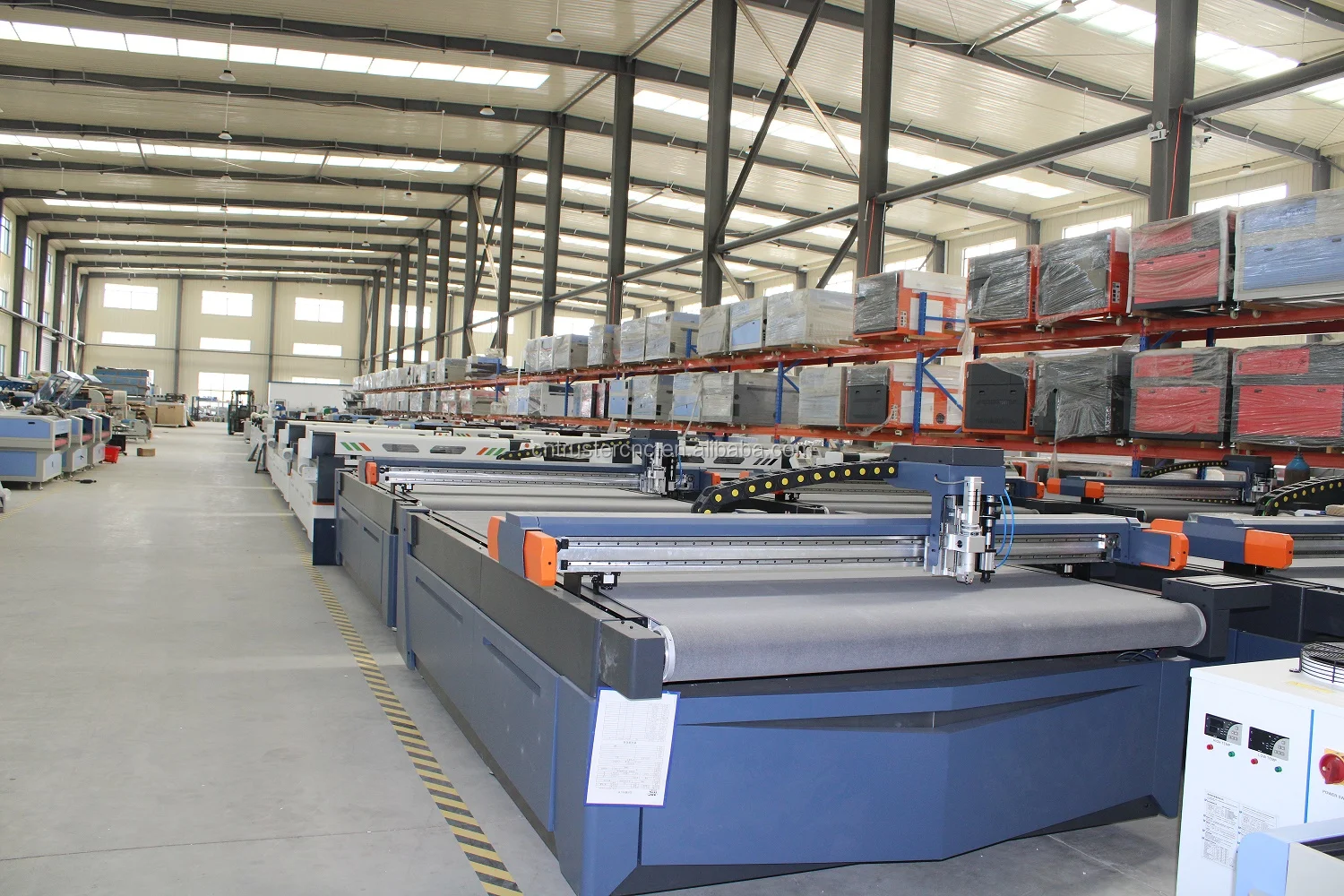

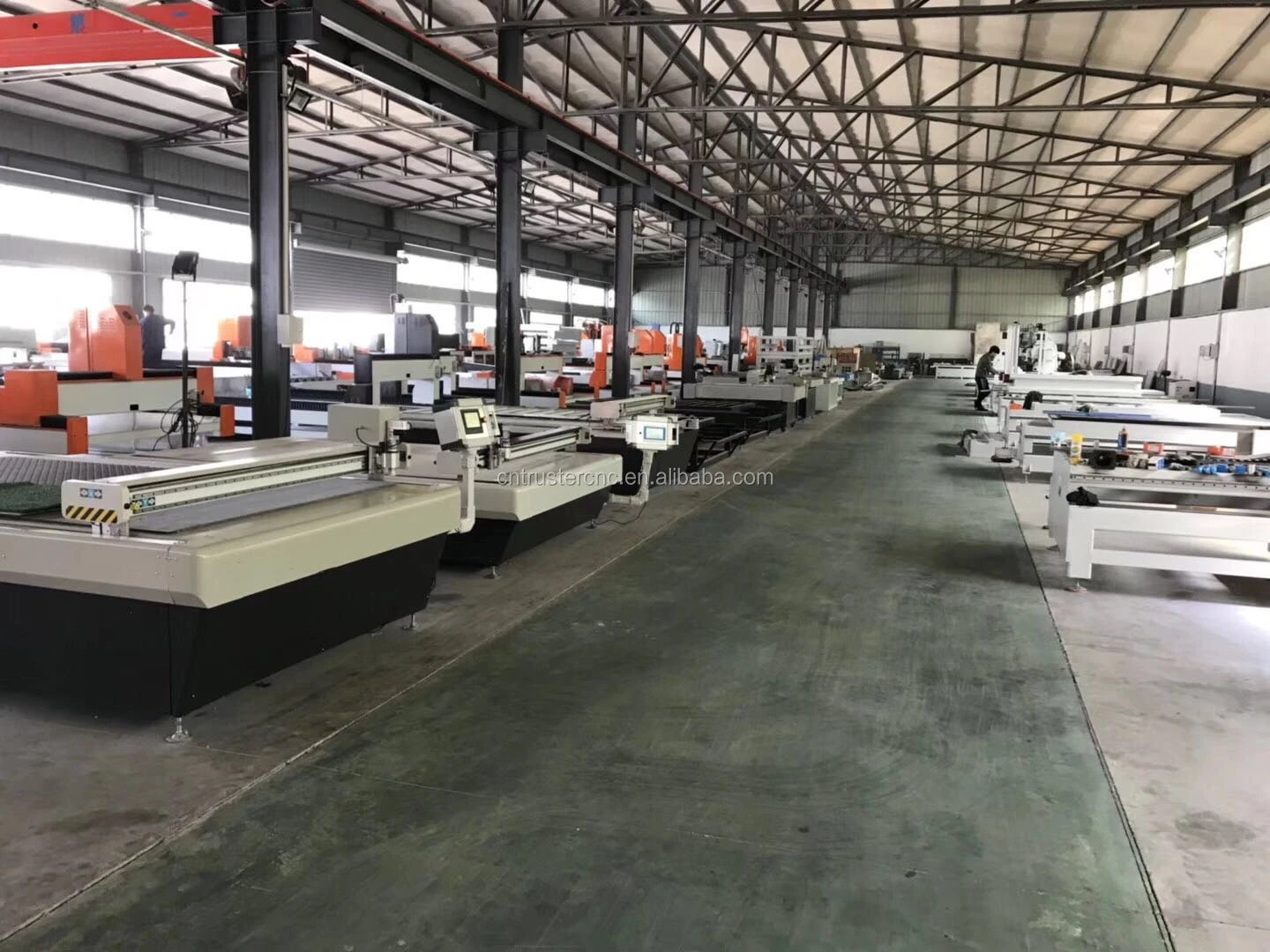

Company Profie

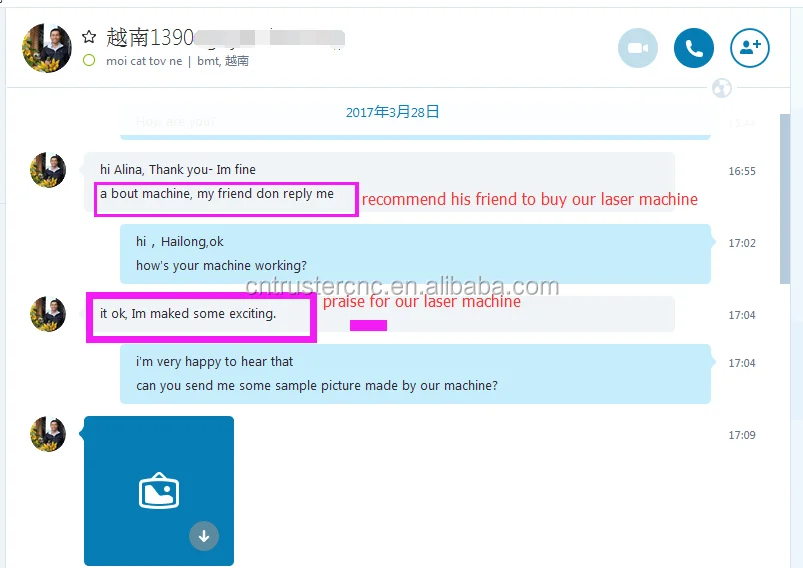

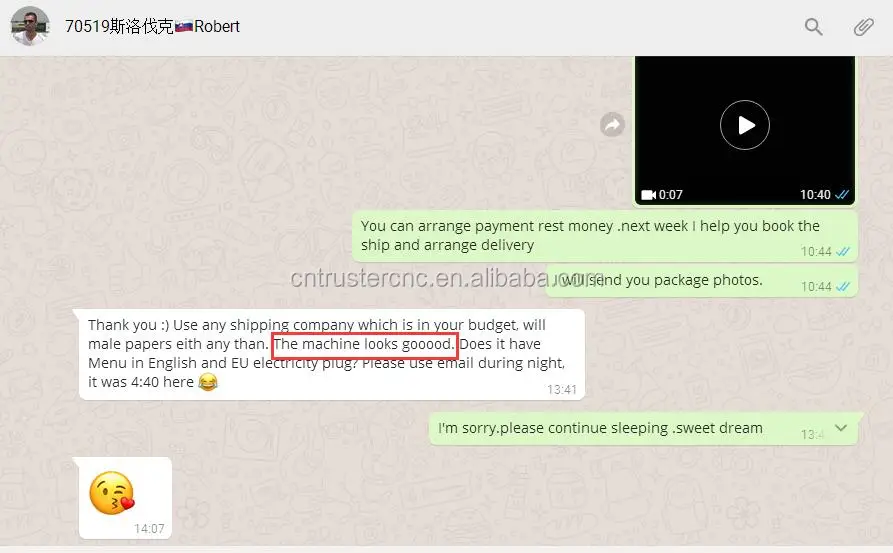

Customer feedback
