Product Description
Features:

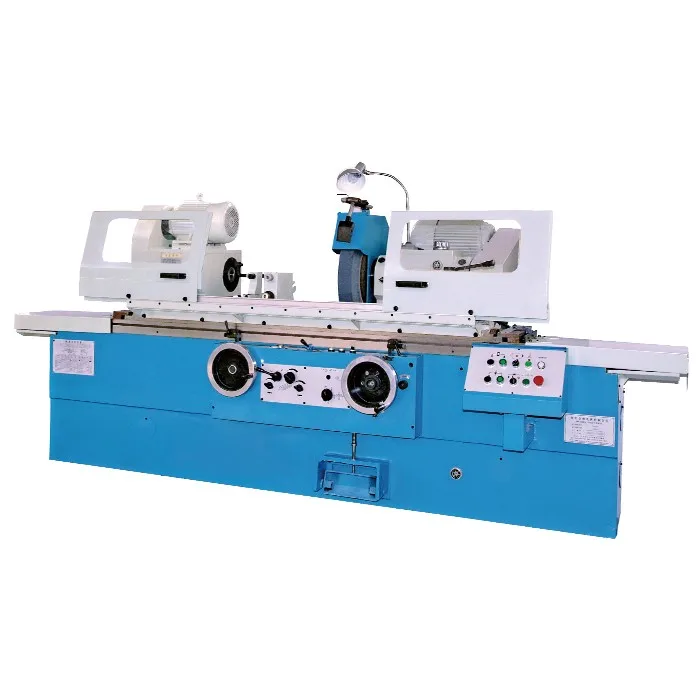

M1332B cylindrical grinding machine is designed on the basis of M1332A cylindrical grinding machine. It is suitable for grinding cylindrical or conical parts ,for its accuracy IT6-IT5. Worktable longitudinal travel driven by hydraulic at infinitely-variable-speed,or driven by handwheel. Lubrication for hole throttle unloading form. Wheelhead cross travel provided with hydraulic rapid advance and withdrawal ,manual microfeed And feed grinding wheel automatic cycle function. Workpiece,wheel,oil pump and coolant pump respectively driven by their individual motor. wo sets of silding bearing consisting of four-shoes used as wheel spindle bearings.The spindle bold,increased motor,high grinding efficiency.
Wheel dresser mounted on the tailstork,and hydraulic tailstock top bavk device. The machine with the moving parts of electrical,hydraulic chain,safe and reliable operation. MC1332B Series table moves using hydrostatic guideway.
Description | unit | M1332B×2000 |
Grinding length | mm | 2000 |
Grinding diameter | mm | Φ8~Φ320 |
Center height | mm | 180 |
Max.workpiece weight | kg | 150 |
Worktable speed | m/min | 0.1~4 |
Max.peripheral speed of grinding wheel | m/s | 38 |
Max.travel of table | mm | 2100 |
Swivel range of worktable | degree. | ﹣3+6°﹣2~+5° |
Externalwheef size | mm | Φ600×75×Φ305 |
Workhead spindle speeds | r/min | 26,52,90,130,180,260 |
Grinding spindle speed | r/min | 1100 |
Headstock top | morse | NO.5 |
Tailstock top | morse | NO.5 |
Rapid advance and withdrawalamount | mm | 50 |
Wheelhead displacement oer rev of handwheel coarse/fine | mm | 2/0.5 |
Wheelhead displacement oer div of handwheel coarse/fine | mm | 0.01/0.0025 |
Machine motor power | kw | 14.27 |
Overall dimensions(L×W×H) | mm | 5605×1810×1515 |
Machine weight | kg | 6600 |
Company Profile
Factory Show
Packing & Delivery
Exihibition Show
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
