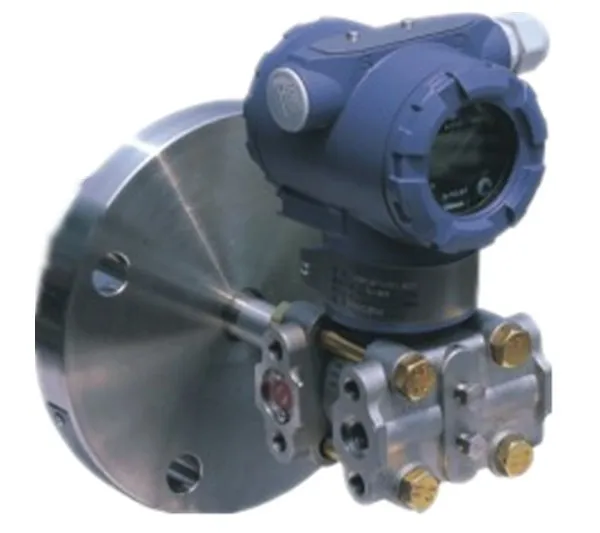

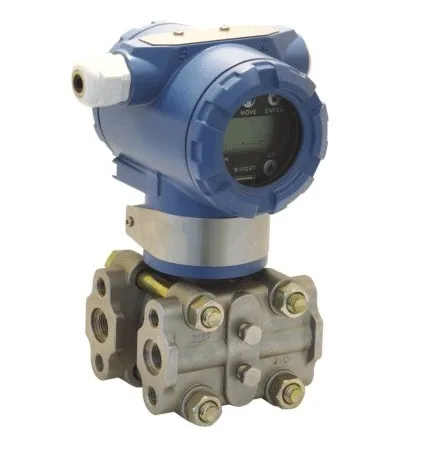

KH3351: умный дифференциальный преобразователь давления

KH3351: умный дифференциальный преобразователь давления

Категория товара: Pressure Transmitters >>>
Поставщик (Оптовый магазин): Xiamen,Kehao,Automation,Co.,Ltd.

Цена:80,00 $ - 280,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Features

.Improved performance, increased accuracy, greater stability, Intelligent

.Process Fluid :Liquid, gas, vapor

.Application :Differential pressure, gauge pressure, absolute pressure
.Measuring Range :-100Pa to 40Mpa

.Analog accuracy: ±0.075% ~ ±0.1% FS
.Completer performance accuracy: ±0.025%FS
.Five Years stability of 0.25%
.Range Ratio: 100:1
.200ms measurement rate
.Parameter setting by pressing button
.High zero anti-interference and stability plus ZSC and TSC.
.Small stainless steel flange(2.7kg,199mm), easy to be mounted
.Process connection compatible with other products
.Improved cold and hot stability by H alloy sheathed
.Standard 4-20mA output with communication keyboard and RS485 interface, no need manipulator
.Supporting technical updating between field bus and filed-control

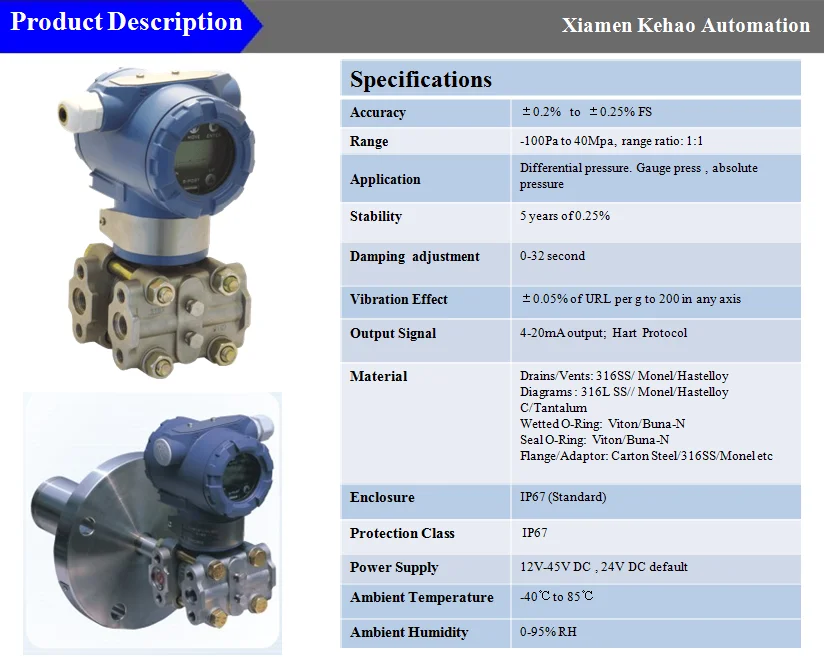

Specification

\t Model		\t Smart Differential Pressure transmitter/Transducer
\t Application		\t Differential, gauge, absolute
\t Measured medium		\t Gas, liquid, oil compatible with 316 stainless steel
\t Measuring range		\t -100Pa to 40Mpa
\t Accuracy		\t ±0.2% to±0.25% FS
\t Linear Accuracy		\t 0.075%±0.1%
\t Digital Accuracy		\t ±0.05%.
\t Stability		\t 5 years of 0.25%
\t Range Ratio		\t 1:1
\t Turn on time		\t 2 Second with minimum damping
\t Damping adjustment		\t 0-32second
\t Ambient temperature		\t -40°C to 85°C.
\t Ambient humidity		\t 0-95%RH
\t Connection Material		\t
\t Diaphragm material		\t 316SS
\t Flange/Adaptor		\t Stainless Steel 316L/Monel/ Hastelloy/Carton Steel
\t Drains/Vents		\t Stainless Steel 316/Monel/ Hastelloy
\t Diagrams		\t Stainless Steel 316L/ Monel/Hastelloy C/ Tantalum
\t Wetted O-Ring		\t Viton/ Buna-N
\t Seal O-Ring		\t Viton/ Buna-N
\t Bolts&Nuts		\t Carton Steel/Stainless Steel316
\t Converter housing		\t Low copper cast aluminum alloy with Polyurethane paint
\t Fill Fluid		\t Sillicon/ Fluorine Oil
\t Enclosure		\t IP67 ( Standard)
\t Output Signal		\t 4-20mA current output
		\t HART( RS485 port with communication keyboard, without hand held communicator
\t Power supply		\t 12-24VDC, standard: 24VDC±5%, ripple less than 1%
\t Power Connection:		\t +/-0.05% of URL per g to 200 Hz in any axis
\t Protect Class		\t IP67
\t Weight		\t 2.7KG
