Product Description

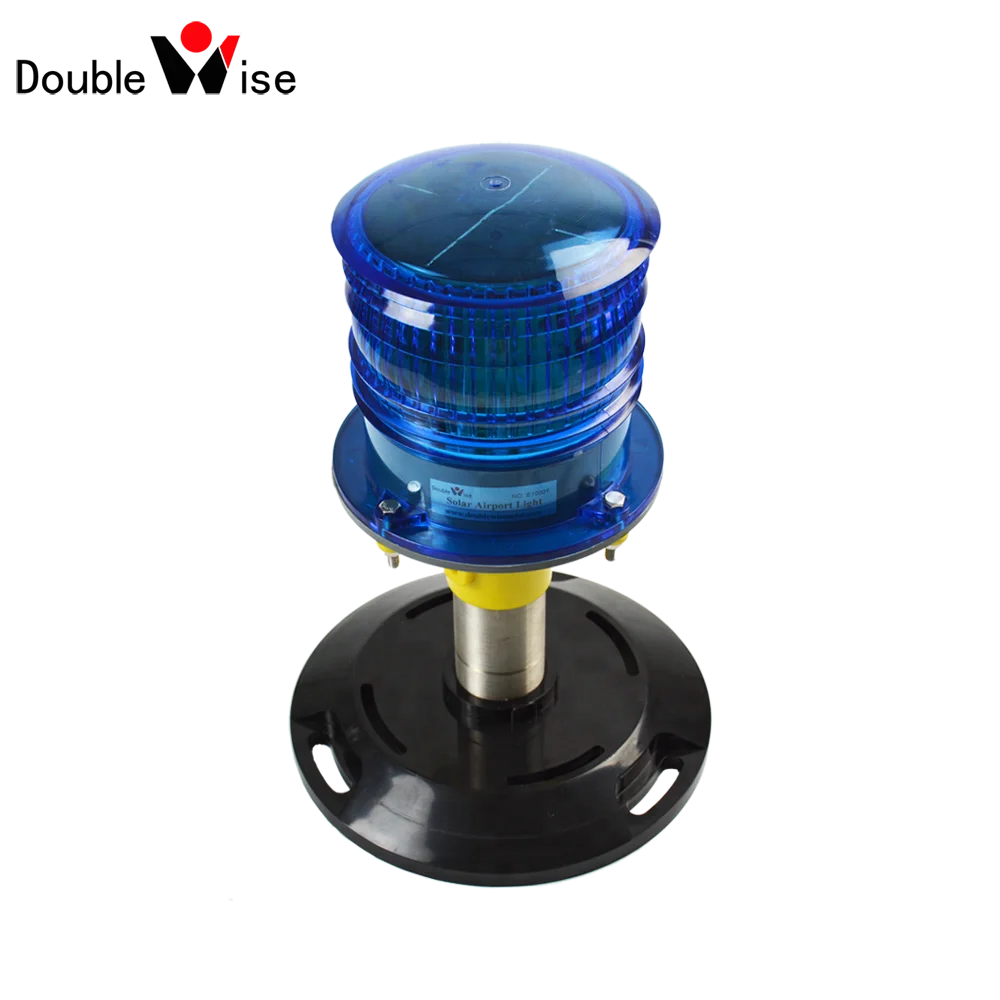

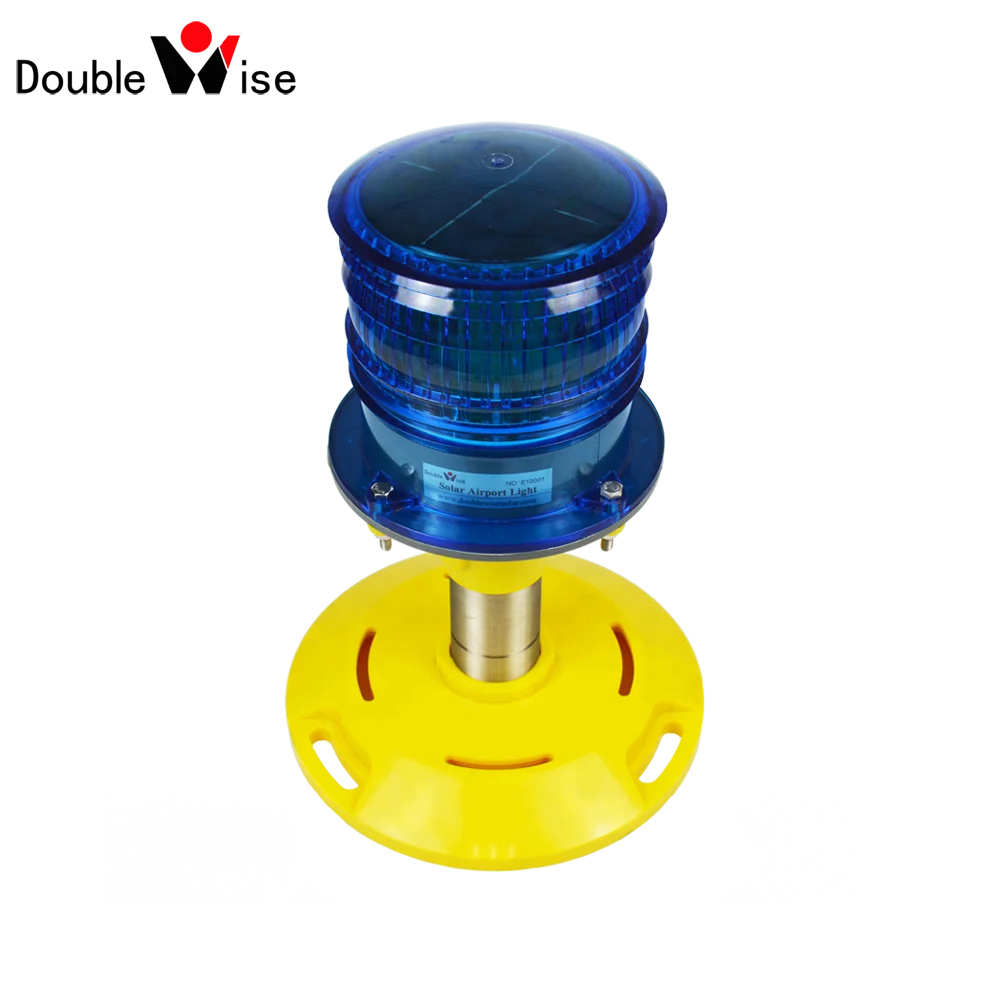

ICAO FAA Wireless Led Solar Airport Taxiway Light
DWSAN301 is a wireless solar powered Airfield Airport Taxiway LED light that complies with ICAO Annex 14 Volume Ⅱ and FAA. It meets traditional helipad lighting in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of self-contained, durable and anti-UV, it can be suitably used for Helipad Lighting system without High-voltage and cabling. It has operated and tested maintenance-free for many years in some helipads including USA, Brazil, Canada, Australia and China etc..
Features and Benefits

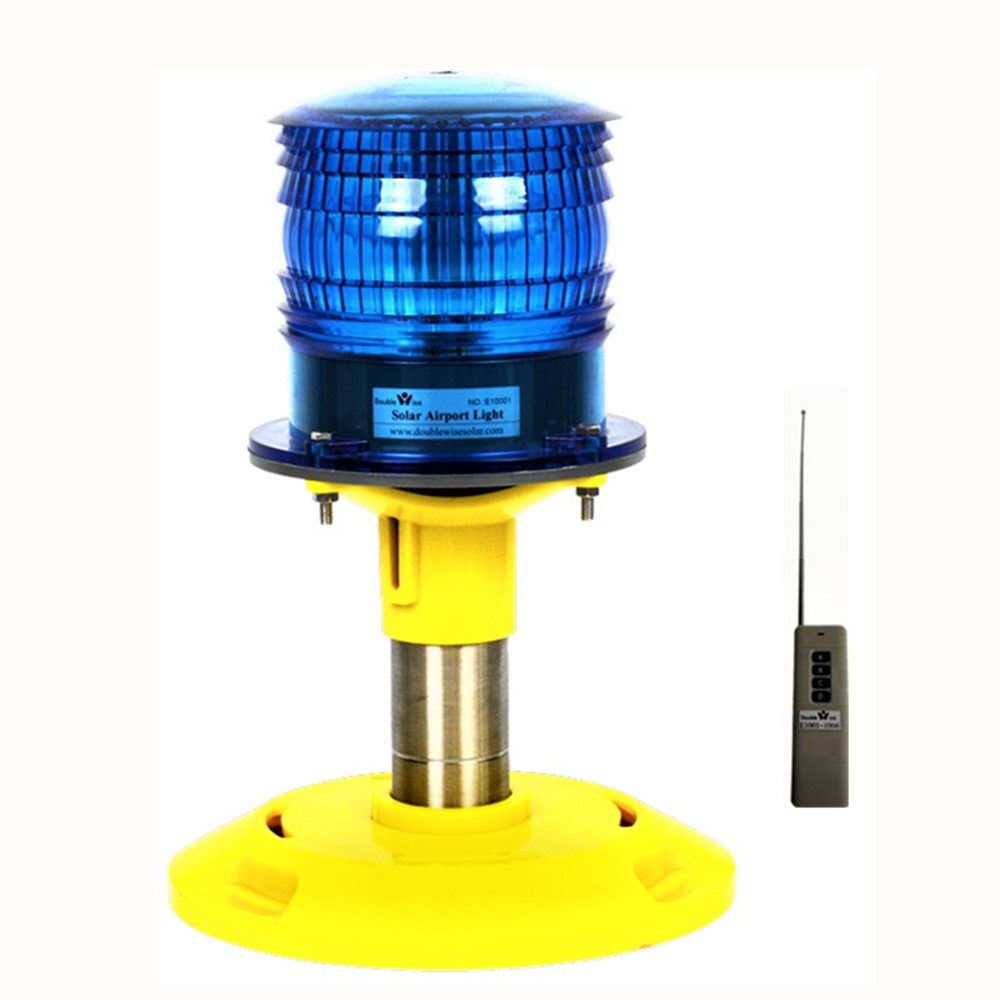

The Wireless Remote Controller can provides on-demand operations from up to 1Km away.
Available in blue, red, amber, white and green.
Solar panel 1.5Wp, replaceable Ni-HM battery 2.5Ah.
Completely self-contained.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Individual dome can protect the solar panel and raise its efficiency.
Manufactured to ISO9001:2008 QAS and certified CE.
Product Parameters
Main Specification | ||
Light Output | 360°, STEADY ON | |
Intensity Adjustment | Adjustable Low/Medium/High | |
Colors | Blue | |
Minimum Autonomy | 100/60/30 Hours at Low/Medium/High Intensity | |
Lifespan of LEDS | up to 50,000 Hours | |
Solar panel | Mono-crystalline;Maximum Power 1.5Wp;Efficiency 20% | |
Battery | Ni-Mh, replaceable;2.5Ah/4.8V | |
Lens Material | Polycarbonate | |
Patent | Chinese patent: 200830018497.5 | |
Quality Assurance | ISO9001:2015 | |
Typical Applications
Airport Lighting System
Airfield Lighting System
Airstrip Lighting System
Helipad Lighting System
Heliport Lighting System
Grass Strip Lighting System
Aerodrome Lighting System
Airpark Lighting System
Product Selection
Our Company
Certifications
FAQ
1.Under what circumstances, the taxiway edge light is more suitable for the use of solar power?
Taxiway edge lights shall be fixed lights showing blue and the intensity of lights should be more than 2cd at least 6° above the horizontal, so these are suitable for solar power supply due to the low power consumption.In particular,the solar taxiway edge light is the better choice in the following cases.
• Airfields that are not needed to fly at night every day;
• Airstrips not easily connected the electrical cable or without electricity;
• Airport renovation or temporary airports.
Taxiway edge lights shall be fixed lights showing blue and the intensity of lights should be more than 2cd at least 6° above the horizontal, so these are suitable for solar power supply due to the low power consumption.In particular,the solar taxiway edge light is the better choice in the following cases.
• Airfields that are not needed to fly at night every day;
• Airstrips not easily connected the electrical cable or without electricity;
• Airport renovation or temporary airports.
2.Can the remote control be achieved in the Airport Tower for solar navigation lights?
Yes,these lights can be controlled to turn on/off and adjust the intensity by a wireless controller in the Airport Tower.
3.Is there the Fragile Pole complied with IACO?
Yes,there is the fragile pole and complies with IACO Annex 14,Volume I as follows.
Packing & Delivery
Packing
The package of DWSAN301 is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
