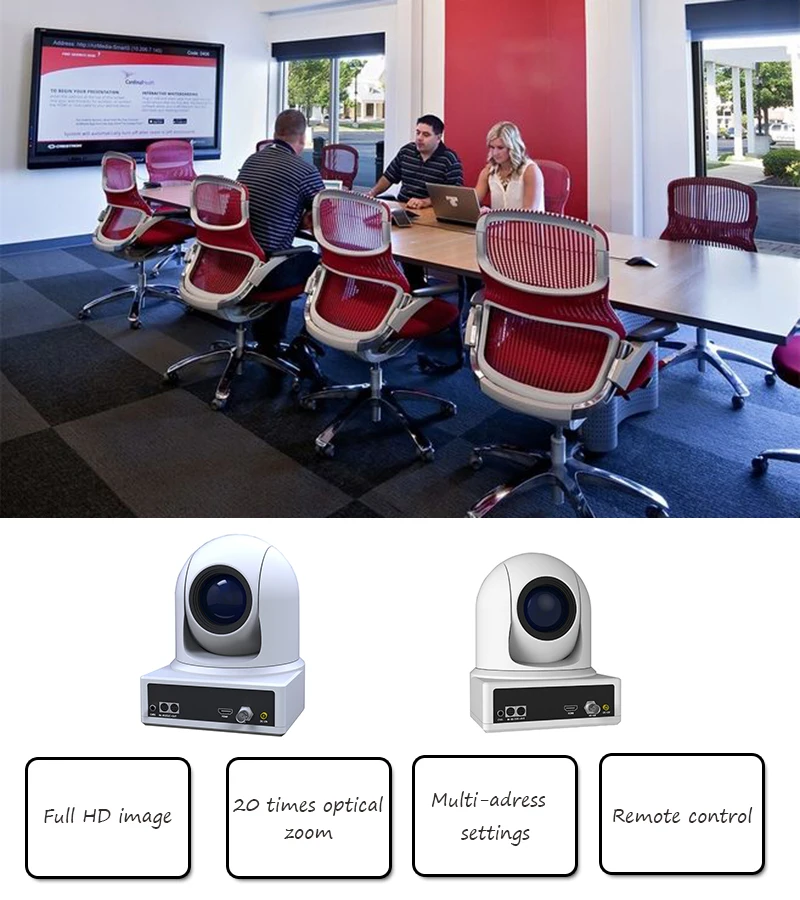

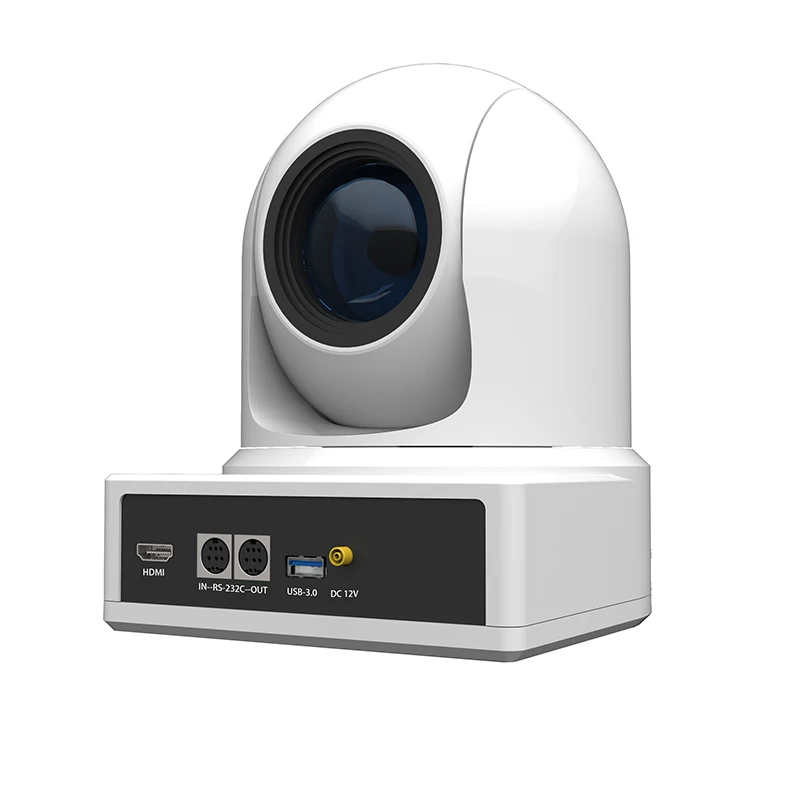

This PTZ HD color camera is suitable for enterprise, education and telemedicine applications, with 20 times optical zoom and a 60fps high frame rate. Install in corporate meeting rooms, classrooms, training centers and medical room to capture high-quality color video images. Users can connect via HDMI cable and a coaxial video cable to watch high-definition display image.
It uses SONY sensitive EXMOR CMOS image sensor ensures delicate shoot full HD resolution images. 60FPS high frame rate operation is to ensure the natural reproduction in shooting a moving target and clear picture quality.
1.Positioning accuracy, smooth, quiet servo algorithm PTZ control
2.True FULL HD image
3. Low noise and high signal-to-noise ratio
4.20 times optical zoom
5.Full HD multi format video output
6.RS-232C/RS485 (optional) remote control (VISCAprotocol /Pelco-D/Pelco-P)
7. Multi-address settings
8.255 positions preset
9.Multi function remote control
10.Infrared remote control signal transparent transmission function
11.Optional camera inverted function
12.OSD Chinese and English menu functions
Model | VC-20SH |
Image sensor | 1/2.8 inch high quality HD CMOS sensor |
Active pixel | 16:9 2.1 Mega effective pixels |
Video signal | 1080P60/50/30/25 ,1080I/60/50,720P60/50 |
Zoom lens | 20 times optical zoom,f=4.7~94mm |
Angle of view | 2.9°(narrow angle)--55.4°(wide angle) |
Minimum illumination | 0.1Lux |
White balance | Automatic/indoor/outdoor/manual |
Focus | Automatic/Manual |
aperture | Automatic |
shutter | Automatic |
SNR | >52dB |

| Type | Name | Model | Picture | Feature | Description |
| USB Series | Colors: White, Black | ||||
| USB3.0 | USB conference camera | VC-20U3 | ![]() | USB3.0 | 20 x Optical Zoom, 1 / 2.8" CMOS 2.1Mega Pixel, c/w USB3.0 video interface, RS-232C control interface, HDMI video interface, compatible with 1080p60 and below (Unique feature for spec: Uses advanced servo-motor without belt mechanism , vertical angle reaches -30 to 220 degrees) |
| Network conference series | |||||

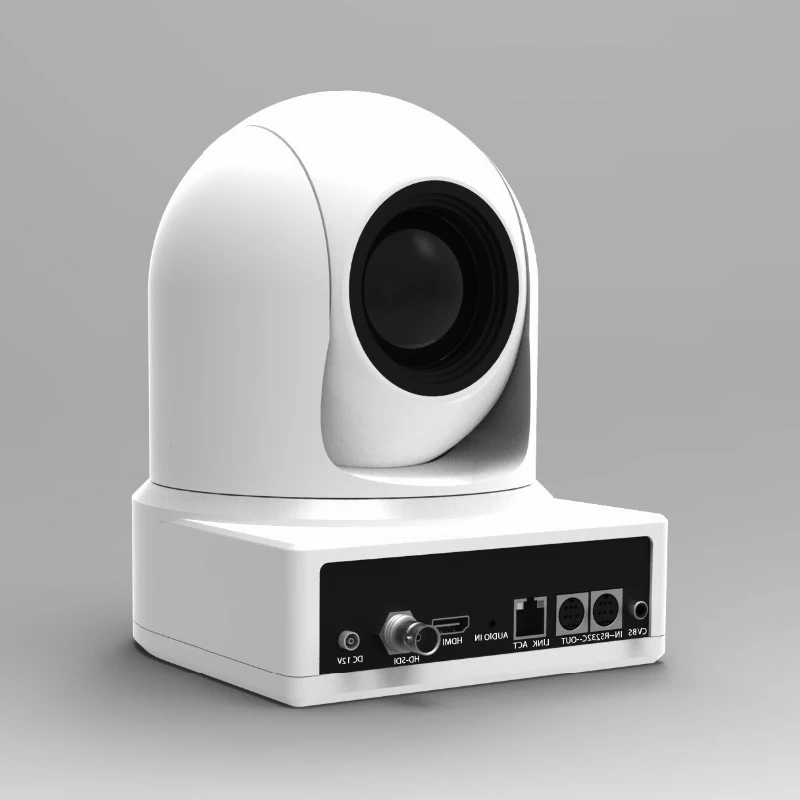

| Network Streaming | IP conference camera | VC-20IP | ![]() | 1080P60network | 20 x Optical Zoom, 1 / 2.8" CMOS 2.1Mega Pixel, H.265 encoding format, transmits 1080P60 images, c/w RS485/232, HDMI, HD-SDI interface, network upgradeable, supports audio input and the CVBS standard output (Unique feature for spec: Uses advanced servo-motor without belt mechanism , reaches -30 to 220 degrees) |
| HD Conference Series | |||||

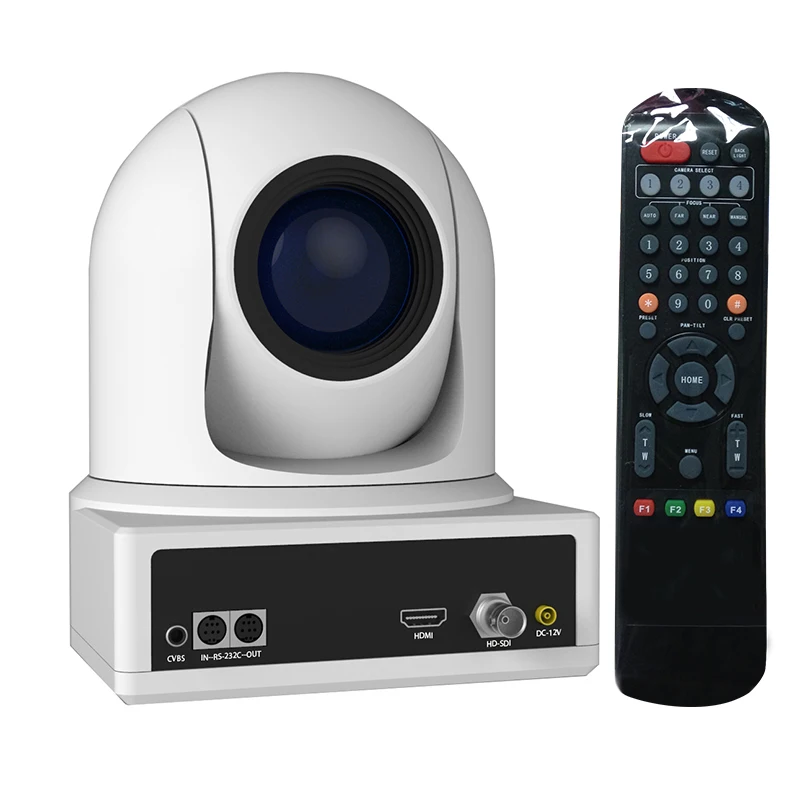

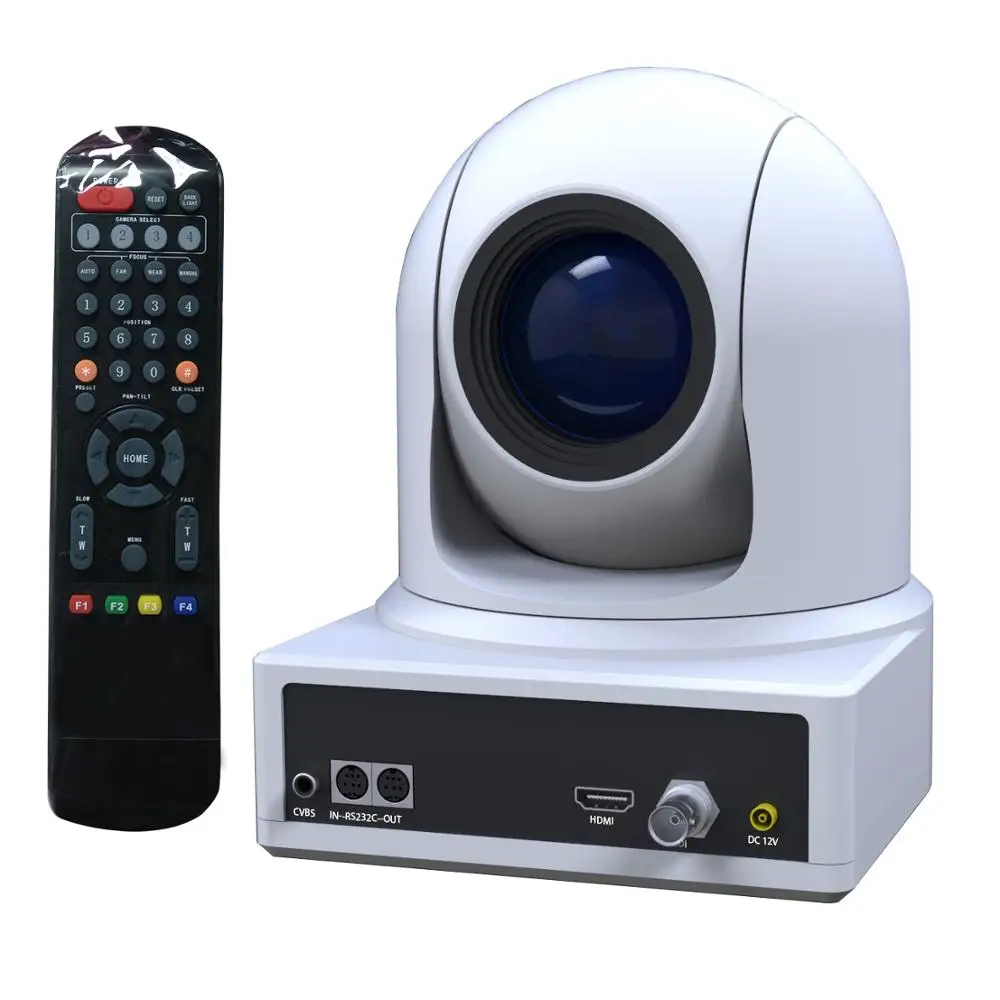

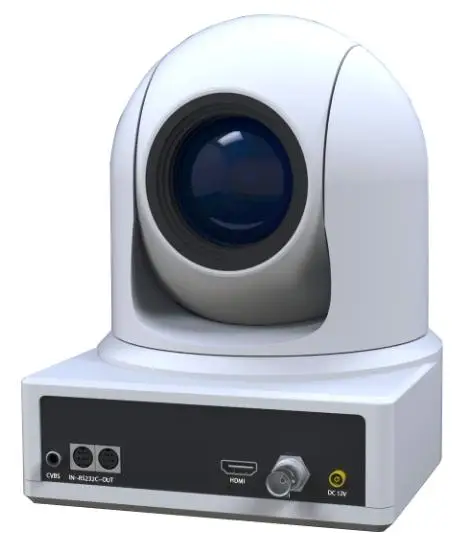

| HD 20 x Zoom | conference camera | VC-20SH | ![]() | 1080P60 | 20 x Optical Zoom, 1 / 2.8" CMOS 2.1Mega Pixel, c/w HDMI video interface, broadcast quality 3G SDI video interface, supports 1080p60 Full HD images and RS-232C remote control (VISCA protocol /Pelco-D/Pelco-P) 128 positions preset; multi functional remote control; can be inverted installation; support English menu.(Unique feature for spec: Uses advanced servo-motor without belt mechanism , vertical angle reaches -30 to 220 degrees) |

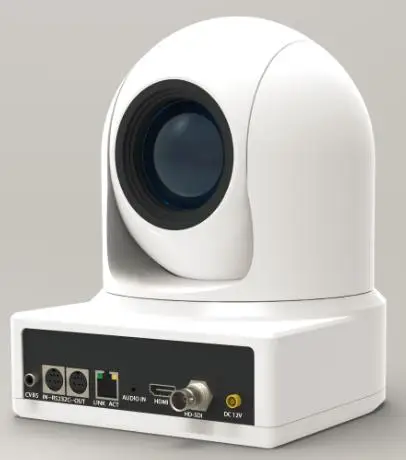

| HD wireless 20 x Zoom | wireless conference camera | VC-20WF | ![]() | 1080P60 | 20 x Optical Zoom, 1 / 2.8" CMOS 2.1Mega Pixel, supports 1080P60 Full HD image transmission through 5G wireless , transmission range up to 50 meters, 128 positions preset; multi functional remote control; can be inverted installation; supports English menu and external power supply. |
Note: The price of different models and different interfaces is different, if you need to contact us for the specific price
