Car Parking Automatic Boom Barrier Gate Arm Drop with Single Bar
Product Description
IBG-109 Car Parking Automatic Boom Barrier Gate Highlights

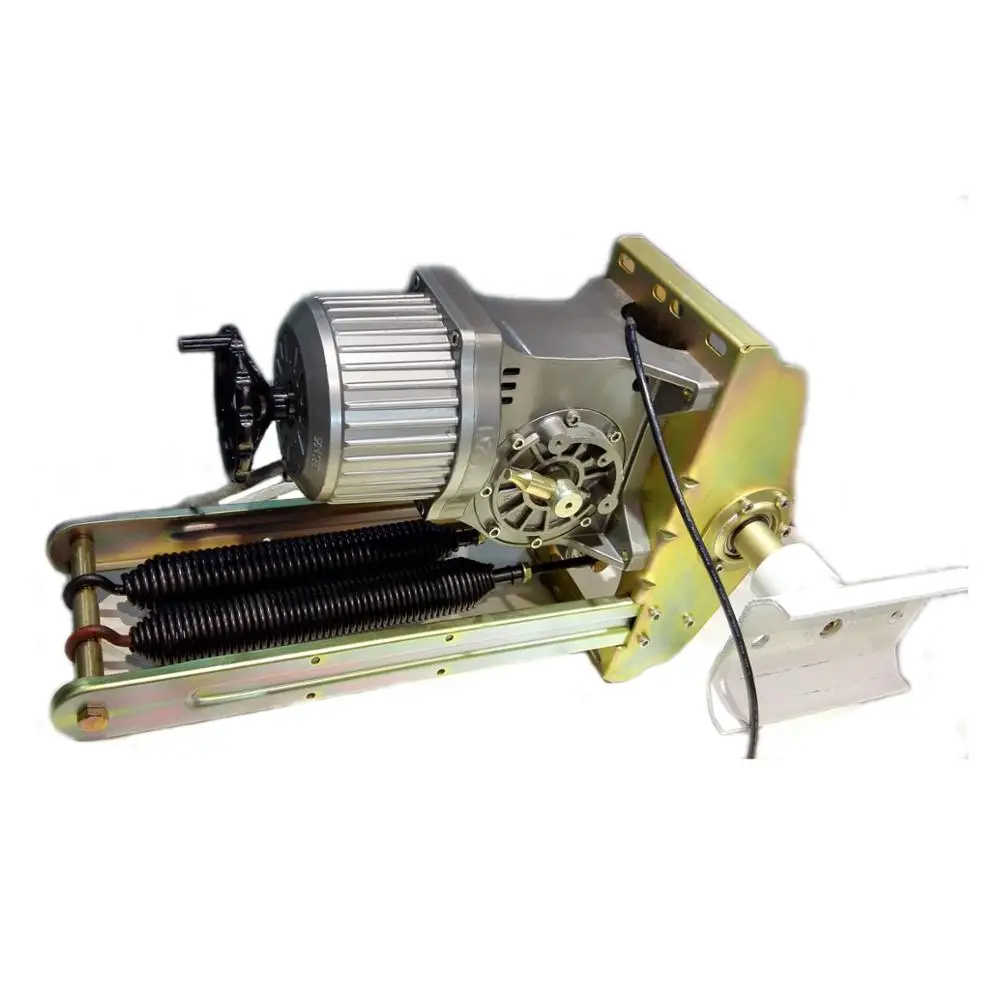

- Machine core with strong and double springs, make the machine core works more steadily.
- Support the infrared photocell for anti-bumping function (optional)
- Support external and internal vehicle loop detection (optional)
- The high and low-temperature operation is more adaptable, up to minus -35℃to 85℃
- Die-casting aluminum alloy motor, precise and good at thermal radiation.
- RS485 Communication module (optional)
- Crank and rod structure makes the boom run placidly
IBG-109 Car Parking Automatic Boom Barrier Gate Function&Feature
- Double safety limit switches(photo electricity limit switch and motor memory sensor)
- The left and right directions can be flexibly exchanged, no longer worrying about on-site construction and ordering inventory.
- More powerful supply control system, with function setting such as lever angle, time delay, and running seconds.
- There is only steel casting in the curved arm. The normal maintenance operation times are 3 million times, and the number of daily non-stop operations can reach more than 1500 times.
Application
- Parking lots.
- Toll gates.
- Goods yards.
- Railway crossings.
- Commercial premises.
- Apartment block access.
Technical Parameter
| 109-11 | 109-13 | 109-16 | 109-23 | 109-26 | 109-33 | 109-36 | 109-46 | 109-56 | |
| Running time | 1.5 sec | 3 sec | 6 sec | 3 sec | 6 sec | 3 sec | 6 sec | 6 sec | 6 sec |
| Boom type | straight | 90°folding | 180 folding | 2 fencing | 3 fencing | ||||
| Max Boom length | 3m | 4.5m | 6m | 3 | 5 | 3 | 5 | 4.5 | 4 |
| Boom demension | 45x80mm | 45x100mm | |||||||
| Boom Weight | 3kg | 4.5kg | 6kg | 6.5kg | 8kg | 9kg | 11kg | 7kg | 7.5kg |
| Voltage | 220V / 110V | ||||||||
| Frequency | 50 / 60 HZ | ||||||||
| Motor voltage | 220V | ||||||||
| Power | 80W | ||||||||
| Working temperature | -35℃~ +60℃ | ||||||||
FAQ
1. Can machines be used outside?
With waterproof function, could be used outside
2. What is the warranty for the machine?
Within two years, if any problems, we will offer the accessories(but you pay the freight cost)
3. When will you make the delivery?
Regular products:(3-5 days)
4. How does your factory control the quality?
Quality controlling from the beginning to the ending.
5. What is your MOQ?
Any quantity is acceptable.
6.payment term?
30% by T/T, 70% by T/T before delivery.
Company Information
About US: Integer (CHINA) TECH CO., LTD. is a leading hi-tech company, We have over 12+ years experience in the installation and or sales of the top-selling gate operators and access controls in the industry. The company's main products: barrier gate, vehicle loop detector, Parking Guidance System, Automatic card dispenser&collector, Long Range Reader, Turnstile Gate, RFID cards, Parking Lock and Portable Bluetooth printer. With years of development, we have established long-term partnerships with many global buyers from over 50 countries around the world. When you order a single product or a full project from integer you are not just getting the complete package for a good price, you are getting the knowledge and support of industry professionals.
