Китай, Мраморная дробильная установка, Щековая камнедробилка
US $7851-$8851

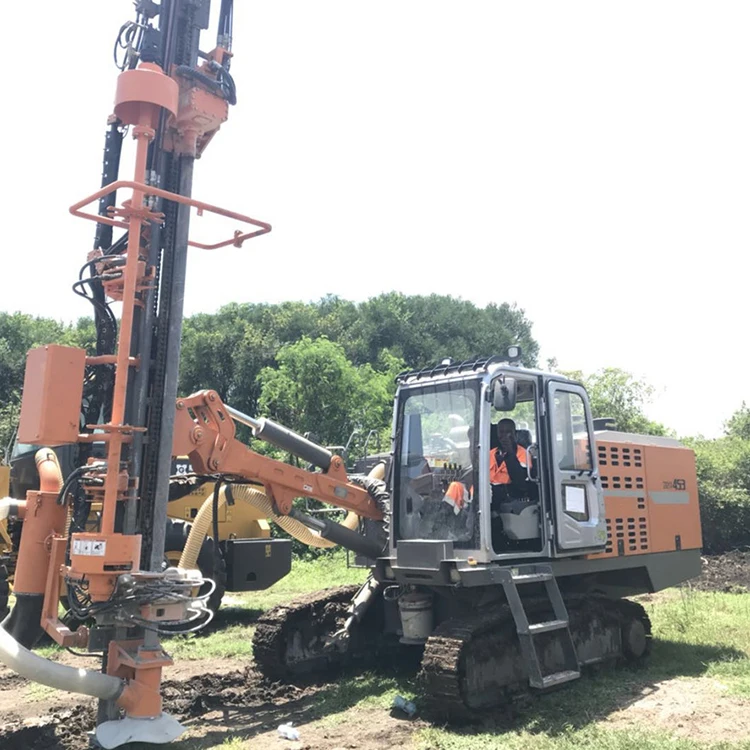

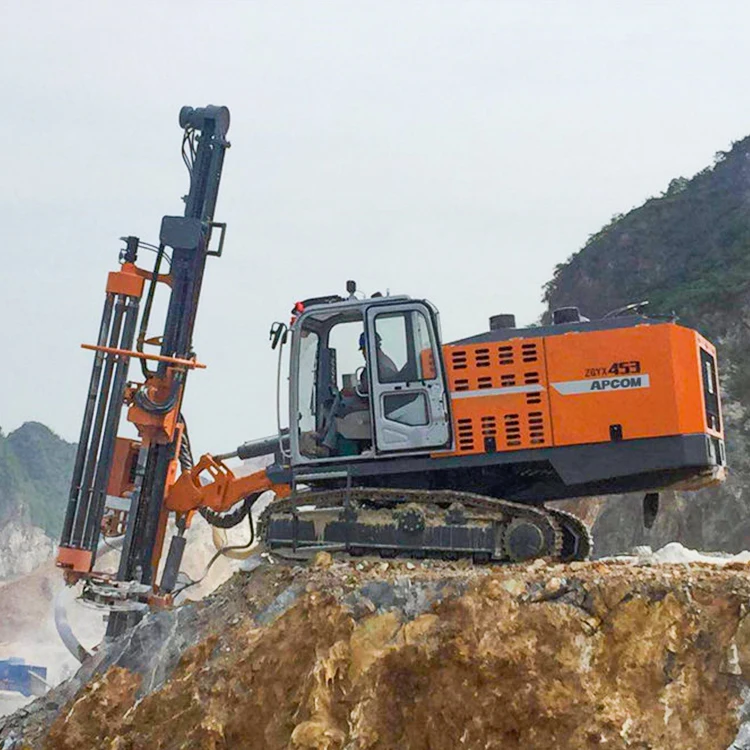

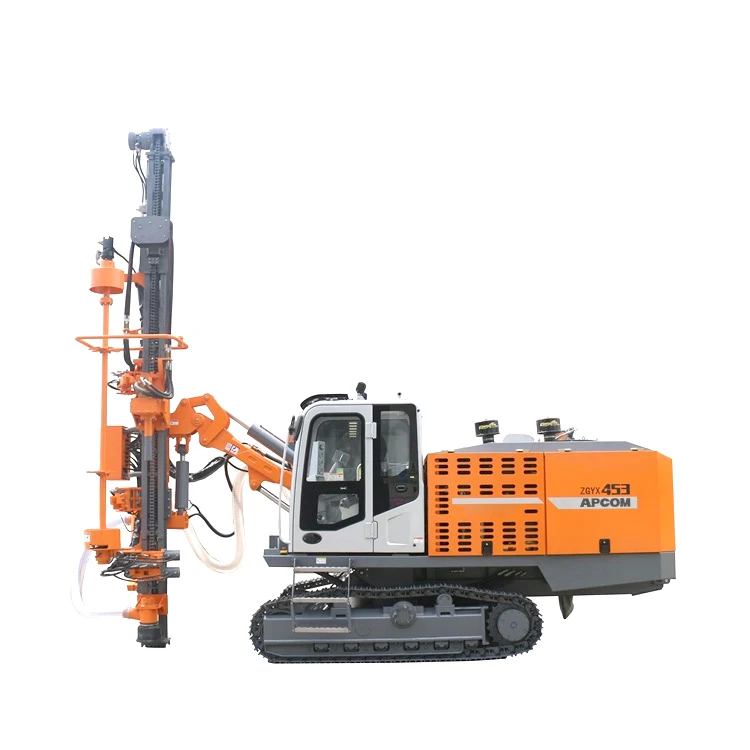

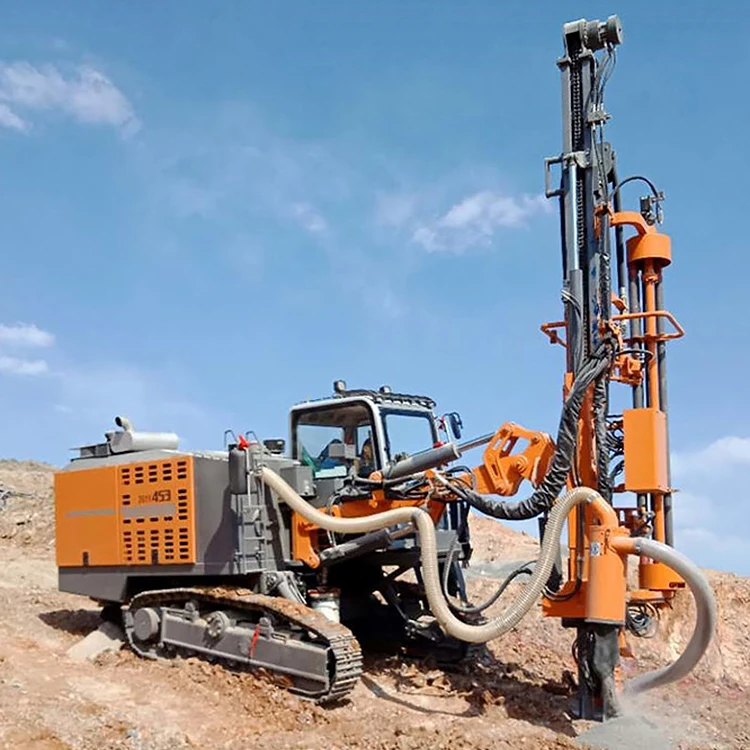

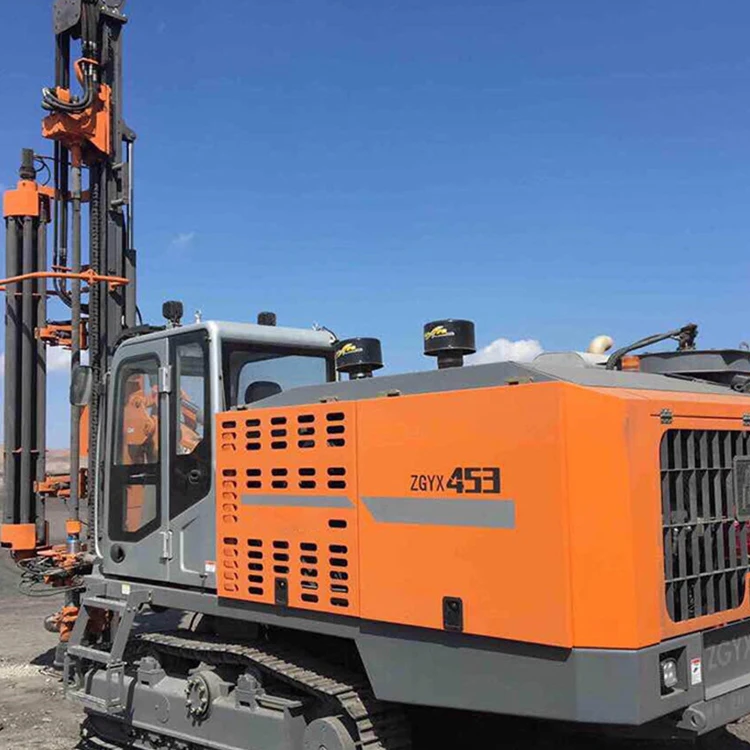

Аппарат для бурения на гусеничном ходу ZGYX 453 ZEGA Kaishan Crawler dth цены оборудование скважин
- Категория товара: Оборудование для добычи энергии и минералов >>>
- Поставщик (Оптовый магазин): Shanghai,APCOM,Compressor,Machine,Co.,Ltd.Shanghai,Ltd.
Поделиться:
Описание и отзывы
Характеристики
ZAYX-453 Rig Parm
Main Specifications | ZGYX-453 | ||||
Engine | YUCHAI YC6L310-H300 | F.A.D | 16 m3/min | ||
Working Pressure(Max.) | 17 bar | ||||
230 KW @ 2,150 rpm | Pull Up Force(Max.) | 31 kN | |||
Tramming Speed(Max.) | 3 km/h (High Speed) | ||||
Hole Range | Φ90-138 mm | 2 km/h (Low Speed) | |||
Drill Pipe Storage | 7 + 1 | Gradient | 30° | ||
Drill Pipe Diameter | Φ76 x 3,000 mm | Track Frame Oscilation | ±10° | ||
DTH Hammer | 4" | Total Weight | 15,000 kg | ||
Rotation Torque(Max.) | 2,800 N.m | Transportation Dimensions | 9,000 x 2,300 x 3,000 mm | ||
More Video:
Full automatic hydraulic top hammer drilling rig: 3 products.
Full automatic pneumatic down-the-hole drilling rig: 3 product.
01 ZAYX-450 - 308 S 02 ZAYX-460 - 451 S 03 ZAYX-470 - 40S
Separate pneumatic dowm-the-hole drilling rig:8 product.
01 ZAYX-410 -146 S 02 ZAYX-415 - 8 S 03 ZAYX-420 - 10 S 04 ZAYX-425 - 52 S
05 ZAYX-430 - 4 S 06 ZAYX-452 -9 S 07 ZAYX-452 - 43 S 08 ZAYX-421T-10 S
ZEGA series drilling rig: 4 product.
01 ZEGA D535 - 193 S 02 ZEGA D450 - 9 S 03 ZEGA D460 -109 S 04 ZEGA T635 - 11 S
Integrated Rig Parm
ZAYX-421T & ZAYX-452
High Current Price Ratio
High Efficiency
High Quality
High Quality
An integrated drilling rig, which means that the air compressor has been installed in the rig and is driven by the same diesel engine.
Integrated DTH Surface Drill Rig With Air Compressor | ||||||||||
Model | Power | Compressor | Diameter | Depth | Cabin | |||||
ZAYX-421T | YUCAI 140KW | 10m3/min 15bar | 80-100mm | 25m | No | |||||
ZAYX-452+ | YUCAI 191 KW | 15m3/min 17bar | 108-127mm | 25m | No | |||||
ZAYX-423 | YUCAI 162KW | 11m3/min 15bar | 90-115mm | 25m | Yes | |||||
ZAYX-453 | YUCAI 230KW | 16m3/min 17bar | 90-138mm | 25m | Yes | |||||
ZAYX-454 | Commins 266KW | 20m3/min 18bar | 110-152mm | 28m | Yes | |||||
ZAYX-455 | Commins 287KW | 20m3/min 24bar | 138-165mm | 35m | Yes | |||||
ZAGA-470 | YUCAI 294KW | 20m3/min 24bar | 138-178mm | 40m | Yes | |||||
Top Hammer Drilling Rig | ||||||||||
Model | Power | Compressor | Diameter | Depth | Cabin | |||||
ZAYX-422T | Commins 93KW | 3.4 m3/min 7bar | 42- 89mm | 15 m | yes | |||||
ZAYX-423T | Commins 119KW | 4.7 m3/min 9bar | 64-102mm | 17 m | yes | |||||
ZAYX-424T | Commins 179KW | 8.0 m3/min 10bar | 76-115mm | 25 m | yes | |||||
ZAYX-425T | Caterpiller 168KW | 8.0 m3/min 10bar | 76-115mm | 25 m | yes | |||||
Contact Us
24 Hours For You
WhatsApp: +86 137 0579 6425
WhatsApp: +86 189 6700 9313
WhatsApp: +86 181 6701 6615
Drill rig Intro
Surface Drilling Rig
APCOM brand Surface drilling rig are used for blast hole drilling in construction, quarrying, and open-pit mining, covering a hole range between 80-203 mm. A total of 56 products.
1 ) Click on ==> Automated hydraulic drilling rig ( Drilling method: Tophammer ), 7 products found:
ZAYX-T422 / ZAYX-T423 / ZAYX-T424 / ZAYX-T425; ZEGA-T630 / ZEGA-T635 / ZEGA-T640
2 ) Click on ==> Anchor surface drilling rig ( Drilling method: Down-the-hole ),3 products found:
ZGM 1240A / ZAYX-420S / ZAYX-425S
3 ) Click on ==> Water well surface drilling rig ( Drilling method: Down-the-hole ), 8 products found:
SJ-180 / SJ-200 / SJ-250 / SJ-300 / SJ-400 / SJ-450 / SJ-600 / SJ-700
4 ) Pneumatic drilling rig ( Drilling method: Down-the-hole ) , 28 products found:
Click on ==> 16 products separate drilling rig
Click on ==> 4 products integrated drilling rig no cabin
Click on ==> 8 rigs are fully automatic pneumatic DTH rigs
Face drilling rig (Jubmos)
Face drilling rig (jubmos), Underground tunneling, 7 products found:
Click on UP-45 / UJ-18 / UJ-19 / UJ-21 / UJ-33
