Осциллирующий гранулятор типа YK для влажной грануляции

YK-160s Customized Oscillating Granulator

Main Application:
This equipment is widely used in the pharmaceutical, chemical and food industry, it is a popular granulating machine used for forming the granule sizes from moist powder material, or for crushing dried block stock into granules in required size.

Working Principle:

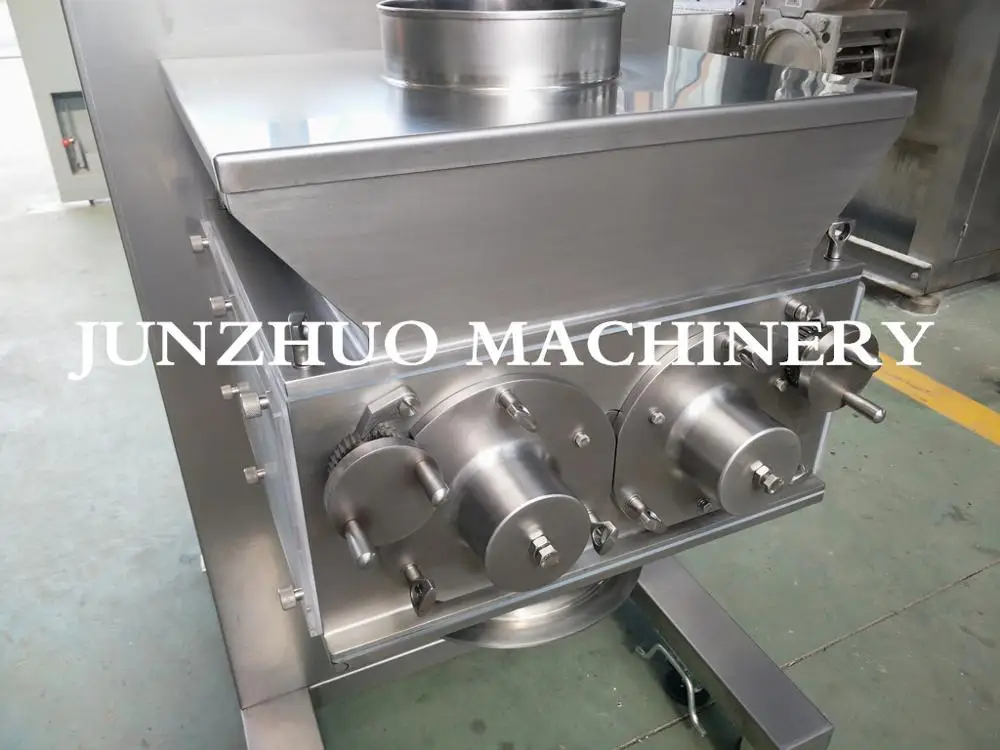

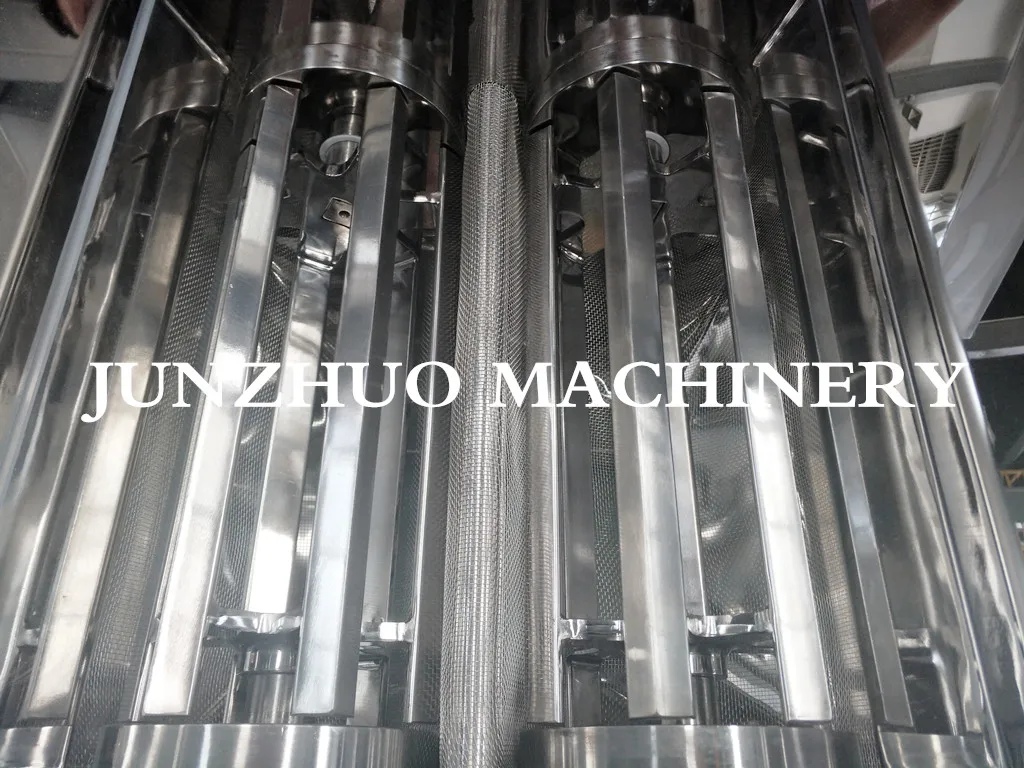

The principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotor. The rotor speed and rotation time are variable in the clockwise or counterclockwise directions. Particle size is controlled through mill-screen size, rotor speed, and the rotor's rotation angle.

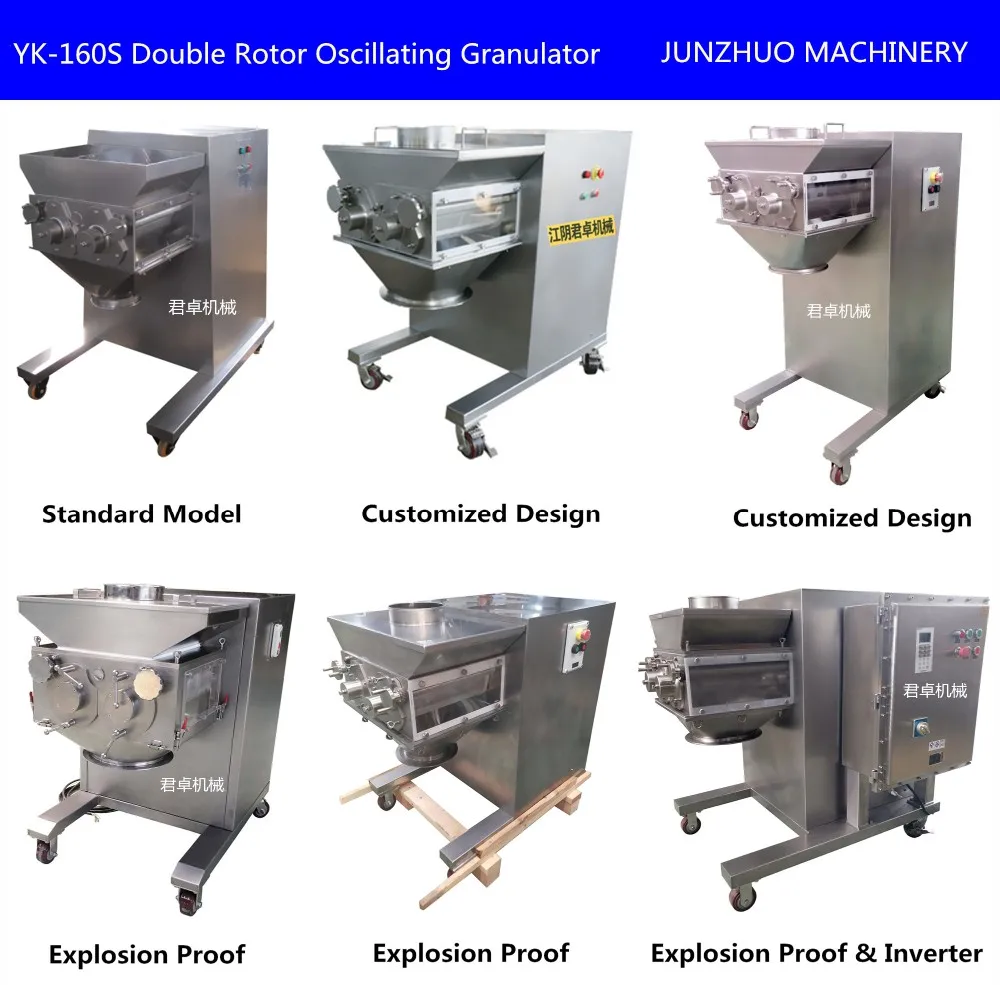

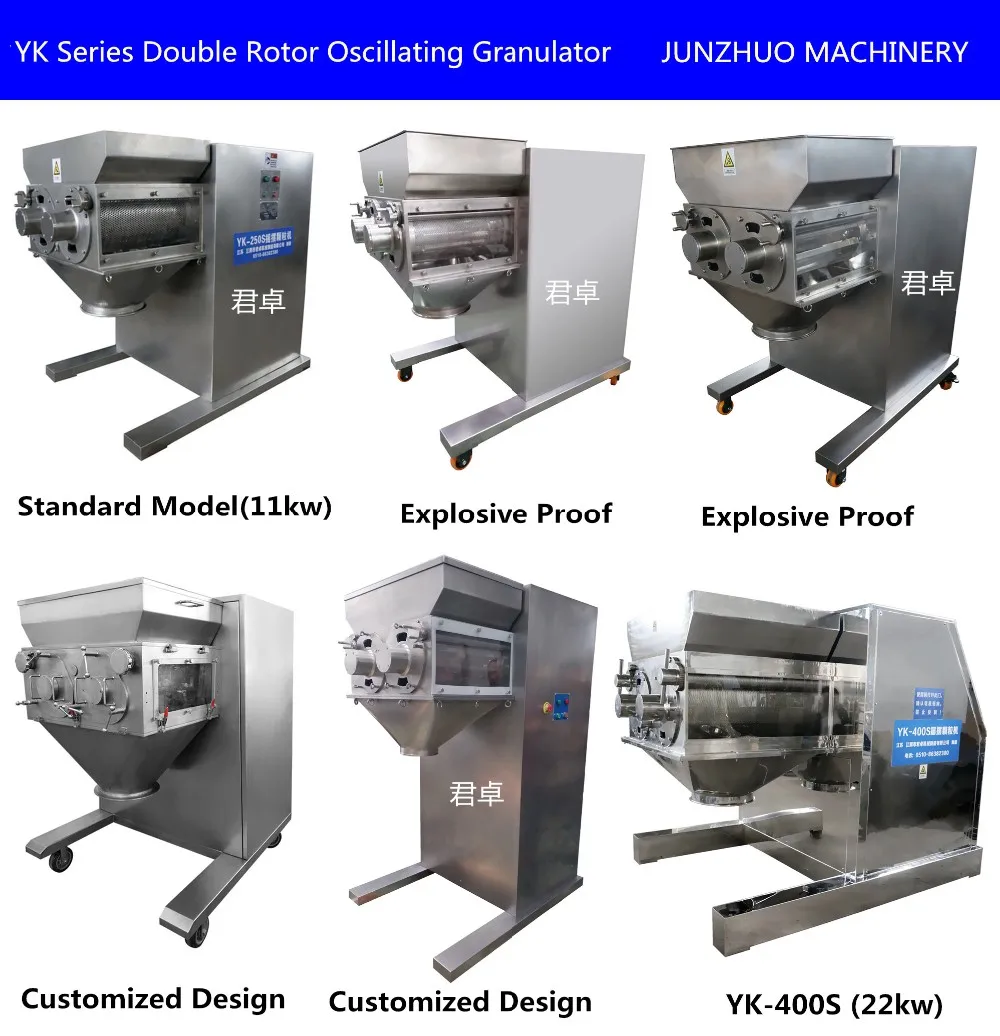

Optional Model:
1.Sealed type:With gas-tight structure at both ends of granulation shaft, it effectively prevent the material into the sealing cover.

2.No rack type:A unique reducer owned byJunzhuo, made the whole machine enclosed .The gearbox has no rack bar and skateboard. There is no sliding friction and the transmission efficiency is much higher. Such a clean healthy environment can meet GMP standard.

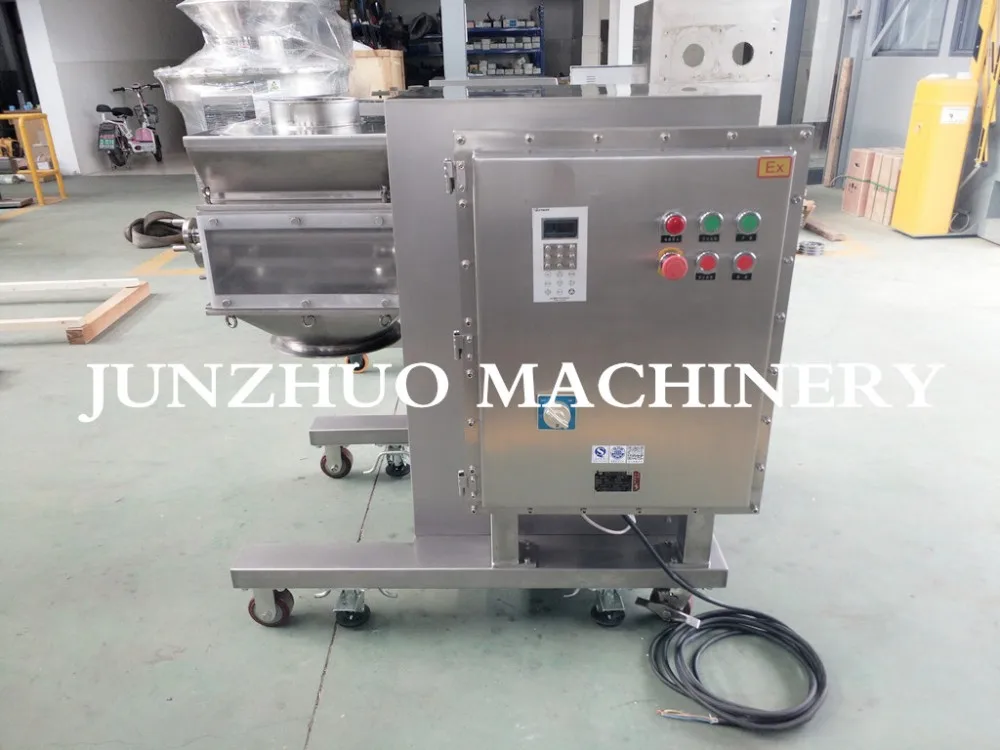

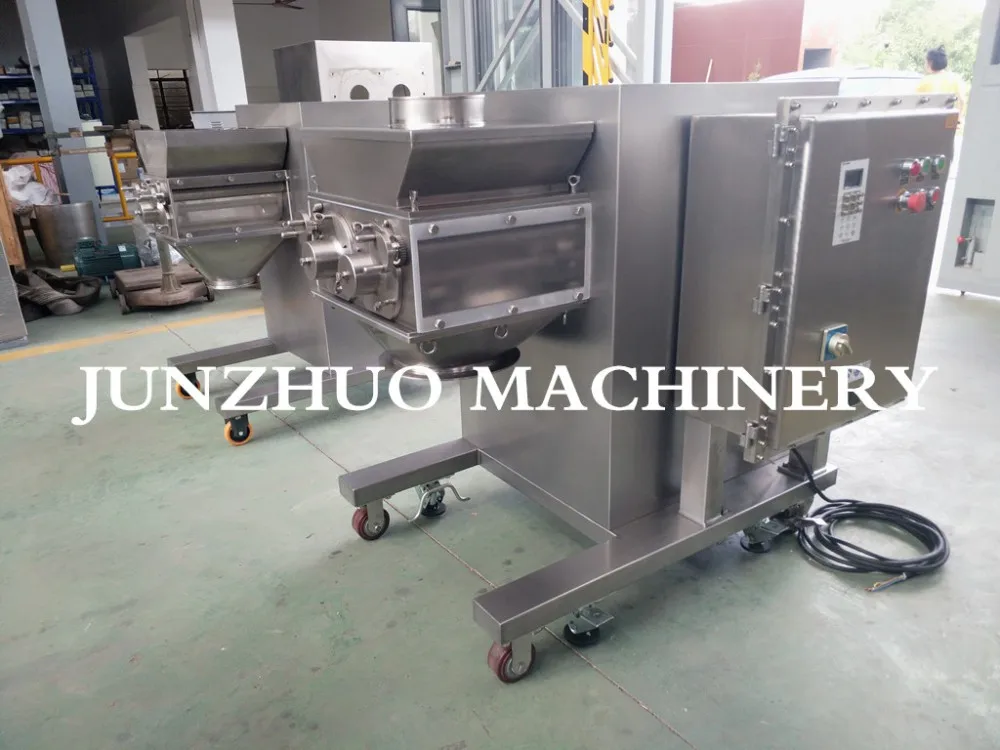

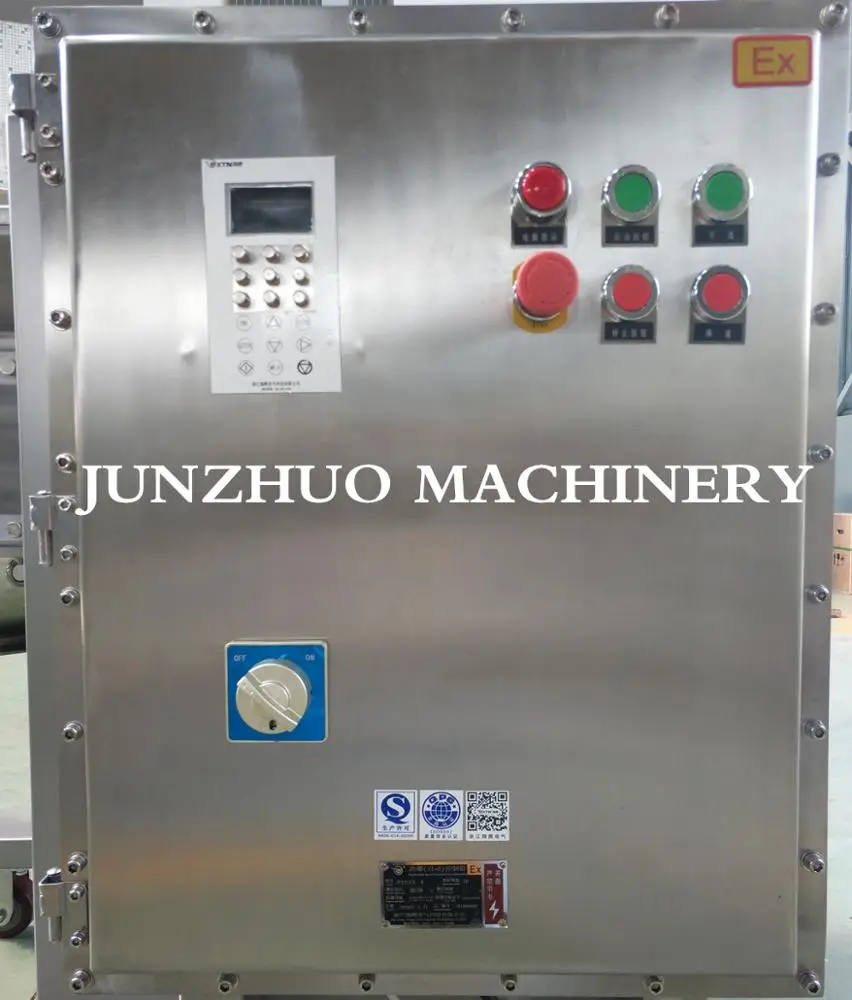

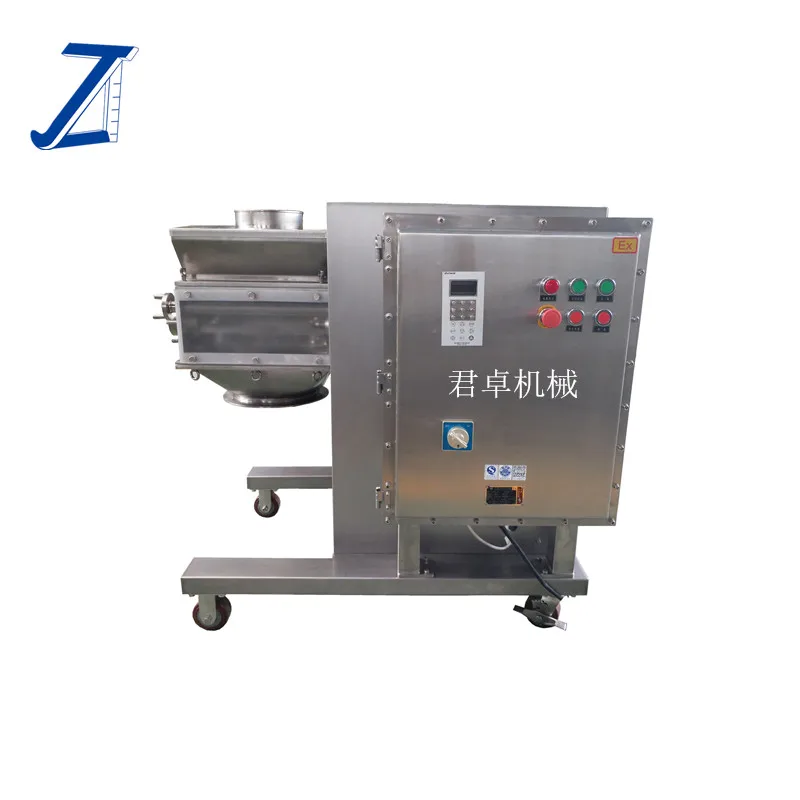

3.Explosion-proof: all models can be customized to meet explosion-proof production environment.

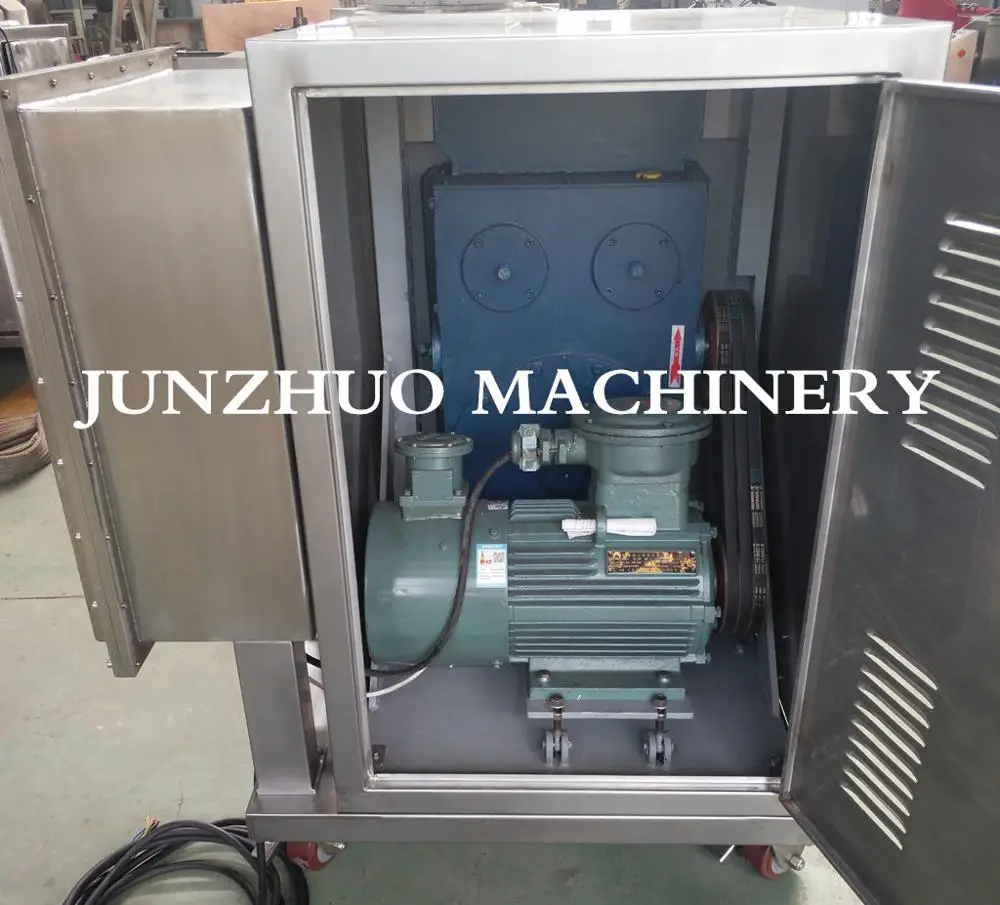

4.Large power: Upgrade the transmission gear box and motor, it is suitable for powder products and high proportion materials.

Technical Parameter

Model	Capacity	Rotor Size	Power	Rotor Speed	Overall size	Weight
YK-160S	200-550 kg/h	160mm*2	5.5 kw	45 r/min	1150*720*1130	650 kg
YK-160SD	300-700kg/h	160mm*2	7.5 kw	40 r/min	1220*720*1220	700 kg
YK-160SZ	300-700 kg/h	160mm*2	11 kw	35 r/min	1350*800*1250	780 kg
YK-250S	350-1000 kg/h	250mm*2	11 kw	40 r/min	1400*950*1520	1100 kg
YK-250SZ	400-1000 kg/h	250mm*2	15 kw	38 r/min	1550*950*1520	1250 kg
YK-320S	400-1200 kg/h	320mm*2	11 kw	35 r/min	1840*1060*1410	1250 kg
YK-320SD	400-1200 kg/h	320mm*2	15 kw	35 r/min	1850*1060*1410	1350 kg
YK-320SZ	500-1200kg/h	320mm*2	18.5 kw	35 r/min	2000*1060*1450	1500 kg
YK-350S	500-1500 kg/h	320mm*2	18.5 kw	35 r/min	2150*1100*1540	1800 kg
YK-400S	1800-4500 kg/h	400mm*2	22 kw	28 r/min	2500*1680*1900	2600 kg

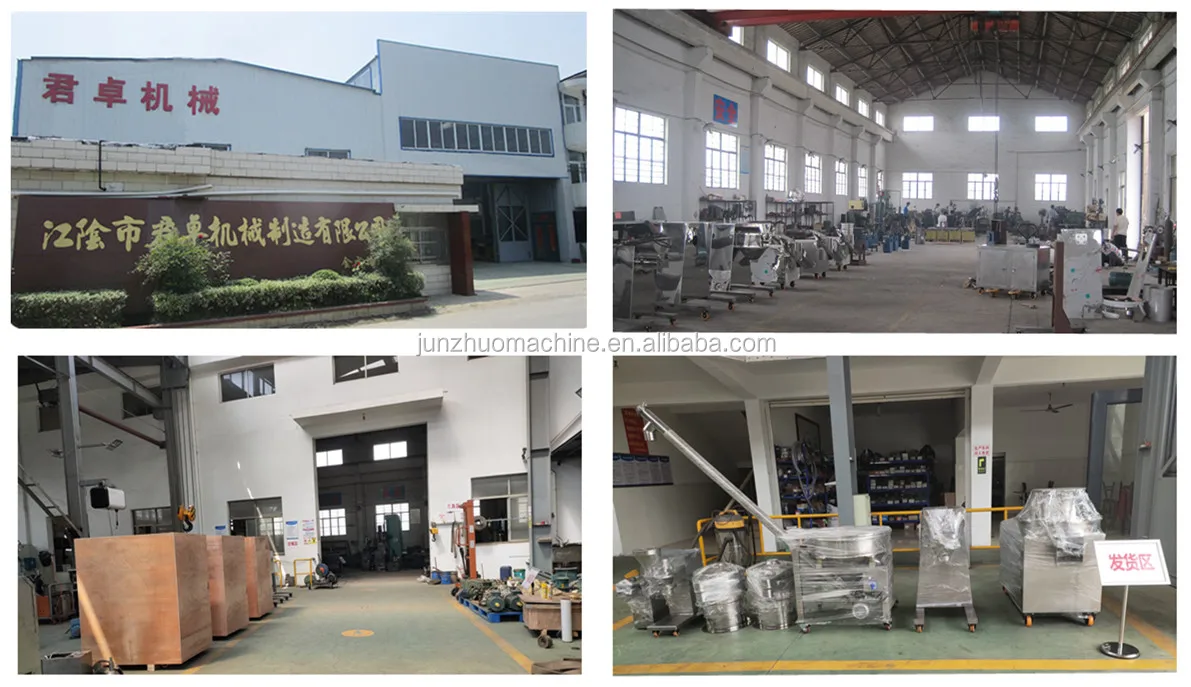

Company Profile

Since 2008

JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.

Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
