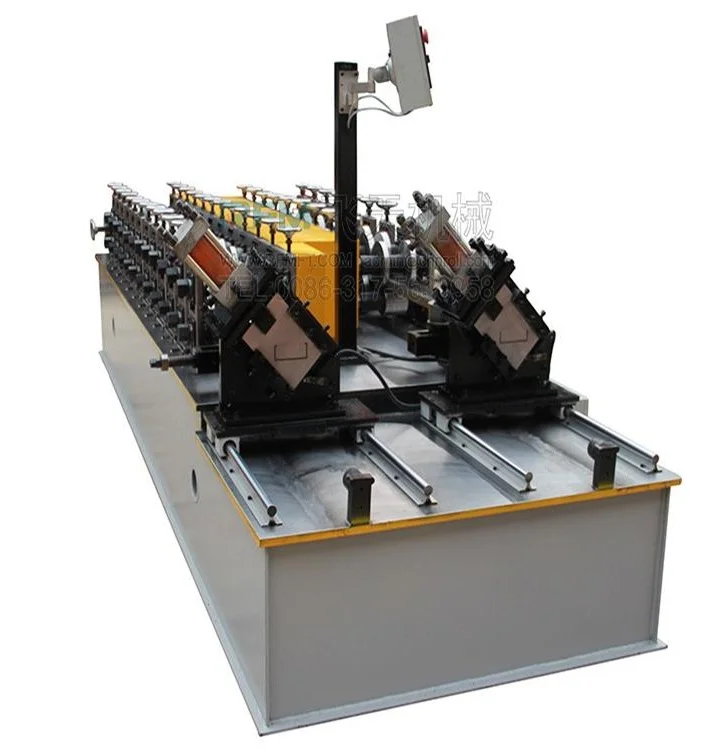

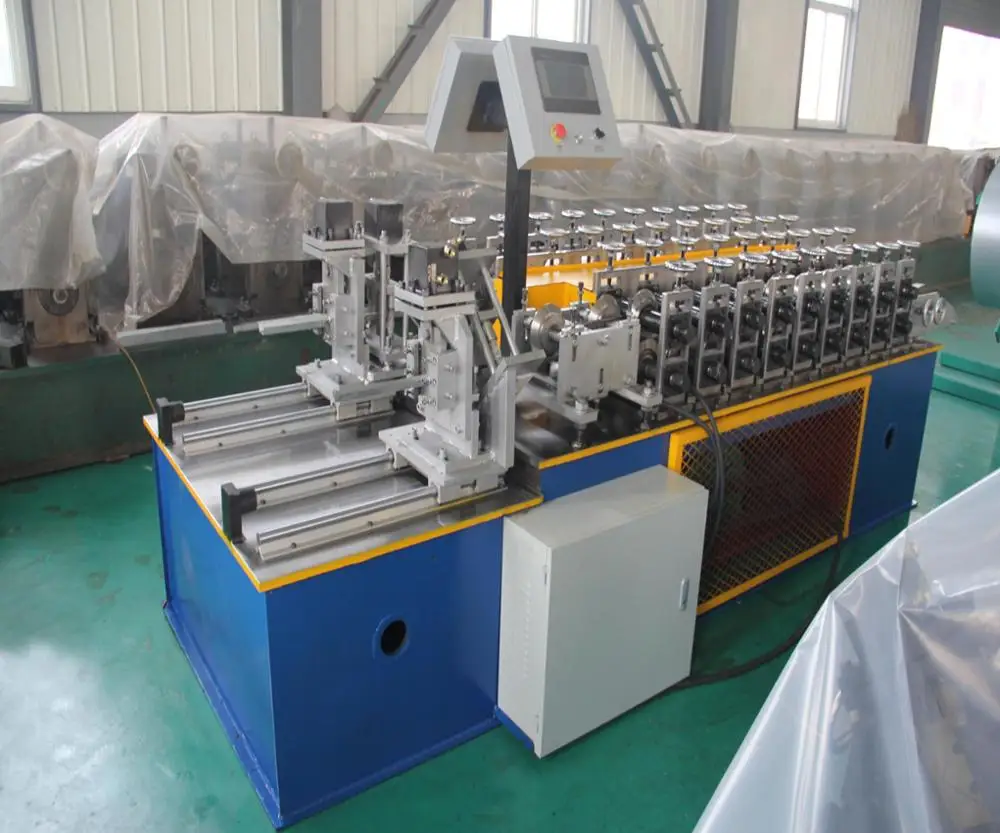

Двухлинейная угловая машина для профилирования железа и мельничного канала

Double line Ceiling Angle iron  and Furring channel Roll Forming Machine

Quick details

Type:Ceiling forming machine                                                  Condition:       New

Place of Origin: Hebei,China(Mainland)                                    Brand Name:  Feitian

Usage:            Ceiling                                                                Voltage:          380V

Gross power:   4kw                                                                   Color:             As customer's request

Machine Type: Auotmatic                                                         Application:    Industy

Packing List

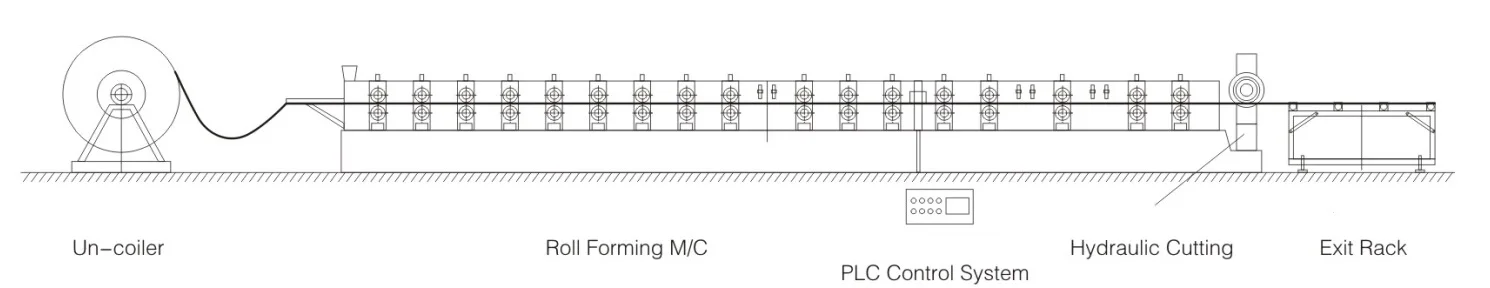

Production Flow

Detailed

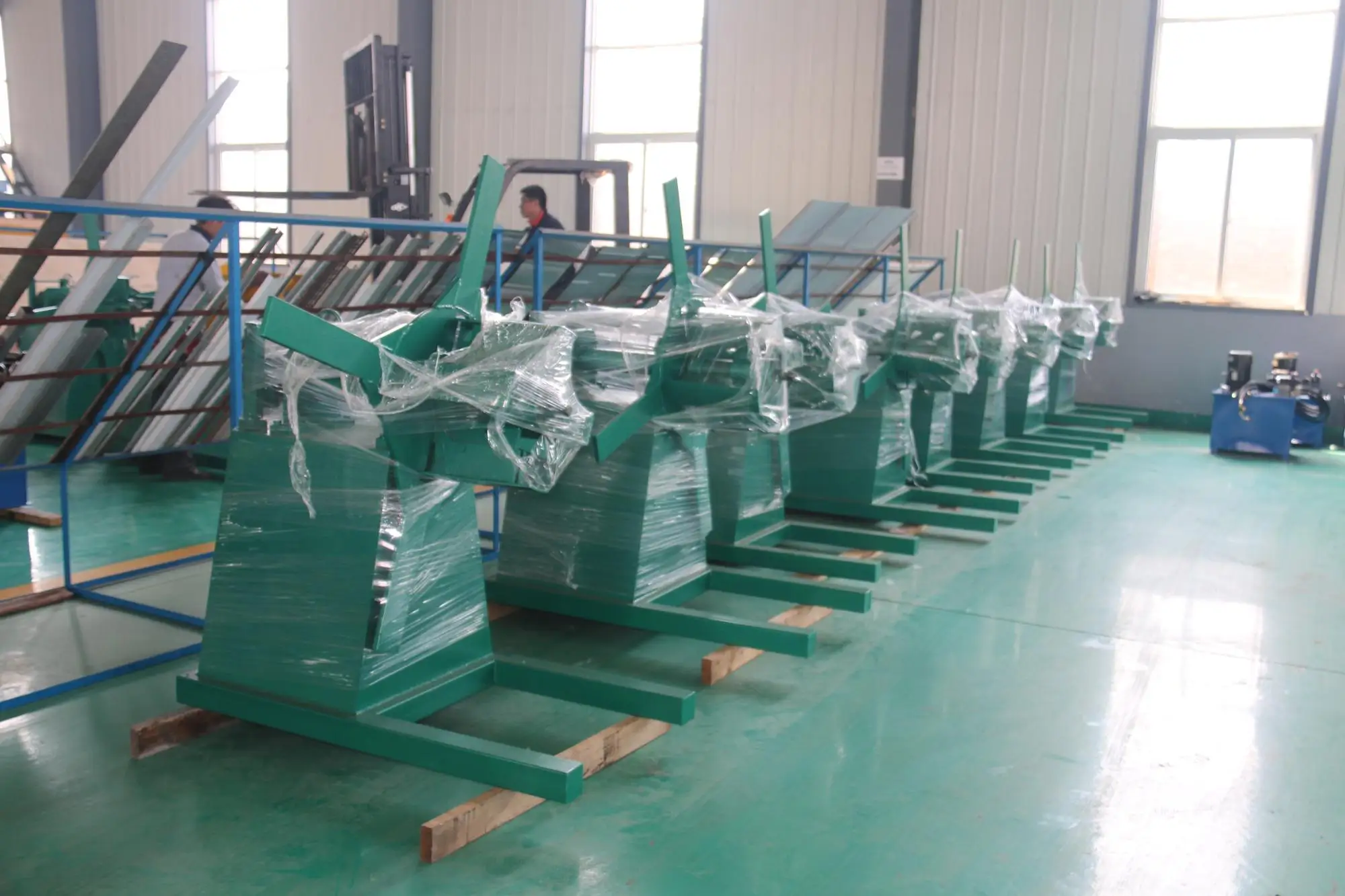

          1. Decoiler

               1.Material coil inner diameter:350mm-400mm

               2.Material coil outer diameter:550mm

               3.Max coil Width: 550mm

               4.Capacity:3.0T

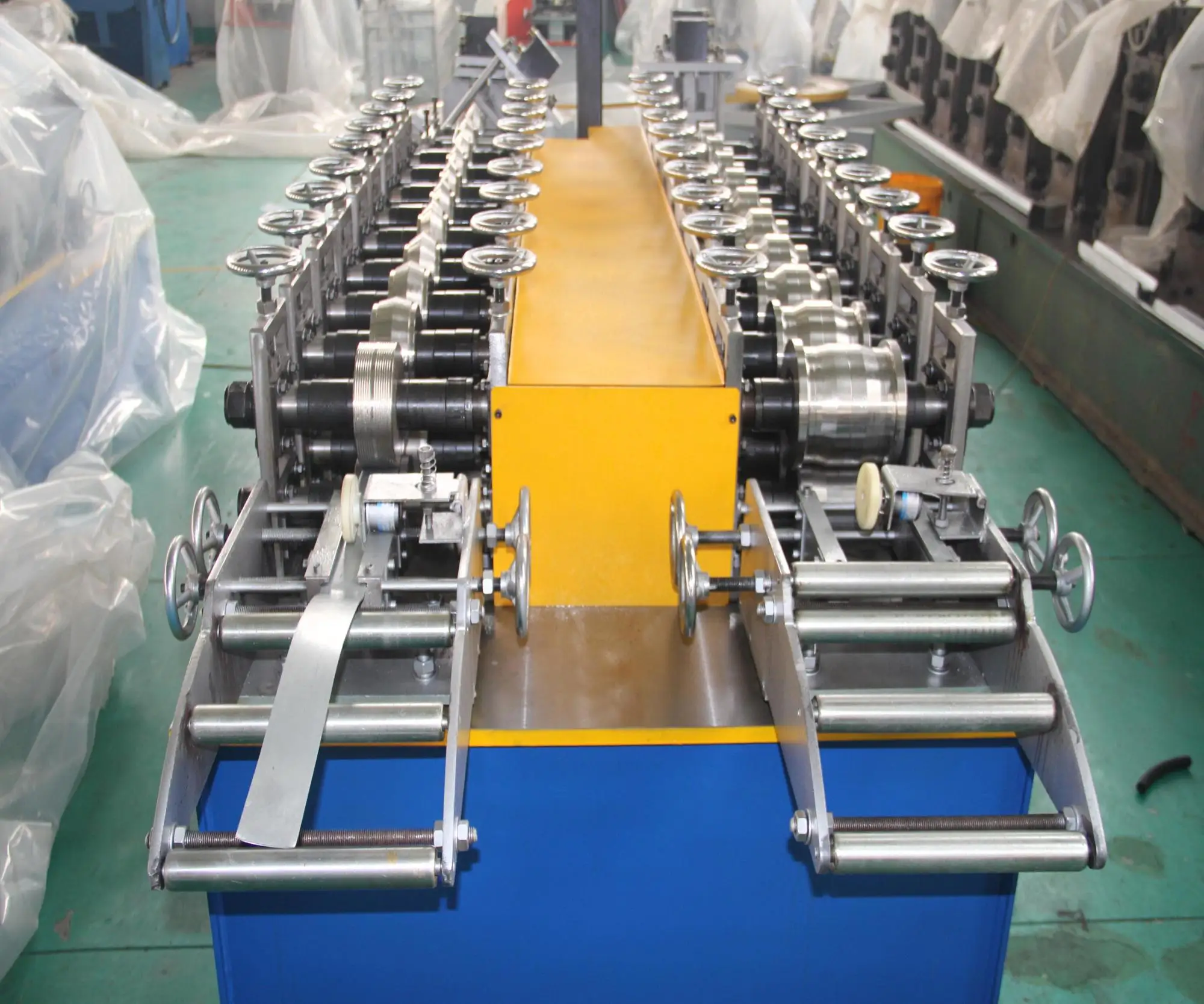

          2.Feeding Part

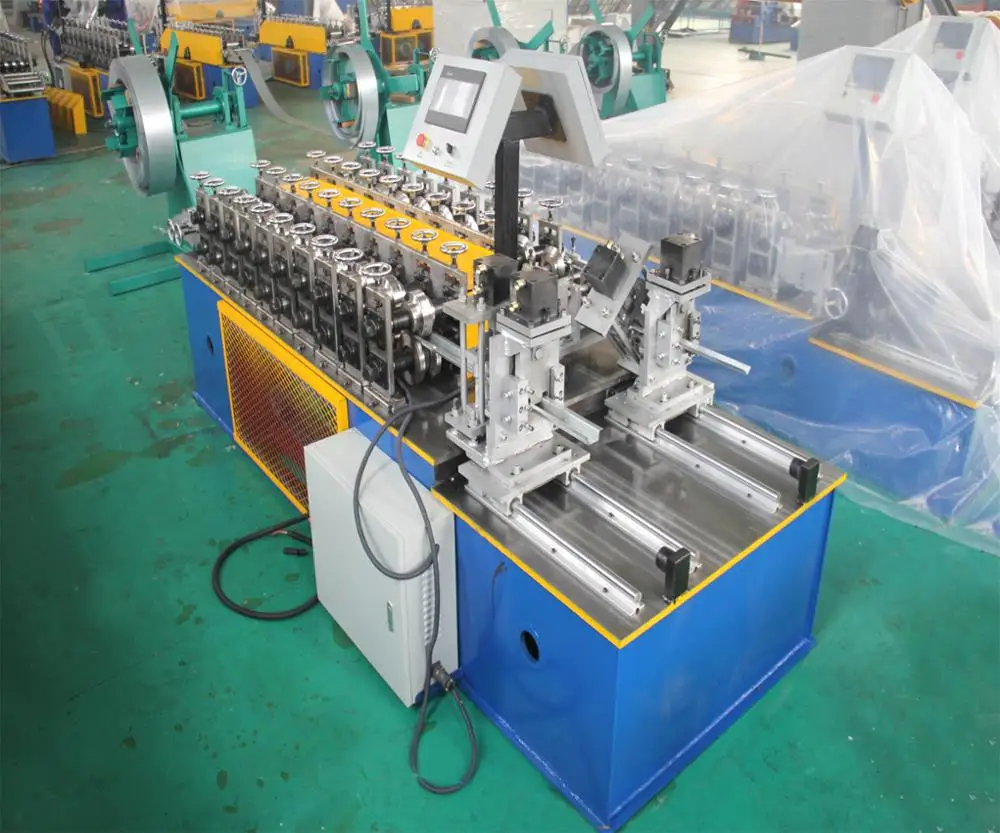

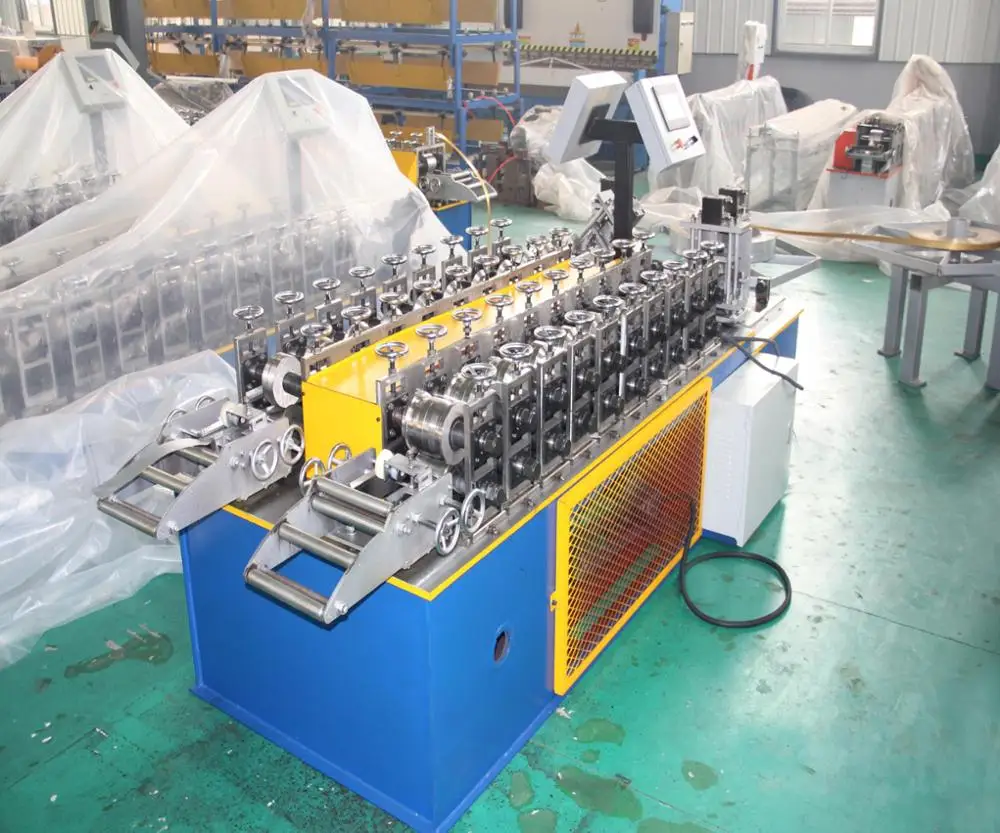

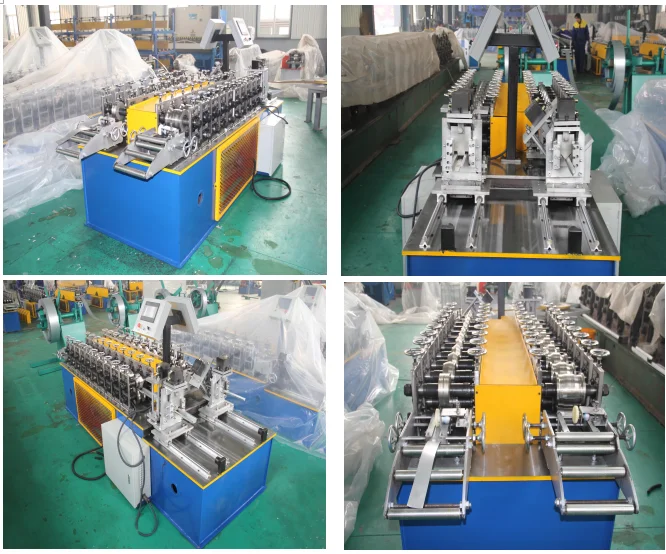

      3.Main Roll Forming Machine

        1.Machine body fram: Archway

        2.Column plate thickness:25mm

        3.Number of forming steps: 12steps with 2 leveling shafts

        4.Roller material:Cr12

        5.Shaft material:45#steel hardening and tempering

        6.Shaft diameter:40mm

        7.Transmission style:Gears

        8.Main motor:4kw

        9.Speed:25m/min

       10.Technological process: Forging→Rough turning→Quenching→Grinding →Finish turning                    →Finish

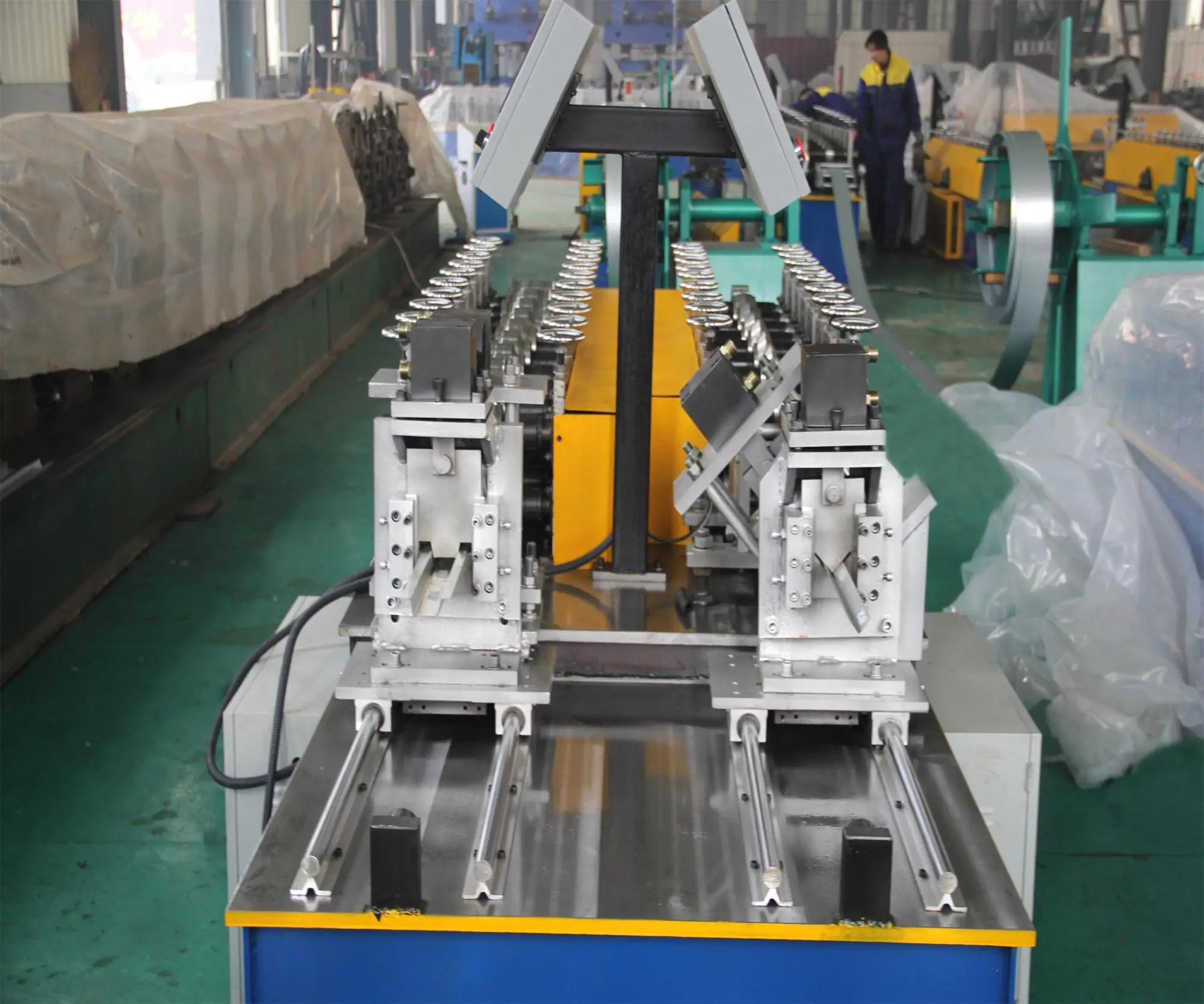

     4.Cutting System

        1.Cutting Mode:Hydraulic Cutting

          2.Cutter Material:Cr12

          3.Cutting length tolerance:±1mm

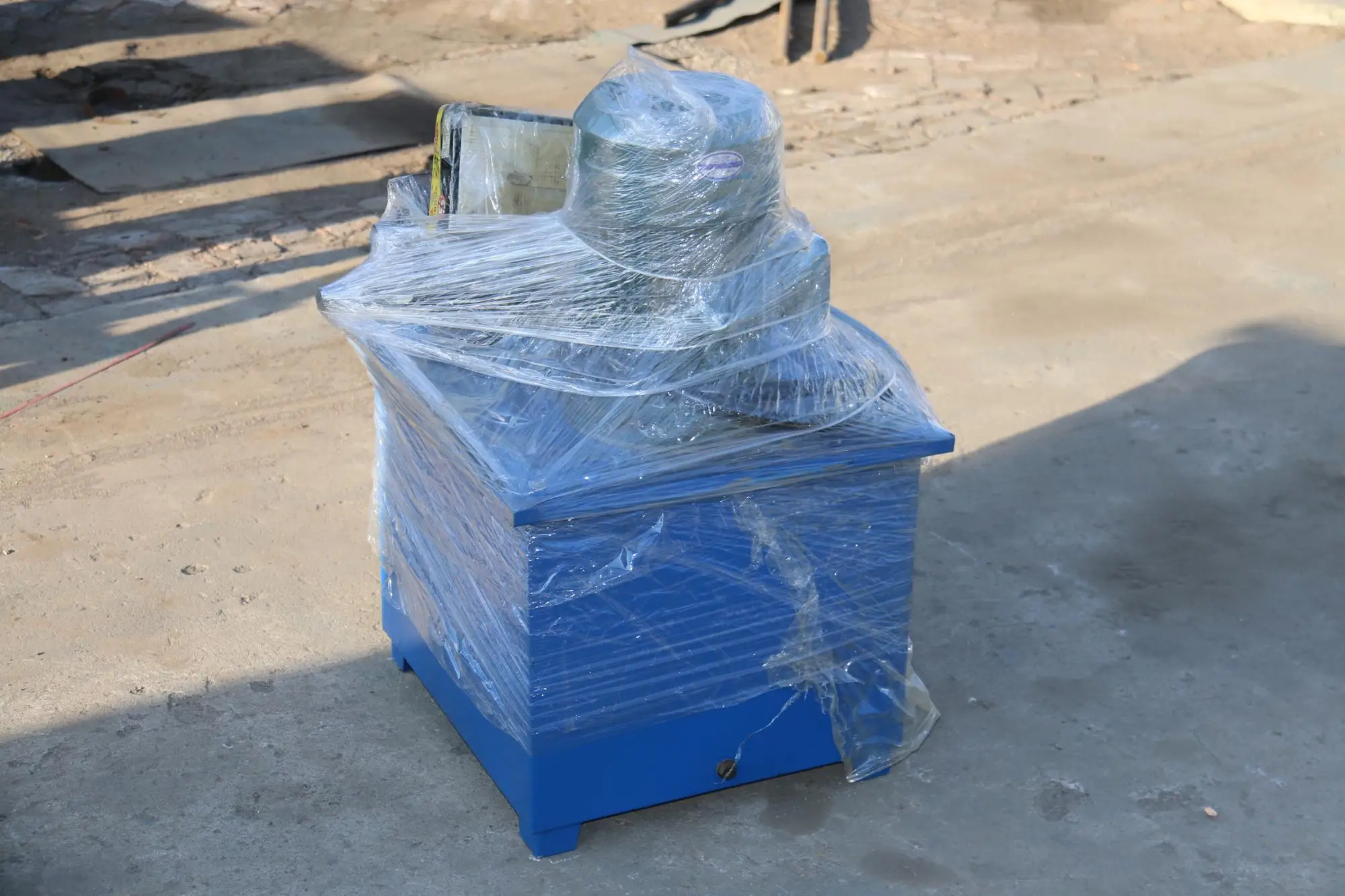

        5.Oil Pump

          6.PLC control box

          1. PLC Brand :Delta        2. Frequency converter: Delta        3. Operate manual:5.7 inch touch               screen                4. Counter:  Chint             5. Reducer: Delta

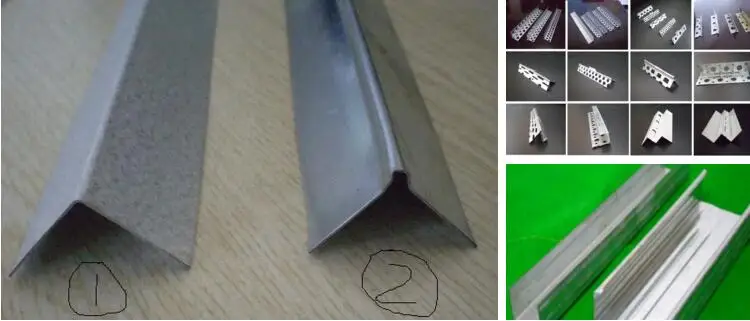

        7.Output

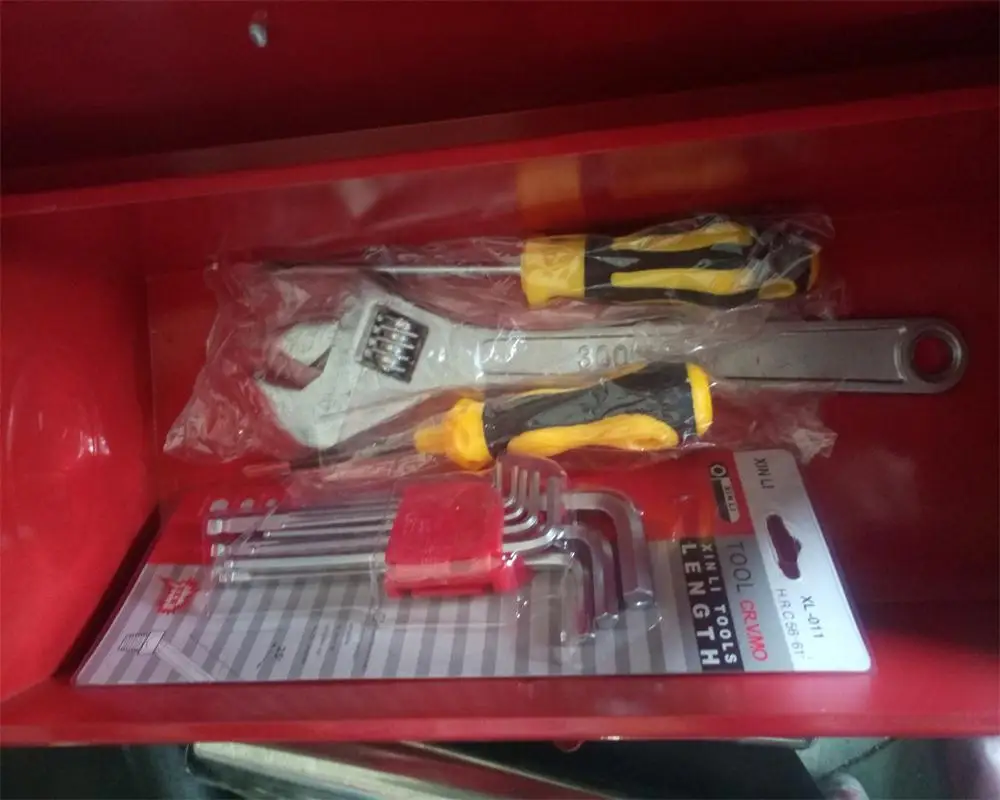

          8.Tools

Coverby plastic. The control box, hydraulic station and other spare parts are packed with

plywood box.

Equipment fix with container use steel wire. Protect the machine didn't broken in the delivery
