Конвейерная лента для суши Faith Factory
US $170.00

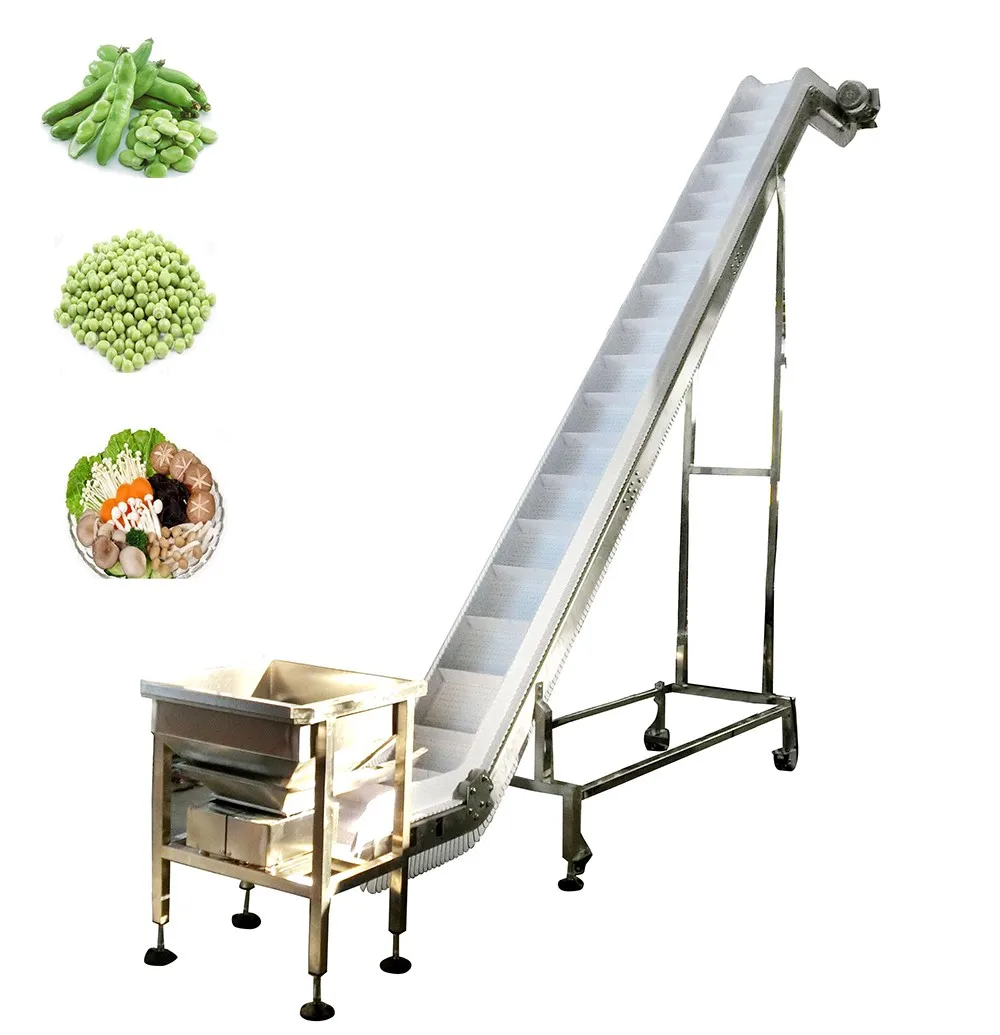

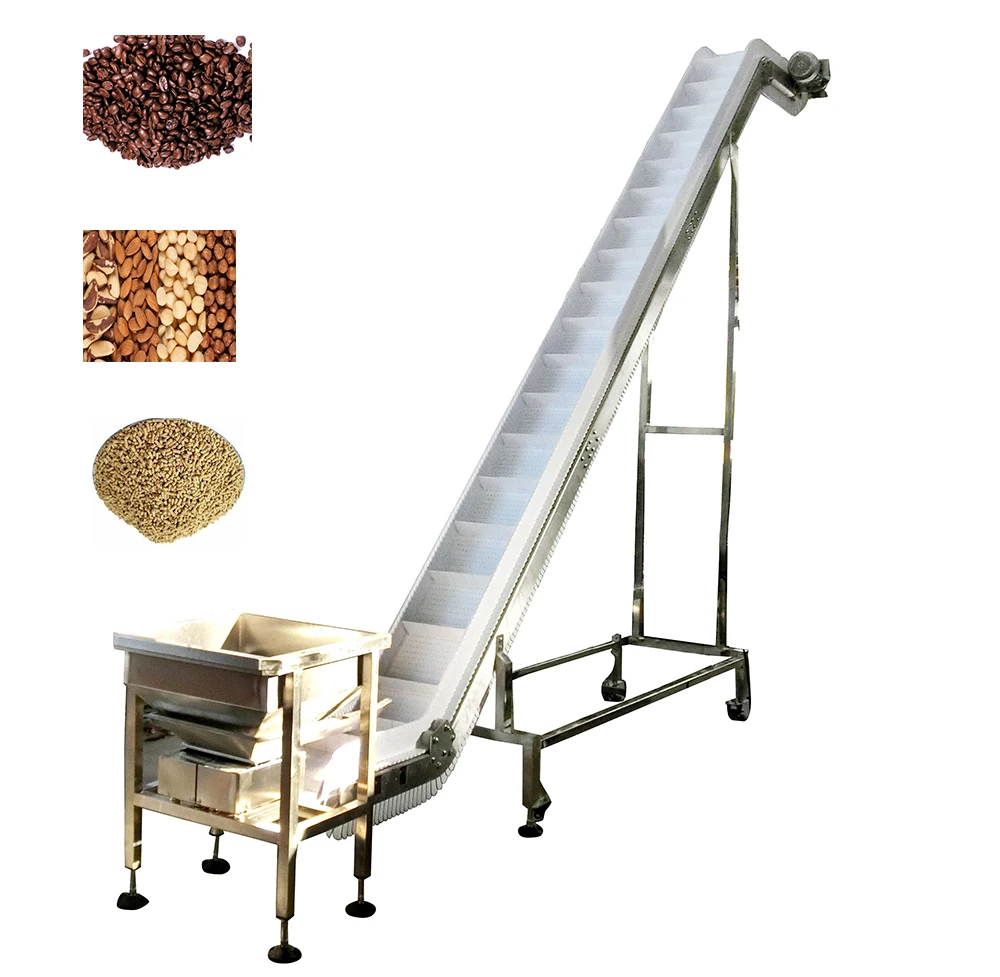

Пищевой наклонный ленточный конвейер с Хоппером цена
- Категория товара: Conveyors >>>
- Поставщик (Оптовый магазин): Hangzhou,Zon,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
1.Product Application
The conveyor is applicable for vertical lifting of granule material such as corn,jerry, snack, candy , nuts, plastic and chemical product, small hardware ,vegetable ,fruit and so on. For this machine, the bucket is driven by the chains to lift.
2.More description of ZH-CQ1Incline conveyor | ||||||
Details | 1. The incline conveyor are made of a food grade reinforced polypropylene, molded in one piece and can handle temperatures from -10 to 120 degrees Fahrenheit. | |||||
2.The incline elevators allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices | ||||||
3. it have a quick release mechanism to facilitate fast installation or removal of buckets. All elevators are equipped with an automatic chain tensioning device and built-in overload protection | ||||||
Techinical Feature | 1.Speed is controlled by frequency converter , easy to control and more reliable. 2.304SS chain which is easy to maintain and long lift. 3.Strong sprocket with running and less noise. 4.Fully enclosed, keeping clean and sanitary. | |||||
Options | Material :PU Or Link Joint | |||||
Machine Frame:304SS or Mildsteel Frame | ||||||
Stock Bin : 150L/200L/300L | ||||||
3.Technical specification
Model | ZH-CQ1 |
Convey Height | 1800-4500 mm |
Belt Width | 220-400 mm |
Bucket Material | White PP (Food grade) |
Vibrator Hopper Size | 650L×650W mm |
Power supply | 220V/50HZ or 60HZ Single Phase, 0.75KW |
Packing Dimension | 6000L×900W×1000H mm |
Gross Weight | 650kg |
Detailed Image

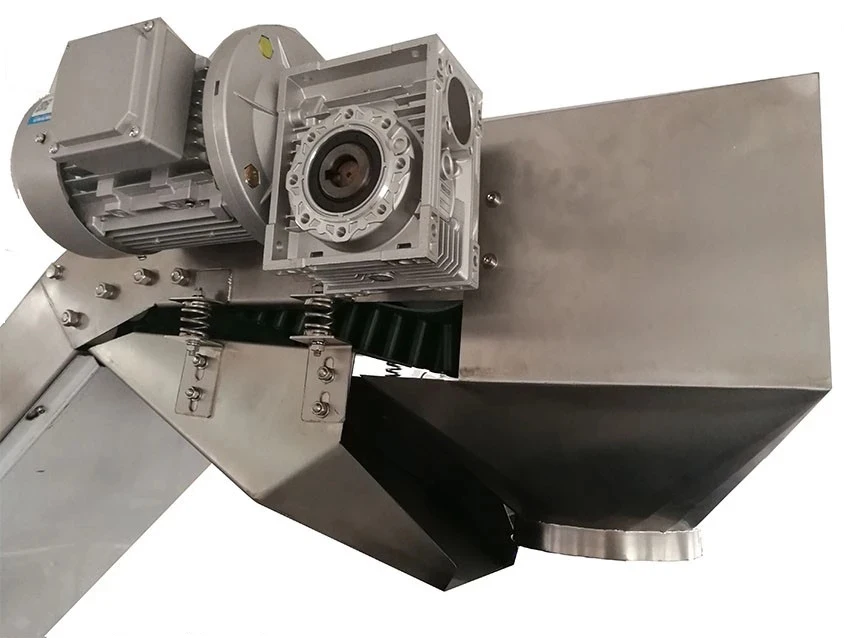

1.Motor and dischaerge port
Powder support:
220V/50HZ or 60HZ Single Phase, 0.75KW
2.Electric box
VFD control speed.
And easy to control the speed

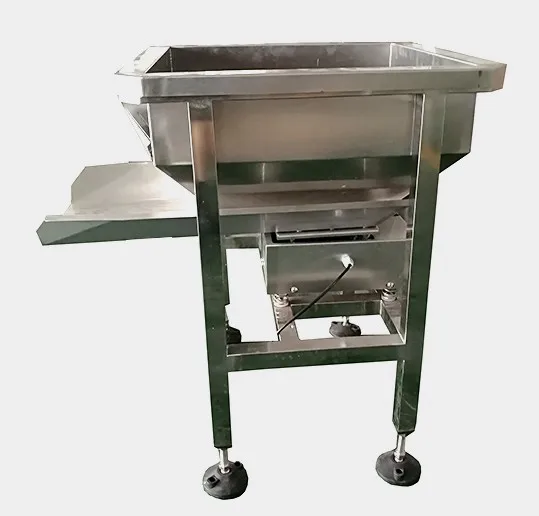

3.Big storage hopper
Our storage hopper Height can be customize. It is filling out the material by vibration.
storage hopper: 150L/300L

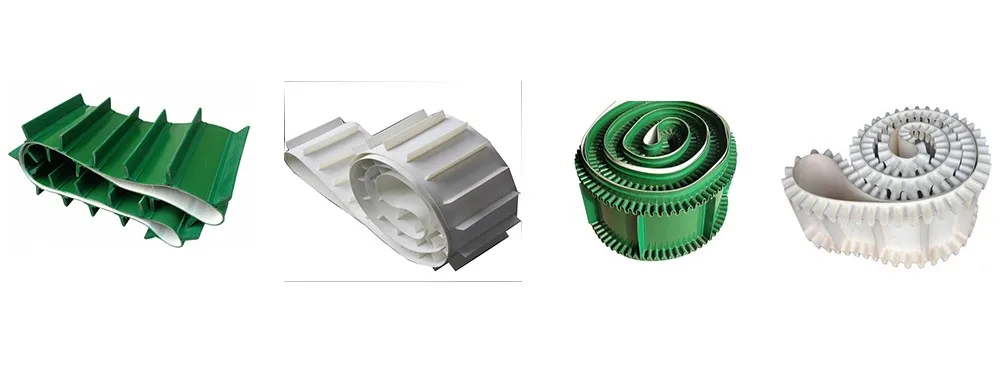

4.Belt material
Our belt can be uesd PU or Link Joint.
PU is very easy to clean, you can use the water clean it directly.
Link joint can be used for material which have water, it can filter the extra water.
You May like
Z Type Bucket Conveyor
High speed bucket conveyor for dried food
Singel Bucket Conveyor
Low cost conveyor for Granule
Take-off conveyor
Low cost conveyor to change the material transport direction

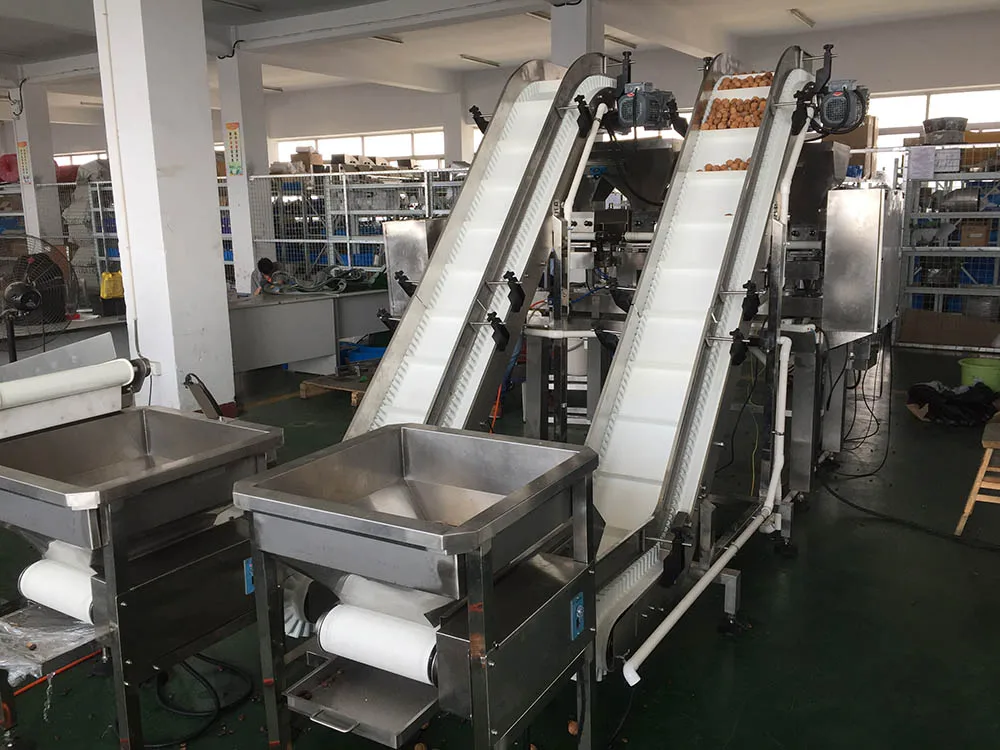

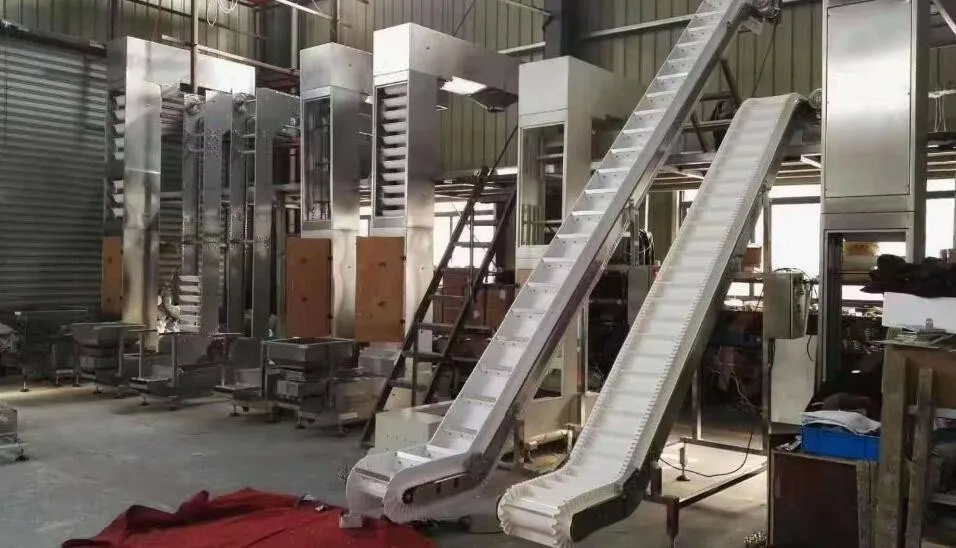

Case show
Packing & Service
Pre-Sales Service:
1.If you are interested in our Incline Conveyor, We can send your video about the details of its working process.
2.If you want to come to our our factory for better understanding of machinery, we will have a professional introduction from our team, and try to solve your any problem.
After-Sales Service:
Training services:
We will train your engineer to install our machine. You can send your engineer to our factory or we dispatch our engineer to your company. We will introduce your engineer how to install the machine and how to fix problem.In fact , we can send you a video to show how to install, it can help you save cost.
Spare Parts replacement:
For spare parts support: For machine in guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts in cost price.
