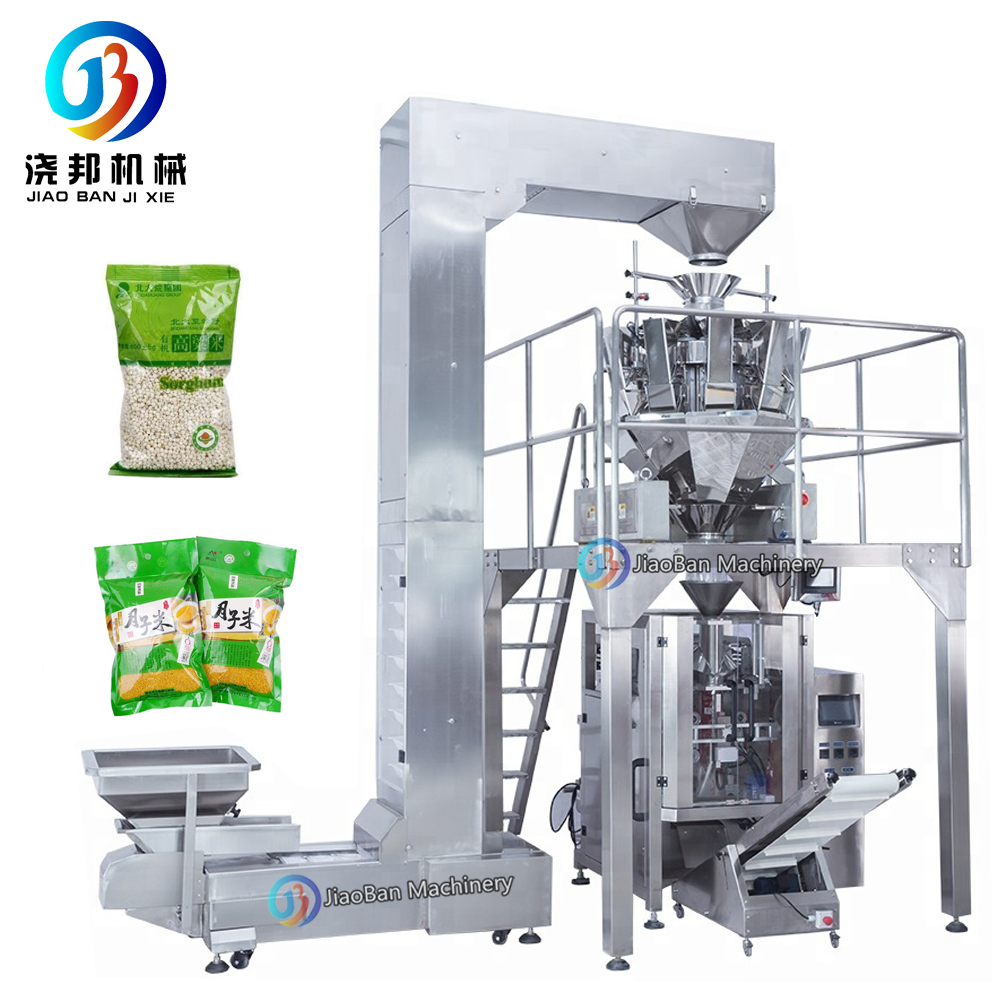

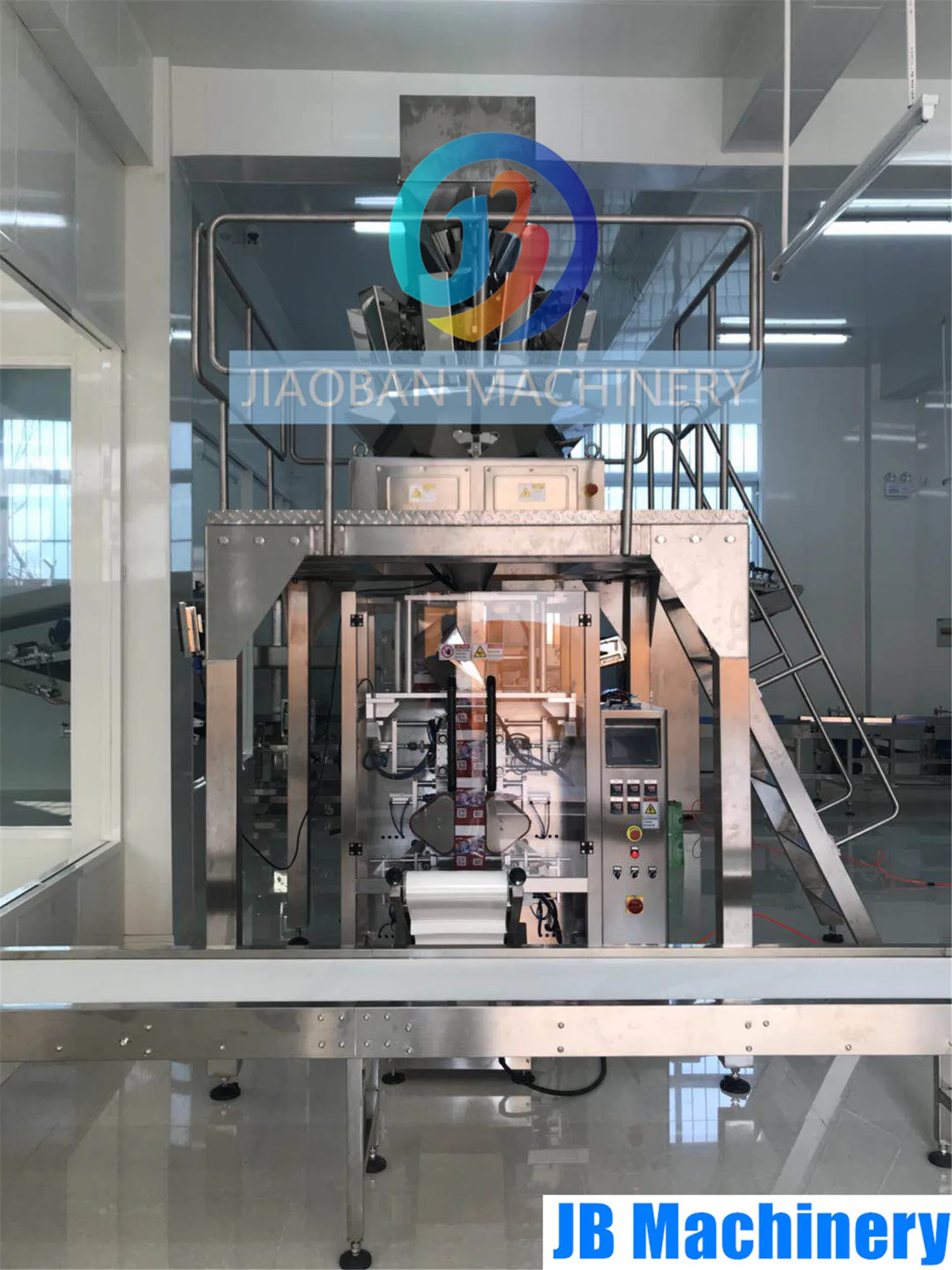

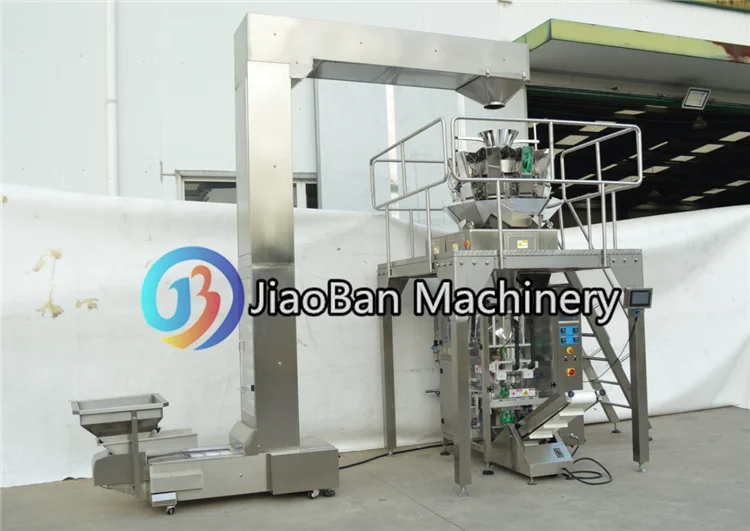

JB-420Z Полноавтоматическая 1кг 2кг кг рисов 5 кг./сахар вертикальный для сбора мелких зерен машина для упаковки гранул
- Категория товара: Packaging Machine >>>
- Поставщик (Оптовый магазин): Shanghai,Jiaoban,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Model | JB-420Z |
Packing speed | 10-50 bags/min |
Packing volume | 2000ml |
Making bag size | L: 60-300mm, W: 80-200mm |
Film width | ≤ 420mm |
Thickness of film roll | 0.04-0.09mm |

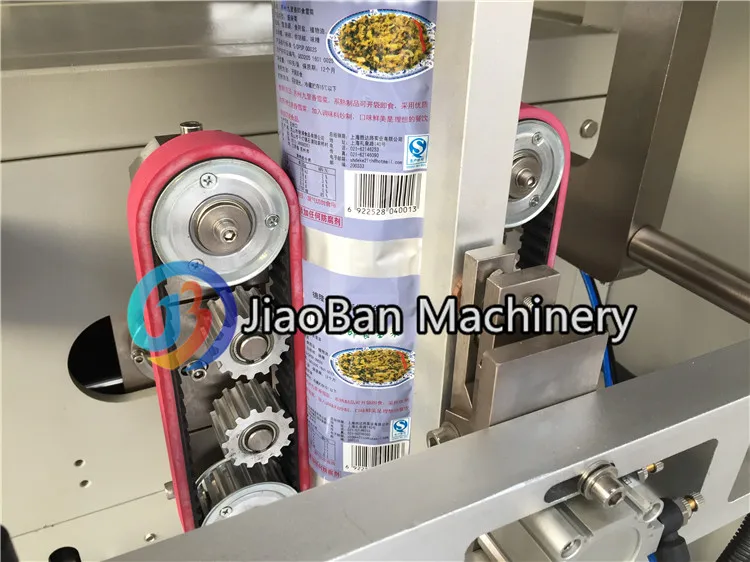

Pulling film type | Double belt pull film |
Air consumption | 0.8Mpa, 0.5m³/min |
Packing accuracy | ≤ ±1% |
Power | 2.5 KW |
Power supply | AC220V, 50/60Hz |
Seal type | Pillow seal, Gusset bag, Block bottom bag |
Main machine net weight | 450kg |
Main machine dimension | L1320 × W920 × H1390mm |
Usage:
This machine is mainly used for packing granule products: such as sugar, salt, coffee beans, rice, beans, peanuts, sunflower seeds, grains, cereals, nuts, chocolate beans, potato chips/strips, frozen dumplings, cereal, tea, washing powder, desiccants, etc
This machine is mainly used for packing granule products: such as sugar, salt, coffee beans, rice, beans, peanuts, sunflower seeds, grains, cereals, nuts, chocolate beans, potato chips/strips, frozen dumplings, cereal, tea, washing powder, desiccants, etc
Function and features:

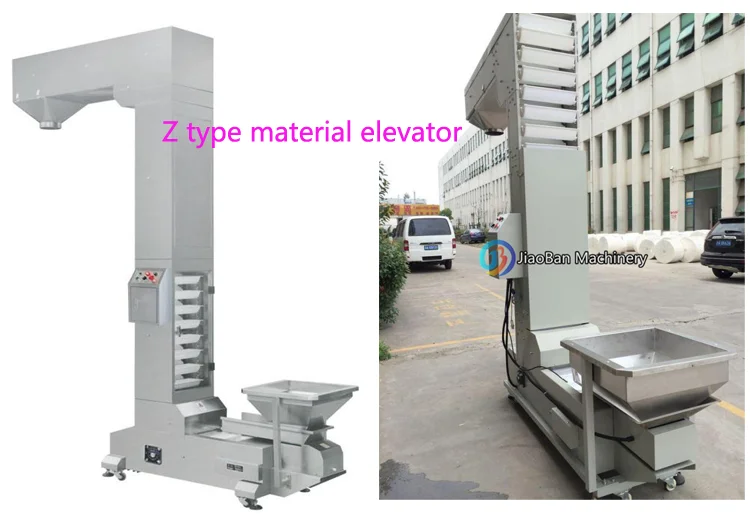

1. This machine can automatically complete the following work: material lifting--multi-head weigher measuring--coding--bag making--filling--gas injection / exhaust (optional)--sealing--counting-- conveying finished products--sorting finished products.
2. PLC servo and pneumatic control system, large touch screen forms the core of drive control; high reliability and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, whenreplacing product, it can be used at any time without resetting.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order tobe promptly ruled out.
5. Can make hole punching device according to customer’s request.
6. This machine has stainless steel type and carbon steel type for choice.
1. This machine can automatically complete the following work: material lifting--multi-head weigher measuring--coding--bag making--filling--gas injection / exhaust (optional)--sealing--counting-- conveying finished products--sorting finished products.
2. PLC servo and pneumatic control system, large touch screen forms the core of drive control; high reliability and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, whenreplacing product, it can be used at any time without resetting.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order tobe promptly ruled out.
5. Can make hole punching device according to customer’s request.
6. This machine has stainless steel type and carbon steel type for choice.

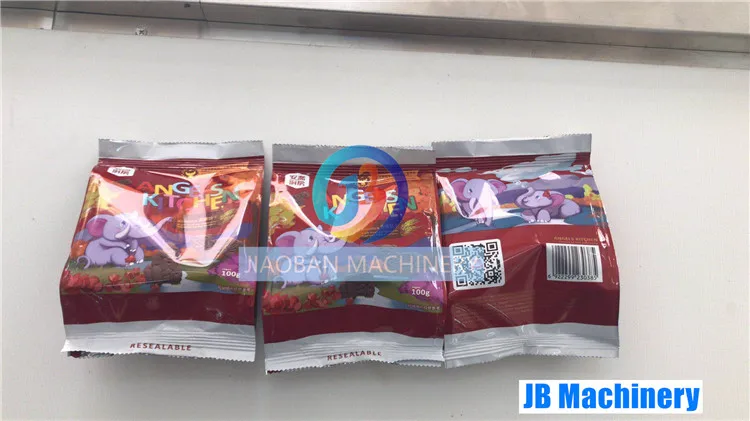

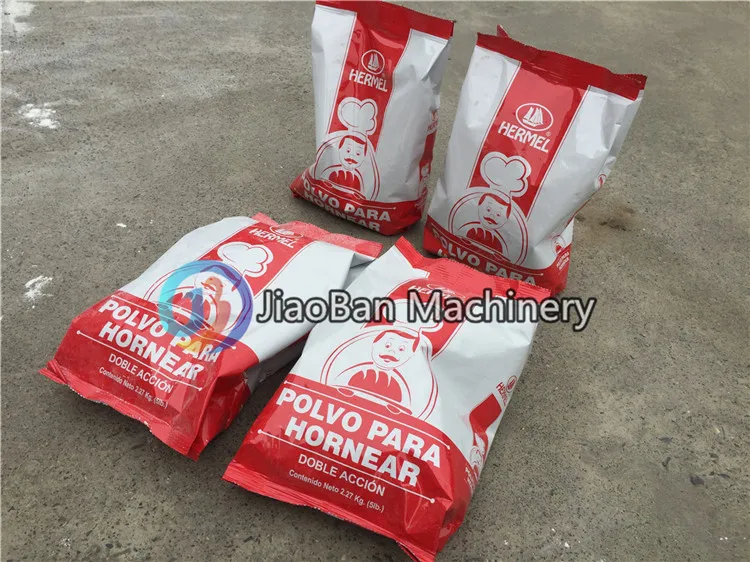

Samples

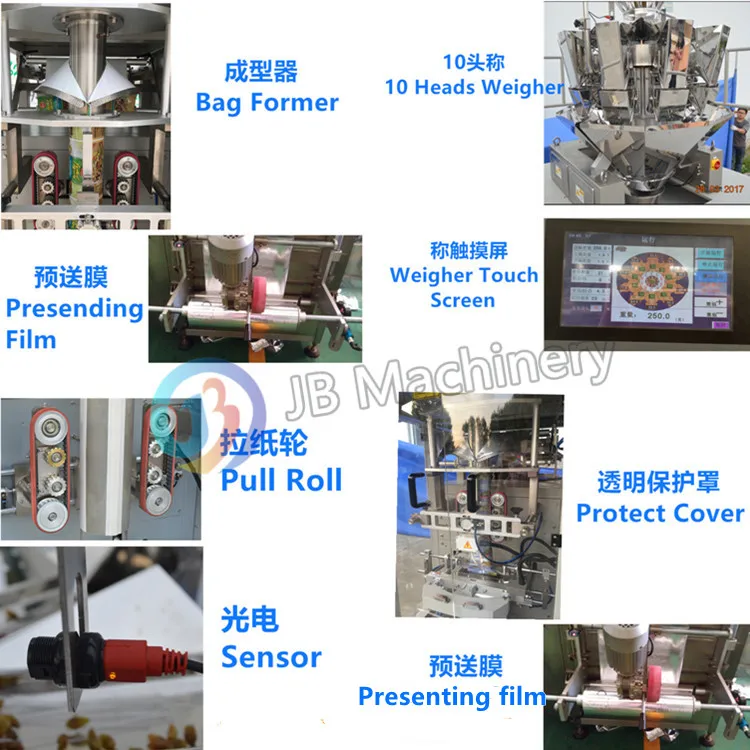

Details Images

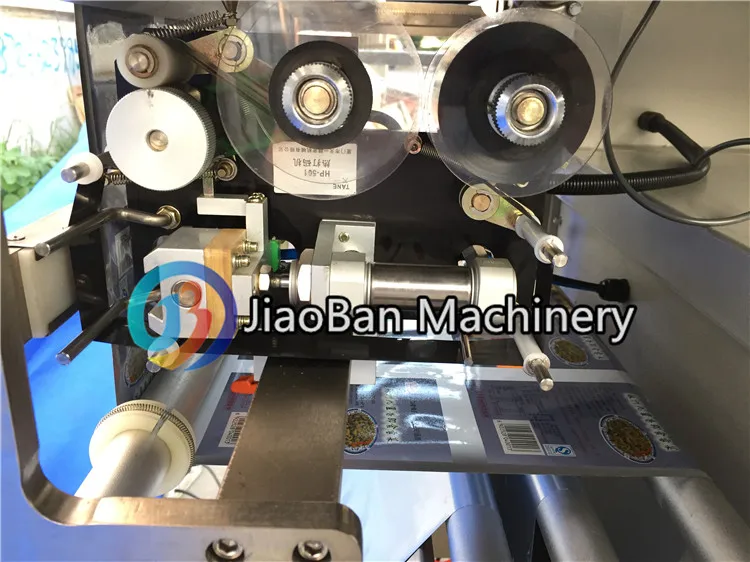

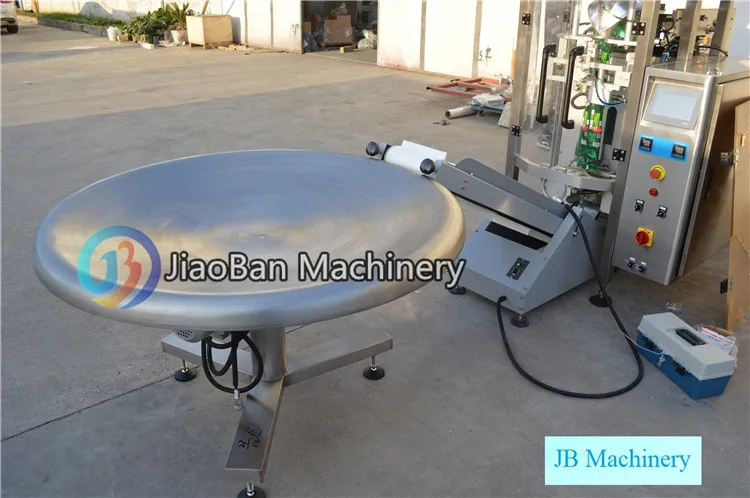

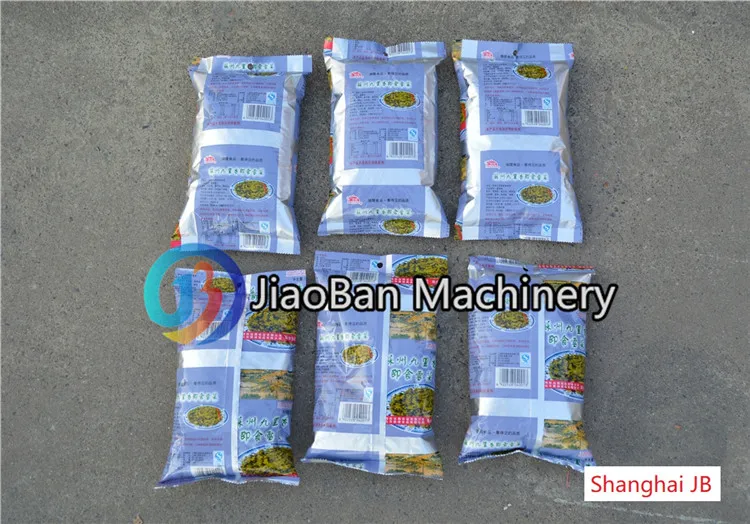

bag collecting turn table date printer finished powder bag

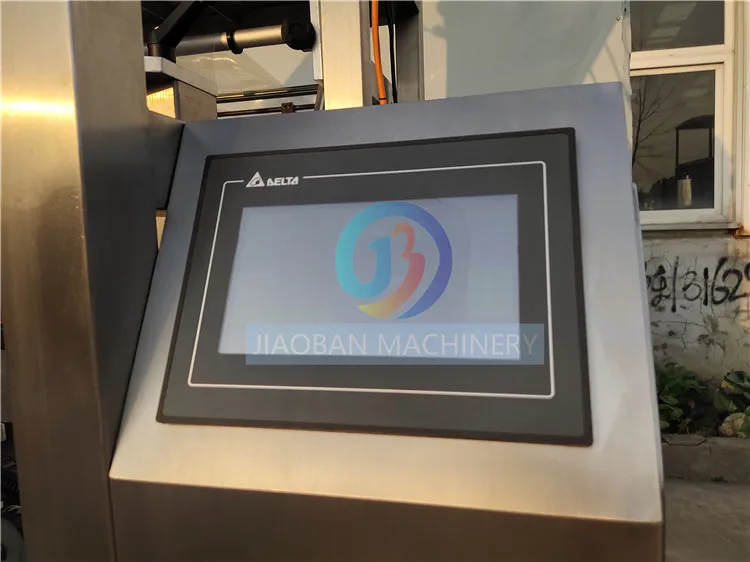

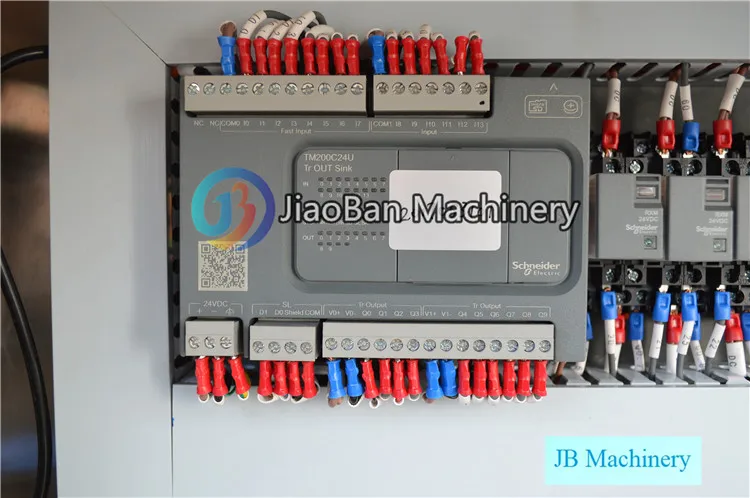

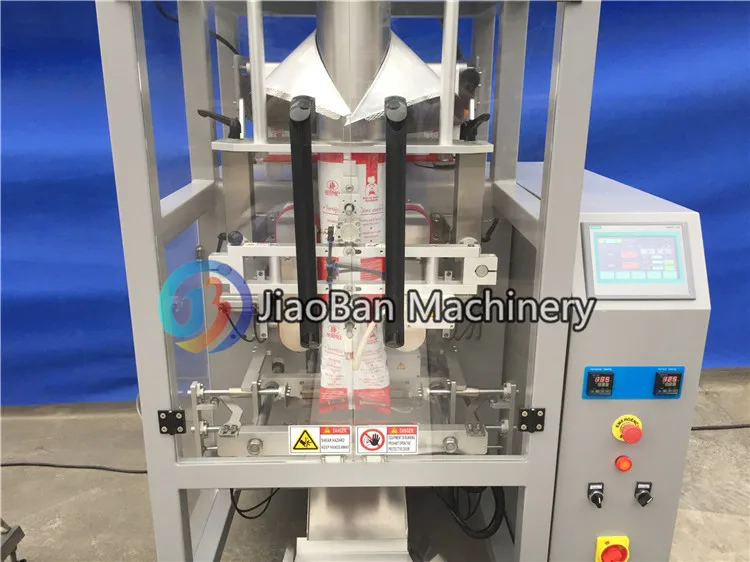

PLC control system Advanced configuration
Machine can make nice gusset bag
Machine can make 4 sides sealing bag

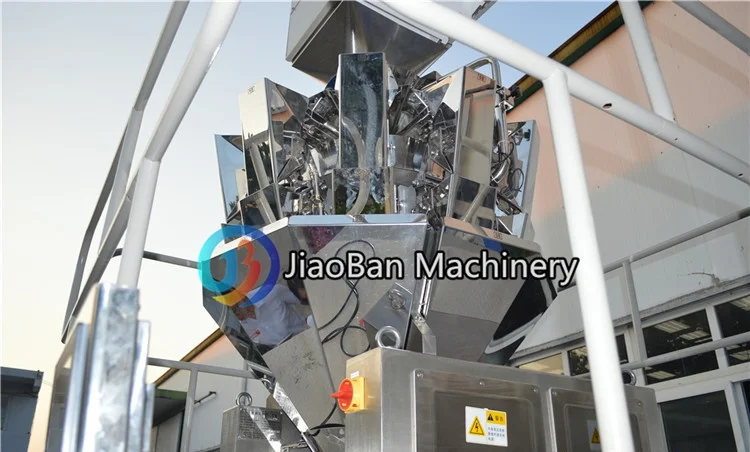

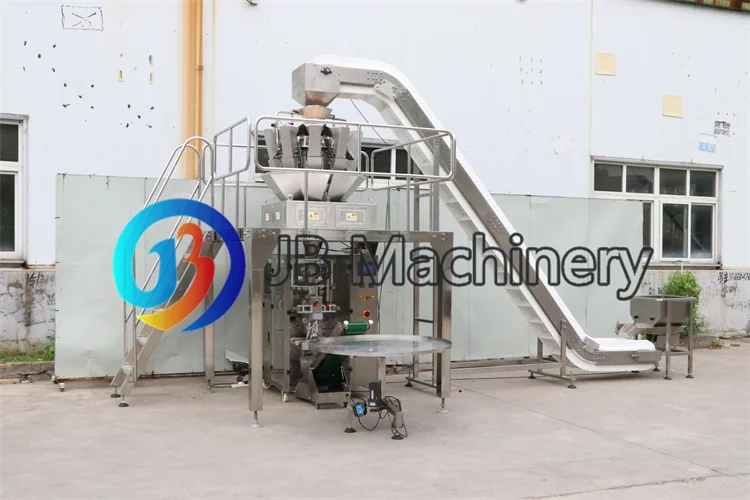

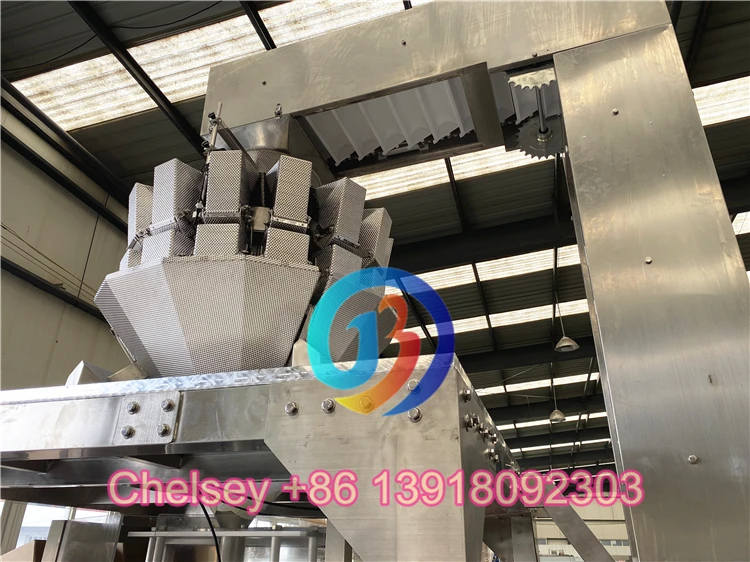

We also have 14/16 heads weigher packing machine
We sell automatic vertical packing machine to abroad every week.
