Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
Горячая Распродажа IE2 рамка размер 80 полюс 4p мощность 0 75 кВт асинхронный трехфазный
- Категория товара: Motors >>>
- Поставщик (Оптовый магазин): Ningbo,Fenghua,Hongma,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

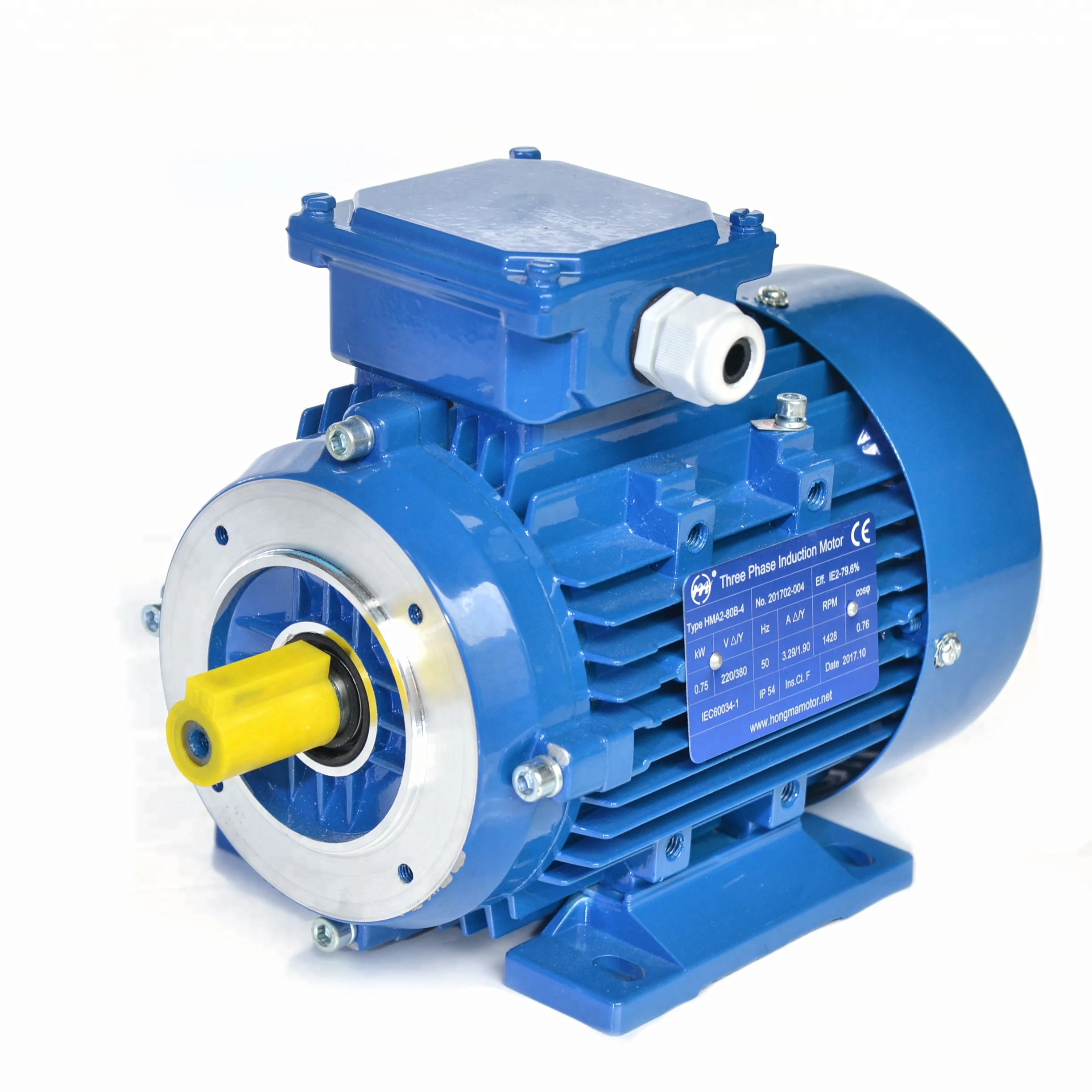

Hot sale YE2 80M2 4POLE 0.75kw three phase electric motor
2HMA-IE2 (EFF1) Series Aluminum Housing Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.
2HMA/Y2 Series Three Phase Motor Characteristics and advantages:
Frame Size: H 80-160
Efficiency: IE1
Poles: 2,4,6 poles
Rated Power: 0.55KW-18.5KW
Rated Voltage: 220/380V, 380/660V, 230/400V, 400V/690V
Frequency: 50HZ,60HZ
Protection Class: IP44,IP54,IP55, IP56
Insulation Class: B/F/H
Mounting Type: B3,B5,B14,B35multi and pad mounting
Ambient Temperature: -20~+40 °C
Altitude: ≤ 1000 M
2HMA/Y2 Series Three Phase Motor Characteristics and advantages:
Frame Size: H 80-160
Efficiency: IE1
Poles: 2,4,6 poles
Rated Power: 0.55KW-18.5KW
Rated Voltage: 220/380V, 380/660V, 230/400V, 400V/690V
Frequency: 50HZ,60HZ
Protection Class: IP44,IP54,IP55, IP56
Insulation Class: B/F/H
Mounting Type: B3,B5,B14,B35multi and pad mounting
Ambient Temperature: -20~+40 °C
Altitude: ≤ 1000 M
HM2A 802-4-0.75KW-B3
Product Detail
Insulation Protection | IP54, IP55, (IP56, IP65, IP66) |
Cooling Method | IC411 |
Insulation Class | F (B-level temperature rise assessment, H class optional) |
Working System | S1 |
Mounting Dimensions | IEC and DIN42673 |
Product name | Hot sale ye2 80m2 4 0.75kw three phase electric motor |
Product Keywords | ye2 electric motor |
POWER | 0.75KW |
SPEED | 1428RPM |
EFF | 79.6% |
POWER FACTOR | COS0.76 |
TS/TN | 1.7 |
IS/IN | 2.9 |
Materials Photoes
Rotor
Bearing
Usually we choose high quality Chinese bearing like C & U .
NSK, SKF bearings are available .
Winding stator
100% copper wire +600 or 800 Cold-rolled silicon steel sheet
Company Information
Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001:2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.
Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor.
We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
Our Advantages
OUR ADVANTAGES
PROFESSIONAL
Our factory was founded in 1989, there are 30years in producing electric motors.
.
TEAM
Hongma Motor have more than 100 people to make good quality products.
.
ODM&OEM
Hongma Motor can supply OEM and ODM service, and we also can produce according to customers requests.
SERVICE
Hongma Motor have good before and after service, Our response rate keep in 97%.
Certifications
OUR CERTIFICATES
Packing & Delivery
Packing Detail:
From Size 56 to Size 132---Carton packing with Foam and Wooden Pallets.Above Size 160---Wooden pallet /PC.
Delivery Time:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ
Q1. Do you accept OEM order?
Yes,Hot sale ye2 80m2 4 0.75kw three phase electric motor are acceptable.
Q2. What's your payment terms?
We accept T/T(30% down payment and 70% paid before delivery), Pay pal, Western union, and Money Gram.
Q3. What's the minimum order quantity? How long is the delivery time?
Both MOQ and delivery time need to refer to the specific products. Usuall we deliver the motors in 10-45 days, please contact our sales for details.
Q4. What's the way of transportation?
Express, air and ocean shipments are all available.
Q5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery
