Shenzhen Manufacturer Price CE Multi Function Fibre Optics Optical Cables Fiber Optic Cable Cutting Machine for Patch Cords
This is our factory 3D showroom↓
VR
Neofibo : Your Reliable Supplier
① Can provide you with reliable polishing solution；
② 13-year Manufacturing Experience for OEM/ODM polishing program；
③ Independent research and development patent - Neoholder®；
④ Products have CE, ROHS certification；
⑤ Support online video synchronization inspection machine；
⑥ Equipment test report and operation guide can be provided；
⑦ SGS certified factory, delivery speed and secure,50 units in stock；
⑧ 30 days quality problems can be returned；
⑨ Free polishing film sample;
③ Independent research and development patent - Neoholder®；
④ Products have CE, ROHS certification；
⑤ Support online video synchronization inspection machine；
⑥ Equipment test report and operation guide can be provided；
⑦ SGS certified factory, delivery speed and secure,50 units in stock；
⑧ 30 days quality problems can be returned；
⑨ Free polishing film sample;
Products Description

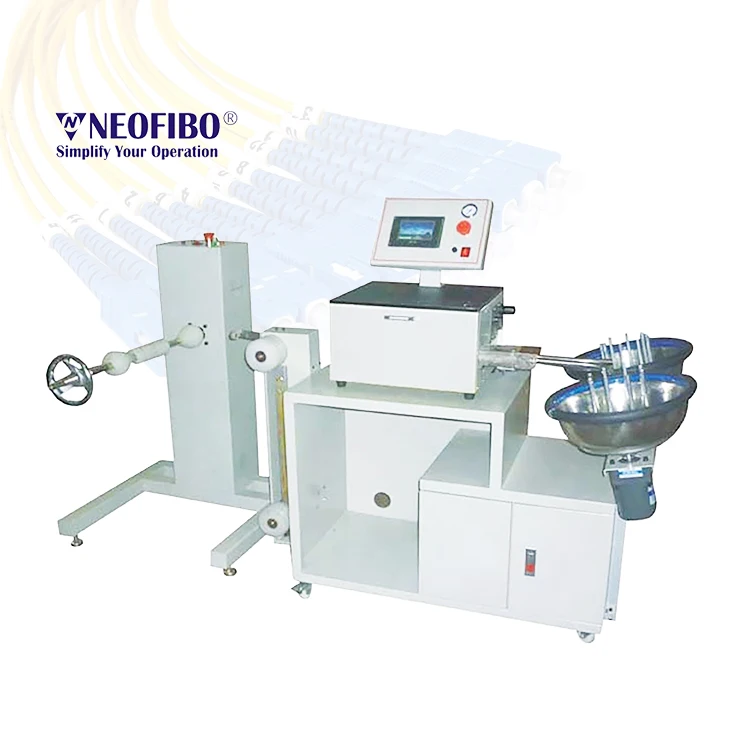

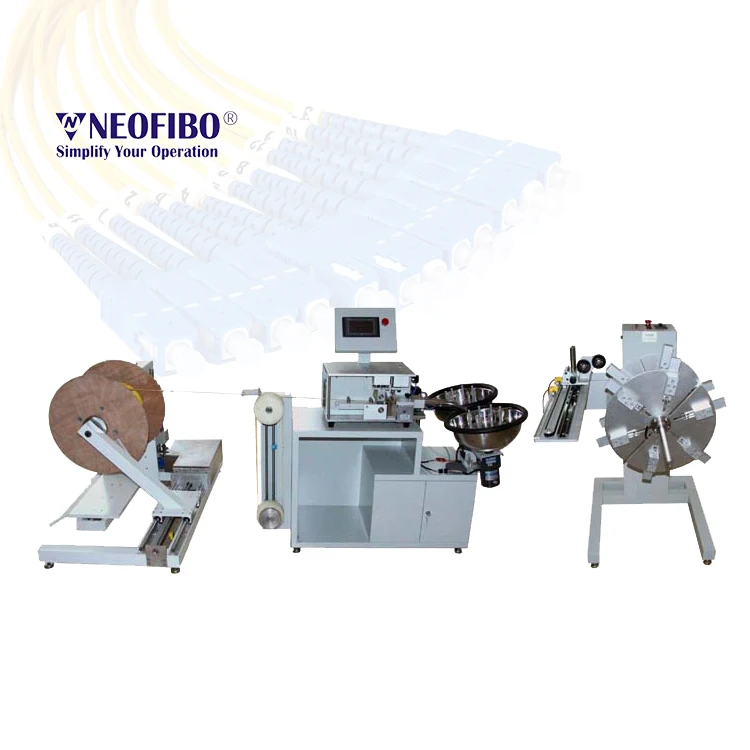

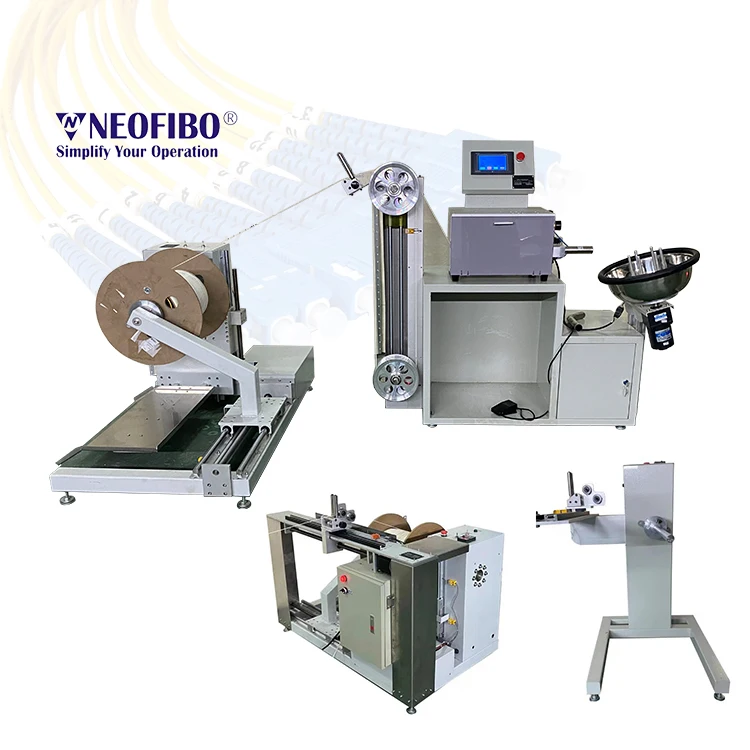

Automatic Optical Fiber Cutting Machine is applied for producing fiber optic patchcord, and it is a professional equipment with measuring length / cutting and winding functions. It could cut different indoor optical fibers into required length and wind cable into circularity.
Description:
This equipment integrates the advantages from China and oversea factory’s cutting machines and increase an automatic feedback function for data groups. It makes the measuring accuracy improve better. It includes automatic winding and automatic cutting functions to protect the optical fiber.
Key Features:
1.Flexible for length and speed setting, High efficiency.
2.Friendly touch screen interface, compact window, self-defined language: Chinese / English / Korea.
3.Easy to handle, High precision, High speed, Low noise. It is the best machine for cable cutting and winding
2.Friendly touch screen interface, compact window, self-defined language: Chinese / English / Korea.
3.Easy to handle, High precision, High speed, Low noise. It is the best machine for cable cutting and winding
Assembly steps：
1、Assemble the base and reel
2、Click to assemble the host
3.Wiring Figure Group
Specification
Item | Capacity |
* Operation System: | Chinese and English touch screen |
* Cutting Length: | no more than 999 mtrs |
* Cable type: | Fiber dia 0.9mm to dia 6mm, Simplex fiber, Duplex fiber and Ribbon Fiber. UTP, CAT5, CAT5e, CAT6, CAT6a (Customize: dia 7.3 mm cable) |
* Speed: | 1.6 meters per second |
* Length Accuracy: | no more than 0.3% |
* Power Consumption: | 450 Watt, 220V AC, 50/60Hz |
* Pressure Source: | 0.4 to 0.6Mpa |
* Carrying Weight for Cable Sending Machine | Less than 40 kgs |
* Cable Drum Outer Diameter for Cable Sending Machine: | Less than 500 mm |
* Cable Drum Inner Diameter for Cable Sending Machine: | More than 23 mm, and less than 80 mm |
* Cable Collection Bowl: | Diameter 180 mm |
* Assembled Machine Size: | 110cm * 73cm * 125cm |
* Net Weight/Gross Weight: | 134 kgs / 175kgs |
Application
Technical parameter
model | AOFC-2001(Align) | AOFC-2001 | AOFC-5001 | ||
Operation System | Chinese & English, Touch Screen | 3-2000 | Chinese & English, Touch Screen | ||
Cutting Length | 3 to 2000 mtrs | 3 to 200 mtrs | 3 to 2000 mtrs | ||
Cable Diameter | Φ0.9mm to Φ6.00mm(max) | Φ0.9mm to Φ6.00mm(max) | Φ0.9mm to Φ16mm(max) | ||
Cable Type | Single core optical cable,Duplex cable,Jacket fiber, Ribbon Fiber, UTP, CAT6 | Single core optical cable,Duplex cable,Jacket fiber, Ribbon Fiber, UTP, CAT6 | Jacket fiber,Armored Optical Cable | ||
Running Speed (m/s) | 0.5 - 1.6 meters per second | ||||
Length Accuracy | no more than 0.3% | no more than 0.3% | |||
Power Consumption | 2200Watt, 220V AC, 50/60Hz | 450 Watt, 220V AC, 50/60Hz | 4500 Watt, 220V AC, 50/60Hz | ||
Pressure Source | 0.4 to 0.6Mpa | ||||
Assembled Machine Size | 300cm * 73cm * 125cm | 110cm * 73cm * 125cm | 300cm * 80cm * 150cm | ||
Net & Gross Weight | 285 kgs / 330 kgs | 134 kgs / 175kgs | 400 kgs / 450kgs | ||
If you have special needs and need to customize, please contact the supplier.
