Хит продаж, высокопрочный насос для бетонных насосов
US $4800-$5300
Электрический/дизельный маленький портативный бетононасос с дистанционным управлением для
- Категория товара: Concrete Pumps >>>
- Поставщик (Оптовый магазин): Qingdao,Jiuhe,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Dear Customer:
Welcome to our website and hope our products will make you satisfied .
We think creatively,design bravely,manufacture precisely and loyalty to
our customers. And we have our own factory.so We can produce the products
according to customer requirements .
Give us a negotiate chance will yield you a surprise!
Yours Faithfully,
JH Team,
High quality China JH Brand Trailer concrete pump
Product Description
High Efficiency Pumping System
Hydraulic double-cylinder piston pumping system delivers smoother flow
Automatic lubrication system extends the service life of the pistons.
Improved material path reduces pumping resistance and pipe blockages.
Superior pump control valve design, equipped with high-pressure relief valves, ensure safe and easy cleaning.
Advanced Hydraulic System
Innovative hydraulic system design matches any job application in the field.
The high-pressure, large displacement system outputs 80 m³/h with an outlet pressure of 16 MPa. Capable of pumping to a height of up to 250m.
Electronically controlled reversing function provides quick, smooth direction change and optimizes pumping continuity.
Constructed with globally recognized, quality components.
Technical Parameters
| MODEL | DHBT6013 | DHBT8013 | DBT8016 |
| Filling height | 1400mm | 1400mm | 1400mm |
| GROSS WEIGHT | 6300kg | 6800kg | 7000kg |
| Distrbution valve | S-tube | S-tube | S-tube |
| Hopper volime | 0.6m3 | 0.6m3 | 0.6m3 |
| The theortical outlet pressure (low) | 7.6Mpa | 7.6Mpa | 9Mpa |
| The theortical outlet pressure (high) | 13Mpa | 13Mpa | 16Mpa |
| Maximum concrete output (low) | 60m3/h | 80m3/h | 80m3/h |
| Maximum concrete output (high) | 36m3/h | 47m3/h | 46m3/h |
| Differential cylinder spercification | 125/80*1650 | 125/80*1650 | 140/90*1650 |
| Concrete pumping cylinder specification | 200mm | 200mm | 200mm |
| Diesel engine Power | 130KW | 145KW | 176KW |
| Hydraulic oil circuit type | Open | Open | Open |
| Main oil pump brand | Kawasaki or Rexroth | Kawasaki or Rexroth | Kawasaki or Rexroth |
| Main pump output | 125mm | 125mm | 125mm |
| Hydraulic Oil Tank Capacity | 500L | 500L | 500L |

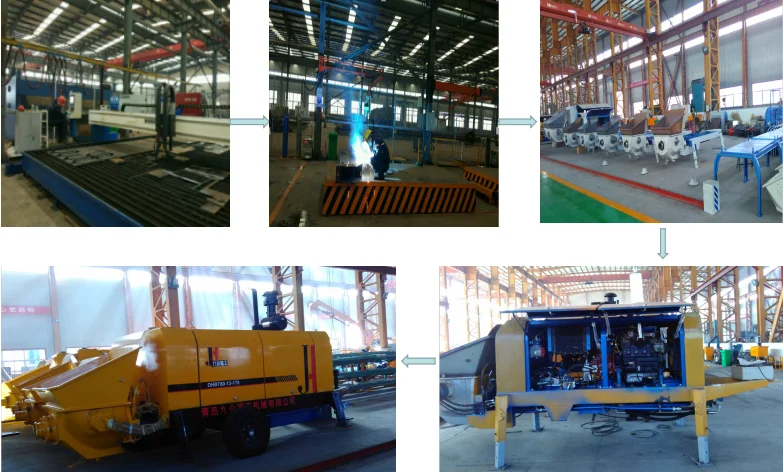

Processing for produce
Packaging & Shipping
Our Services
Warranty: 12months warranty since cargo left factory.
We can send technician oversea to supply technician support.
