Компактная лента, регулируемые ручные пленочные покрытия с вакуумным патроном, регулируемый пленочный аппликатор и дополнительная крышка для сушки
- Категория товара: Машины для нанесения пленочного покрытия >>>
- Поставщик (Оптовый магазин): Zhengzhou,CY,Scientific,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Compact Tape Casting Coater with Vacuum Chuck, Adjustable Film Applicator & Optional Dryer Cover - MSK-AFA-III

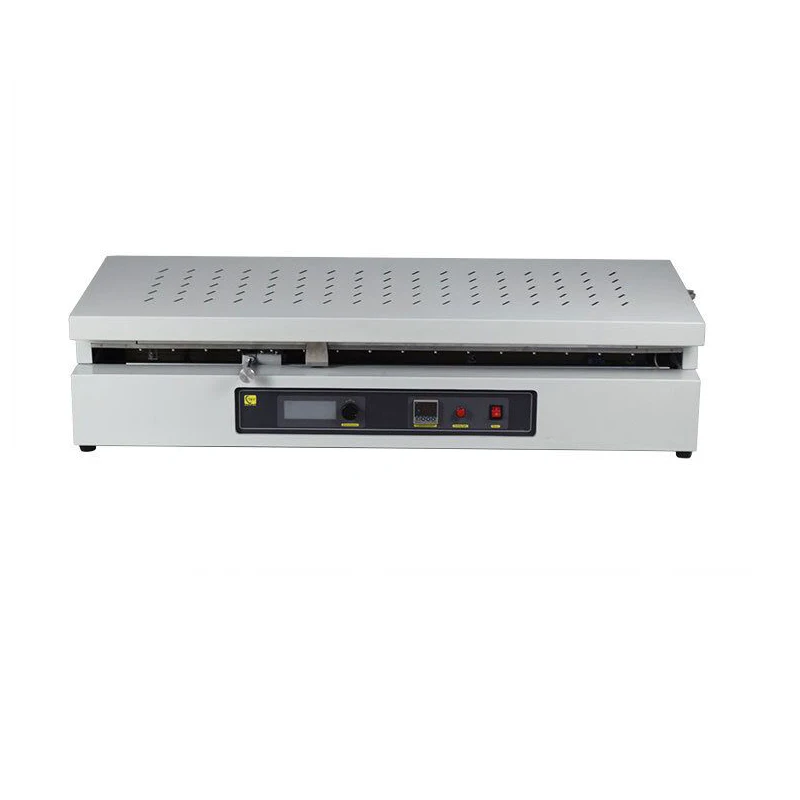

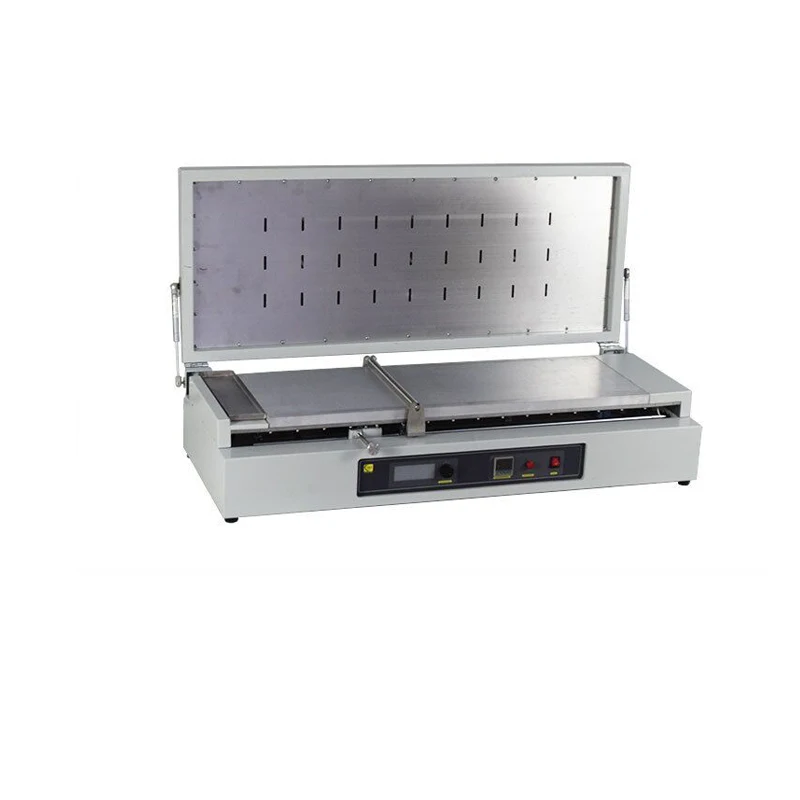

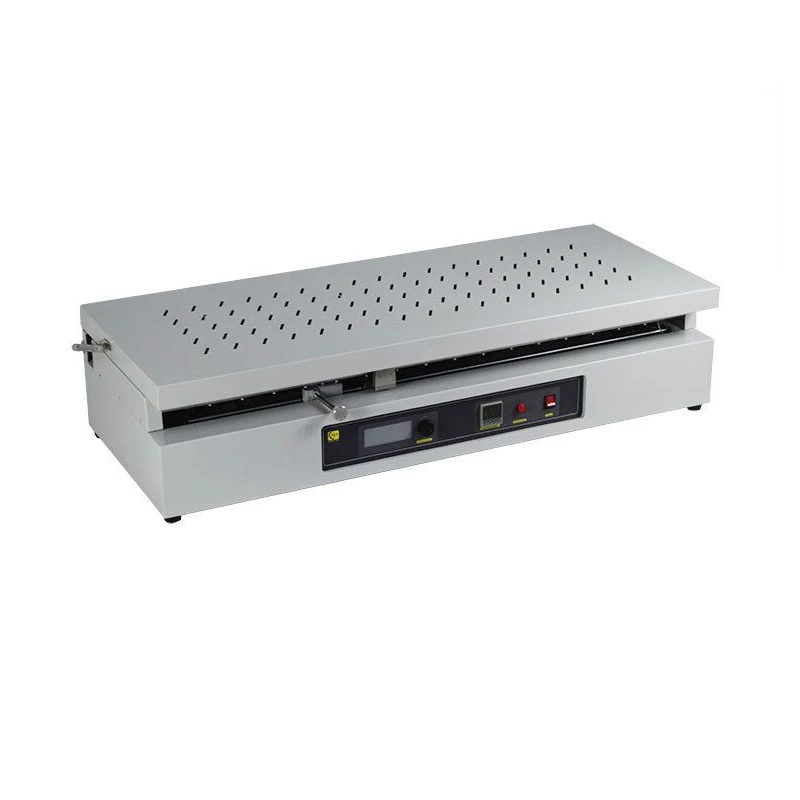

CY-AFA-L1000 is a CE Certified compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when making thin coatings. One 100 mm width adjustable micrometer applicator (doctor-blade). Heating cover with digital temperature controller can dry films after coating up to 100°C with a temperature accuracy of +/-1°C. This equipment can be used for researchers on ceramic tape castings and Li-Ion battery electrode coating.
Model | CY-AFA-L1000 |
Optional Heating Cover Voltage and Power | Without Heating cover |
Film Coater Working Voltage | INPUT 24VDC |
Traverse Speed | 0 - 100 mm/sec variable Accuracy: 10mm/sec |
Stroke Length | 10 - 250 mm adjustable by using Adjustable Position Switch |
Platform | Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 365mm(L) x 200mm(W) |

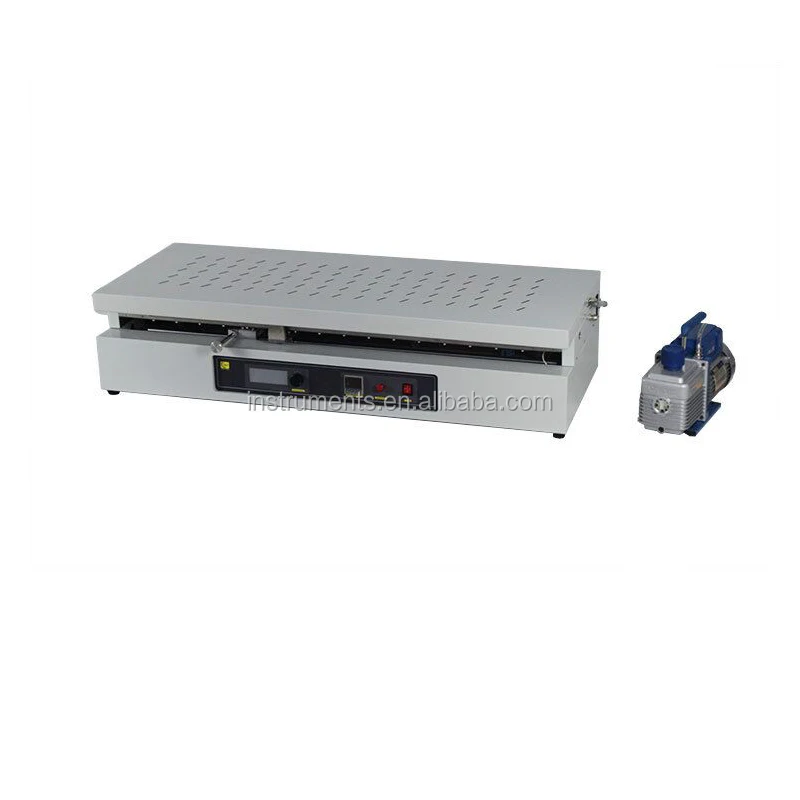

Vacuum Pump (optional) | Vacuum pump is NOT included. |

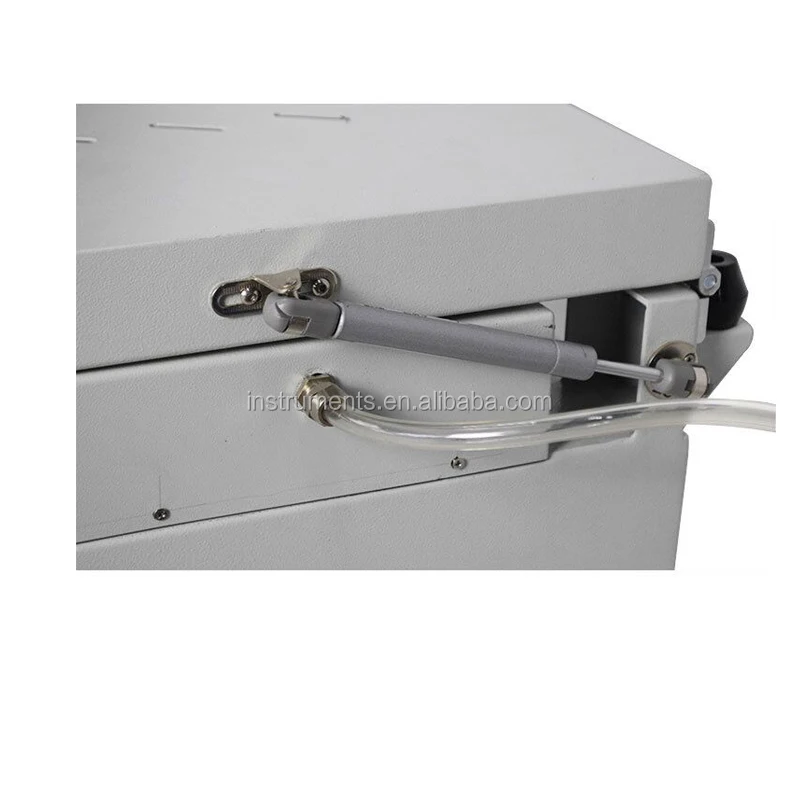

Pump connector | Vacuum control power switch is located on the front panel, and power plug ( female ) built in the back of the machine to connect an optional vacuum pump. The pump connector is compression type 8mm O.D tube fitting which is located on the back panel (see pic below). An 8mm Dia. x 4ft polyurethane tube is included. |
Film Applicator
| One 100 mm width micrometer adjustable film applicator is included (thickness adjustable from 0.01 - 3.5 mm) For coating film less than 10 microns, please order fixed thickness coating bar Traverse Pusher and waste plate ( for extra slurry ) are included for pushing the Film Applicator to ensure constant speed coating |
Product Dimensions | For AFA-I |
Compliance | CE |
Warranty | One Year limited warranty with lifetime support |
