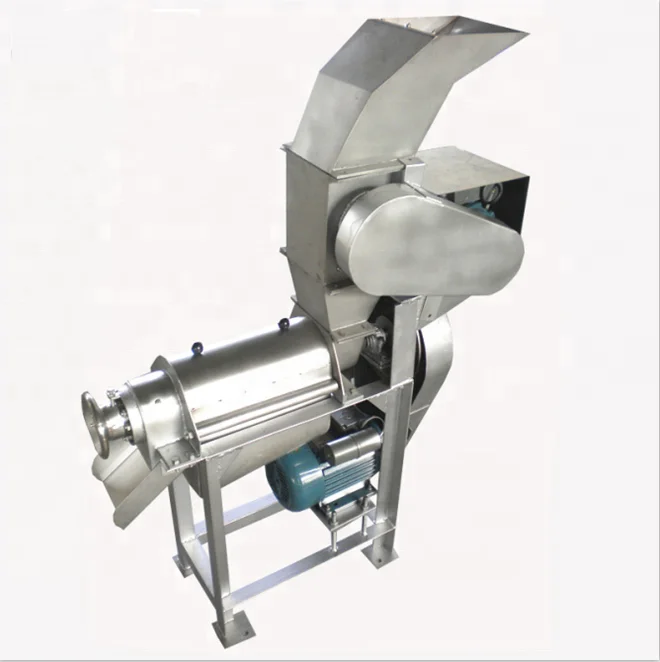

automatic screw juice extractor /orange juicer machine /fruit juicer machine

Screw juice extractor.png

Product introduction:

1. Application

Can be used to make potato,pineapple,apple and orange juice and others

2.Advantage of machine:

1. 304 Stainless steel,Safe oxidation resistance

2. Screw juice extractor

3. Motor protection,Energy saving save electricity

4. Easy operation,easy-clean

3.Technical parameters

Model

OCLZ-0.5

OCLZ-1.5

Capacity

500Kg/H

1500Kg/H

Screw diameter

Φ87.5mm

Φ175mm

Filter screen aperture

0.6mm

0.6mm

Motor power

1.5Kw

4Kw

main shaft speed

400rpm

Weight

~100Kg

~240Kg

Diameter

1100×265×920mm

1560×450×1340mm

4. Working principle of equipment

The main component of this equipment is a spiral slag outlet direction along the bottom diameter increase gradually and the pitch decreases, when the material is the spiral propulsion, because the spiral cavity volume reduction, squeeze the material.

5. Installation operation and maintenance

1. The machine much be installed horizontal,fixed with anchor bolts

2. When start the machine,should adjust the indenter to make the cyclic annular interval to max,then reduced.When up to the requirements,fixed the bearing seat position with the brake.

3. The feeding material must be uniform, hard foreign matter is strictly forbidden to enter the hopper, so as not to damage the mesh

4. After work,must wash the screen mesh with the water ans brush.,and according the production condition,add one time to clean the mesh.After extractor,should clean all the machine with hot water.

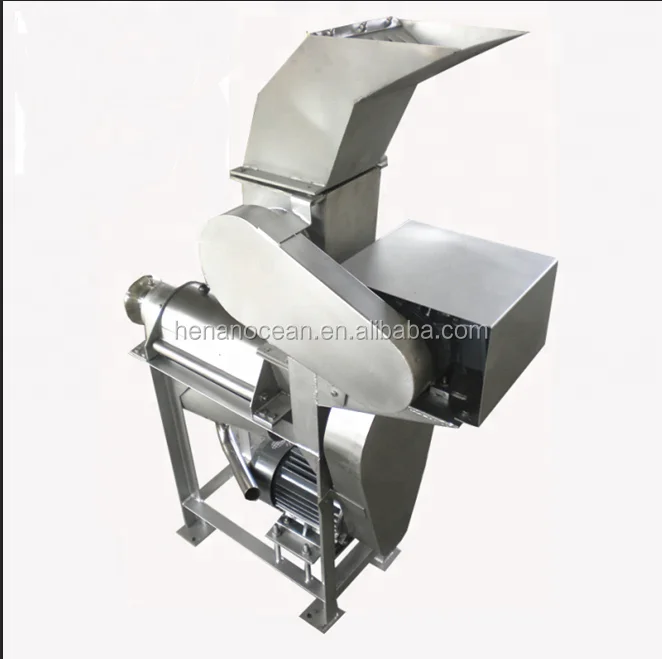

 orange machine.pngfruit juicer.png







Company information:

Henan Ocean Machiery Equipment Co.,Ltd., an ISO9001 certified and High-tech Enterprise established more than 10 years ago, is a professional manufacturer specialized in R&D, production and sales  of Mechanical Equipment products such as Snack Food Processing Machine, Fruit and advantage Machine, Food & Packaging Machine, Water well drilling rig and Poultry Equivalents,ect.,which are widely sold worldwide and we have been recognize by our customers year after year.

office1.jpg team2.jpg




After-sale servive:

1.Warranty

All the products have one year guarrantee.

2.Training

We provide training to make sure every customer can install and operate the machines.

3. Spare parts

We provide all spare parts for all machine in lifetime use.

4.Standby Servive

We are always ready to help. Just let us know whenever you have questions or problems.
