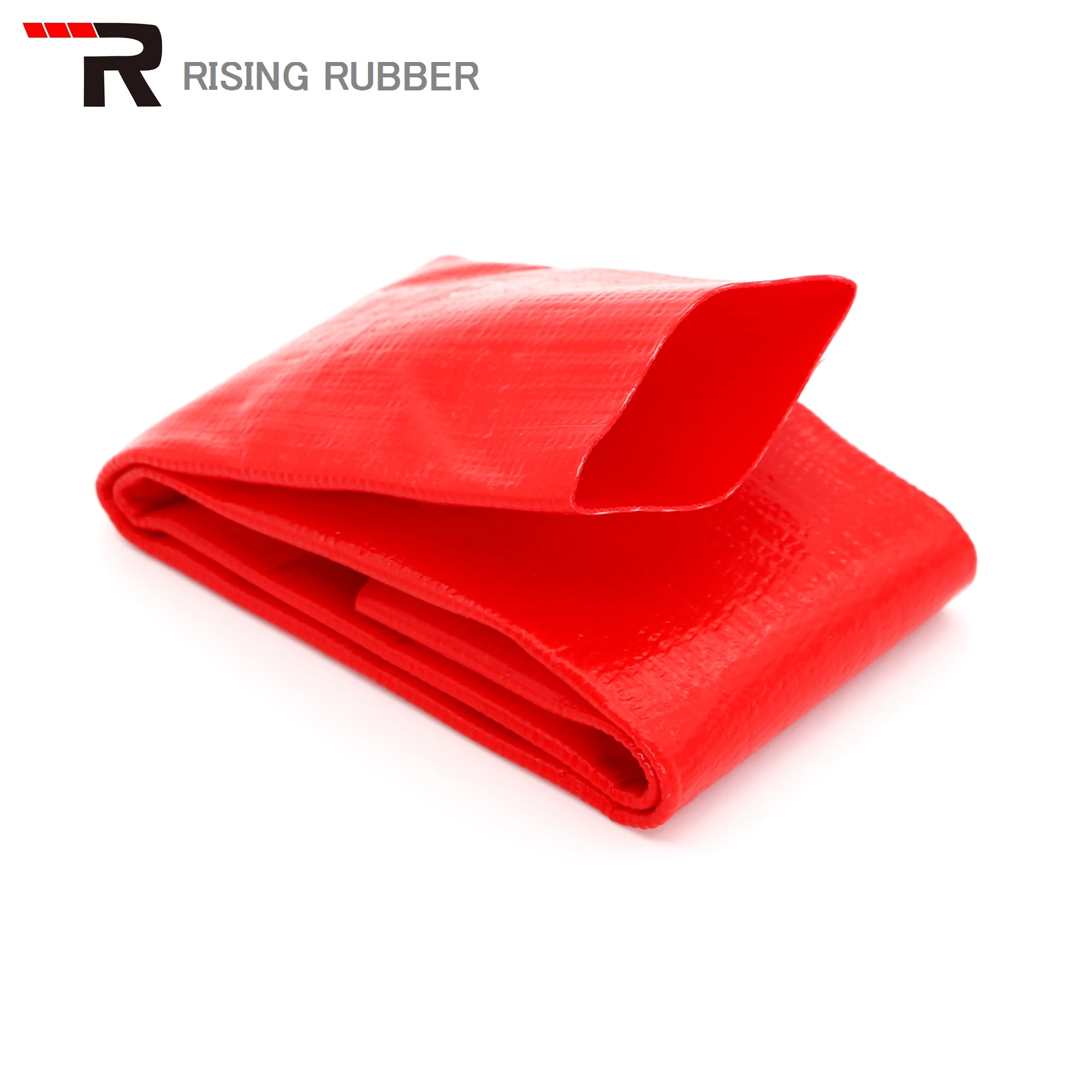

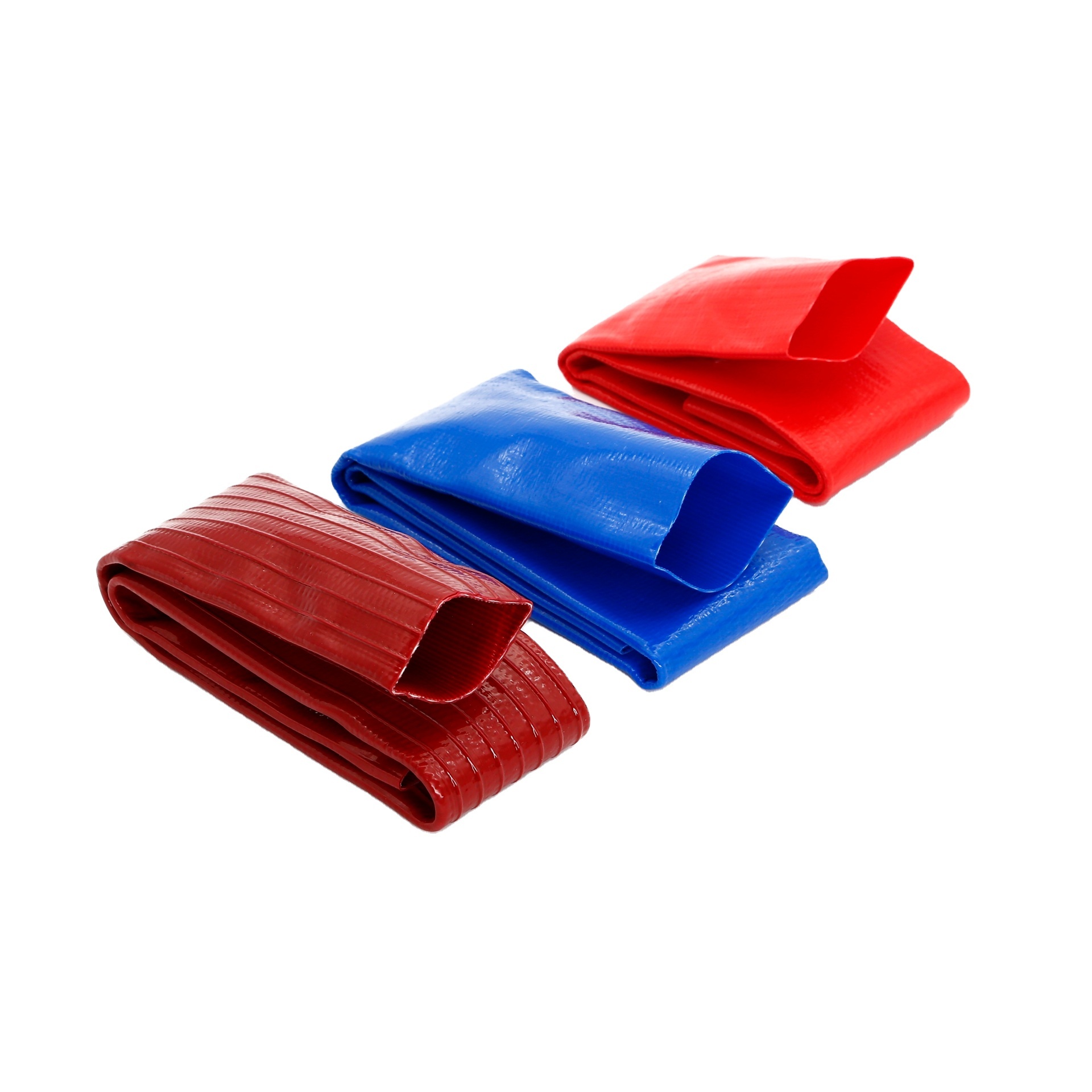

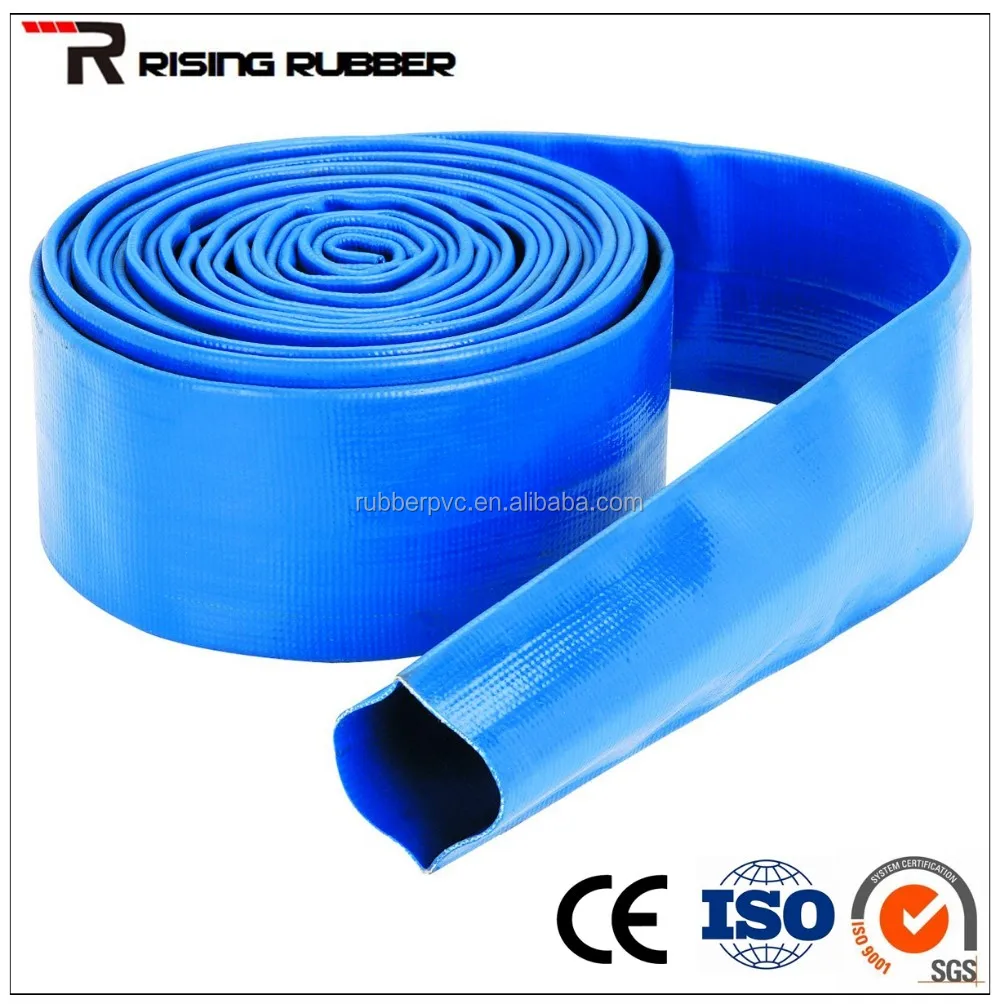

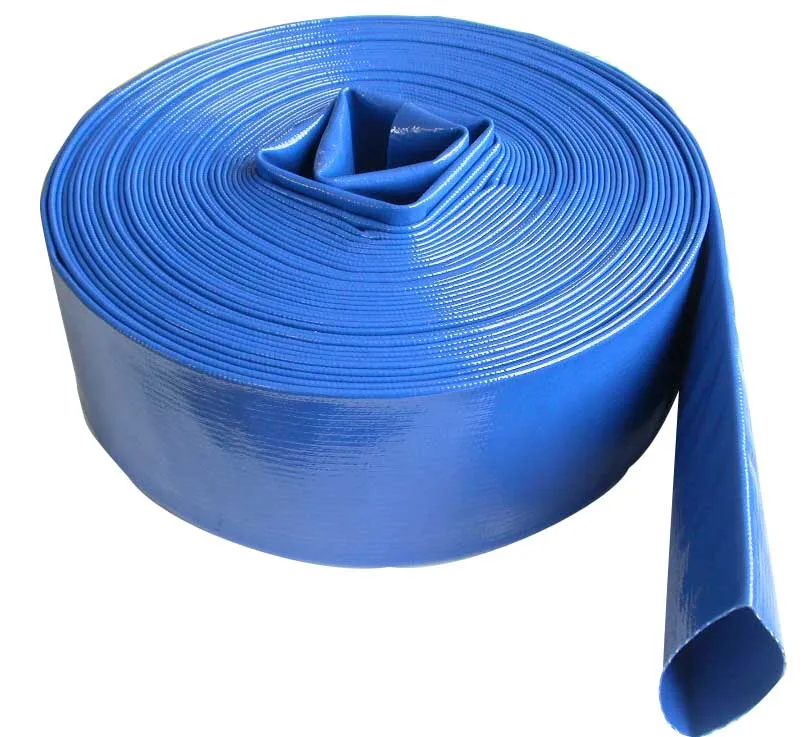

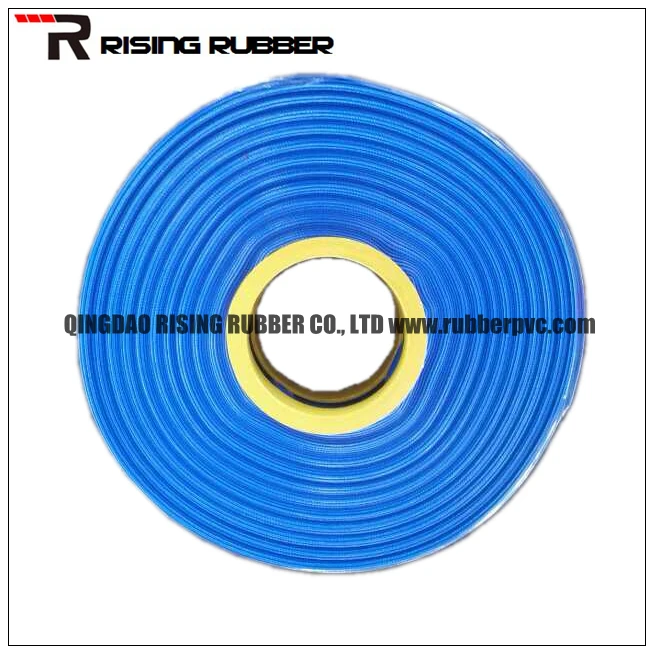

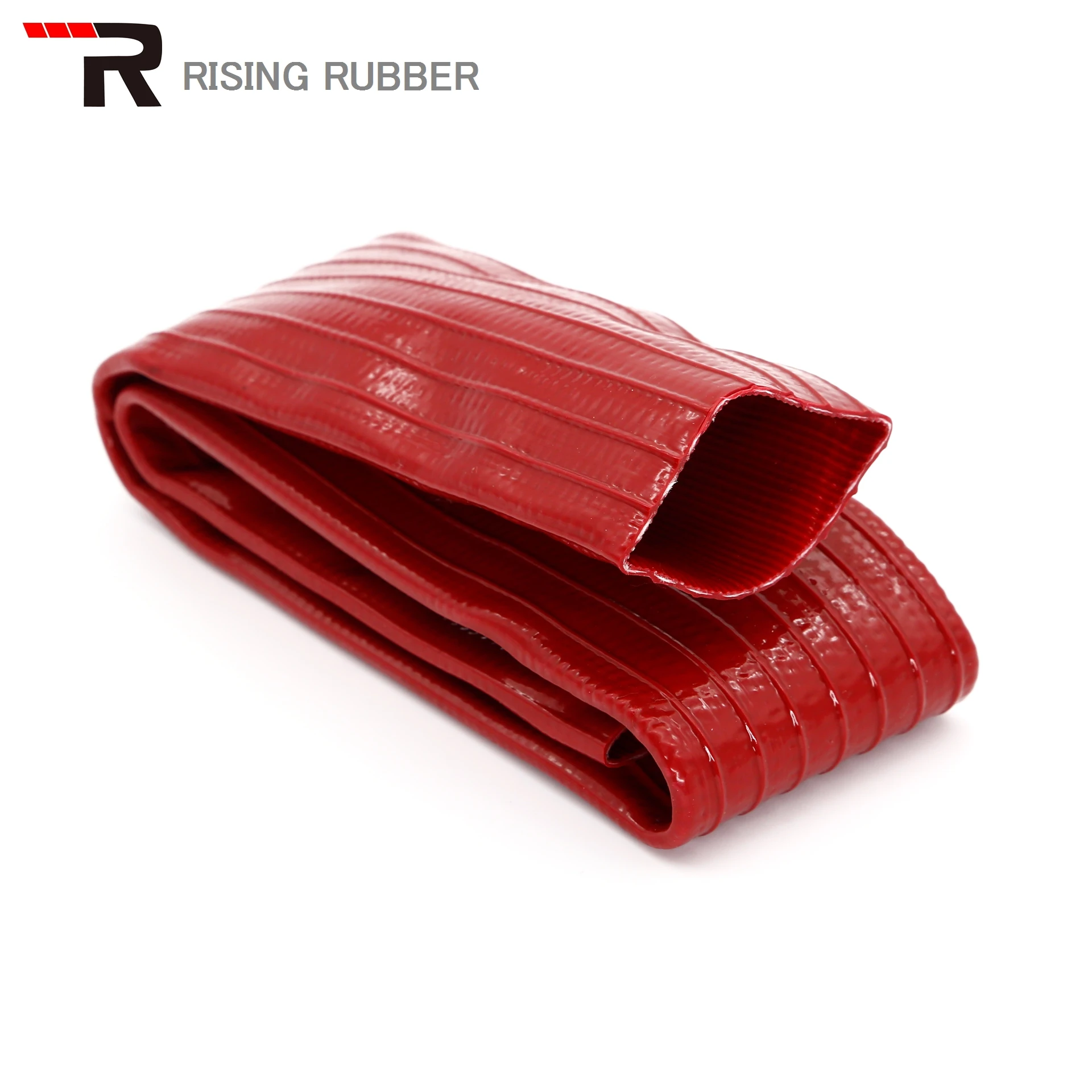

PVC Flexible Irrigation layflat Water Pipe
| Light Duty PVC Layflat Hose | |||||||||
| Part No. | Inch Size | I.D | O.D | Thickness | W.P | B.P. | Length | Weight | Volume |
| (mm) | (mm) | (mm) | (bar) | (bar) | (m/roll) | (kg/m) | (m3/roll) | ||
| LDLF-26 | 1" | 26 | 28.6 | 1.30 | 4 | 12 | 100 | 0.15 | 0.022 |
| LDLF-33 | 1-1/4" | 33 | 35.4 | 1.20 | 4 | 12 | 100 | 0.17 | 0.025 |
| LDLF-41 | 1-1/2" | 41 | 43.4 | 1.20 | 5 | 15 | 100 | 0.19 | 0.028 |
| LDLF-53 | 2" | 53 | 55 | 1.00 | 4 | 12 | 100 | 0.22 | 0.032 |
| LDLF-66 | 2-1/2” | 66 | 68.2 | 1.10 | 4 | 12 | 100 | 0.30 | 0.049 |
| LDLF-78 | 3" | 78 | 80.2 | 1.10 | 4 | 12 | 100 | 0.36 | 0.057 |
| LDLF-104 | 4" | 104 | 106.5 | 1.25 | 4 | 12 | 100 | 0.55 | 0.09 |
| LDLF-128 | 5" | 128 | 130.7 | 1.35 | 3.5 | 10 | 100 | 0.75 | 0.102 |
| LDLF-155 | 6" | 155 | 157.7 | 1.35 | 3 | 9 | 100 | 0.90 | 0.12 |
| LDLF-207 | 8" | 207 | 211 | 2.00 | 3 | 9 | 100 | 1.60 | 0.212 |
| LDLF-207H | 8" | 207 | 212.3 | 2.65 | 3 | 9 | 100 | 2.02 | 0.234 |
| LDLF-257 | 10" | 257 | 261.8 | 2.40 | 2.5 | 7 | 50 | 2.60 | 0.18 |
| LDLF-308 | 12" | 308 | 312.7 | 2.35 | 2 | 6 | 50 | 3.00 | 0.21 |
| Standard Duty PVC Layflat Hose | |||||||||
| Part No. | Inch Size | I.D | O.D | Thickness | W.P | B.P. | Length | Weight | Volume |
| (mm) | (mm) | (mm) | (bar) | (bar) | (m/roll) | (kg/m) | (m3/roll) | ||
| MDLF-20 | 3/4" | 20 | 22.7 | 1.35 | 6 | 21 | 100 | 0.11 | 0.016 |
| MDLF-26 | 1" | 26 | 28.6 | 1.3 | 6 | 21 | 100 | 0.16 | 0.023 |
| MDLF-33 | 1-1/4" | 33 | 35.4 | 1.2 | 6 | 21 | 100 | 0.19 | 0.028 |
| MDLF-41 | 1-1/2" | 41 | 43.4 | 1.2 | 6 | 21 | 100 | 0.22 | 0.031 |
| MDLF-45 | 1-3/4" | 45 | 47.8 | 1.4 | 6 | 21 | 50 | 0.32 | 0.021 |
| MDLF-53 | 2" | 53 | 55.7 | 1.35 | 6 | 18 | 100 | 0.3 | 0.039 |
| MDLF-53H | 2" | 53 | 56 | 1.5 | 8 | 24 | 50 | 0.35 | 0.026 |
| MDLF-66 | 2-1/2" | 66 | 69.1 | 1.55 | 6 | 18 | 100 | 0.43 | 0.057 |
| MDLF-78 | 3" | 78 | 81 | 1.5 | 6 | 18 | 100 | 0.5 | 0.069 |
| MDLF-104 | 4" | 104 | 107.8 | 1.9 | 6 | 18 | 100 | 0.8 | 0.107 |
| MDLF-128 | 5" | 128 | 132 | 2 | 6 | 18 | 100 | 1.08 | 0.134 |
| MDLF-155 | 6" | 155 | 159.8 | 2.4 | 6 | 18 | 100 | 1.6 | 0.183 |
| MDLF-207 | 8" | 207 | 212.2 | 2.6 | 5 | 15 | 50 | 2.2 | 0.135 |
1. Is sample available?
Free samples.
2. How long will I get my order?
General production time for 1x20 feet container is 10-15 days, for 1x40 feet container 20-25 days.
3. How will my order be packed?
All hose is packed by 2 plies of PVC film, inner is tranparent, outer is color and thick one. (Color can be ordered as customer like). Special packing like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.
4. What should I do if I find quality problem in using?
12 months Quality Garentee for all of our products. We offer replacement for any defective caused by non-human reasons.
5. Is it possible to visit your factory?
We warmly welcome you to visit our factory at any of your convenient time.
