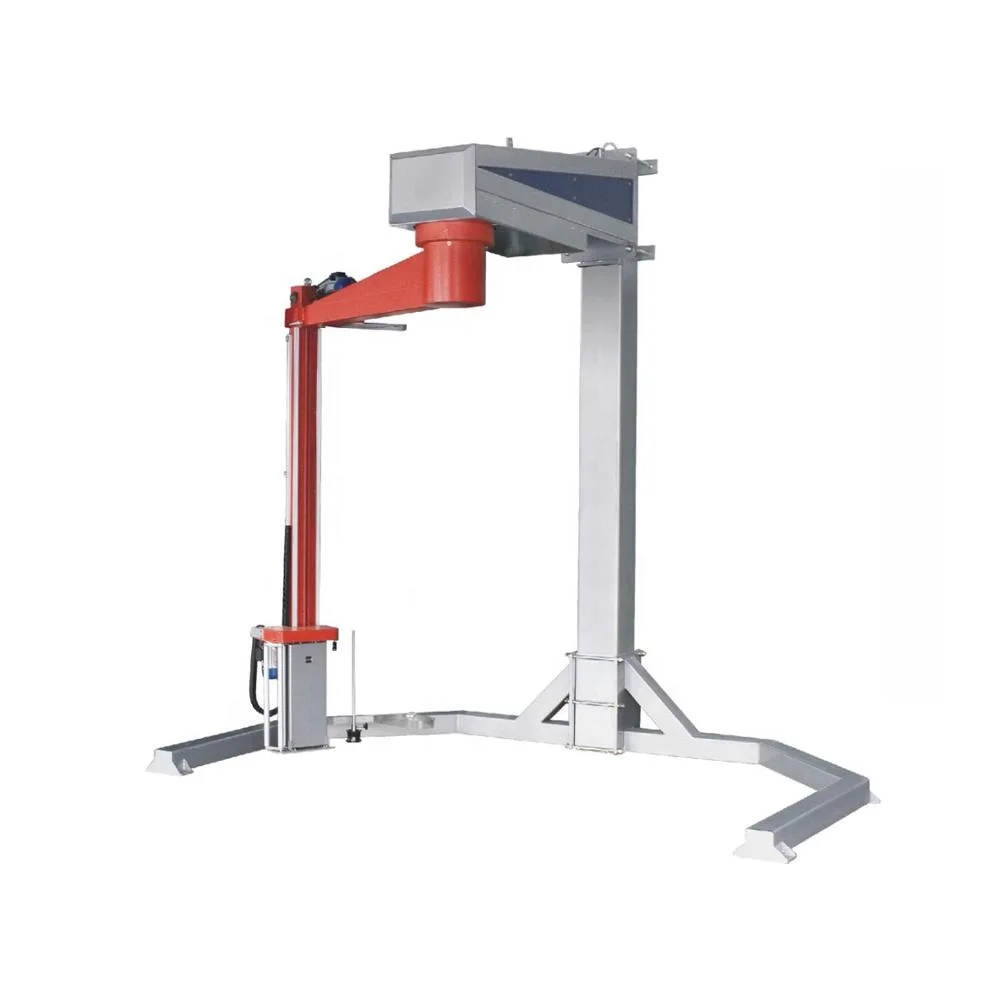

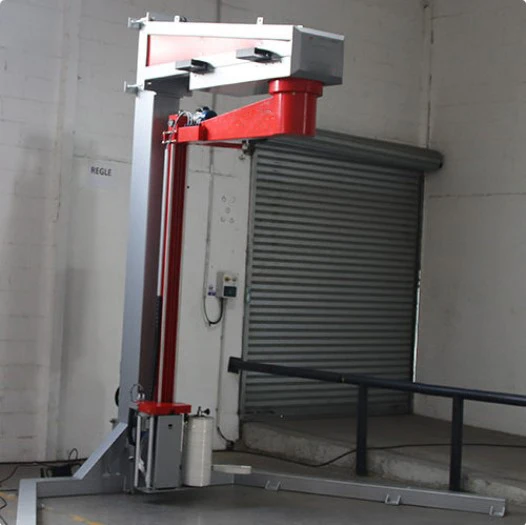

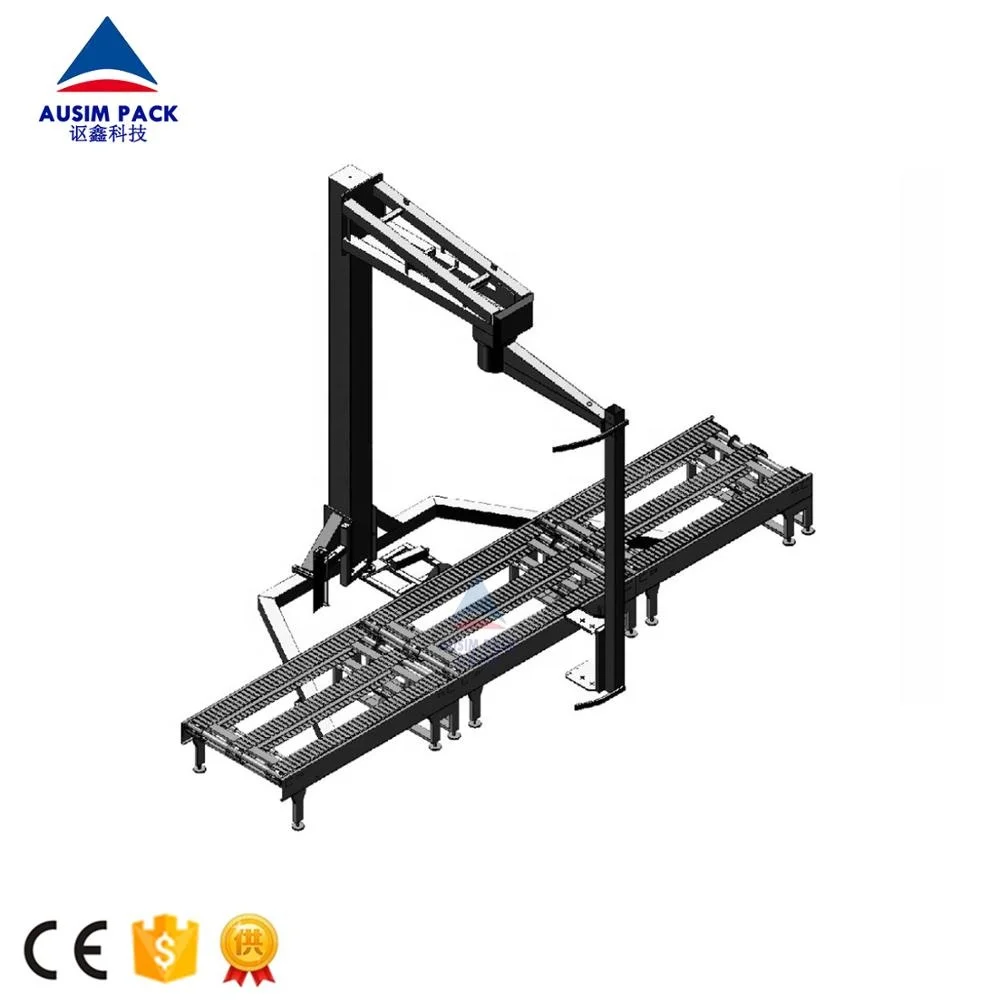

Полностью Автоматическая Механическая упаковочная машина для стрейч-пленки поддонов с вращающимся рычагом и дополнительным
- Категория товара: Packaging Machines >>>
- Поставщик (Оптовый магазин): Ausim,Automation,Technology,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Feature
STANDARD MACHINE TECHNICAL CHARACTERISTICS
• Production of up to 20 pallets/hour, depending on the operator and the characteristics of the load.

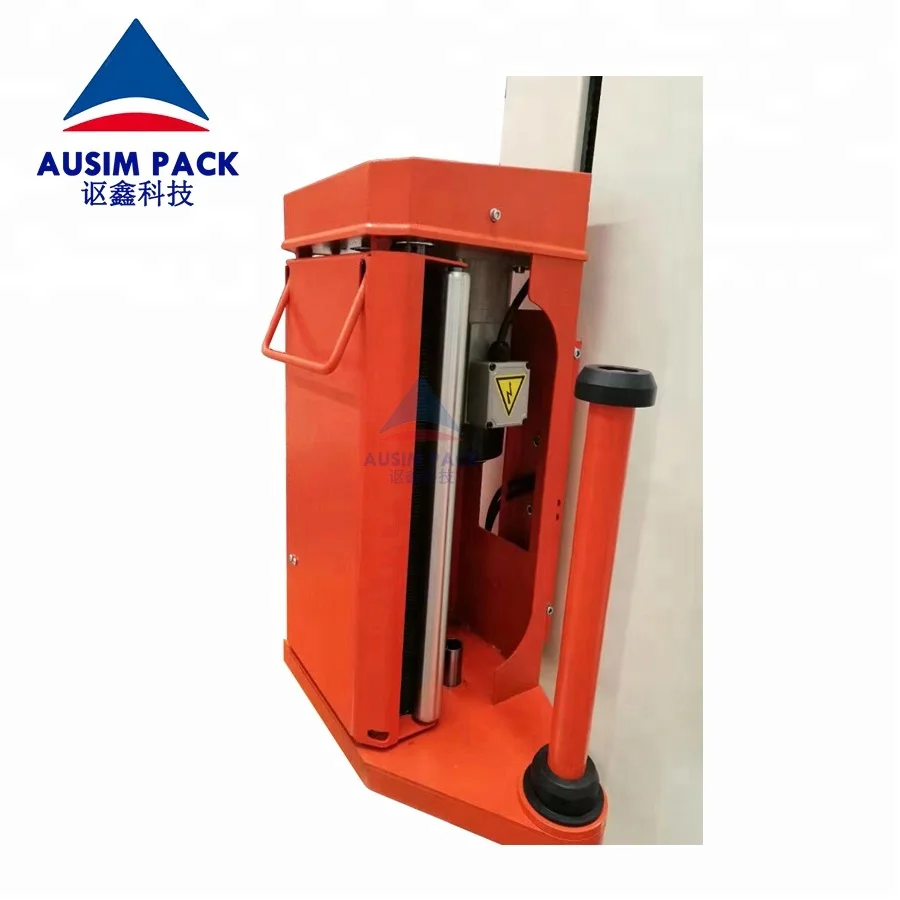

• Powered film carriage in the rotary arm with frequency inverter.
• Powered pre-stretch 300%
•Automatic load height detection by photocell.
• Soft start/stop with stop in position and SCHNEIDER frequency inverter.
• 4 wrapping cycles: simple / double/ double-plus / complete.
• Wrapping cycles counter.
• Top and bottom reinforcement wraps independently adjustable.

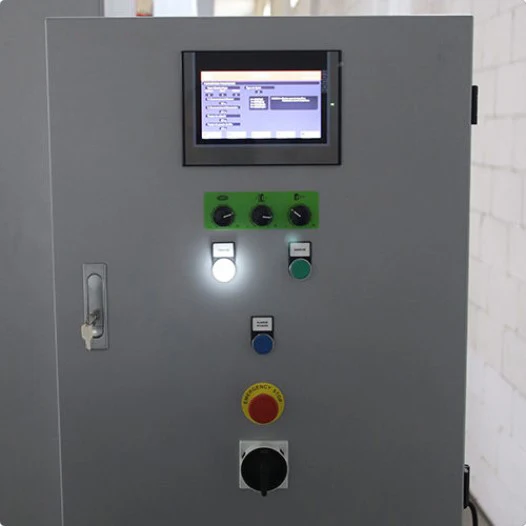

• Controlled by SIEMENS PLC with LCD touch screen. • Ergonomic control panel
Product Paramenters
Power Voltage | AC380V/415,1PHASE,50-60HZ, 1.25KW | ||||
Speed of Rotary | 0-20r/min | ||||
Diameter of top press plate | Optional | ||||

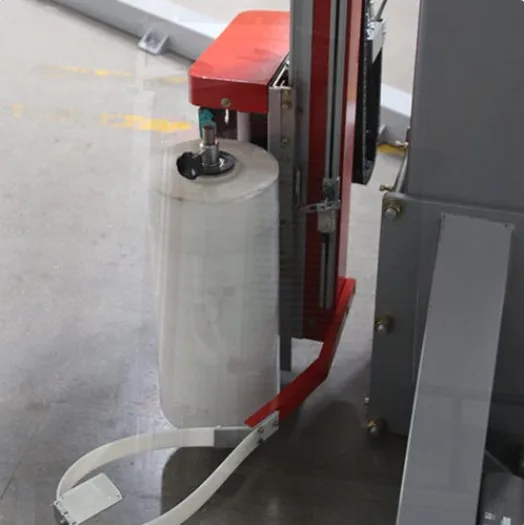

Film | LLDPE,width<500mm,outer diameter<280mm | ||||
Max wrapping size | Packing diameter:1500mm,Height:2000mm | ||||
Machine size | L(3000-4000)mm*W(1000-1500)mm*H(2800-3500)mm | ||||
G.W/N.W | 1400KG | ||||
Machine configuration | SIEMENS PLC, France SCHNEIDER INVERTER Chinese "MEIWA" LCD text Travel switch: France Schneider Inverter Button Switches: France "TE", Connector:France "TE" Sensor: Germany " P+F", Motor: Chinese "MEIWA" | ||||
Noise | <75DB | ||||
Environment | Humidity<98%; Temperature -10-40℃ | ||||
Parts and tool which are delivered with machine:
Easily damaged parts:
No | Name | Series No | Quantity | Remark |
1 | Slide frame small shaft L202 | FG-615 | 4 | SCR-2300B |
2 | Sleeve | FG-616 | 8 | SCR-2300B |
3 | Slide frame connecting shaft | FG-607 | 2 | SCR-2300B |
4 | Cylinder | SC63*500 | 2 | SCR-2300B |
5 | Proximity Switch | NBN5-F7-EO | 2 | SCR-2300B |
6 | Compression spring | SCR1800FR-PLFG-6 | 2 | SCR-2300B |
7 | Threaded rod | FG-608-1 | 2 | SCR-2300B |
8 | Pulling bar stand | FG-609 | 2 | SCR-2300B |
9 | Locating plate | FG-610A | 2 | SCR-2300B |
10 | Inducing plate | FG-613 | 2 | SCR-2300B |
Detailed Images
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company Information
FAQ
Q:Are you a manufacturer or a trading company in china?
A: We are second packaging machine manufacturer in shanghai and workshop in Hangzhou city .and we provide perfect OEM and after-sale service.
Q:Is it possible to send me video to show how machine is working ?
A: We freely invite customer to watch video through our link on the youtube, we have to send customer installation video after placed order to us already .
Q:How can I know the quality control of your machine?
A: there are two ways for customer ,one is visiting us to check all equipments and test by customer, another one is test and inspect by someone from customer.
Q: How can I pay my order?
A: We accept T/T And L/C only.
