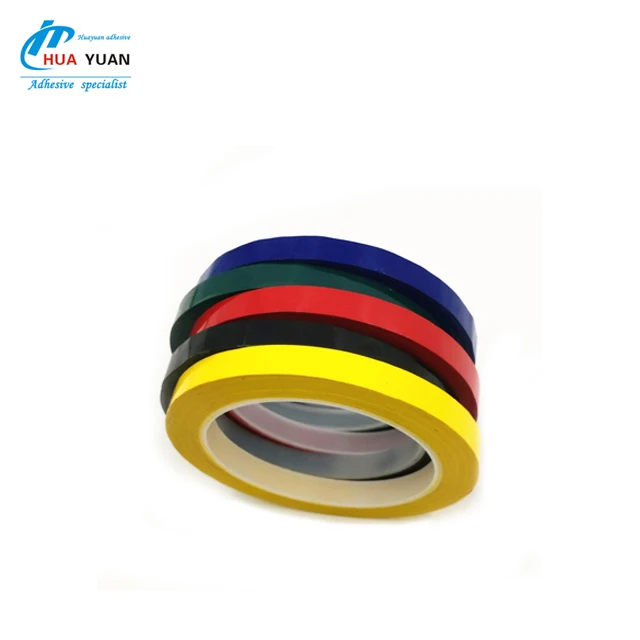

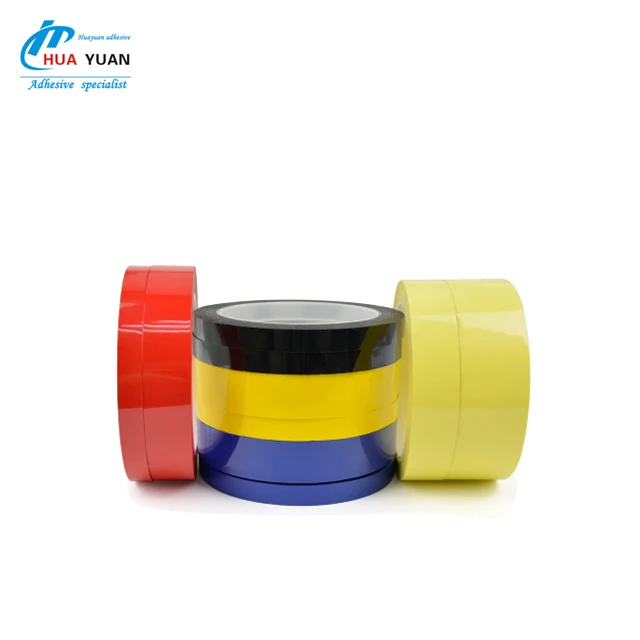

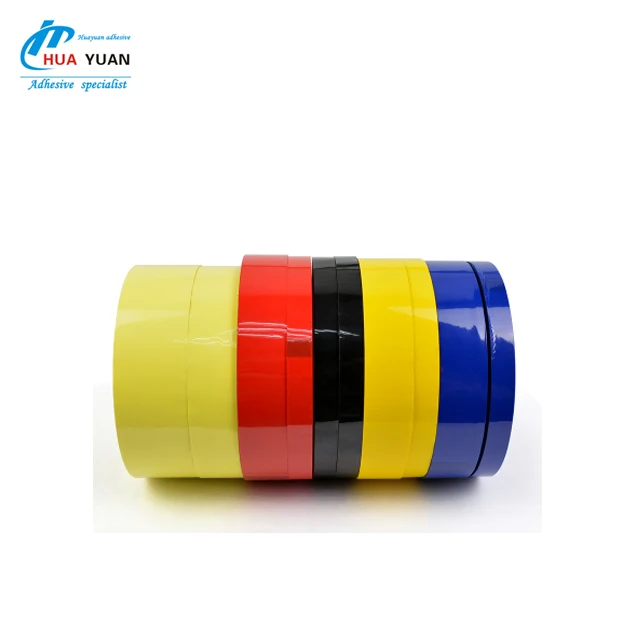

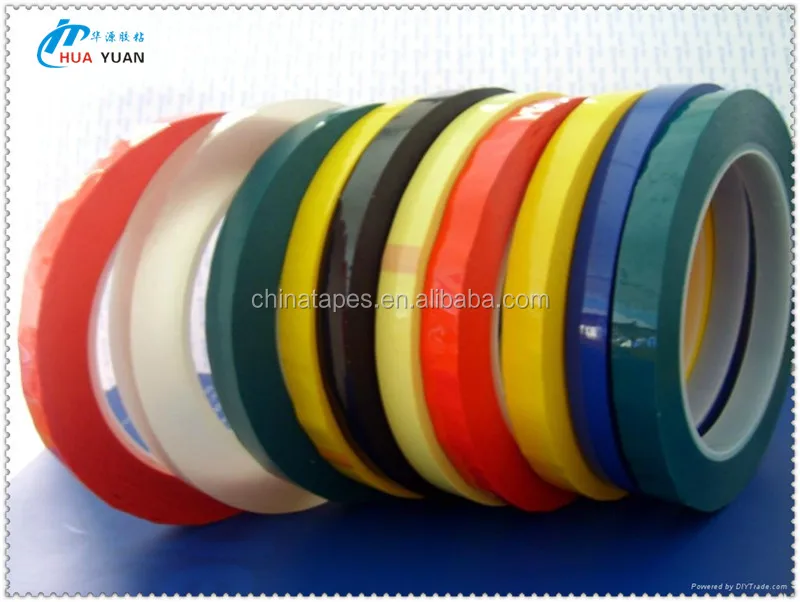

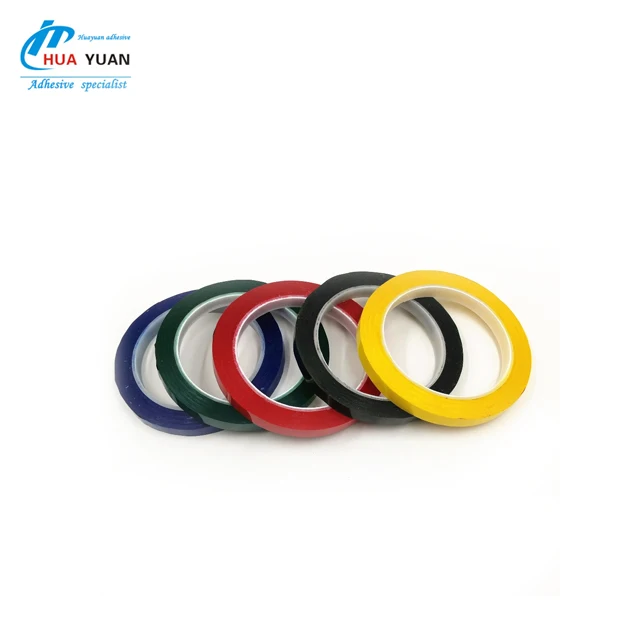

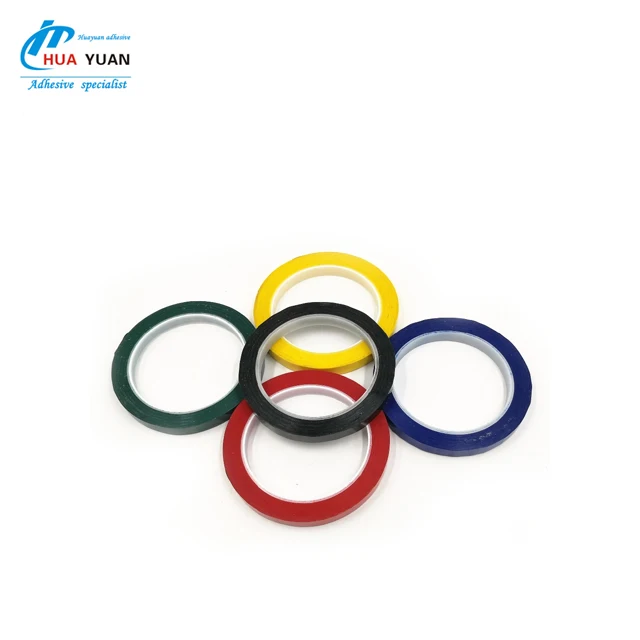

Высокотемпературный огнестойкий самоклеящийся трансформатор желтая майларовая
- Категория товара: Insulation Materials & Elements >>>
- Поставщик (Оптовый магазин): Zhuhai,Huayuan,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Huayuan Electronics

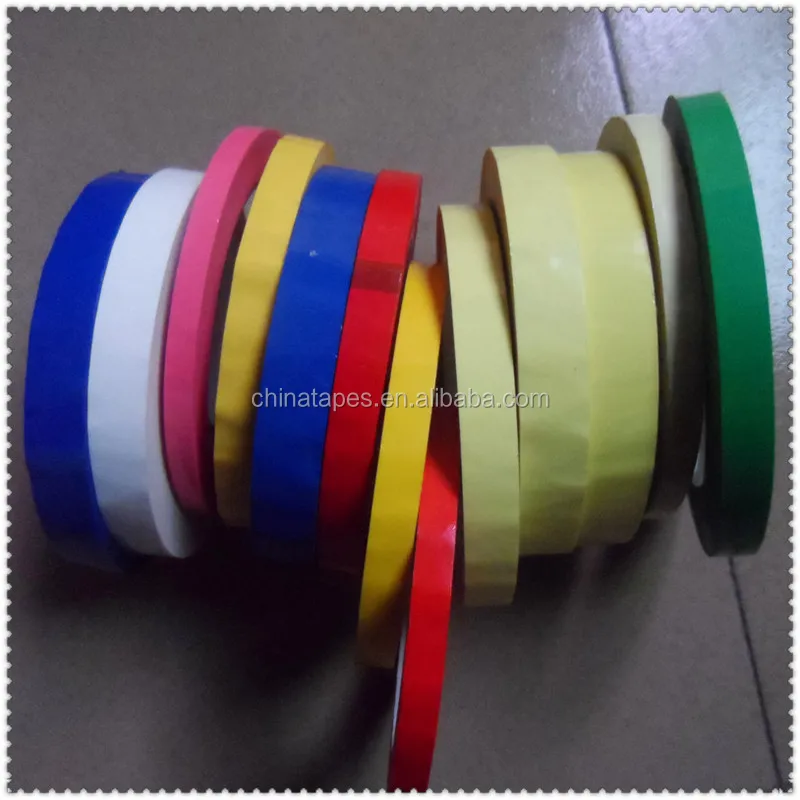

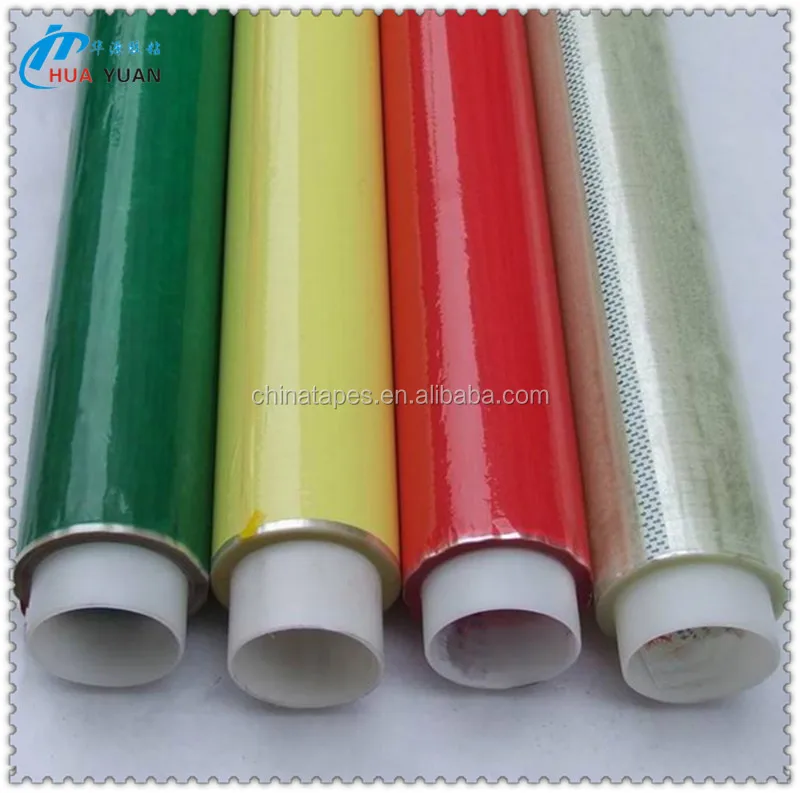

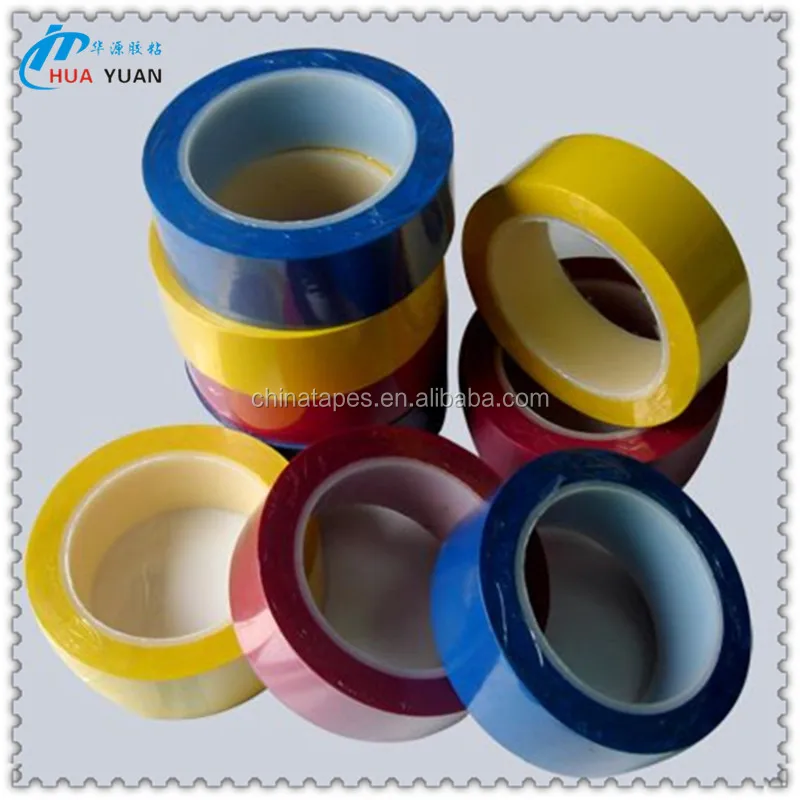

High temperature Myra mara tape flame retardant tape wire adhesive tape transformer yellow mara tape custom
| Description | With polyster film as basement,coated with flame retardant acrylic adhesive. | |||||
| Application | It's mostly applied for the transformer,motor, capacitor and other electronic parts insulation wrapping. | |||||
| Feature | great performance on flame resistance and chemical solvent resistance | |||||
| Technique Data | ||||||
| Item | Unit | Data | Test Method | |||
| 1.Basic info. | ||||||
| a.base | PET | |||||
| b.Thickness | mm | 0.058 | 0.055 | 0.085 | ||
| c.Color | Light Yellow/Dark Yellow | Transparent | Light Yellow/Dark Yellow | Red,Blue,Yellow,White and Black | ||
| 2.Physical and Chemical Characteristics | ||||||
| a.180°Peel Adhesion | KN/m | 0.4 | 0.3 | 0.46 | GB/T 2792-1998 | |
| b.Tensile Strength | N/10mm | 46 | 46 | 84 | GB/T 7753-1987 | |
| c.Elongation | % | 109 | 109 | 127 | GB/T 7753-1987 | |
| d.Breakdown Vottage | KV | 5 | 5 | 7.5 | GB/T 7752-1987 | |
| e.Temperature Resistance | °C | 130 | ||||
| f.Grade of Temperature Resistance | (a) | B | ||||
| 3.Remark | reach requirements of UL510 flame-retardant performance | |||||
| (a)Clasification: “A”105°C,“E”120°C,“B”130°C, “F”155°C,“H”180°C, “N”200°C,“R”220°C,“S”240°C. | ||||||
| Package | 66 meters per roll | |||||
Description:
Mylar tape using polyester film as backing, coated with acrylic adhesive.
Features:
1. high conformity
2. chemical resistance
3. solvent resistance
4. abrasion resistance
5. different colors for your option
Application:
1. coil wrapping
2. covering of motor stator coil

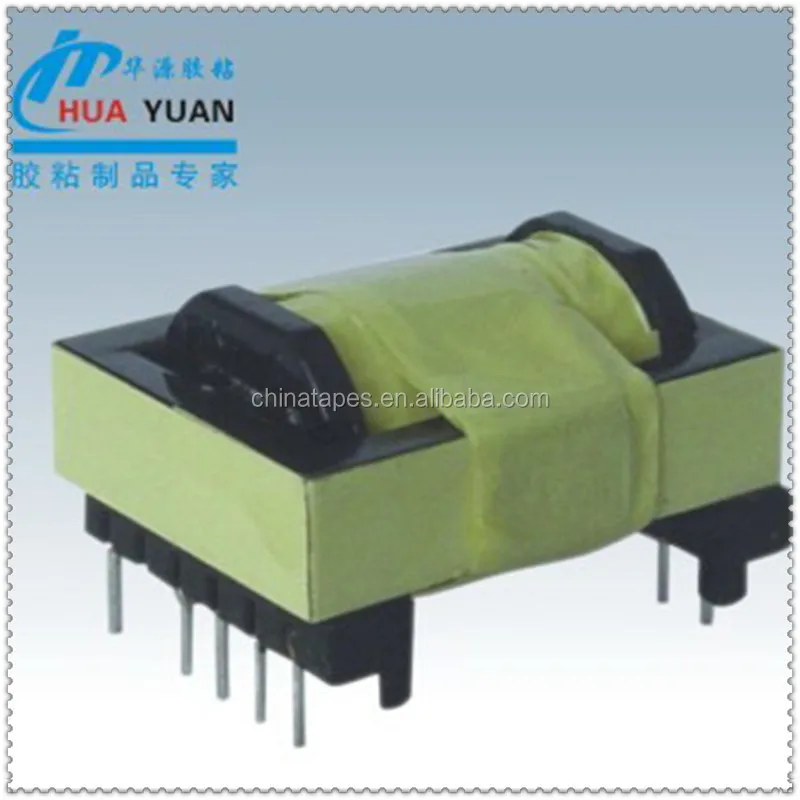

3. wrapping of transformer coil
Main Products
HuaYuan Electronic (Zhuhai) Co. Ltd is one of the well-known manufactures which specialized in R&D and production industry tapes and sticky cutting products.
| PET Tapes |
Company Information
Certifications
Packaging & Shipping
Packing
Our normal caryon size is 34cm*45cm*60cm/38cm*43cm, 6rolls/shrink, about 70~120rolls/carton( according to different specifications). we can provide another carton size as your request.
Delivery time
1*20 container: 7~15 days after received order,
1*40 container: with 25 days after received the order.
Shippment
1: By EMS, DHL, FedEx, TNT, UPS or other express.
2: By our forwarding agent (by air or by sea).
3: By your own forwarding agent.
4: By domestic forwarding agents to any city in China.
