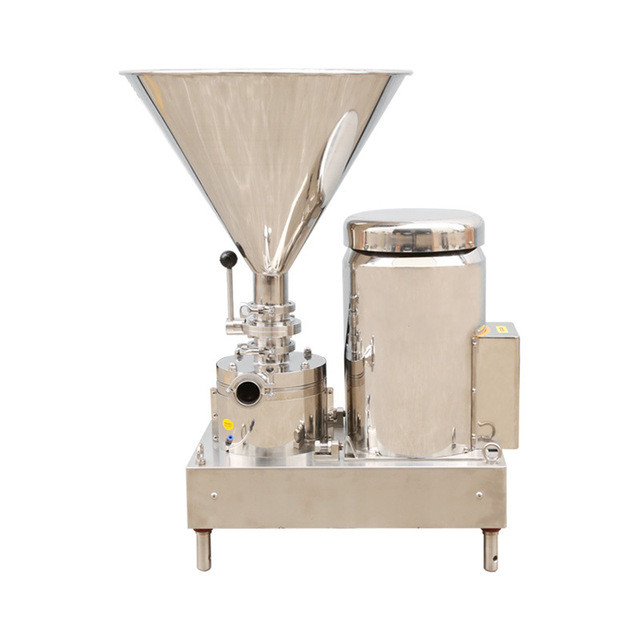

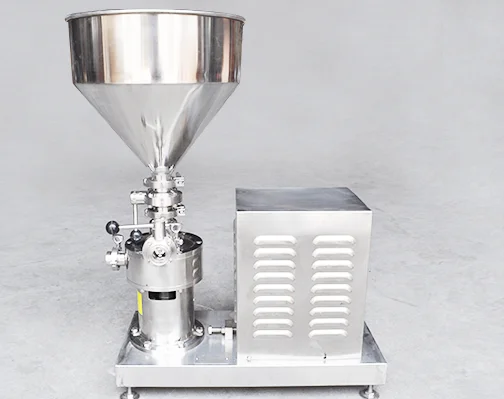

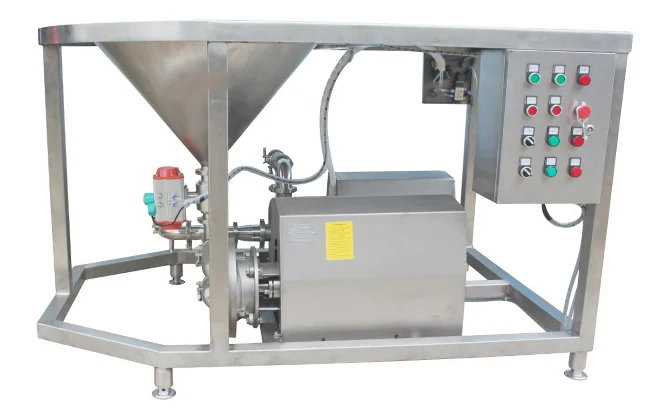

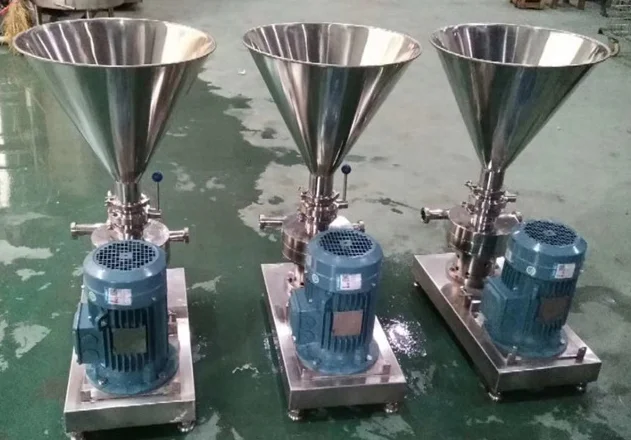

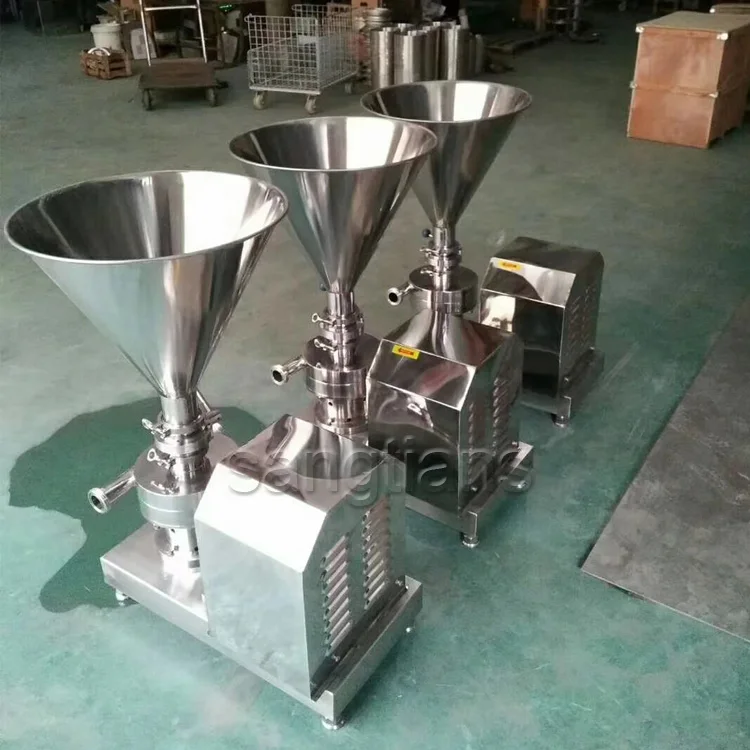

Sanitary Stainless Steel Liquid and Powder Mixer Machine
The blenders are used to mix solids in liquids.
In the food-processing industry, they provide a perfect solution for reconstituting powdered milk, making syrups, preparing brines, etc.
They can also be used for preparing solid-liquid mixtures in the pharmaceutical, cosmetics and chemical industries.
The table blender is used to dissolve solids / powders in recirculated liquids. It has a wide range of applications, for example, preparation of pharmaceutical syrops or dissolution of pectin in glucose for marmelade production. Every model has an option with an in-line mixer for a complete dissolution of possible lumps. The typical applications are reconstitution or stabilization of milk in the production of dairy products, and dissolution of sugar for the production of syrup in the beverage industries.
Operating principle:
The blender basically consists of a casing and a centrifugal pump impeller which are mounted vertically. The suction side has a double-wall pipe that keeps the inlet of solids separate from that of liquids, thus avoiding the formation of lumps before the material enters the casing.
The liquid enters the mixing chamber at a high speed, thereby creating a vacuum at the center of the impeller, which causes the suction of the solids. The introduction of solids can beregulated by means of a valve situated at the bottom of the hopper.
Design and features:
Simple and versatile assembly for quick and homogeneous mixing of a great variety of solids without contact with the atmosphere.
Complete mixing with recirculation of the material.
In some applications, it can be used in line, without recirculation. Sanitary design.Easy assembly and disassembly by Clamp connections.
Cleaning can be carried out without disassembling the unit.
Sanitary single mechanical seal.
Materials:
Parts in contact with the product AISI 316L
Gaskets EPDM
Mechanical seal:
Rotary part Carbon (C)
Stationary part Stainless steel (St.St.)
Gaskets EPDM
Surface finish:
Internal Bright polish Ra ≤ 0,8 μm
External Matt
Options:
Double flushed seal.
Double pressurised seal.
Connections: DIN, SMS.
Vibrator for the hopper.
Pneumatically actuated valve + hygienic solids lower level sensor.
Hygienic solids upper level sensor.
Control panel for vibrator, solids level sensors, frequency converter, automated valve.
Grid for the hopper.
Drainage.
Internal surface finish: Ra ≤ 0.5 μm.
.
