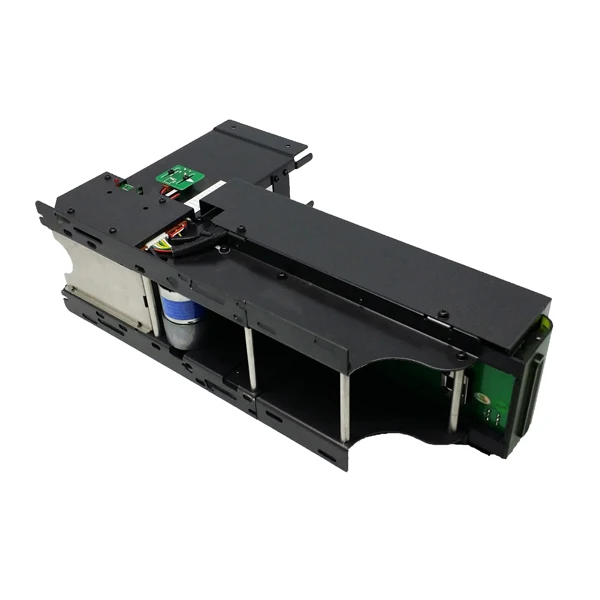

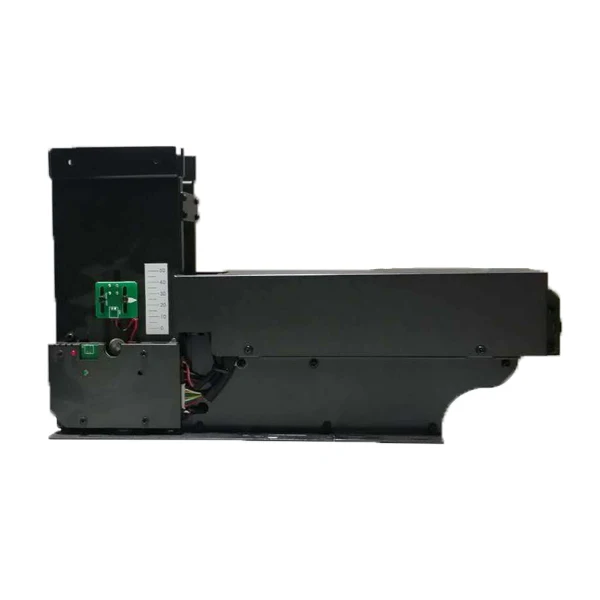

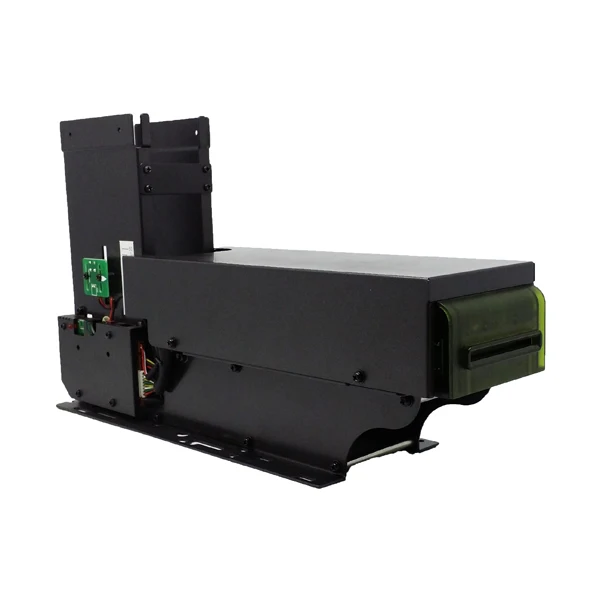

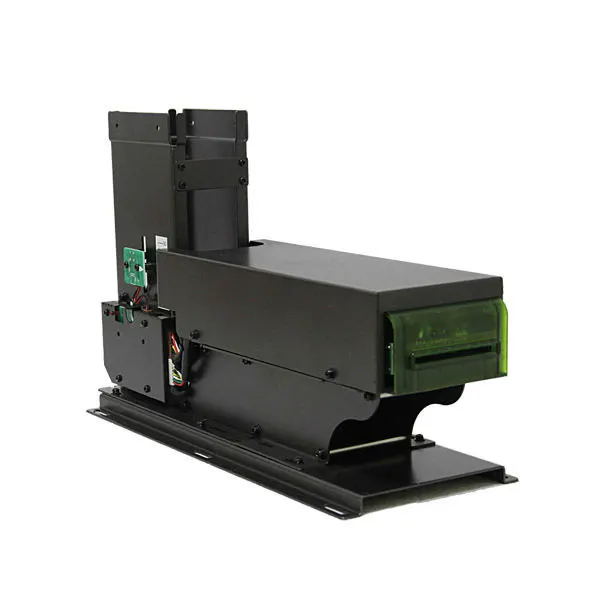

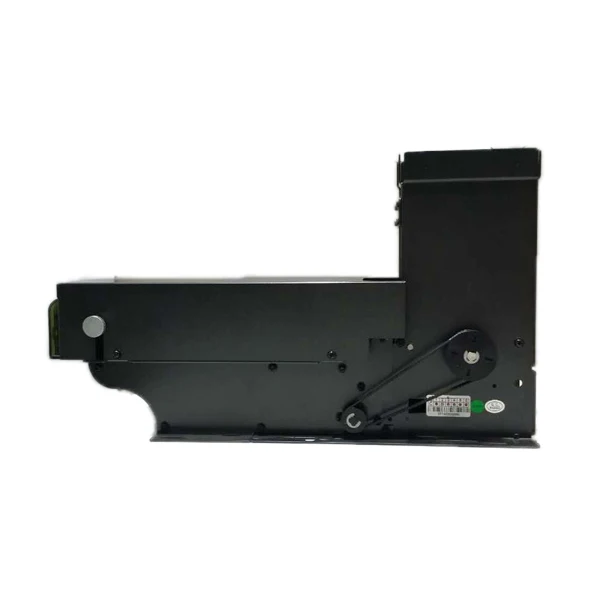

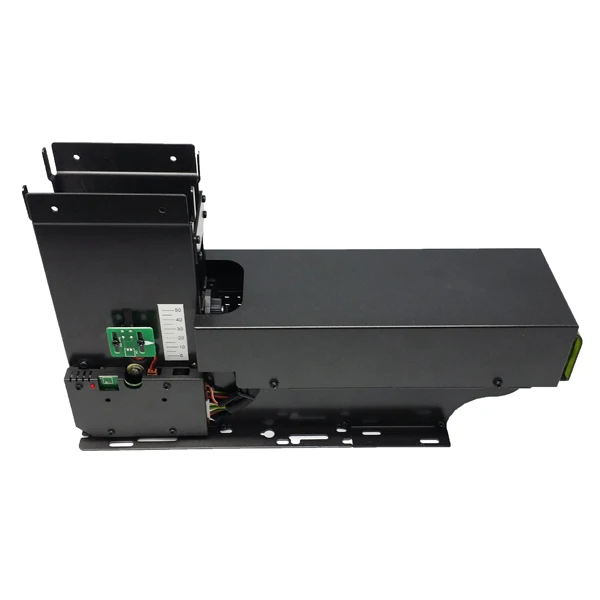

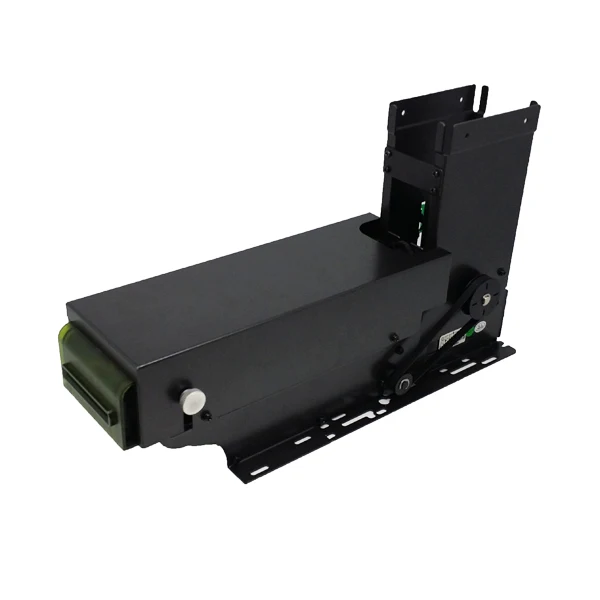

automatic card collector machine RFID contactless card dispenser
Model:SK-AD6

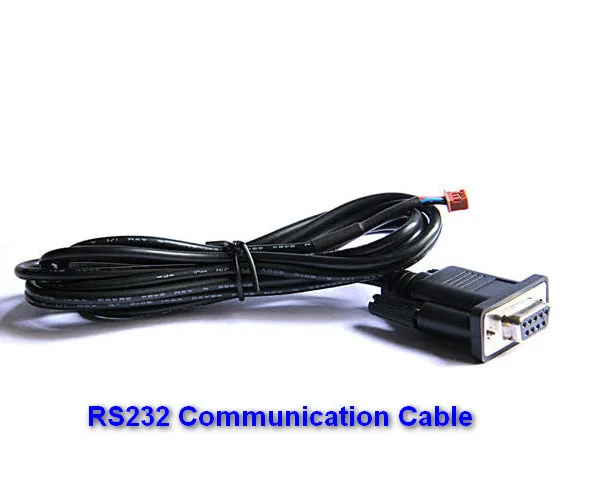

1. RS232 serial port for communication, can connect to host device like PC/Controlller board.

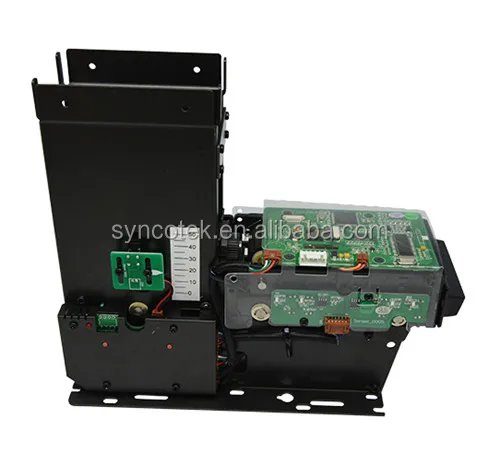

2. with 3 in 1 card reader, can read magnetic card, read/write IC/RFID cards.
3. Free SDK provided.
RFID card dispenser machine Specification:
| Physical Characteristics | In conformity with ISO 7810 /7811 | ||
| Card Size | In conformity with ISO 7810ID-1 | ||
| Embossing Card | In conformity with ISO 7811-1 /-3 | ||
| Recording Format | In conformity with ISO 7811-2 /-4 /-5 /-6 | ||
| Recording Capacity | Track 1 (IATA) | Max. of 79 characters (6 bits + 1 parity) | |
| Track 2 (ABA) | Max. of 40 characters (4 bits + 1 parity) | ||
| Track 3(MINTS) | Max. of 107 characters (4 bits + 1 parity) | ||
| Recording Method | Dual-frequency phase-coherent method | ||
| Height of Warped Card | ≤ 2mm | ||
| Magnetic Coercivity | 24k~320k A/m(300~4000 Oe)+/-10% | ||
| Card Supported | 86L x 55W mm(0.2~1.2mm thickness; factory standard: 0.8mm) | ||
| Communication Method | RS232(optional) | ||

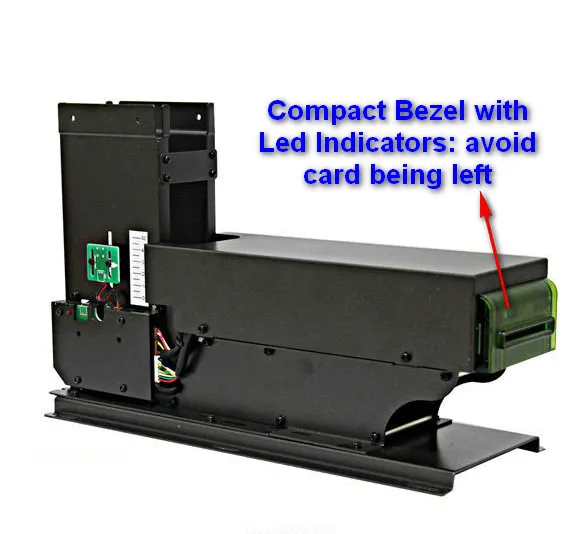

| Anti-theft Function | By protruding bezel and jitter card-in pattern. | ||
| Operating Conditions | Power Supply | DC24V±5%, 3.0A | |
| Quiescent Current | 200mA | ||
| Default Baud Rate | 9600BPS/sec. | ||
| Card Stacker Capacity | 150 pcs(0.76mm standard card) | ||
| 120 pcs(0.76mm embossing card) | |||
| 300 pcs (0.4mm thickness) | |||
| Capture Box Capacity | 25 pcs (0.76mm standard card) | ||
| Service Life | Issuing Life | 1,000,000passes min. | |
| Magnetic Head | 500,000 passes min. | ||
| IC Contact | 500,000 passes min. | ||
| Operation Temperature / Humidity | 0°C to 50°C, 0to 90% RH without condensation | ||
| Storage Temperature / Humidity | -20°C to 70°C,0 to 90% RH without condensation | ||
| Net Weight | Approx. 2.8KG(excluding accessories and package) | ||
| Dimension | 326L x 103W x220H mm (without shutter) | ||
| 347L x 100W x200H mm (with shutter) | |||
Descriptions:
Card Capacity by default is 170 pcs cards based on card thickness is 0.76mm.

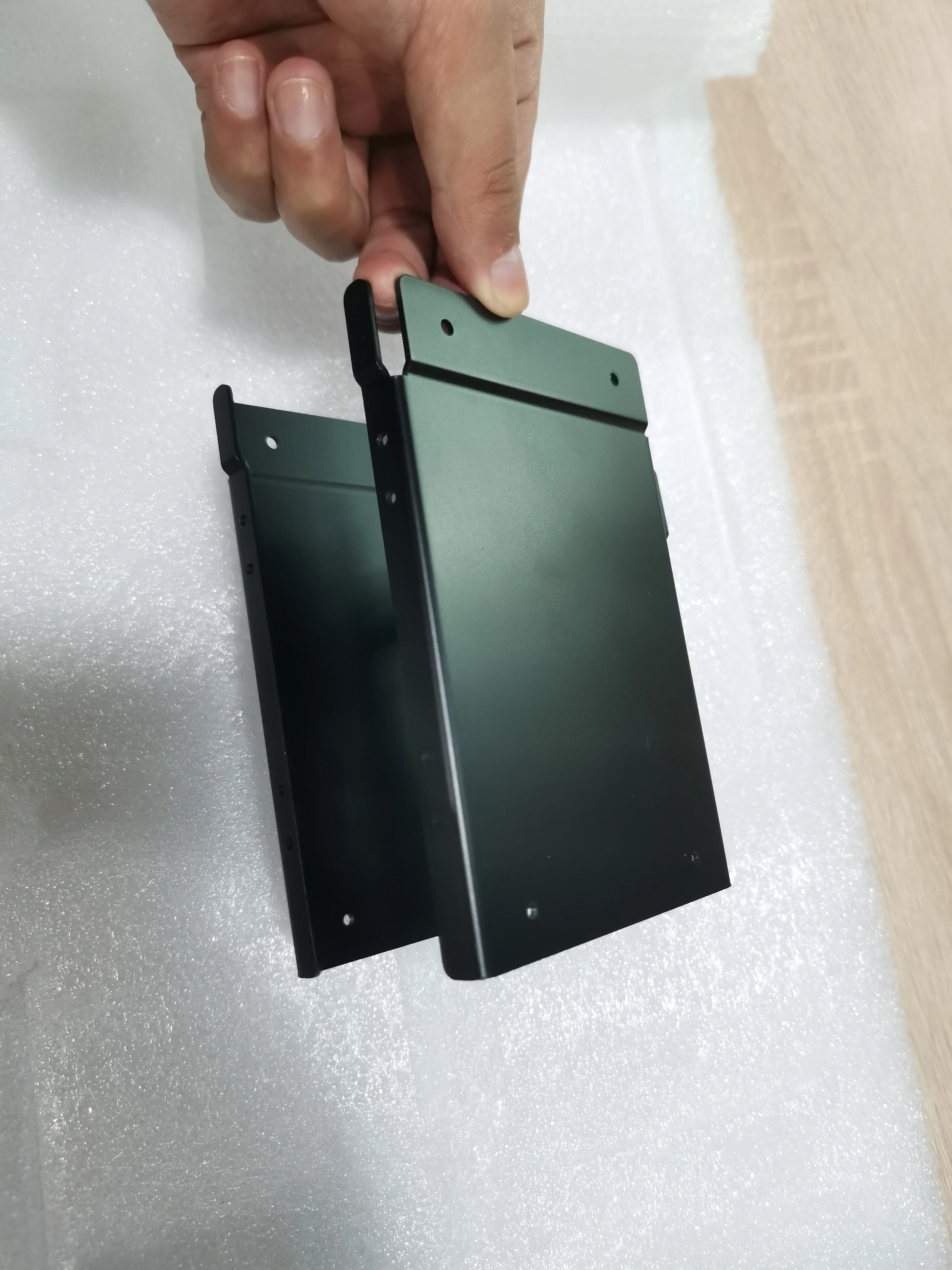

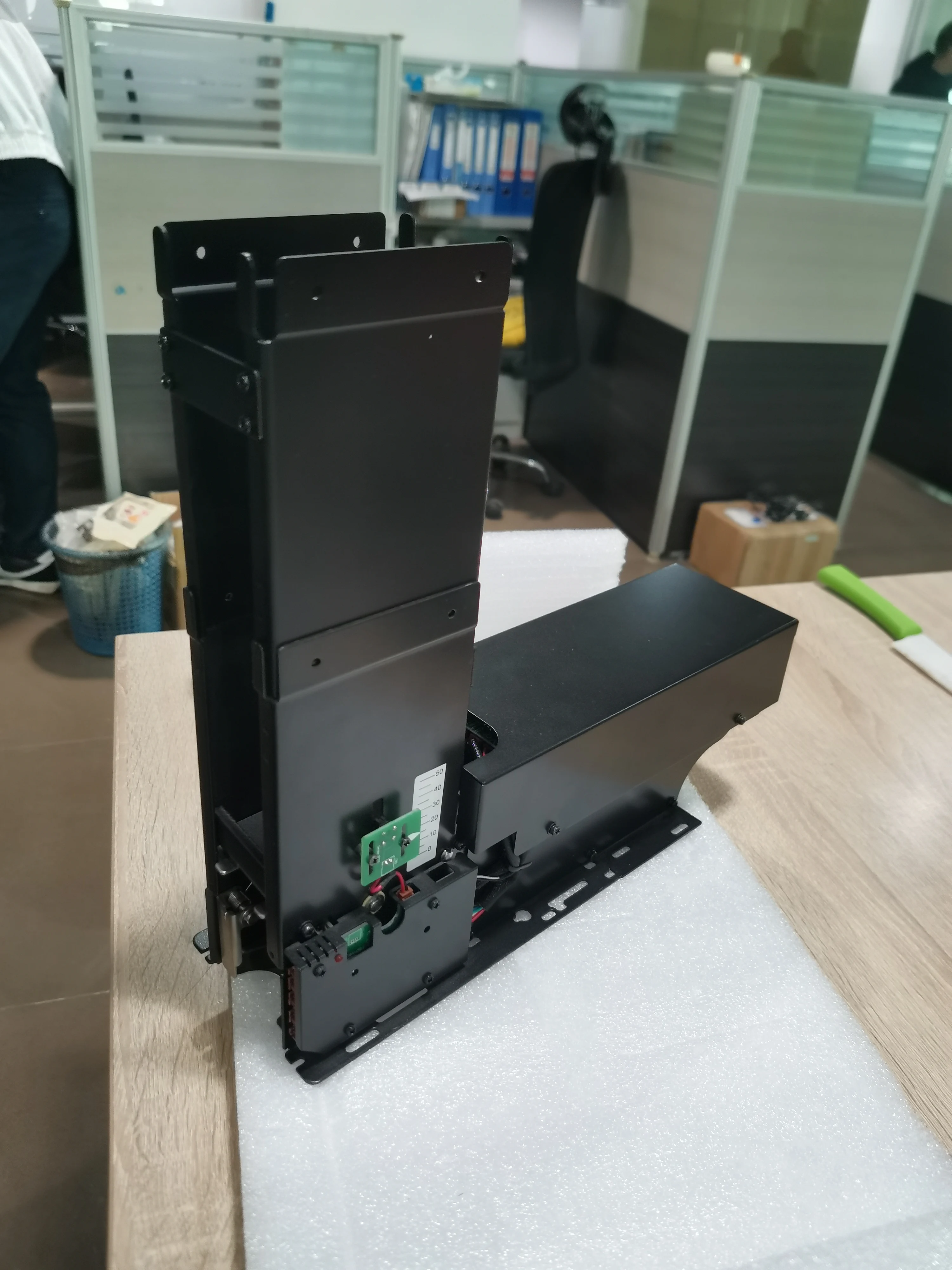

If add extend card stacker,the dispenser can hold about 500 pcs cards.
-- add 1 extend stacker, can hold 350pcs cards.
--add 2 extend scatkers, can hold 500pcs cards.
