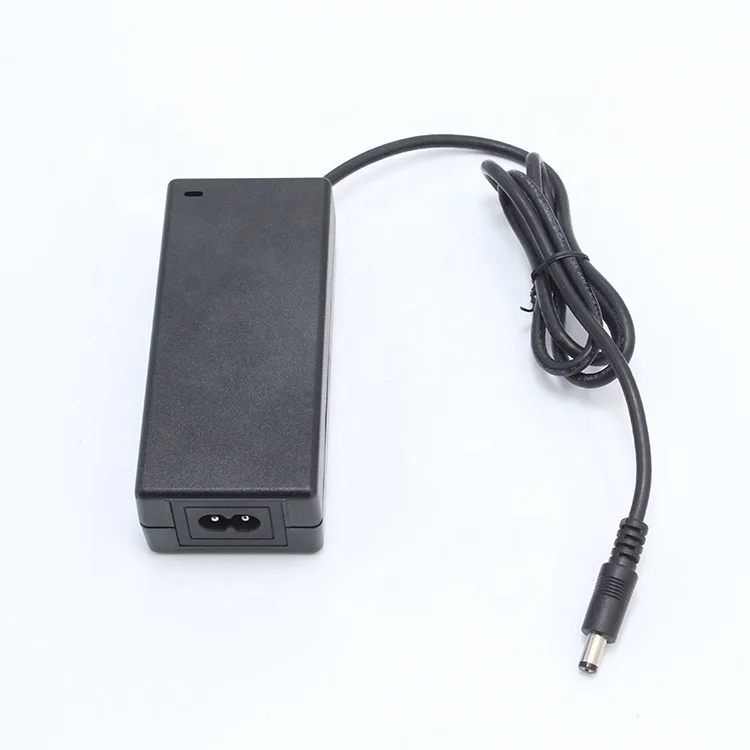

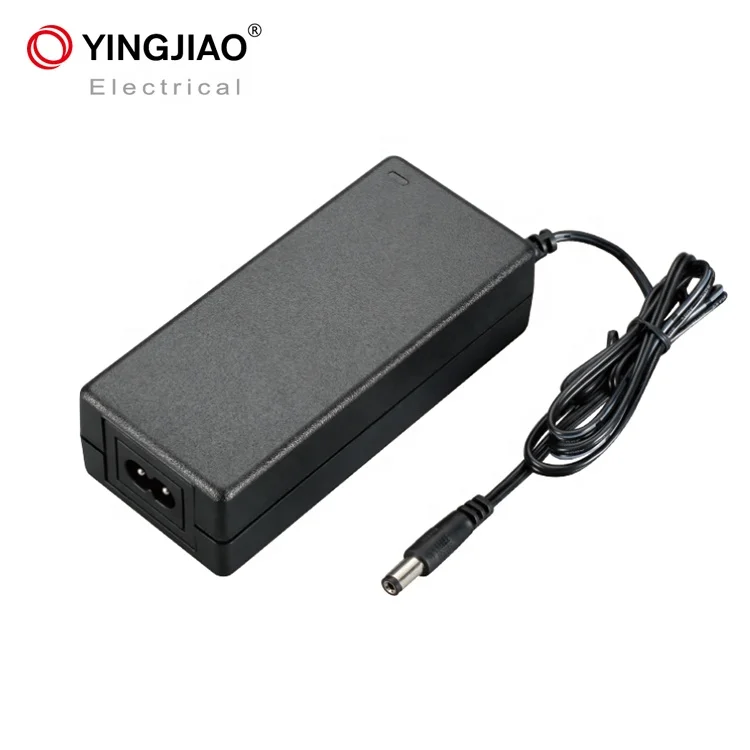

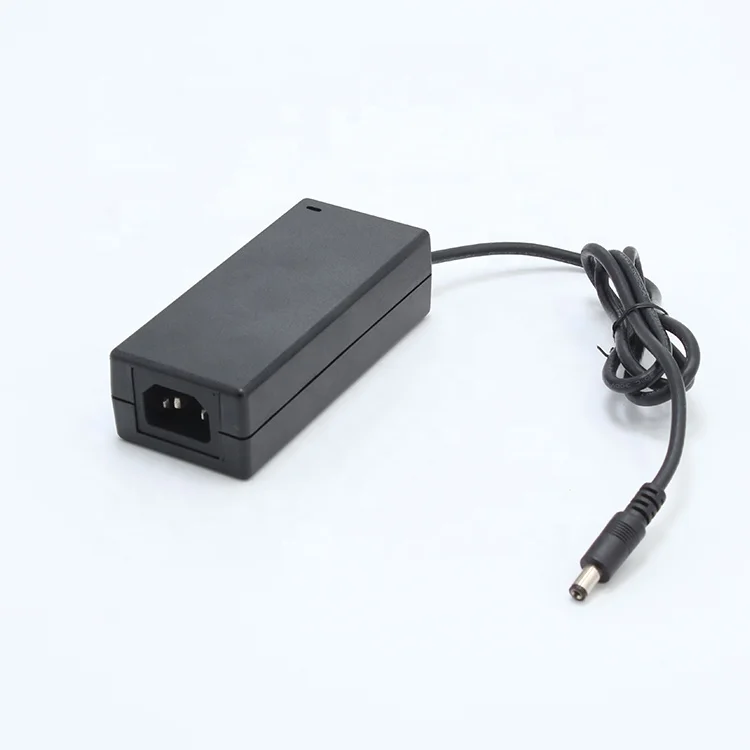

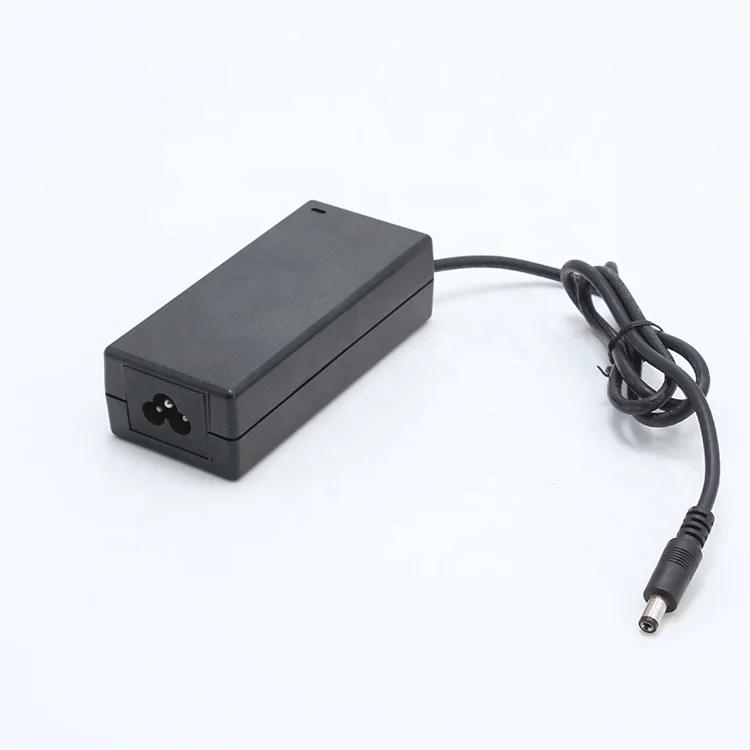

Прямая поставка с завода источник питания 9 В 15 19 в 25 48 переменного тока импульсный адаптер для ноутбука 24 2 5 А
- Категория товара: Power Adapters >>>
- Поставщик (Оптовый магазин): Ninghai,Yingjiao,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Factory Direct Power Supply 9V 15V 19V 25V 48V AC DC Switching 24V 2.5A Laptop Power Adapter 12V 5A
Product Description
| Model: | YS50-0905000 | YS50-1205000 | YS50-1504000 | YS50-1903160 | YS50-2502500 | YS50-4801250 |
| DC Voltage: | 9V | 12V | 15V | 19V | 25V | 48V |
| Rated Current: | 5A | 5A | 4A | 3.16A | 2.5A | 1.25A |
| Current Range: | 0-5A | 0-5A | 0-4A | 0-3.16A | 0-2.5A | 0-1.25A |
| Rated Power: | 45W | 60W | 60W | 60W | 62.5W | 60W |
| Ripple & Noise(max.): | 90mVp-p | 120mVp-p | 200mVp-p | 200mVp-p | 250mVp-p | 300mVp-p |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Efficiency: | 88.85% | 89% | 89% | 89% | 89% | 89% |
| Setup,Rise,Hold up time: | 1.5 second max./40 MS max./15 MS max. at 115VAC input and output max. load. | |||||

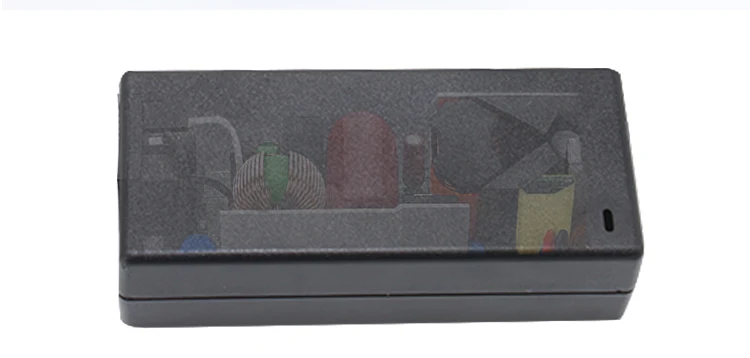

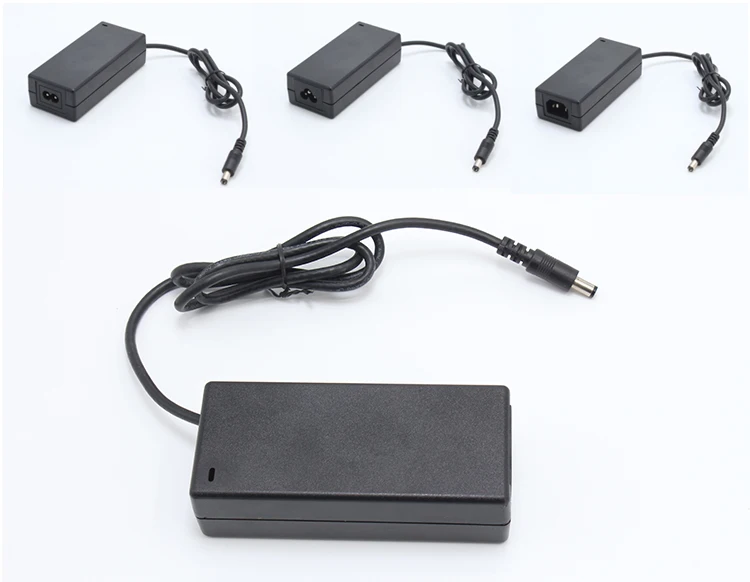

PRODUCT SHOW
ABOUT YINGJIAO
FACTORY&EXHIBITION
SOLUTION
CERTIFICATE
TRANSPORT
