Product Description

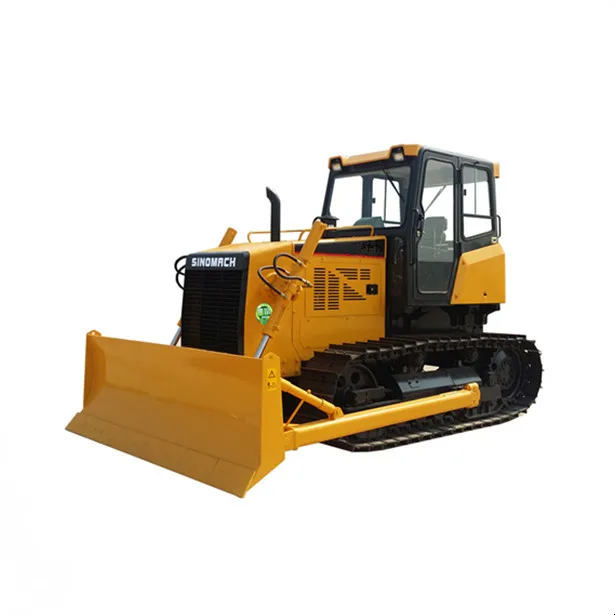

T120N-3 120HP Crawler Bulldozer
T80-3/T100G-3/T120N Crawler bulldozers are equipped with dozer blade in the front to push moving something on construction site.
T80-3/T100G-3/T120N Crawler bulldozers are equipped with dozer blade in the front to push moving something on construction site.
We have experience more than 50 years of manufacturing bulldozers, so long time of handling construction machinery and equipments.
We know how to make high quality with low price crawler bulldozer and other construction equipments.

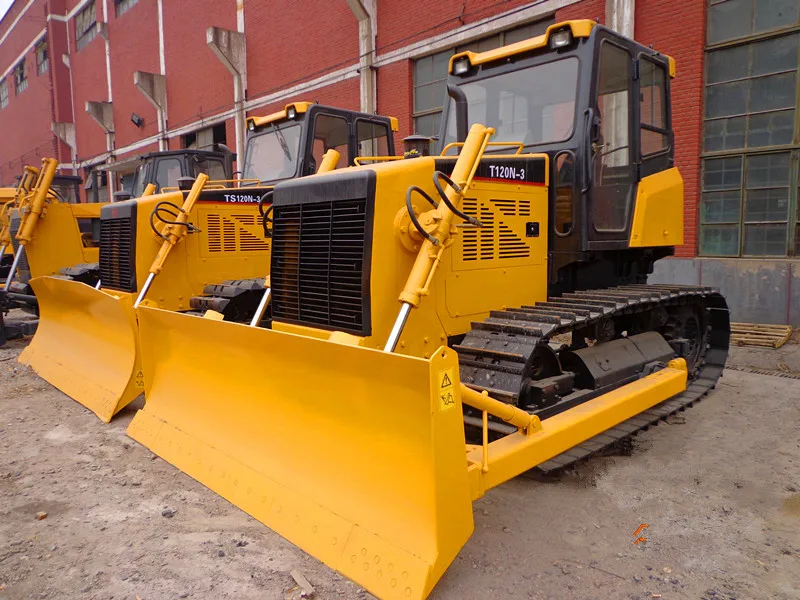

T120N-3 Crawler Bulldozer
1.The diesel engine of our T100G and T120N dozers is manufactured by use of Ricardo technology and it features low fuel
consumption and high torque reserve.
2.Our crawler bulldozer uses dry, multi-disk main clutch. The master clutch features big torque reserve and high reliability.
3. 4-foward plus 2-reverse mechanical gear-shifting gear box.
4.The steering clutch is dry, multi-disk turning clutch. It is manually operated, with hydraulically-assisted.
5.Our pushdozer can be applied in coal-reserve site, desert and some other special working requirements.
6.The hexahedral driving cab is fully closed, effectively protecting the driver from the external noise.
7.The performance status of electric system is indicated in the electronic monitor.
8.The earthmover is equipped with standard heating and ventilation devices. Air conditional is optional.
9.Straight-tilt shovel, environmentally friendly shovel, angle shovel and coal-pushed shovel are also available for you to choose from.
10. The maximum lifting height of T100G dozer and T120N dozer is 830mm and 955mm separately. The maximum in-soil depth of T100G dozer shovel and T120N dozer shovel is 370mm and 380mm separately.
1.The diesel engine of our T100G and T120N dozers is manufactured by use of Ricardo technology and it features low fuel
consumption and high torque reserve.
2.Our crawler bulldozer uses dry, multi-disk main clutch. The master clutch features big torque reserve and high reliability.
3. 4-foward plus 2-reverse mechanical gear-shifting gear box.
4.The steering clutch is dry, multi-disk turning clutch. It is manually operated, with hydraulically-assisted.
5.Our pushdozer can be applied in coal-reserve site, desert and some other special working requirements.
6.The hexahedral driving cab is fully closed, effectively protecting the driver from the external noise.
7.The performance status of electric system is indicated in the electronic monitor.
8.The earthmover is equipped with standard heating and ventilation devices. Air conditional is optional.
9.Straight-tilt shovel, environmentally friendly shovel, angle shovel and coal-pushed shovel are also available for you to choose from.
10. The maximum lifting height of T100G dozer and T120N dozer is 830mm and 955mm separately. The maximum in-soil depth of T100G dozer shovel and T120N dozer shovel is 370mm and 380mm separately.
Model | T120N-3 (Dry Land) | TS120N-3 (Swamp/Wet Land) |
Weight | 13,000kg | 13,500kg |
Maximum traction force | 115kN | 115kN |
Engine | YTO LR6A3Z-20, 93KW, Diesel | YTO LR6A3Z-20, 93KW, Diesel |
Optional Engine | CUMMINS, 97KW, Diesel | CUMMINS, 97KW, Diesel |
Tranmission | 4F+2R, mechanical | 4F+2R, mechanical |
Clutch | Dry, main clutch and steering clutch | Dry, main clutch and steering clutch |
Brake | Floation, Belt-type brake | Floation, Belt-type brake |
Steering | Hydraulic power steering | Hydraulic power steering |
Blade (Width*Height) | 3135*970mm | 3450*1060mm |
Standard blade Options: straight-tilt shovel, environmentally friendly shovel, angle shovel and coal-pushed shove | Standard blade Options: straight-tilt shovel, environmentally friendly shovel | |
Track width | 500mm | 720mm |
Maximum Lifting height of blade | 894mm | 894mm |
Maximum Peneration soil of blade | 400mm | 400mm |
Land contact pressure | 51Kpa | 37Kpa |
Overall dimension (L*W*H) | 4535*3135*3230mm | 4610*3450*2940mm |
Towing equipment/Scarifier | Fixed/3-shank ripper | Fixed |
