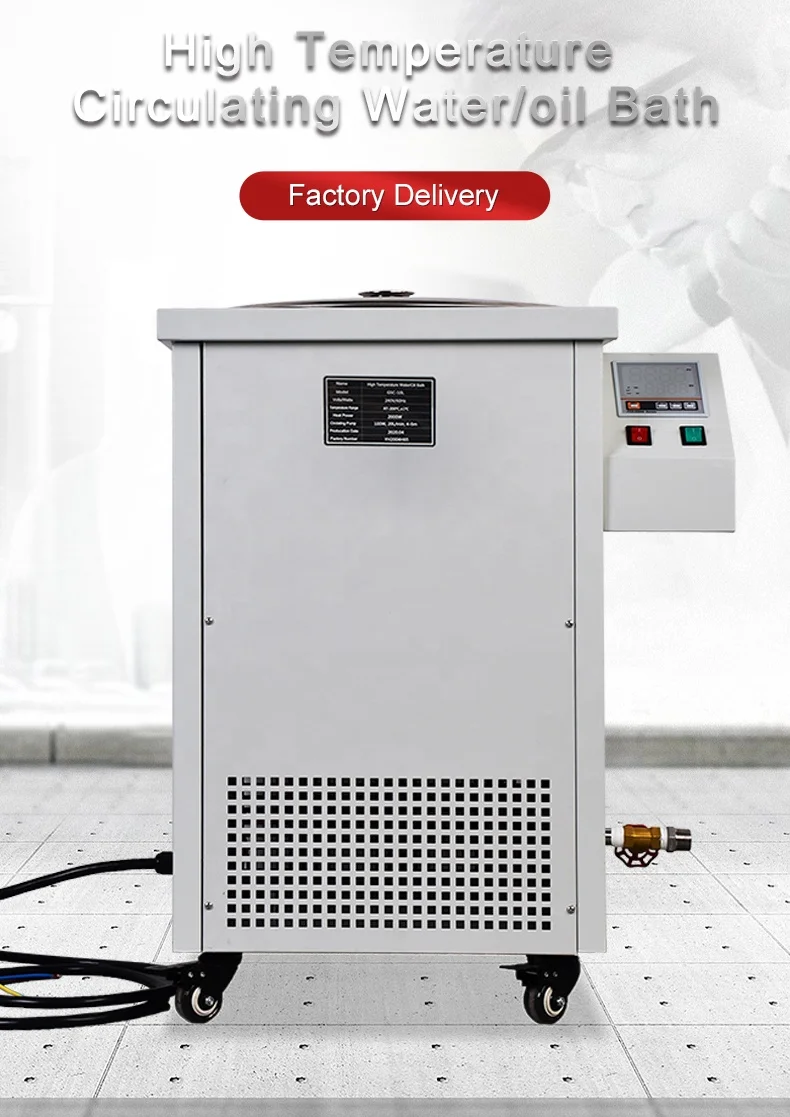

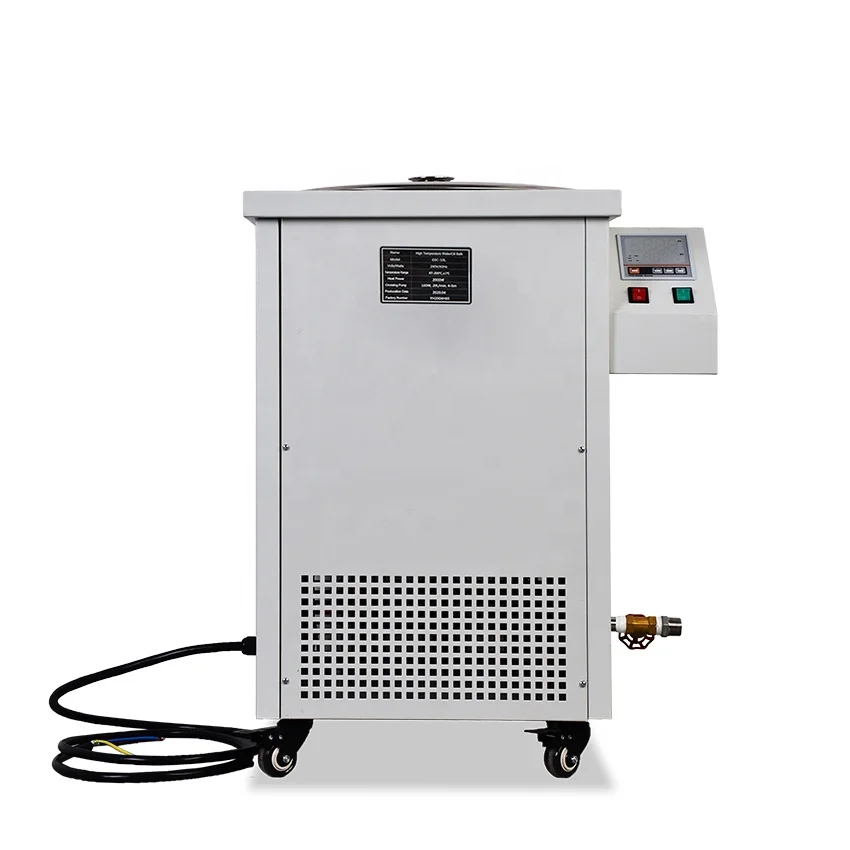

High temperature circulating oil bath adopt stainless steel material for the bath, and selects high quality plate electrostatic spray plastic for shell. Heating ring is placed in the oil, heat fast and efficiently. Itis also energy-saving PID accurate temperature control. An efficient circulating pump is placed under bath which can circulate hot oil/water with others instrument such as a jacketed glass reactor. The Heater also can be used as the water/oil bath. It has the advantages of fast heating, uniform temperature, accurate temperature control and so on.
Model | GSC-100L | ||
Heating power | 6KW/9KW | ||
Function | Inner circulating | Water/oil bath | |
Outer circulating | Provide heat source | ||
Circulating performance | Pump power | 100W | |
Flow rate | 20-40L/min | ||
Lift head | 4~6m | ||
Temp. control System | Temperature sensor | PT100 | |

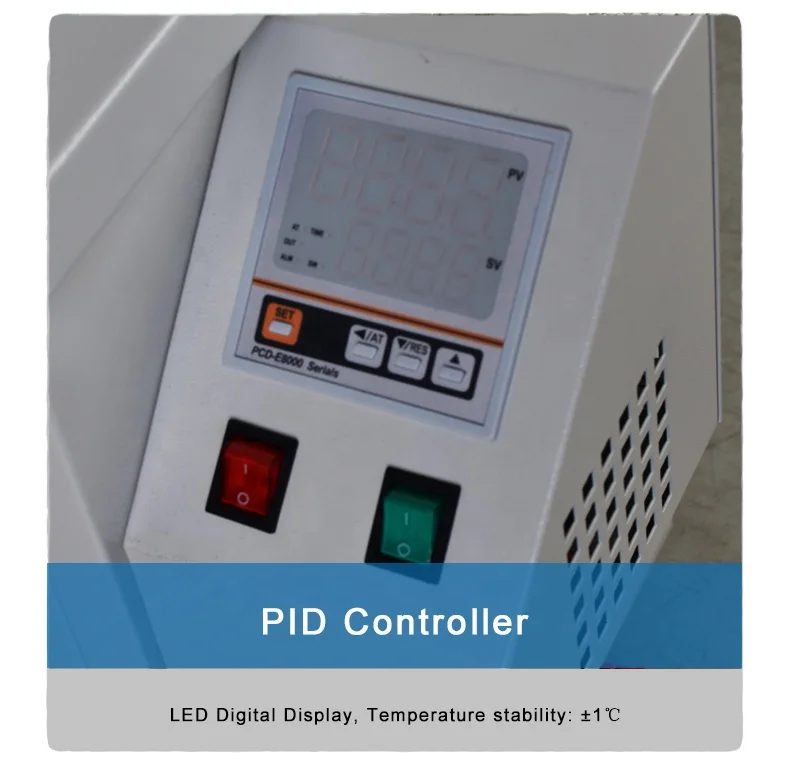

Control type | PID control, LED Digital Display | ||
Temperature range | Water: RT~ 99℃ Oil: RT ~ 200℃ | ||
Temperature stability | ±1℃ | ||
Working Condition | Power supply | 220V/50Hz, 1-phase or 380V/50Hz, 3-phase | |
Output power | 6.1KW / 9.1KW | ||
Output current | 27.8A /18.5A | ||
Ambient temperature | 0-50℃ | ||
Ambient humidity | 45%~85%RH | ||
Ambient pressure | 86kPa~106kPa | ||
Circulation medium | Water | Deionized or Distilled water | |
Heat transfer oil | Viscosity of oil less than 100C•S•t will be better | ||

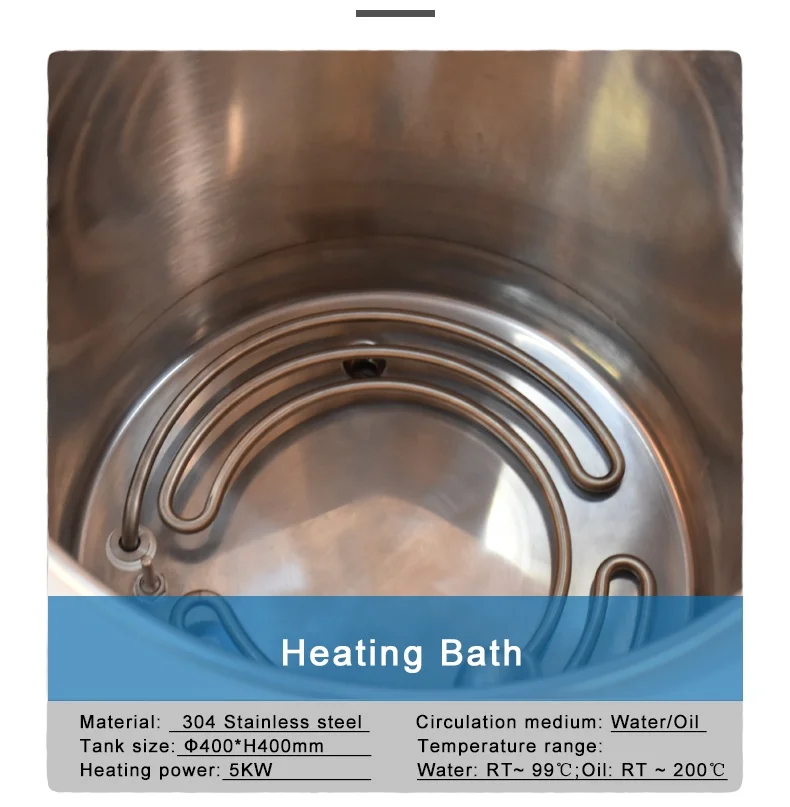

Dimensions | Heating bath | Φ500*H500mm | |
Inlet/outlet | DN20 | ||

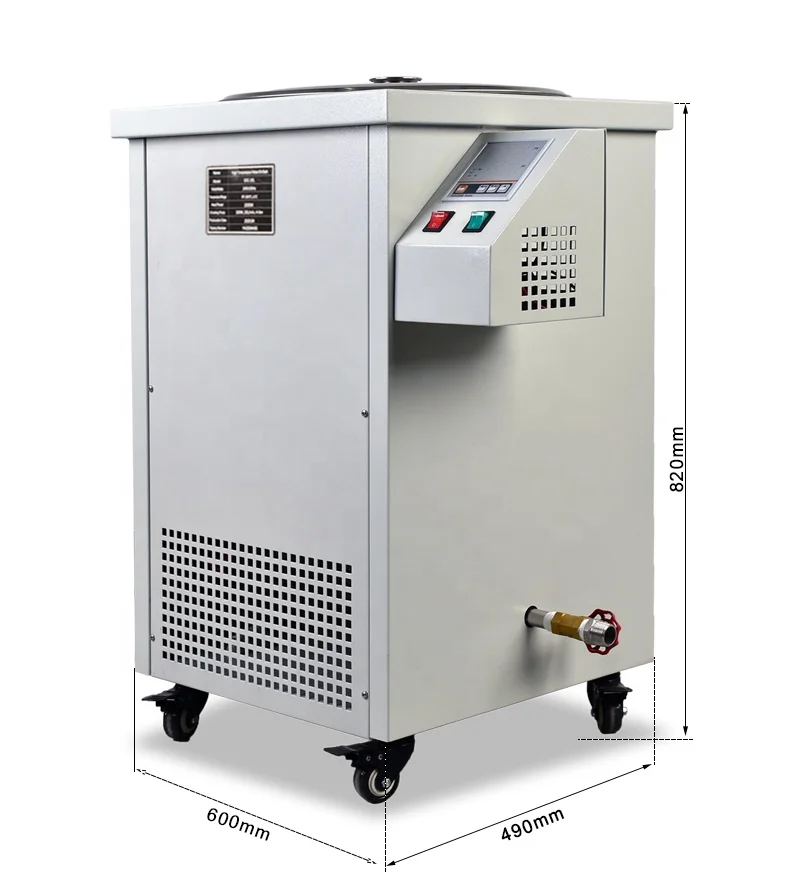

Machine size | 730*600*940mm | ||
Fittings | Valve | 1set | |

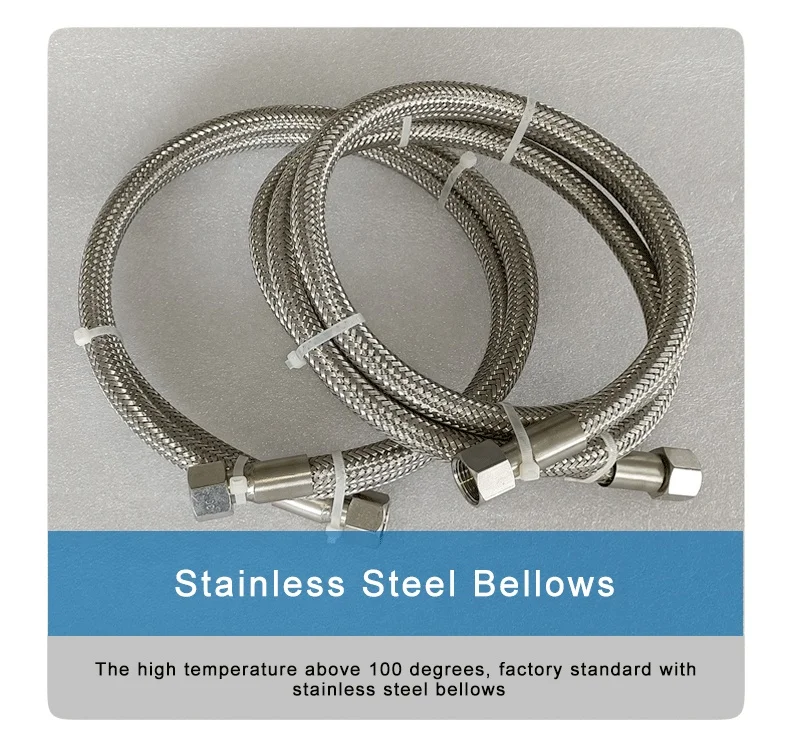

Connect Hose | Fluorine tube or stainless steel corrugated tube | ||
