Сертифицированный RoHs CE 1x8 HDMI сплиттер 1 в 8 Выход HDCP 2,0 версия видео аудио сплиттер с EDID
- Категория товара: Other Audio & Video Accessories >>>
- Поставщик (Оптовый магазин): Shenzhen,Yunzuo,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
RoHs CE certified 1x8 HDMI splitter 1 in 8 out HDCP 2.0 version video audio splitter with EDID
Product Description
Features :
Compliant with HDMI 2.0, and HDCP 2.2 standards.
Backward compliant with HDMI1.4,HDCP1.X.
Support RGB and YCbCr 4:4:4/4:2:2/4:2:0 format.
Bypass, CSC-processed, down-scaled content can be selected on each
of the 8 output ports individually.
Serial data rate at up to 6.0Gbps, capable of supporting HDMI 2D video
up to 4Kx2K@60Hz and 3D up to 4Kx2K@30Hz.
Support Deep Color Mode at up to 36 bits (12 bits/color).
Support HDMI 2.0 and HDMI 1.4 3D format with frame packing/Top and
Bottom/side by side mode.
Integrated pre-programmed HDCP keys.
Pure hardware HDCP 2.2 and 1.x engine increasing the robustness and
security of HDCP operation.
Embedded EDID RAM saves external EDID ROM costs.
Active source and sink detection for auto low power state implementation.
Disconnectable input terminations with auto-calibrated impedances.
Adaptive input equalization supporting long and short cables at the same
time.
Programmable TMDS output current level.
Programmable source terminations compliant with HDMI 2.0 standard,
providing optimal source data eyes at high speeds.
Compliant with HDMI 2.0, and HDCP 2.2 standards.
Backward compliant with HDMI1.4,HDCP1.X.
Support RGB and YCbCr 4:4:4/4:2:2/4:2:0 format.
Bypass, CSC-processed, down-scaled content can be selected on each
of the 8 output ports individually.
Serial data rate at up to 6.0Gbps, capable of supporting HDMI 2D video
up to 4Kx2K@60Hz and 3D up to 4Kx2K@30Hz.
Support Deep Color Mode at up to 36 bits (12 bits/color).
Support HDMI 2.0 and HDMI 1.4 3D format with frame packing/Top and
Bottom/side by side mode.
Integrated pre-programmed HDCP keys.
Pure hardware HDCP 2.2 and 1.x engine increasing the robustness and
security of HDCP operation.
Embedded EDID RAM saves external EDID ROM costs.
Active source and sink detection for auto low power state implementation.
Disconnectable input terminations with auto-calibrated impedances.
Adaptive input equalization supporting long and short cables at the same
time.
Programmable TMDS output current level.
Programmable source terminations compliant with HDMI 2.0 standard,
providing optimal source data eyes at high speeds.
Specifications:
HDMI version…………………………………………...........HDMI 2.0, HDCP 2.2
HDMI resolution..24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p
Supports video color format ....………........24bit/deep color 30bit, 36bit, 48bit
Supports audio format…...........................DTS-HD/-trueHD/LPCM7.1/
DTS/-AC3/DSD HD(HBR)
Max bandwidth……………………………….......………………………….600MHz
Max baud rate…………………….…………........……..………………..18.0Gbps
1080P Input cable distance....................≤15m AWG24 HDMI standard cable
1080P Output cable distance..................≤20m AWG24 HDMI standard cable
4KX2K Input cable distance......................≤5m AWG24 HDMI standard cable
4KX2K Output cable distance...................≤8m AWG24 HDMI standard cable
Max working current………………………....……………………………….....1.5A
Power adapter format Input..…...AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Operating Temperature range……..….…...………………….….(-20 to +70℃)
Operating Humidity range……………..........…5 to 90%RH (No Condensation)
Dimension ( L x W x H)……………….......…......................... (mm)
Weight……........................................................................................325g
HDMI resolution..24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p
Supports video color format ....………........24bit/deep color 30bit, 36bit, 48bit
Supports audio format…...........................DTS-HD/-trueHD/LPCM7.1/
DTS/-AC3/DSD HD(HBR)
Max bandwidth……………………………….......………………………….600MHz
Max baud rate…………………….…………........……..………………..18.0Gbps
1080P Input cable distance....................≤15m AWG24 HDMI standard cable
1080P Output cable distance..................≤20m AWG24 HDMI standard cable
4KX2K Input cable distance......................≤5m AWG24 HDMI standard cable
4KX2K Output cable distance...................≤8m AWG24 HDMI standard cable
Max working current………………………....……………………………….....1.5A
Power adapter format Input..…...AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Operating Temperature range……..….…...………………….….(-20 to +70℃)
Operating Humidity range……………..........…5 to 90%RH (No Condensation)
Dimension ( L x W x H)……………….......…......................... (mm)
Weight……........................................................................................325g
Connection Diagram

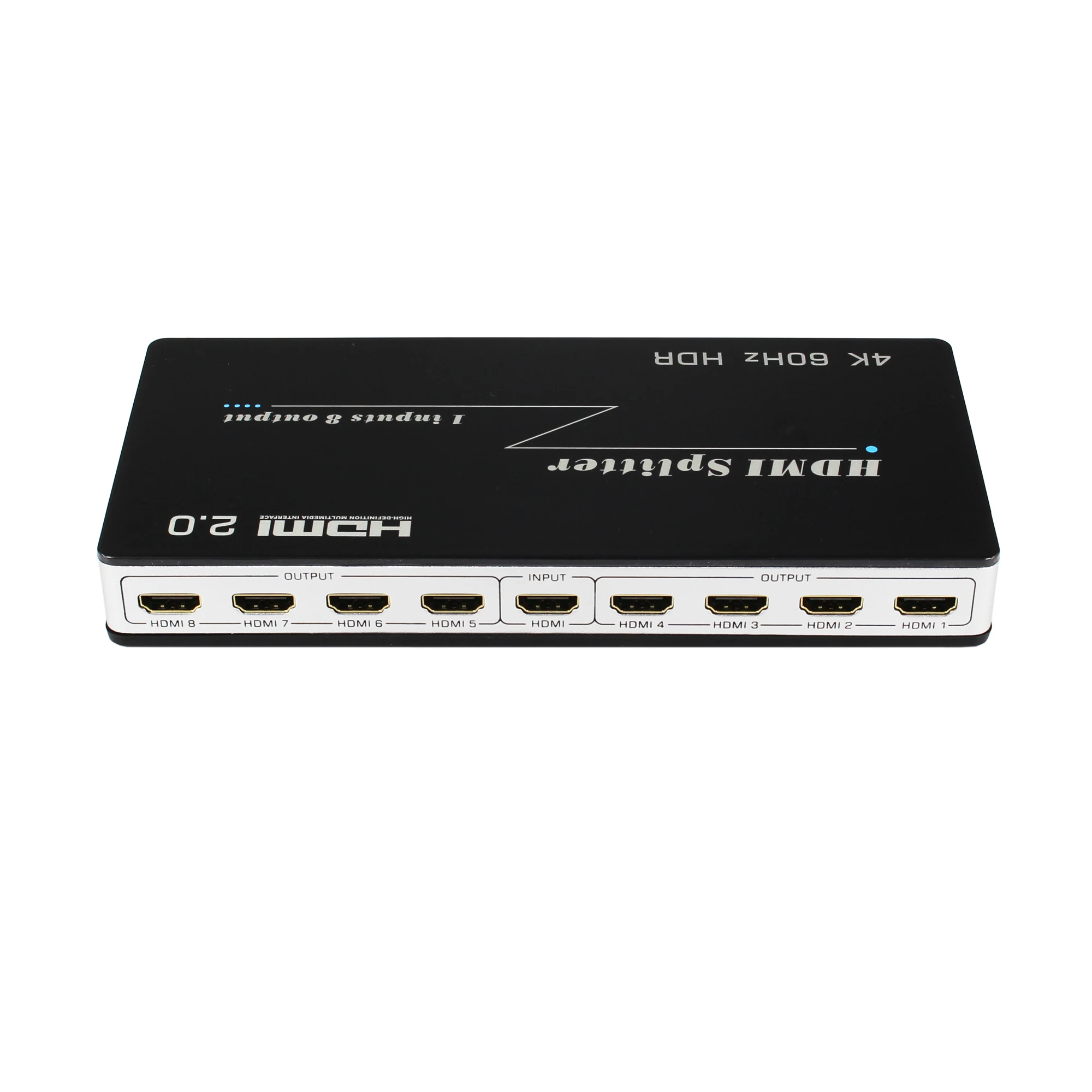

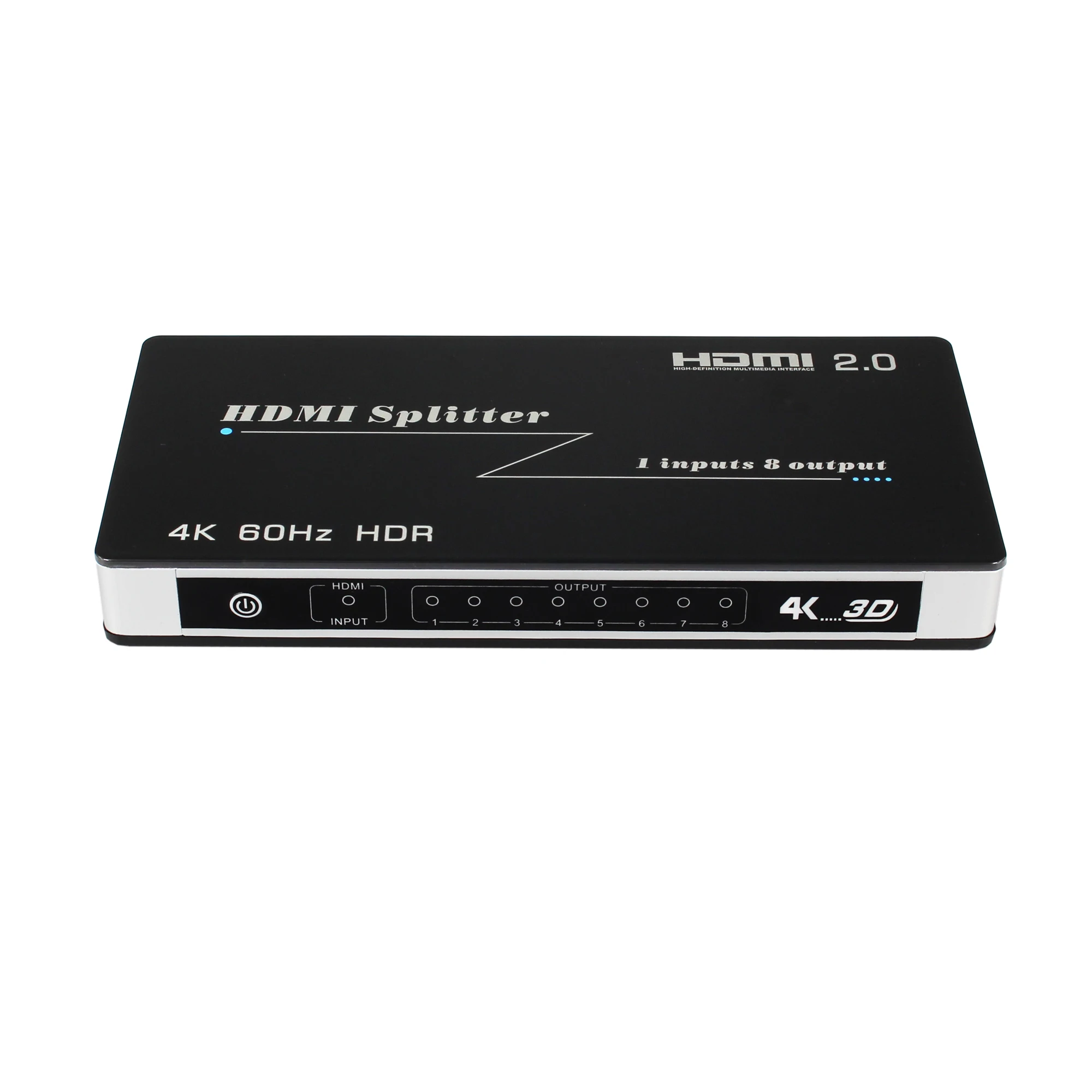

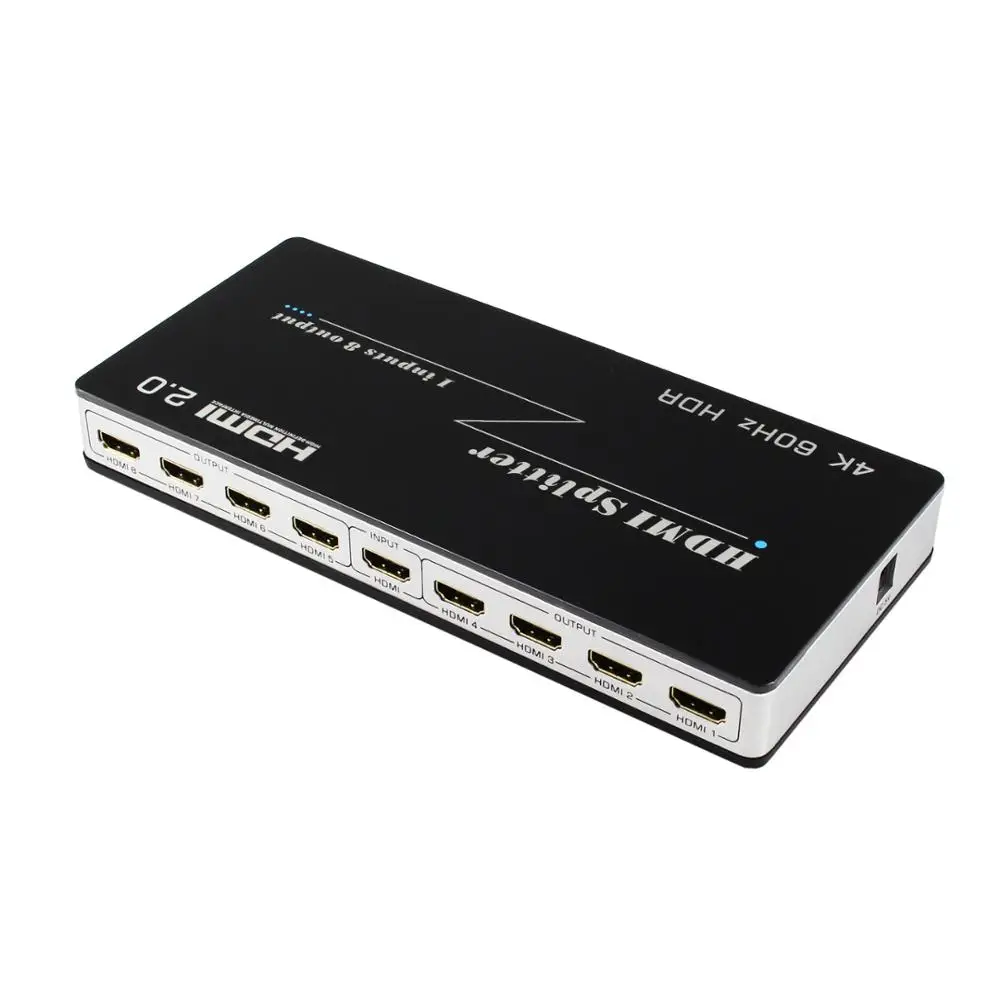

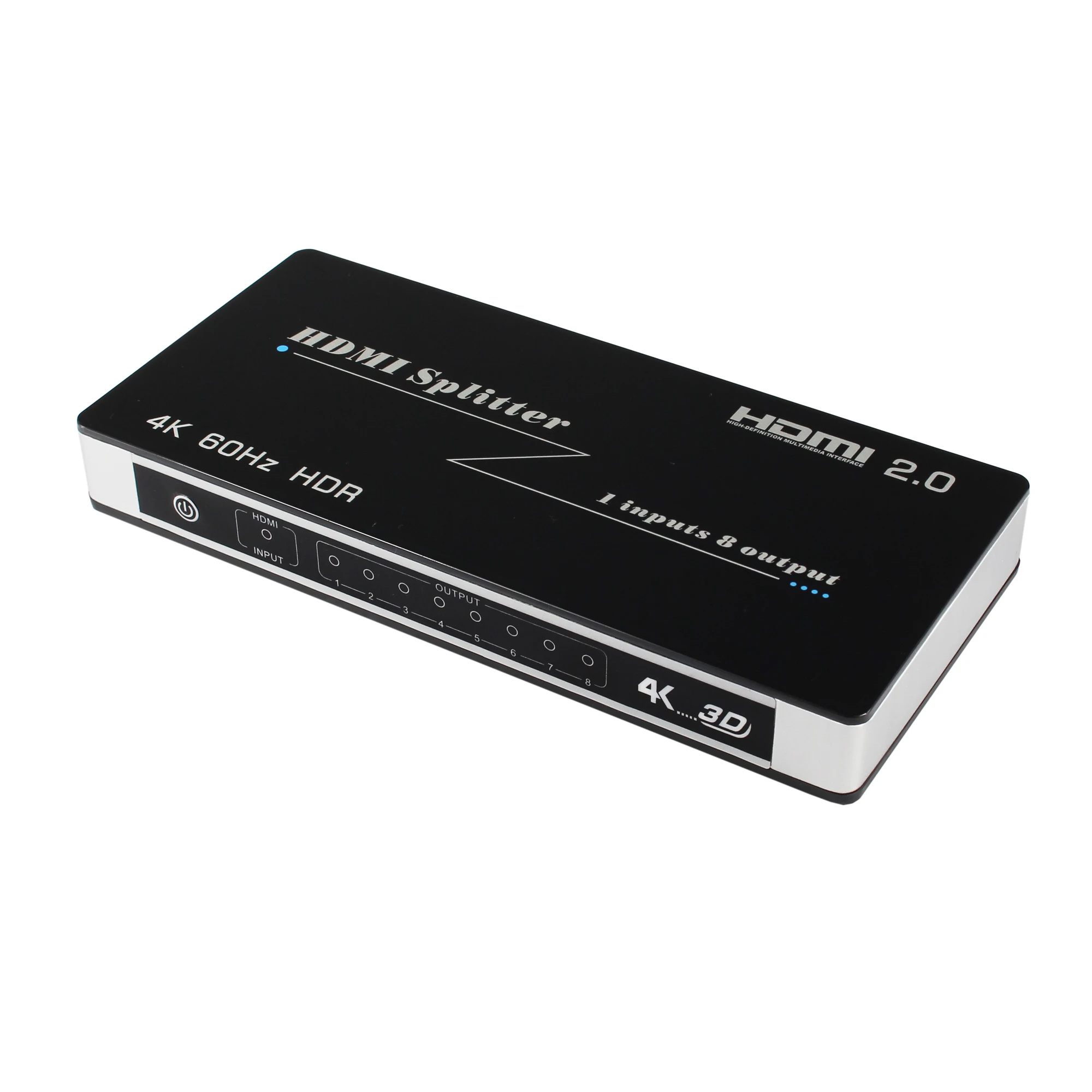

Product pictures

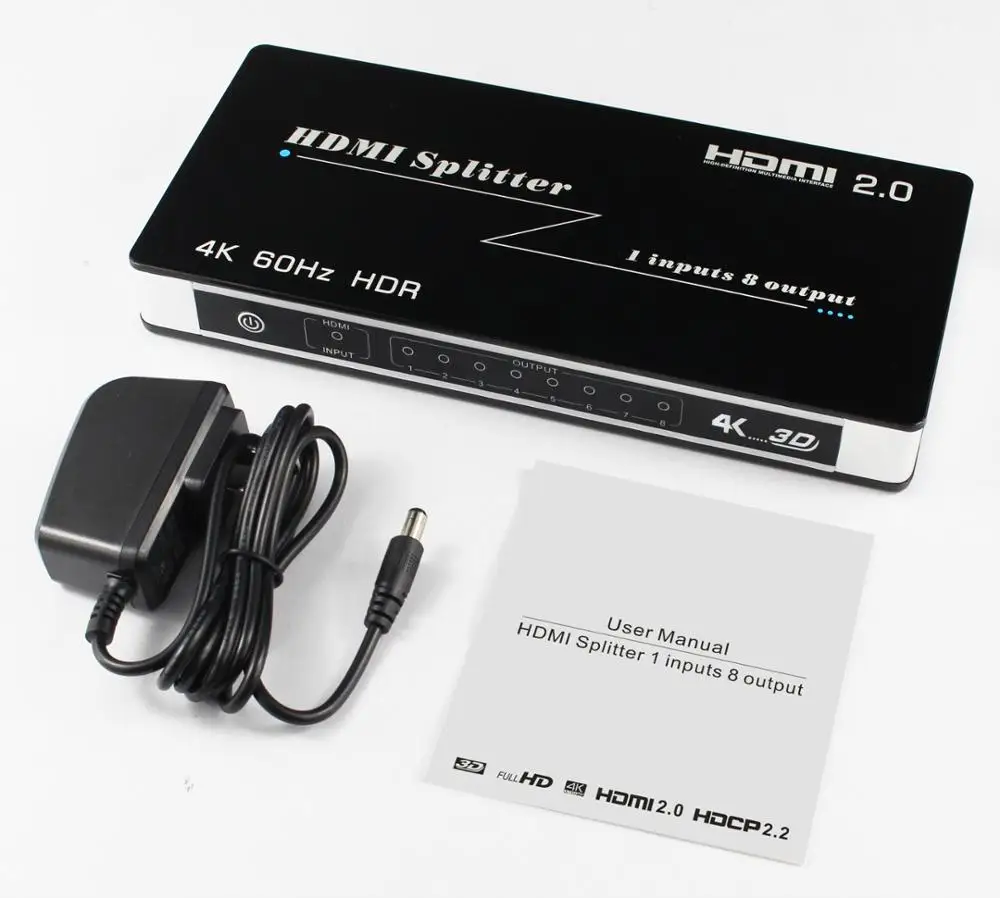

HY-V1082-AC-S0-H0 High Quality HDMI 2.0 Splitter 1 x 8Packaging contents :
1. HDMI 1X8 Splitter x1
2. Power Adaptor x1
3. User Manual x1
Application

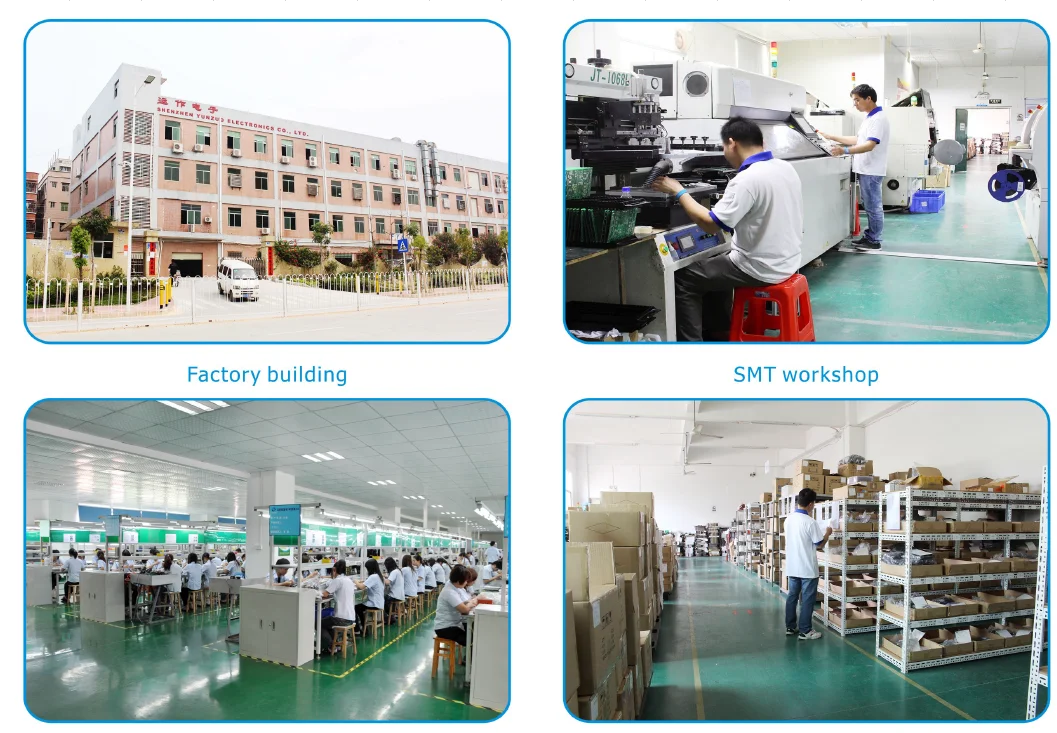

Company Information
