Product Description

Product description

The patented "Hydra-Krimp" makes crimping barbed and beaded fittings as easy as 1 - 2 - 3!

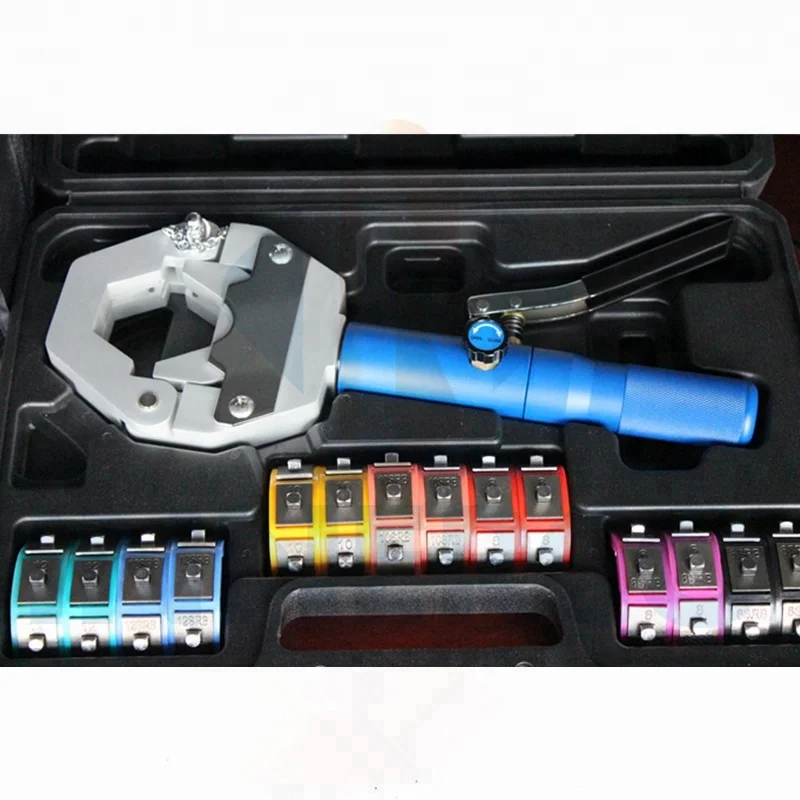

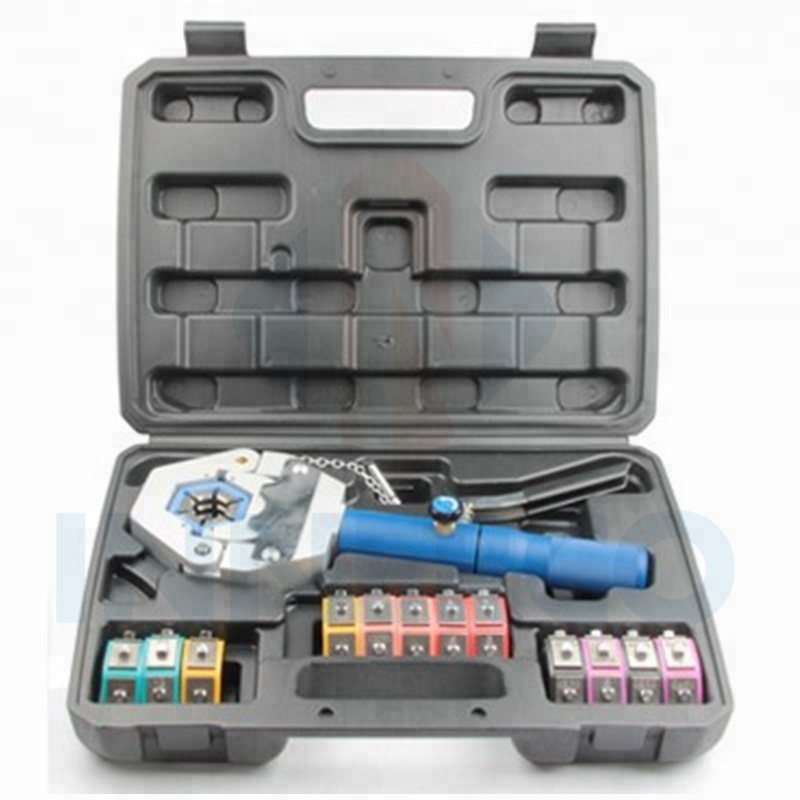

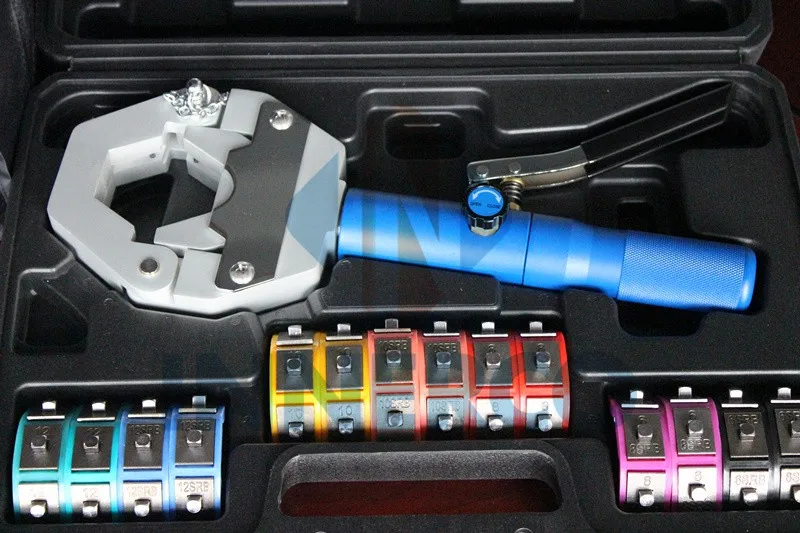

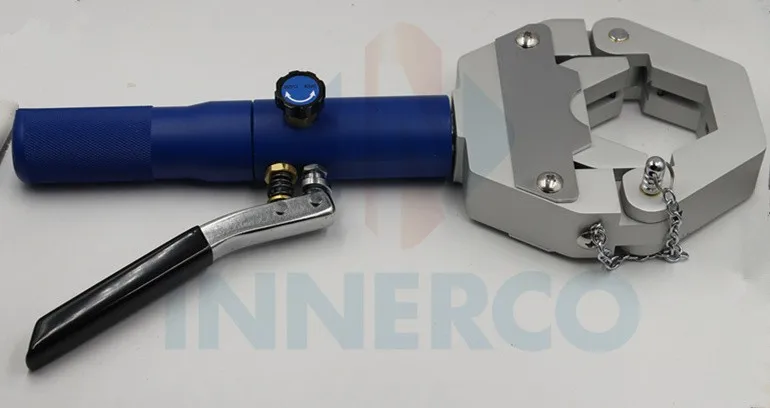

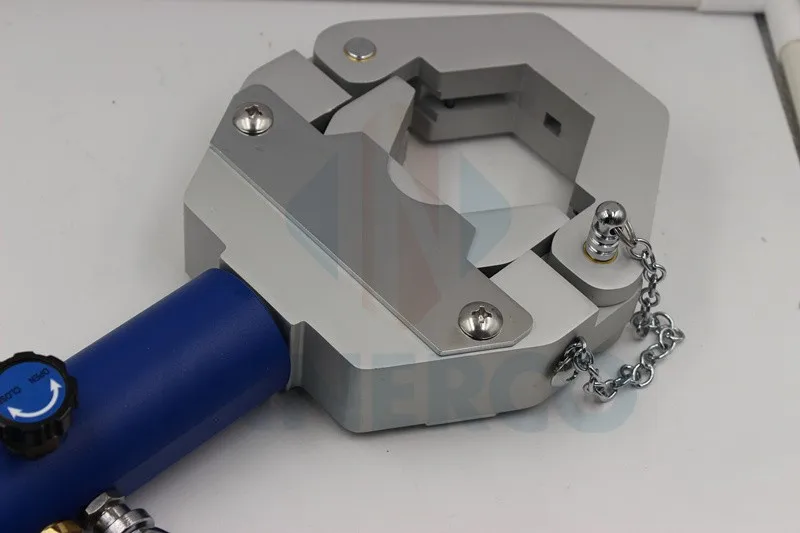

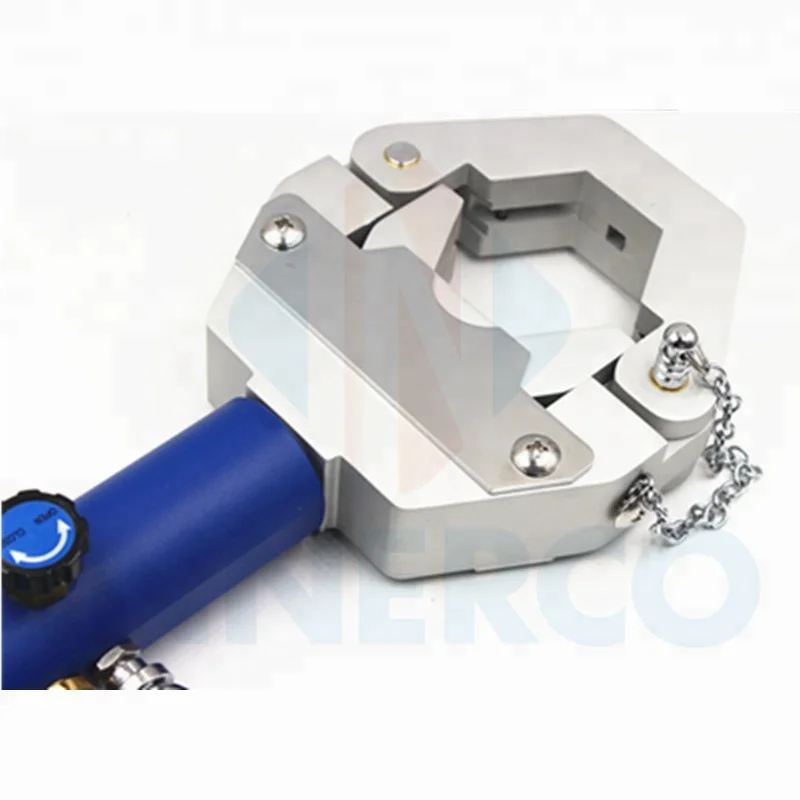

The lightweight hand-held hydraulic press is very portable and ideal for shop and field operations. The kit comes with a complete set of dies covering hose sizes: #6, #8, #10, #12 and reduced barrier hose sizes: #6, #8, #10 and #12 in a custom molded carrying case.

The dies snap quickly into the press fixture requiring no pins or screws.

\t
Product Name
\t
Hydraulic Crimper
\t
Piston Forces
\t
80 KN
\t
Maximum Travel of Piston
\t
14mm
\t
Hose Dimension
\t
Nominal diameter, DN, 5/16"~5/8"
(Reference outer diameter: Φ17~Φ30 at 2MPa)
\t
Standard Module Group
\t
7
\t
Operation Mode
\t
Manual
\t
Ambient Temperature
\t
-10~60ºC
\t
Arm Strength
\t
≤75Kg
\t
Crimping Time
\t
About 10 S
\t
Noise Level
\t
≤10 db (Not detected)
\t
Appearance Dimension (L x W x H)
\t
780mm x 412mm x 43mm
\t
Weight
\t
4.73Kg
\t
N0.
\t
Hose Size
inner diameter (in)
\t
Hose Size
inner diameter (in)
\t
O.D.with 2 Mpa
Standard Hose
\t
The Jaw Size When Grinding
Tool Limit Vallue (mm)
\t

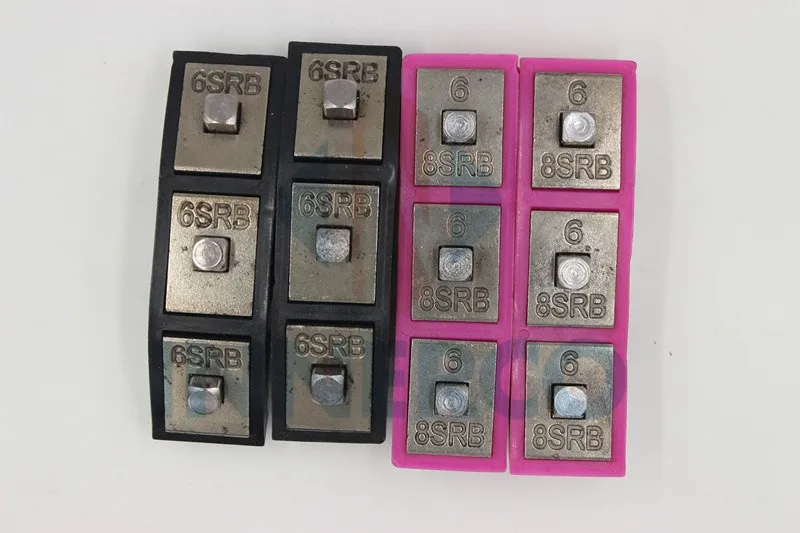

6SRB
\t
5/16"
\t
Φ7.9 Dn8
\t
D: Φ14~16
d: Φ7.5~9
\t
Φ12.5
\t

6, 8SRB
\t
5/16" (Thick walled tube)
\t
Φ7.9 Dn8
\t
D: Φ16~20
d: Φ7.5~12
\t
Φ14.5
\t
13/32" (Thick walled tube)
\t
Φ10.3 Dn10
\t
10SRB
\t
1/2"
\t
Φ12.7 Dn15
\t
D: Φ20~22
d: Φ12~14
\t
Φ16.5
\t

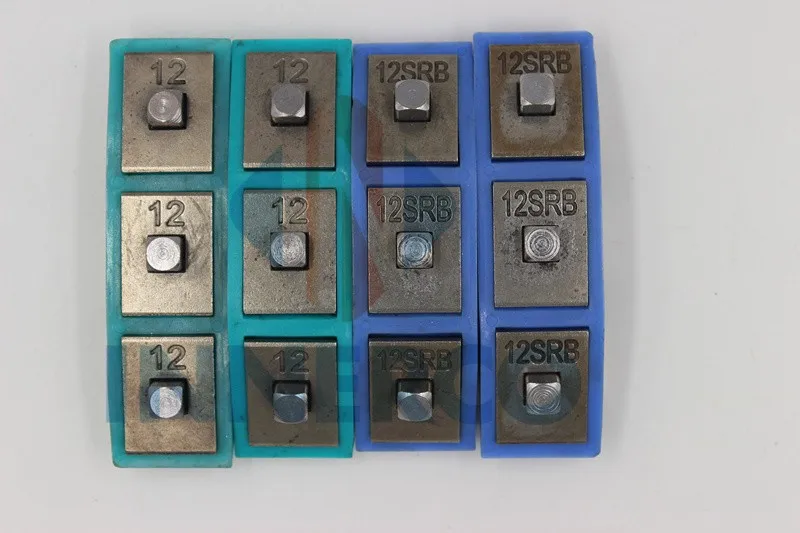

12SRB
\t
5/8"
\t
Φ15.9 Dn16
\t
D: Φ22~24
d: Φ14~16
\t
Φ21
\t
8
\t
13/32"
\t
Φ10.3 Dn10
\t
D: Φ22~24
d: Φ10~12
\t
Φ20
\t
10
\t
1/2"
\t
Φ12.7 Dn15
\t
D: Φ22~26
d: Φ12~14
\t
Φ21
\t
12
\t
5/8"
\t
Φ15.9 Dn16
\t
D: Φ27~30
d: Φ15~17
\t
Φ24.5
Fast And Easy To Use

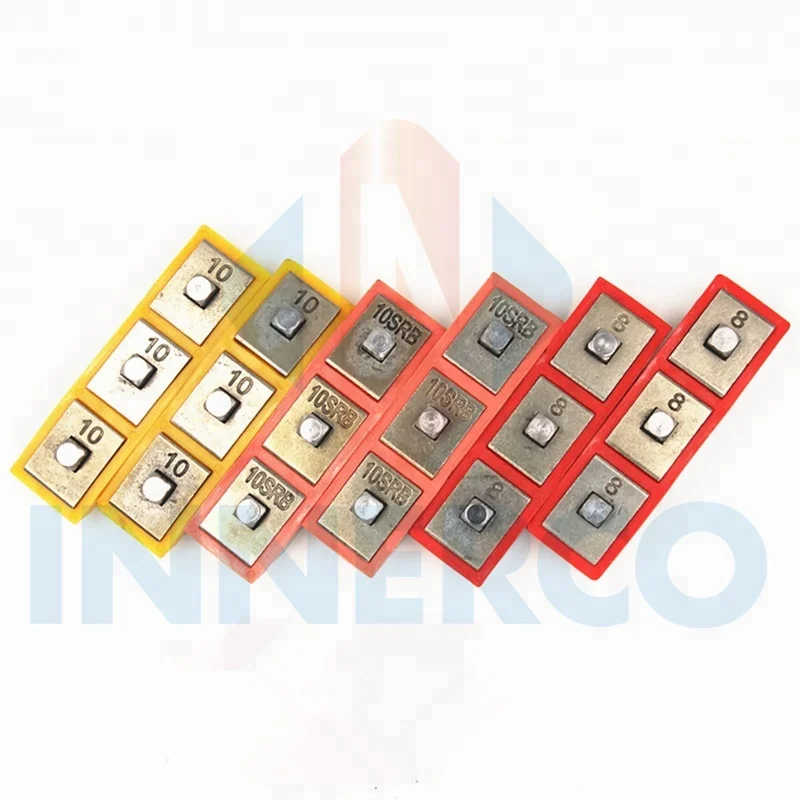

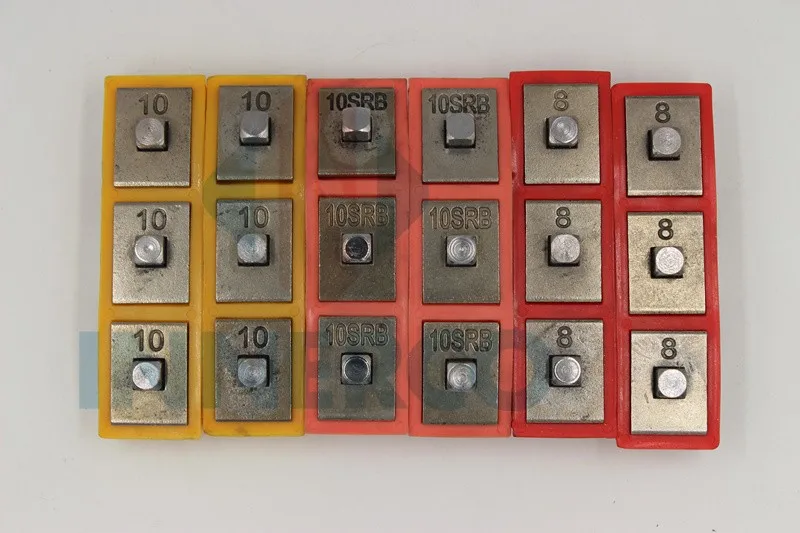

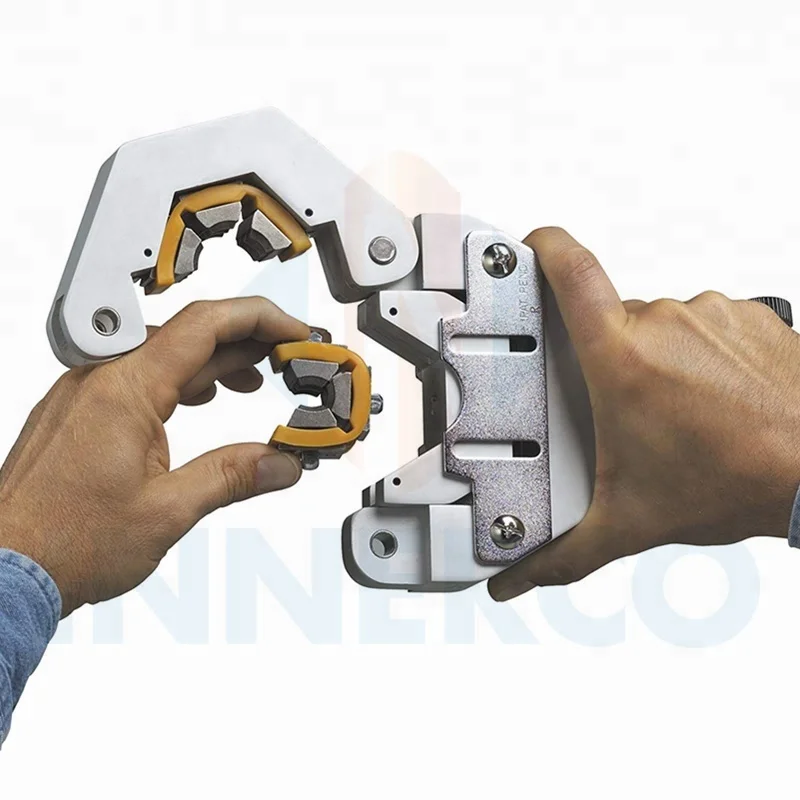

Select the Die Set

The dies snap quickly into the press fixture requiring no pins or screws.

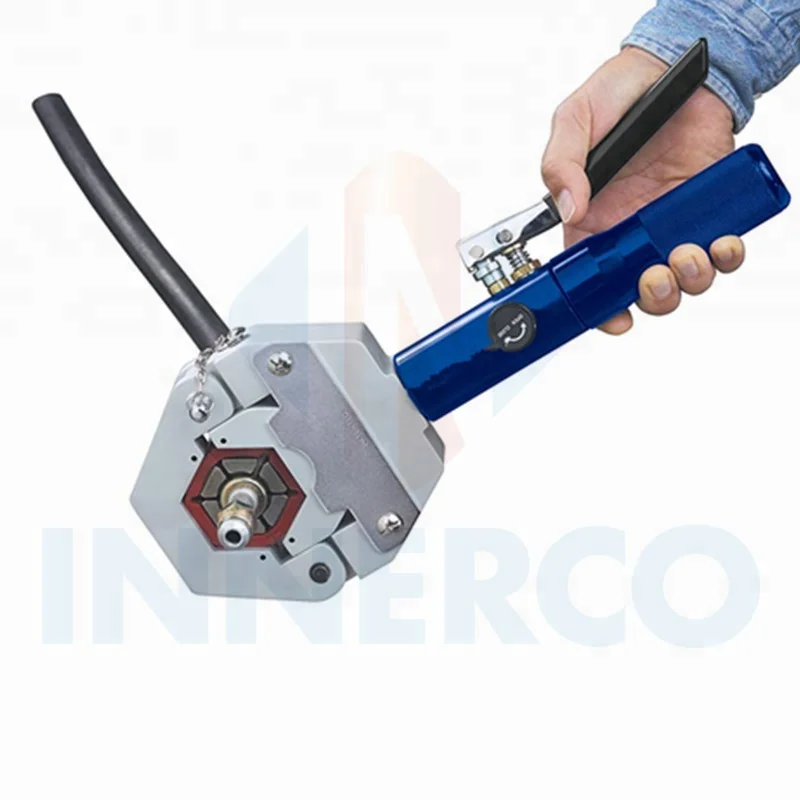

Crimp the Hose

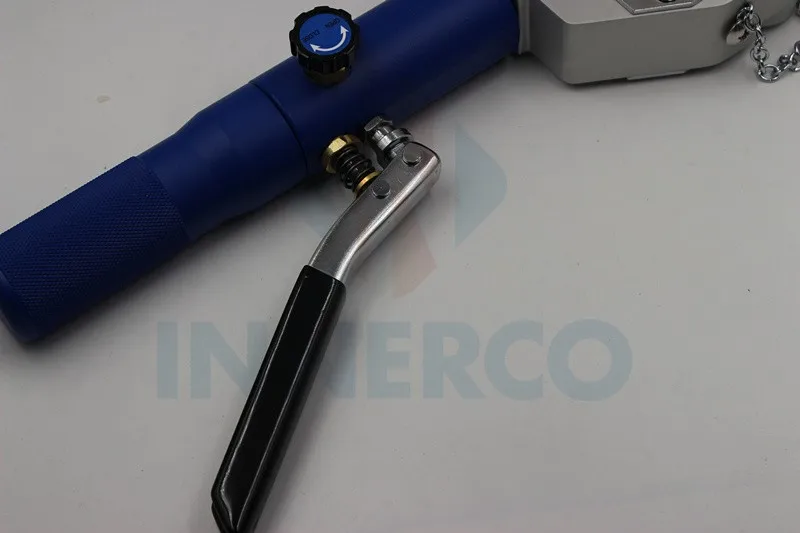

Easy to use hydraulic hand-held pump crimps the hose fitting in under 10 pumps.


Make a Professional Crimp

OE design, 6 segmented crimp, ensures no leaks and produces a factory quality crimp every time.


Patented Design

Keeps the full circular integrity of the inner barb to allow for full flow of refrigerant.

Packing & Delivery
Our Company
Exihibition
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory of copper charging valve/access valve/pin valve/manifold gauge set/charging hose/brass and copper fittings.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. And it is 15-20 days if the goods are not in stock, according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your warranty for the items? What is the process if the products do not meet specification?

A: Our inspector will check samples before mass production, after start production, we also have some inspectors check product every half an hour when we machining them, besides, before shipment, they will recheck parts to make sure it is good parts. If the products do not meet specification, our inspector will reject it and inform our customer what situation for this item, also we will find a solution.

Q: What is your terms of payment ?

A: We accept Paypal, Western Union, L/C, TT, Trade Assurance,...
