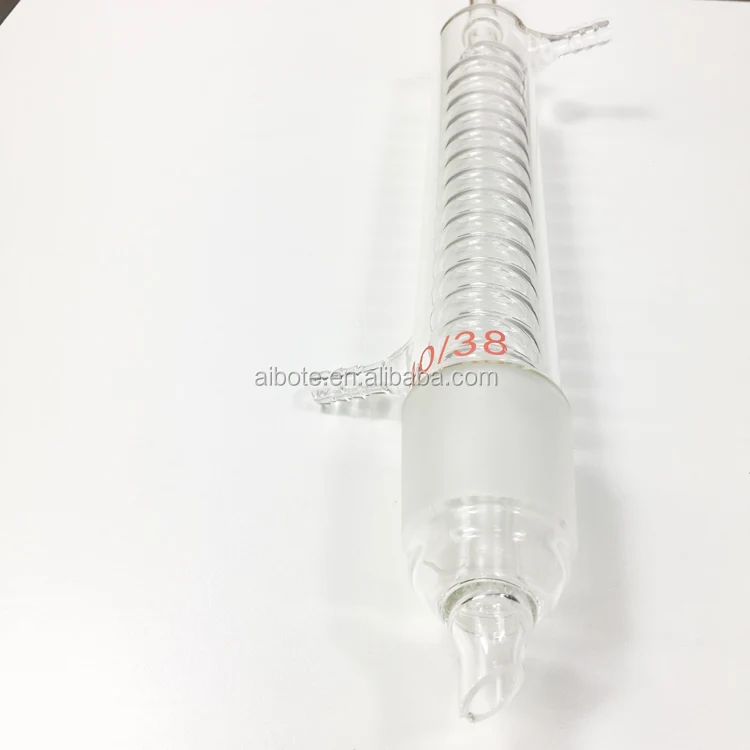

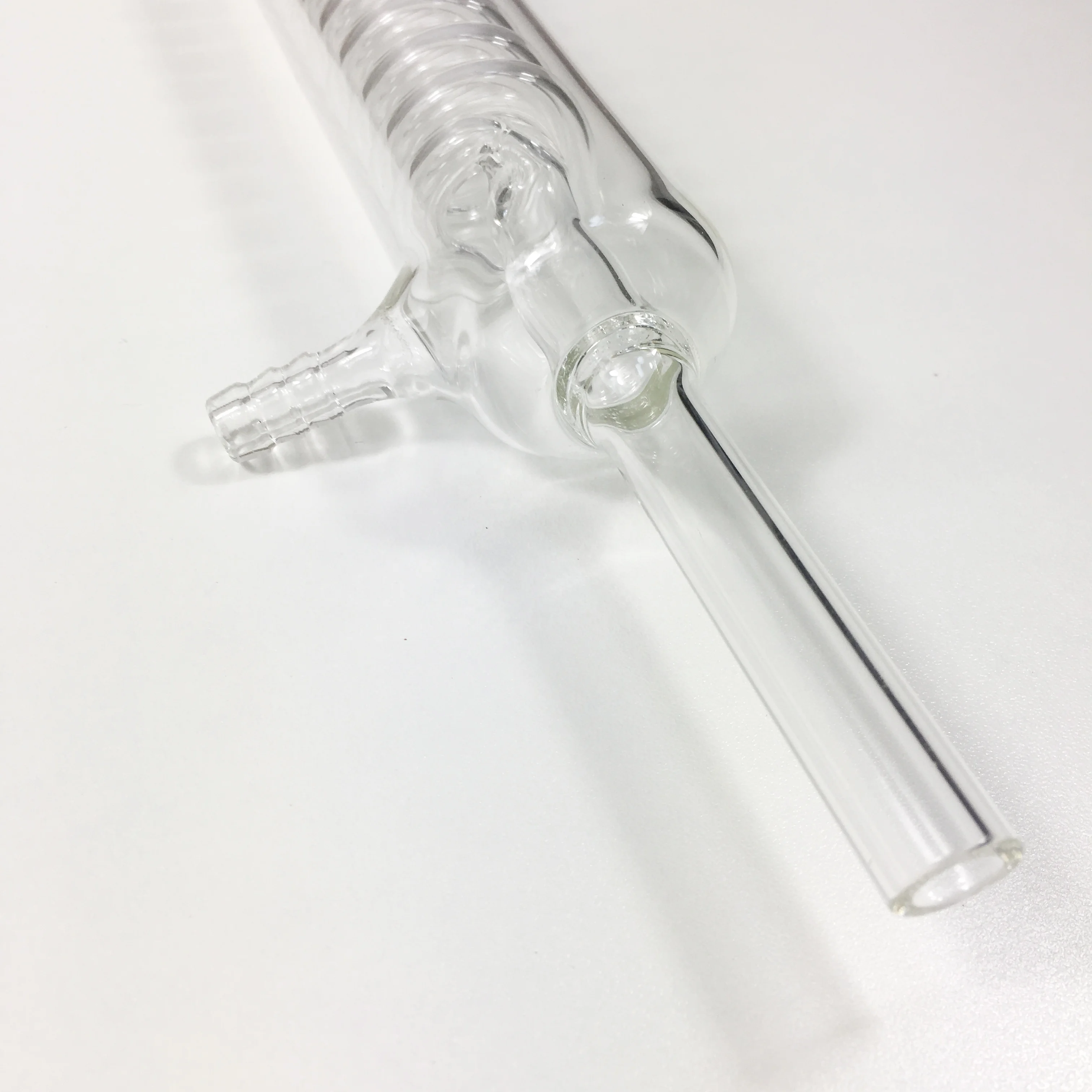

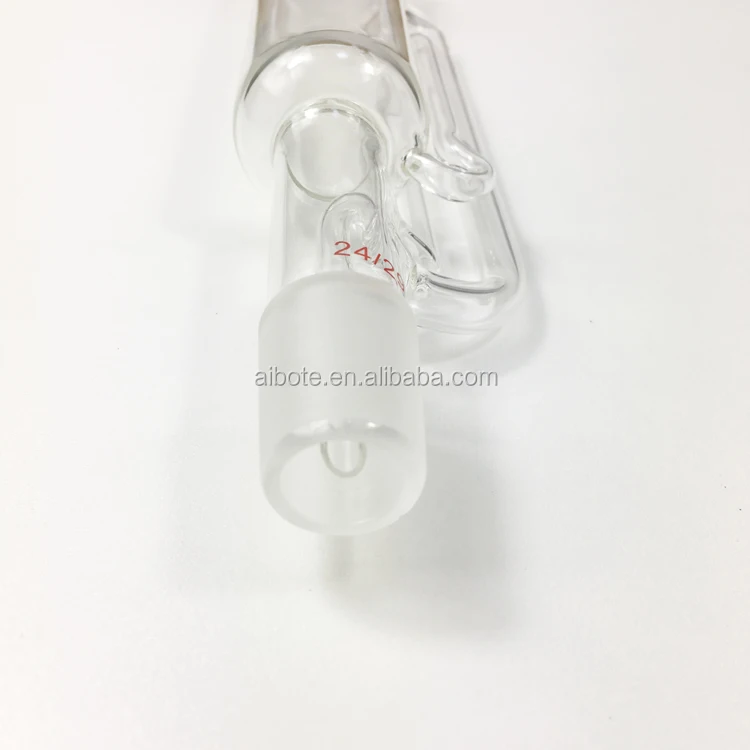

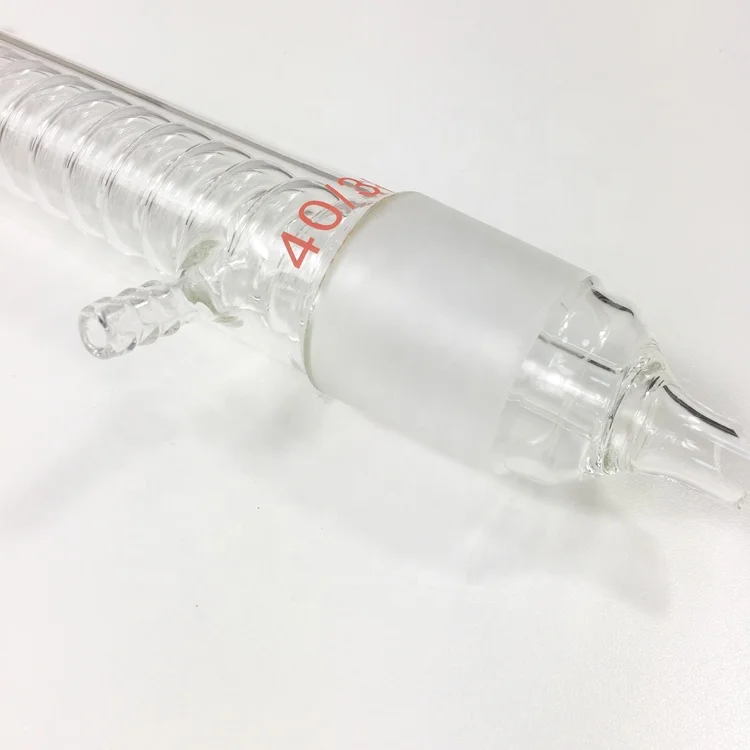

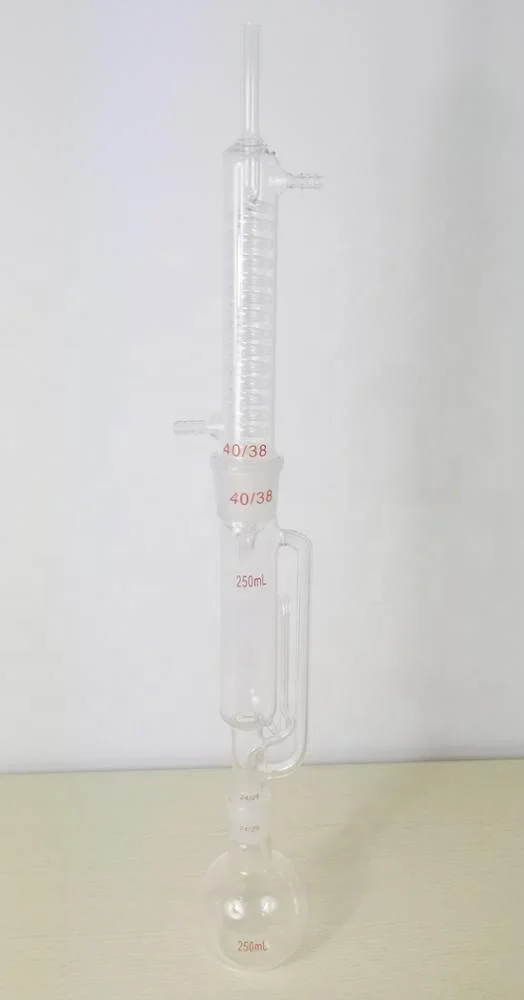

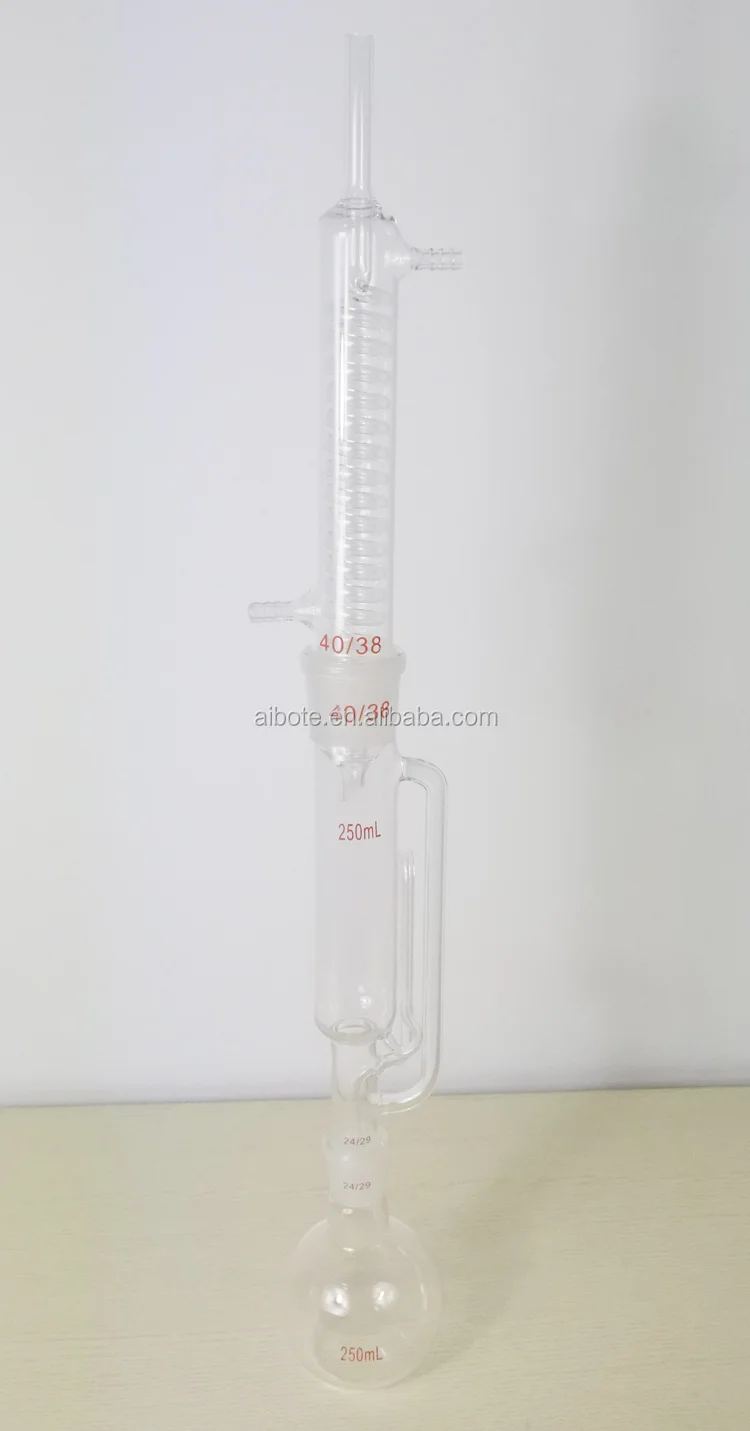

125ml lab Glass soxhlet extraction with condenser

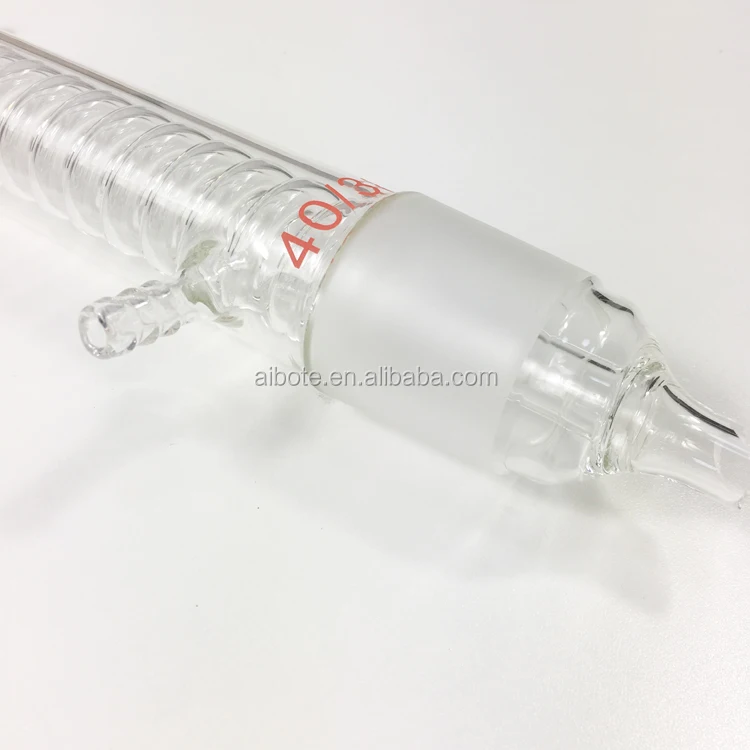

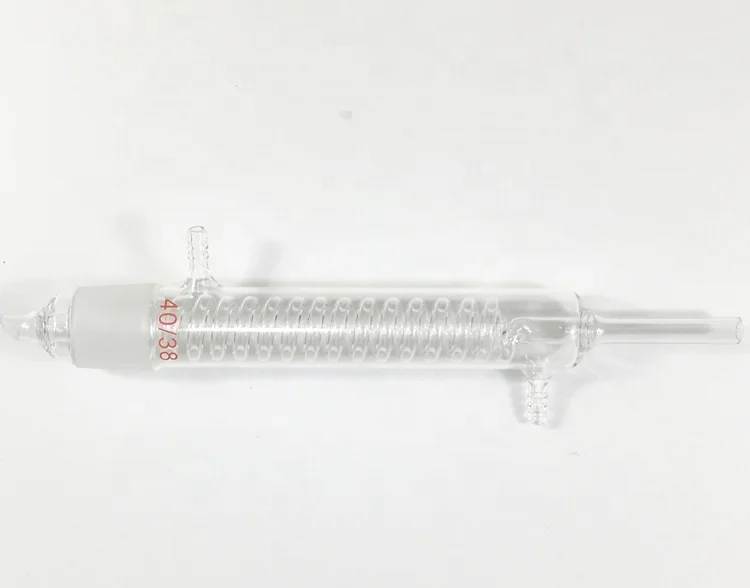

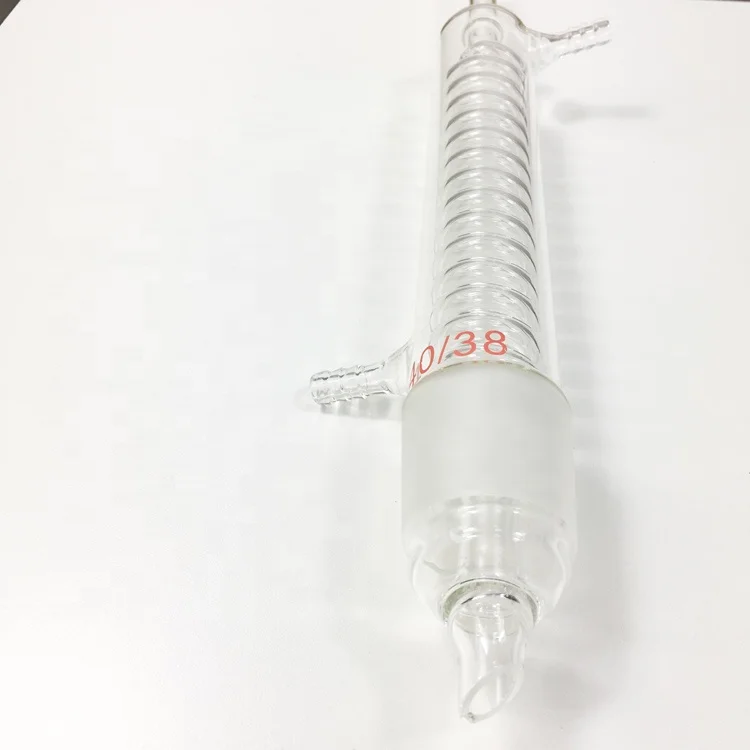

Soxhlet distillation extraction removes liquid phases (oil and brine) from core samples by virtue of a solvent vaporization and condensation process. The cleanliness of the sample is determined from the color of the solvent once it has permeated from the samples and condensed. The samples are placed in the extractor and cleaned by refluxing solvent. The solvent in this closed system is externally heated and vaporized continuously in a flask, flow through the samples in the extraction tube, condenses at the top of the assembly. The condensate falls back into the sample chamber. When the latter is full, the dirty solvent returns to the flask via a siphoning reflux sidearm located at the base of the sample chamber. Due to the difference in boiling point temperatures, only the solvent evaporates while the oil finds itself trapped in the flask. The apparatus consists of a distillation/extraction glassware unit and a heating mantle with thermostatic controller. The first comprises a boiling flask, soxhlet extractor and condenser. Flexible plastic tubing connects the condenser to the water cooling unit. The assembly is supported by a clamp screwed to a vertical rod, itself fixed to the heating mantle.

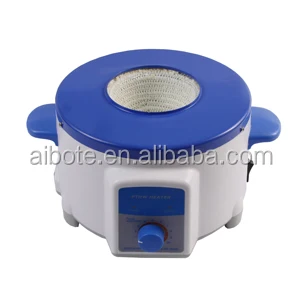

Can be used with below heating mantles :

Photos	Model	Capacity	Machine Power
	PTHW50 Analog heating mantle	50ml	110W
	PTHW100 analog heating mantle	100ml	130W
	PTHW250 analog heating mantle	250ml	170W
	PTHW500 Analog heating mantle	500ml	220W
	PTHW1000 , Analog heating mantle	1000ml	530W

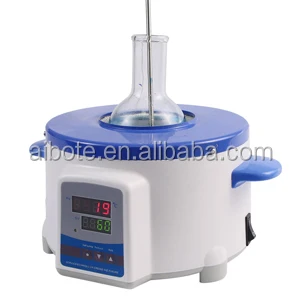

	ZNHW50  Digital Heating Mantle	50ml	110W
	ZHHW100 ,Digital heating mantle 100ml	100ml	130W
	ZNHW250,Digital heating mantle with controller 250ml	250ml	216W
	ZNHW500, Digital electric heating mantle with thermo probe  500ml	500ml	220W
	ZNHW1000 , Digital heating mantle without stirring  1000ml	1000ml	530W

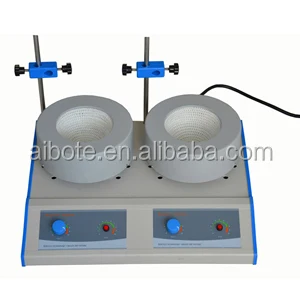

	PTHWDL250 , 2 position heating mantle 50ml	50ml	220W
	PTHWDL2100, 2 position heating mantle 100ml analog	100ml	260W
	PTHWDL2250,2 -position heating mantle 250ml analog	250ml	432W
	PTHWDL2500 , 2 place heating mantle 500ml with soxhlet extraction	500ml	440W
	PTHWDL21000 , 1ldigital heating mantle holder  , clip and clamp	1000ml	1060W

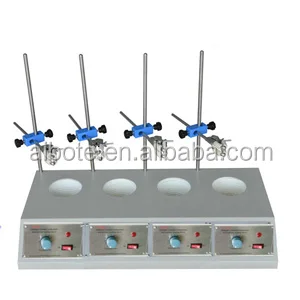

	PTHWDL450 50ml  analog 4 position heating mantle	50ml	440W
	PTHWDL4100, 100ml analog 4 places heating mantle with clip , stand ,clamp 4 pcs for each	100ml	520W
	PTHWDL4250 . 250ml analog  4  row heating mantles	250ml	864W
	PTHWDL4500. 500ml analog 4 -position heating mantle .	500ml	880W
	PTHWDL41000 , 1000ml analog heating mantle with temperature controller .	1000ml	2120W

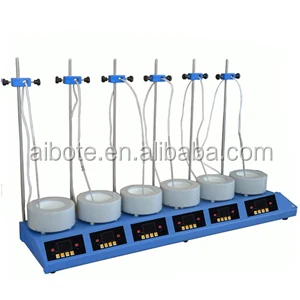

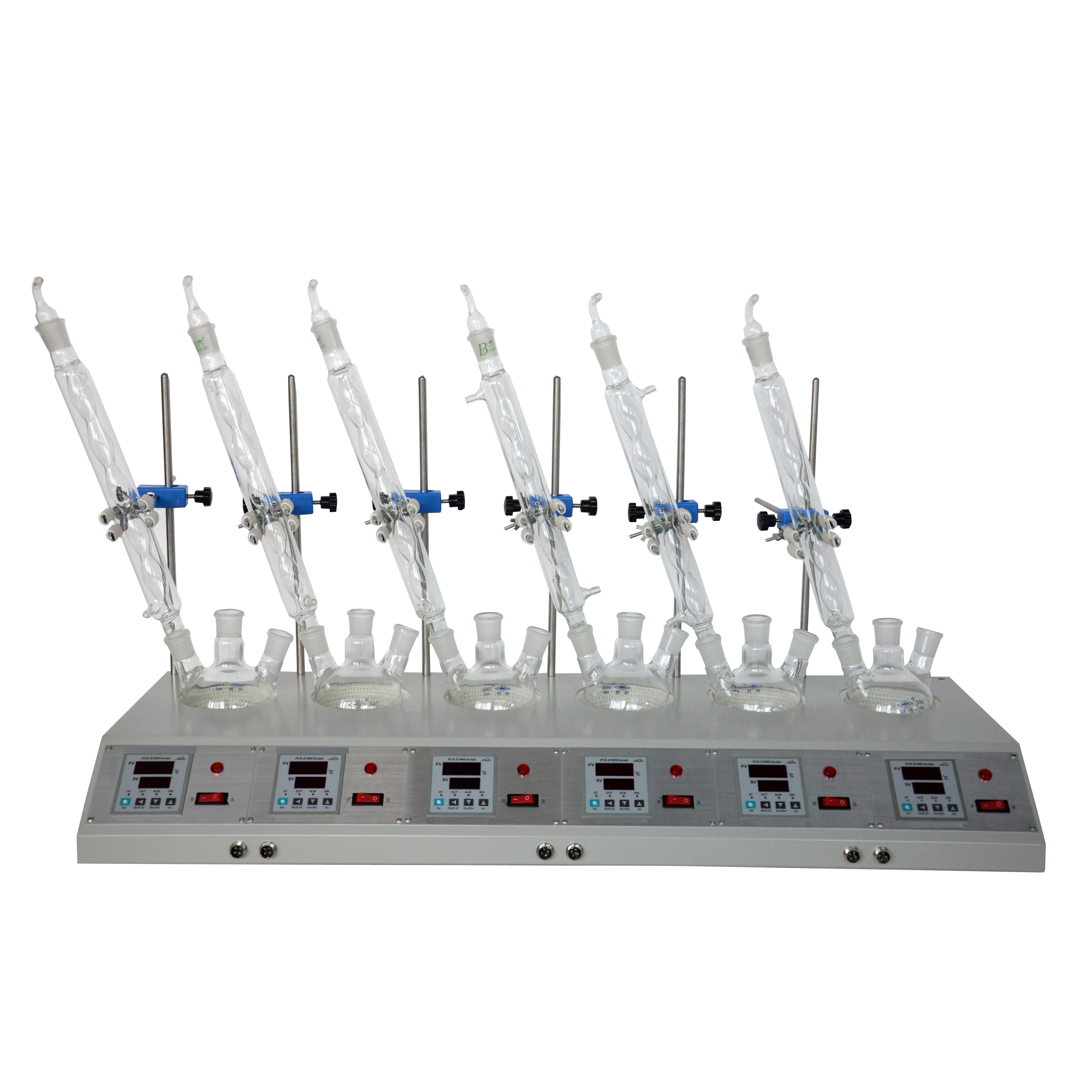

	ZNCLDL650, digital display stirring heating mate 6 row	50ml	660W
	ZNCLDL6100 , digital display  temperature controlled 6 position heating mantle 1000ml .	100ml	780W
	ZNCLDL6250 , 250ml digital  6 position heating mantle with controller	250ml	1296W
	ZNCLDL6500 , 500ml digital mantle  6 position ,can be  controller separately	500ml	1320W
	ZNCLDL61000 ,1000ml LCD display 6 places  heating mantle form manufacturer	1000ml	3180W
