Product Details

M-20 50a 60a 70a 80a 100a 96v 192v 216v 240v 384v AC DC Hybrid Mppt High Voltage Solar Charge Controller

Product Parameters

M-20 50a 60a 70a 80a 100a 96v 192v 216v 240v 384v AC DC Hybrid Mppt High Voltage Solar Charge Controller

\t
Galaxy-B192\\Galaxy-B216(220)
\\Galaxy-B240
\t
50A
\t
60A
\t
70A
\t
80A
\t
100A
\t



Product category
\t
Controller Properties
\t
MPPT (maximum power point tracking)
\t
MPPT Efficiency
\t
≥98%
\t
Heat-dissipating method
\t
Intelligent fan cooling
\t
System voltage
\t
DC192V\\DC216V(DC220V)\\DC240V
\t
Range of Videntification
\t
DC144V~DC256V\\DC162V~DC288V\\DC180V~DC320V
\t




Input
Characteristics
\t
Max.PV input voltage(VOC)
\t
DC430V
\t
DC660V
\t
Start the charge voltage point
\t
Vbat+20V
\t
Low input voltage protection point
\t
Vbat+10V
\t
Over voltage protection
\t
DC430V
\t
DC660V
\t


Rated PV power
\t

10400W
11700W
13000W
\t

12480W
14040W
15600W
\t

14560W
15600W
18200W
\t

16640W
18720W
20800W
\t

20800W23400W26000W
\t
Start the charge voltage point
\t
Battery voltage + 3V
\t
Low input voltage protection point
\t
Battery voltage + 2V
\t

LOAD Characteristics
\t
Load voltage
\t
The same as the battery voltage
\t
Load rated current
\t
50A
\t
60A
\t
-
\t
Load control mode
\t
On\\Off mode, PV voltage control mode, Dual-time control mode, PV + Time control mode
\t
Display
& Communication
\t
Display mode
\t
LCD128*64 dots/ backlight display
\t
Communication mode
\t
8-pin RJ45 port/RS485/support PC software monitoring/
support WiFi module to realize APP cloud monitoring
\t




Other Parameters
\t

Protect function
\t
Input-output over \\ under voltage protection, Prevention of connection reverse protection etc.
\t
Operation Temperature
\t
-20℃~+50℃
\t
Storage Temperature
\t
-40℃~+75℃
\t
IP(Ingress protection)
\t
IP21
\t
Net Weight (kg)
\t
14.7
\t
18.8
\t
Gross Weight (kg)
\t
16.6
\t
20.6
\t
Product Size(mm)
\t
371*500*187
\t
391*500*227
\t
Packing Size(mm)
\t
590*420*270
\t
590*440*320
Product Introduction

AC DC Hybrid Mppt High Voltage Solar Charge Controller

1.It has an efficient MPPT algorithm, MPPT efficiency ≥99.5%,and converter efficiency up to 98%.

2.Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.

3.Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control .

4.Three kinds of commonly used lead-acid battery (Seal\\Gel\\Flooded) parameter settings fcan be selected by the user, and the user can also customize the parameters for other battery charging.

5.It has a current limiting charging function. When the power of PV is too large, the controller automatically keeps the charging power, and the charging current will not exceed the rated value.

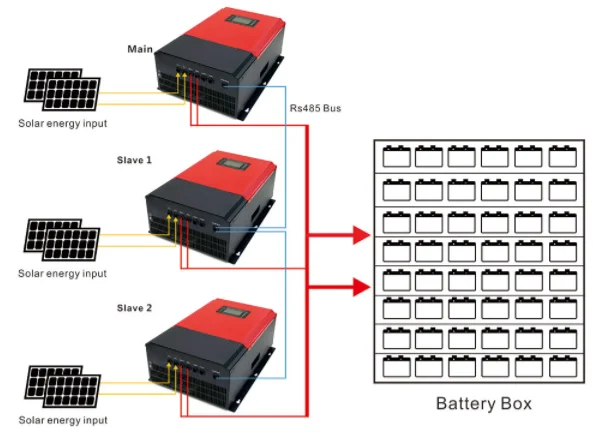

6.Support multi - machine parallel to realize system power upgrade.

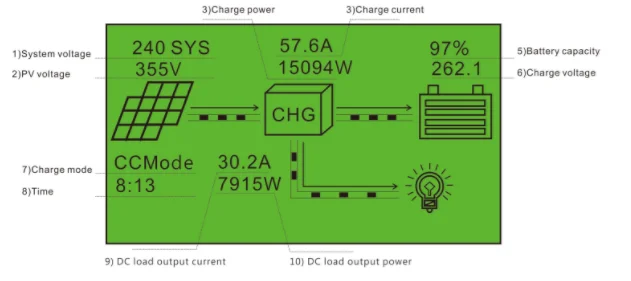

7.High definition LCD display function to check the device running data and working status, also can support modify the controller display parameter.

8.RS485 communication, we can offer communication protocol to convenient user's integrated management and secondary development.

9.Support PC software monitoring and WiFi module to realize APP cloud monitoring.

10.CE, RoHS, FCC certifications approved, we can assist clients to pass various certifications.

11.3 years warranty, and 3~10 years extended warranty service also can be provided.

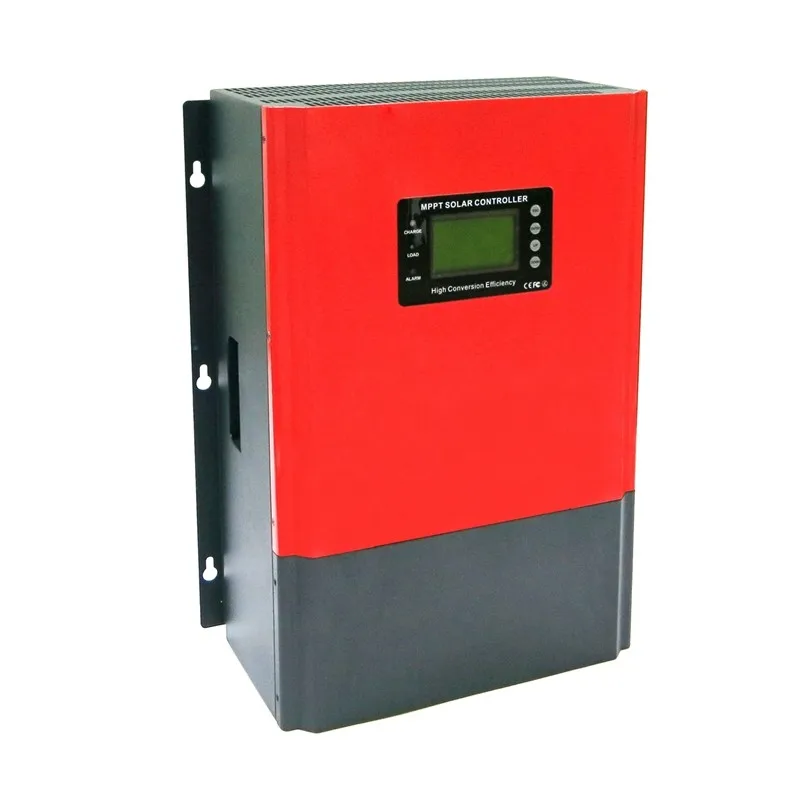

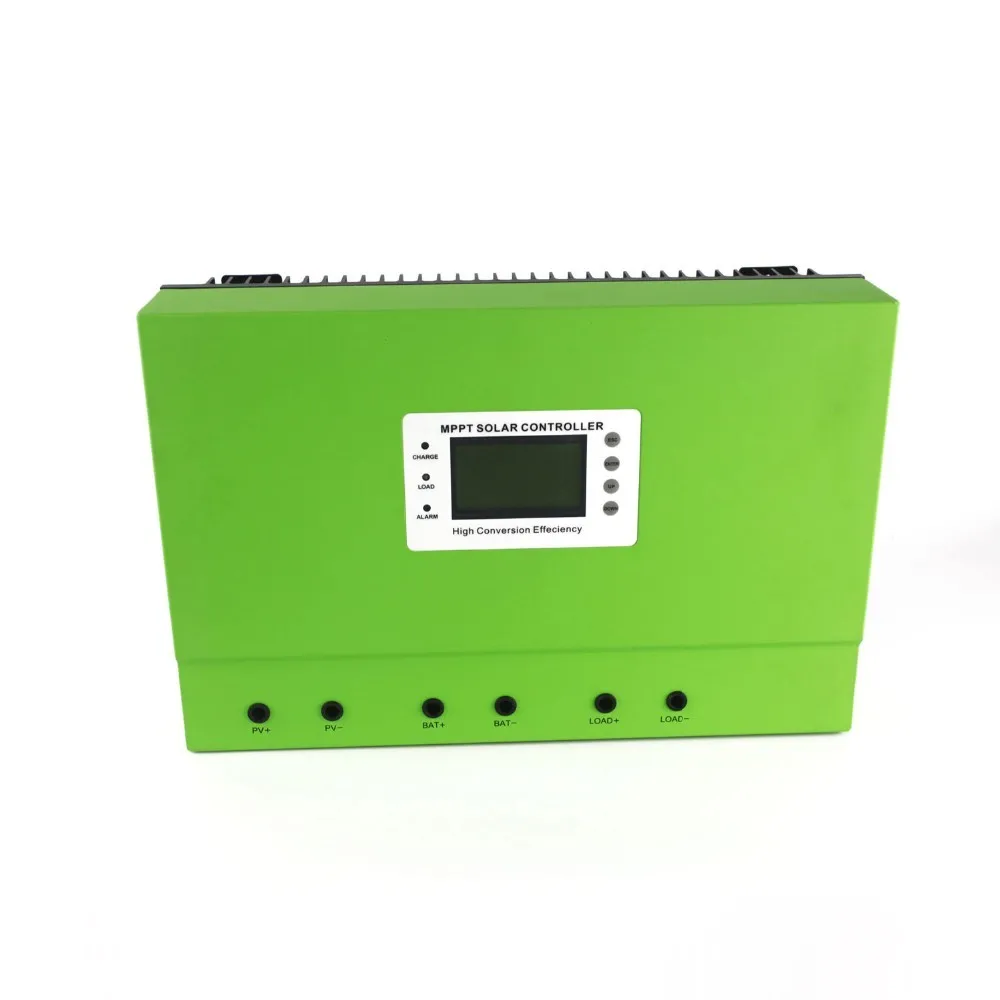

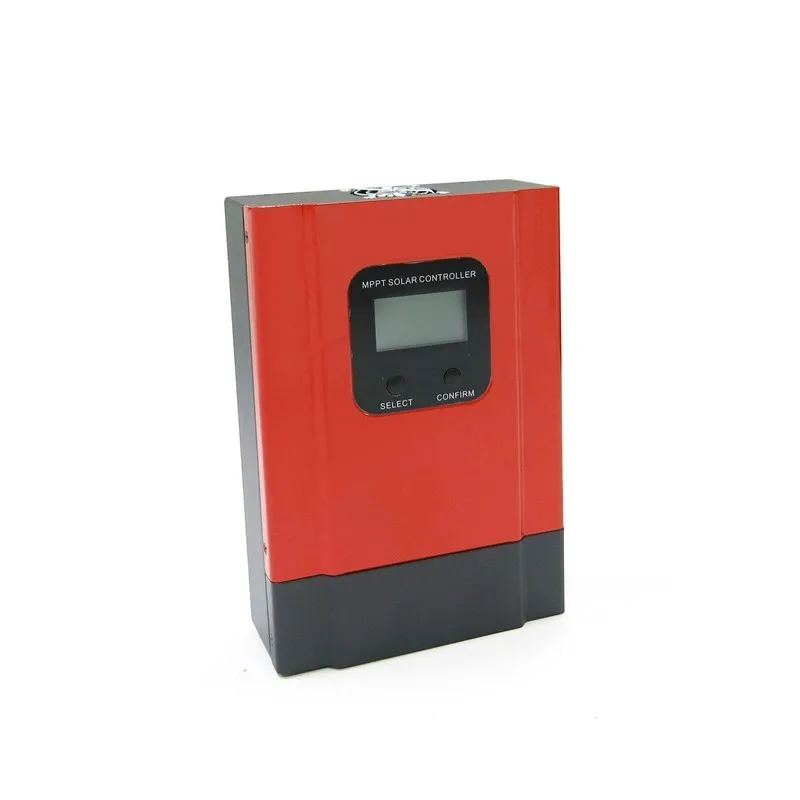

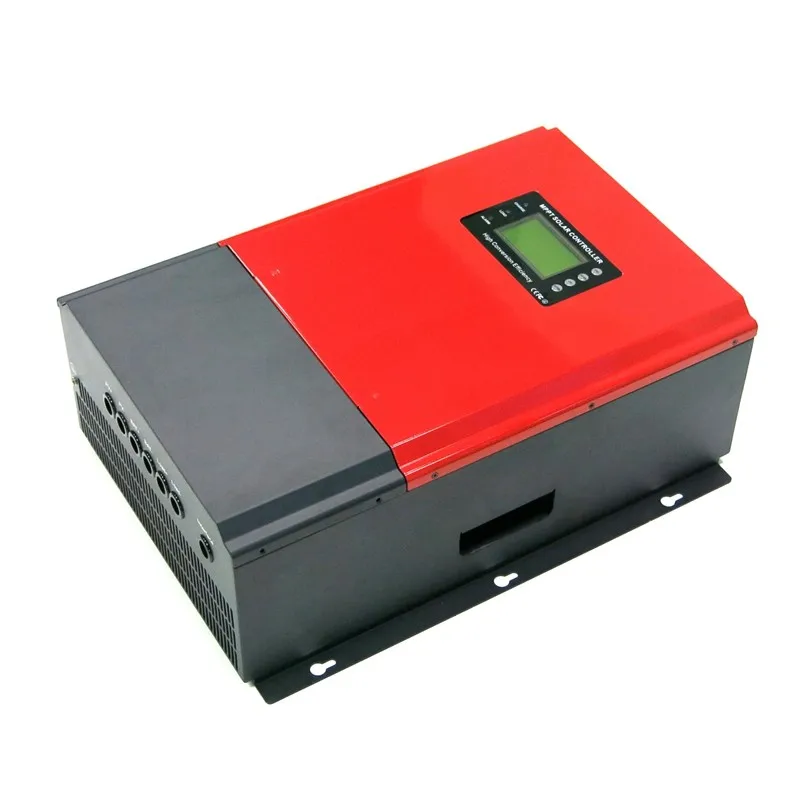

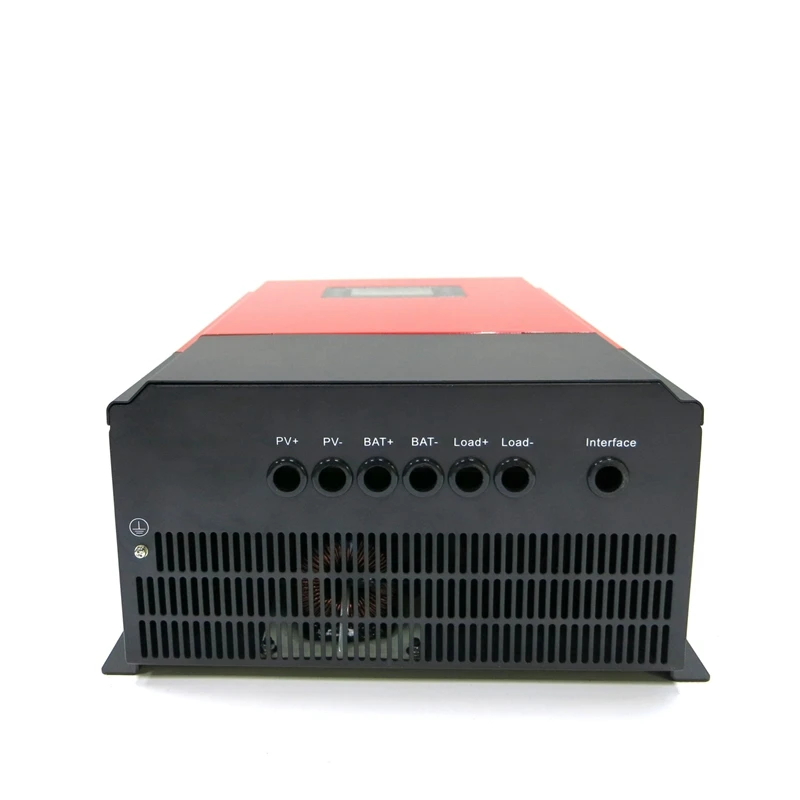

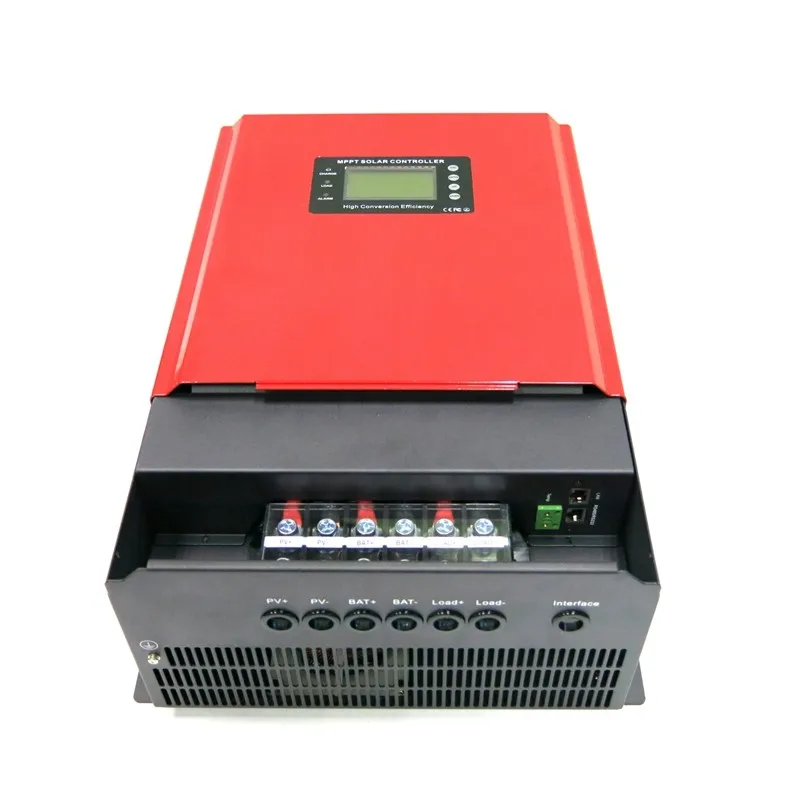

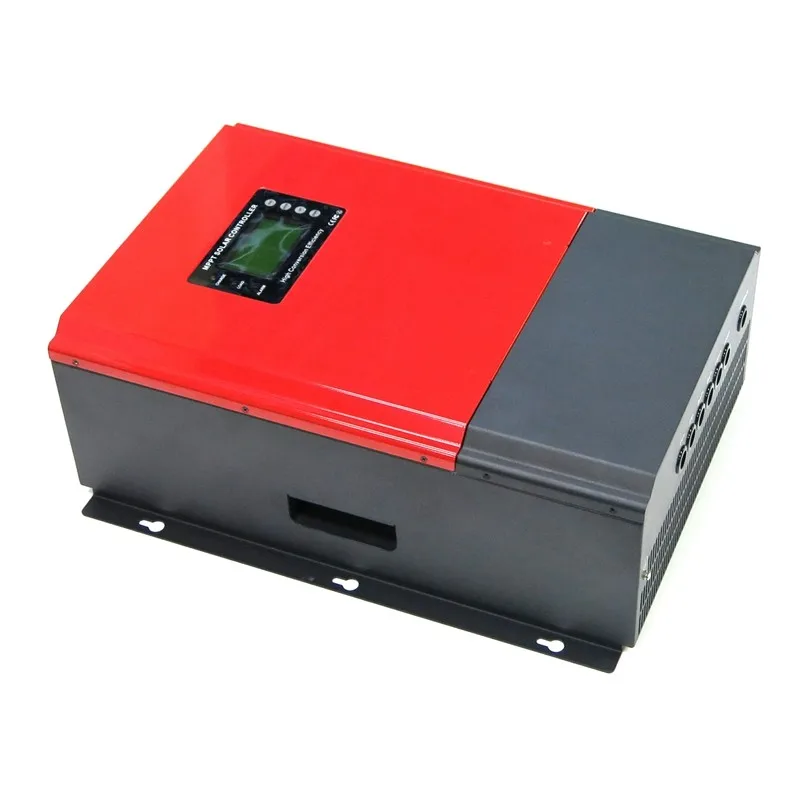

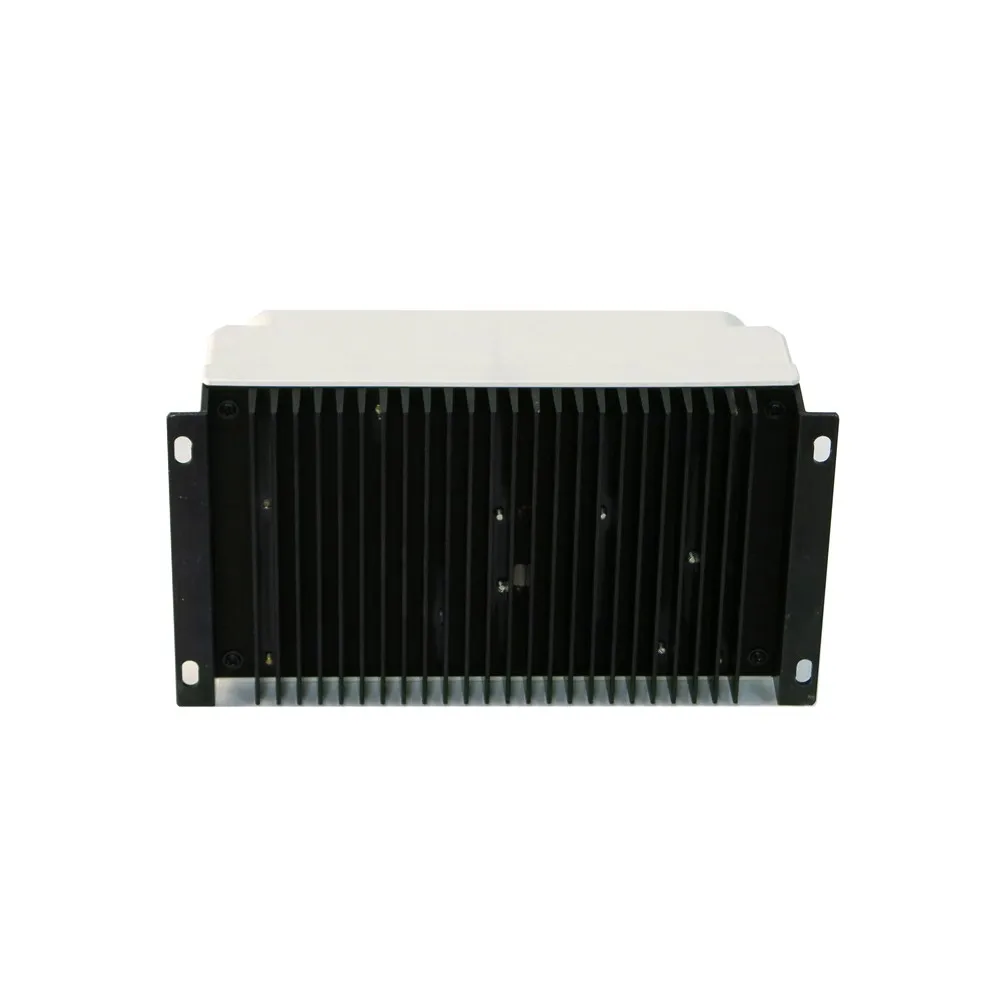

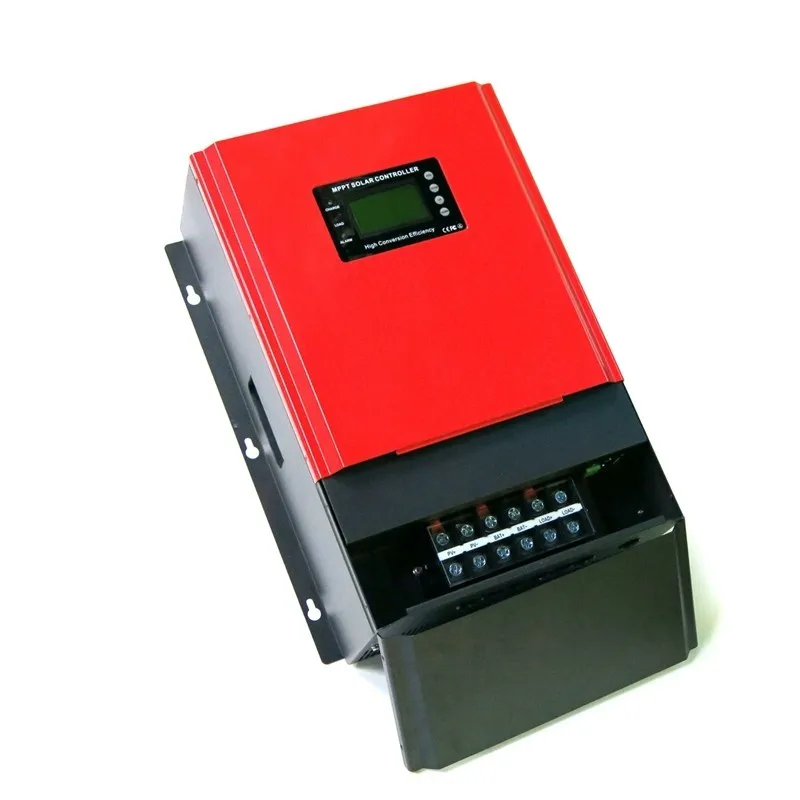

Product Details Show

M-20 50a 60a 70a 80a 100a 96v 192v 216v 240v 384v AC DC Hybrid Mppt High Voltage Solar Charge Controller

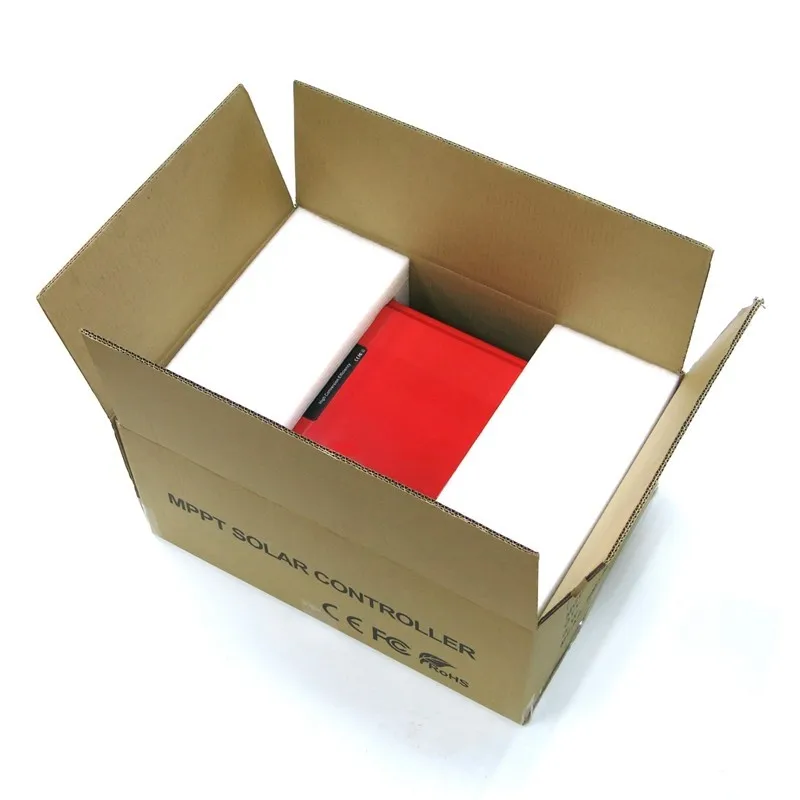

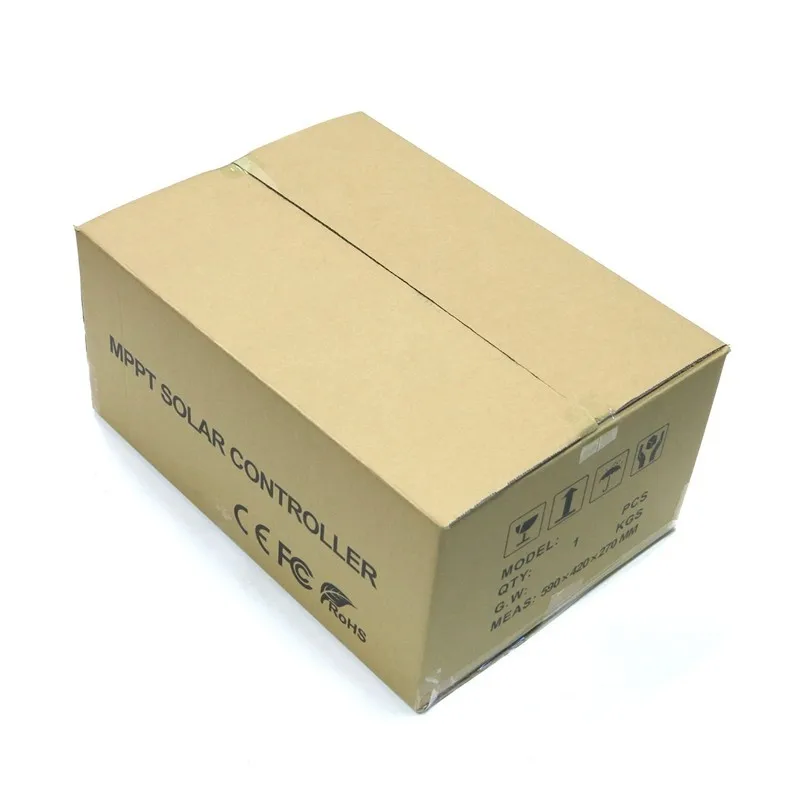

Product Packing

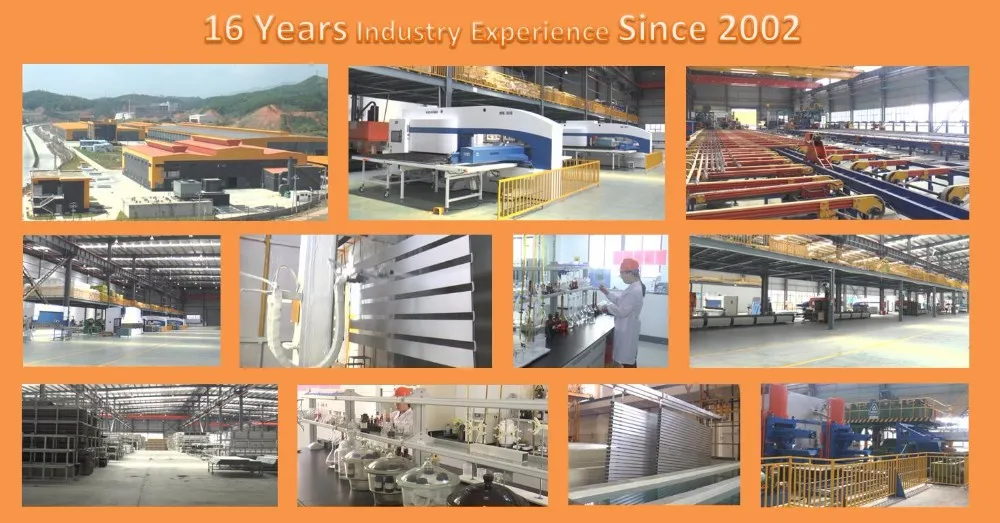

Our Company

SoEasy (XiaMen) PhotovoltaicTechnology Co.,Ltd are experience solar panel system based in Fujian China.
We have carried out a large number and wide variety of commercial solar pv systems.
Typical business clients include:Industrial & Commercial buildings, Warehouses, Care homes, Small businesses, Home businesses.
We have helped a number of businesses cut their energy bills significantly and bring in an additional income stream through the feed-in tariffs.We also work with a number of businesses in the building trade providing expert advising and helping to specify the best solar panel systems for their specific projects.
Types of business we have often partnered with in the past include:Architects, Building Contractors, Sustainable Building Consultants, Electricians, Roofers
We pride ourselves on the high quality of our workmanship and we only use premium quality, carefully selected products. With our in-roof frames and black panels we design and install beautiful solar panel systems.

Main Products

AC DC Hybrid Mppt High Voltage Solar Charge Controller
