0.5-20L Glass tank bioreactor/fermenter
Main Introduction
Rotech has been engaged in the research, development, design and manufacture of bioreactors for more than 20 years.which is engaged in R&D, design, manufacturing, installation, commissioning and technical services of various microorganisms, plant cells and animal cell reactors (fermenters); providing customers with turnkey projects like fermentative biological projects that meet GMP requirements.
Application: human vaccines, veterinary vaccines, monoclonal antibodies, recombinant proteins, cell therapy, new drug development and production, etc.
Fermenters/Reactor specifications: 0.5L-20L.
Main description

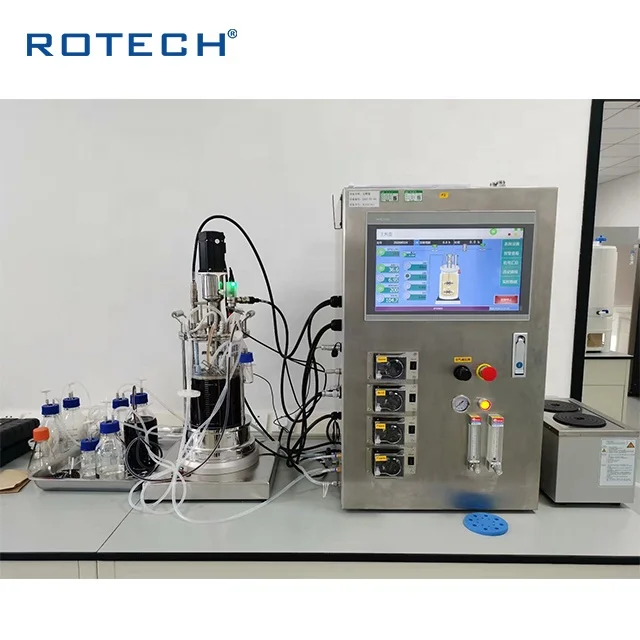

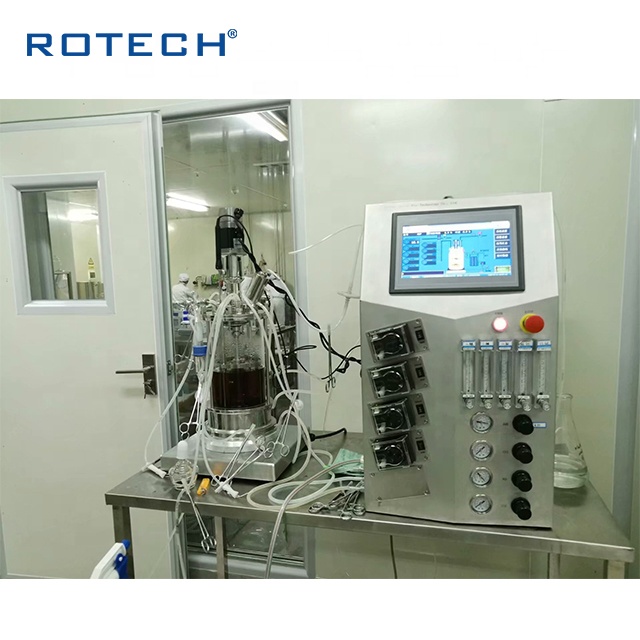

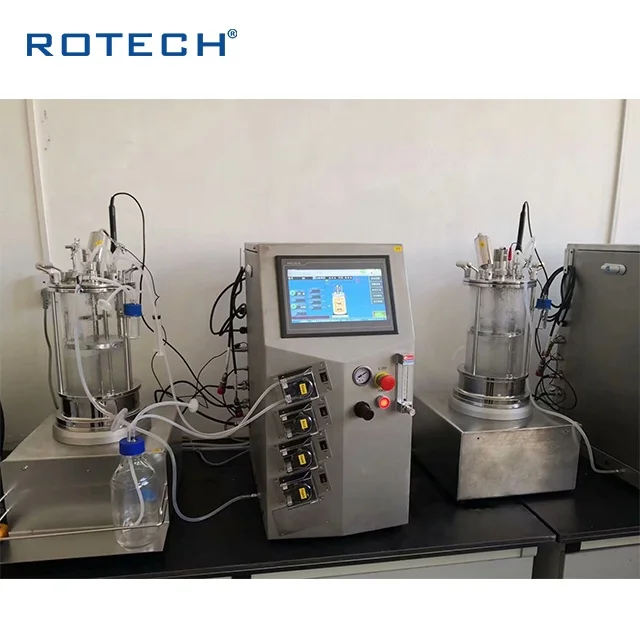

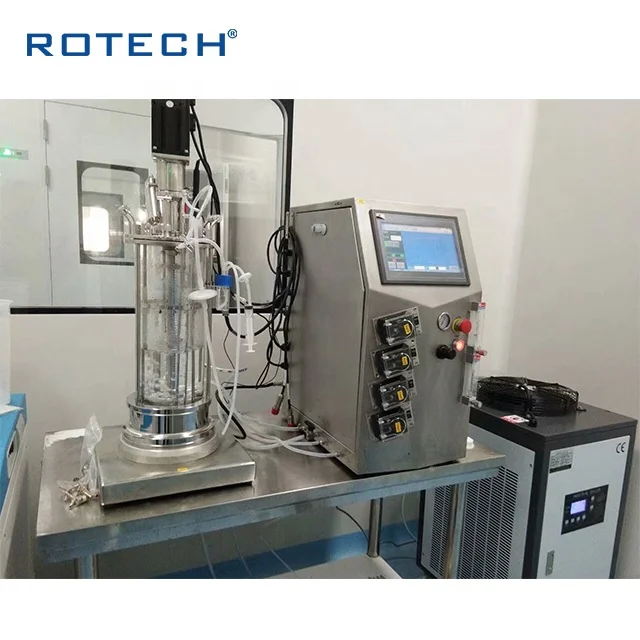

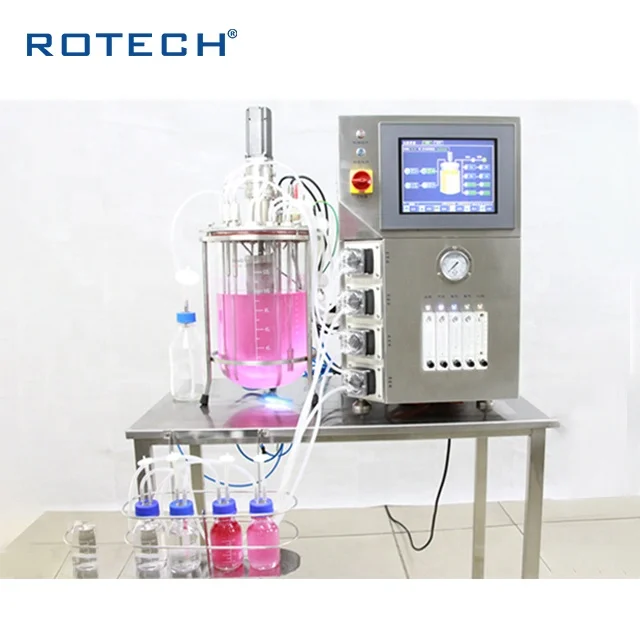

Desktop glass fermenter is integrated design, complete equipment installed on a small stainless steel platform, easy to move and repair. Equipment refined, beautiful can compare with imported equipment. Fermenter has three major component, tank, temperature control of thermostatic bath and control system. Tank composed by borosilicate glass tube and imported SUS316L stainless steel. Borosilicate glass can bare high temperature, anti acid/alkali, corrosion resistant.
The bottom of the tube is stainless steel semisphere design, easy cleaning, fast heat transfer, etc. Both side of glass tube with safety devices,keep glass never damaged. Polished stainless steel inside precision Ra≤0.4, outside polished precision Ra≤0.6, with material contact parts made of imported SUS316L, the rest is stainless steel SUS304, equipment design, manufacture in accordance with GMP standards.
Technical paramaters
Nominal volume | 0.5 / 0.7 / 1/2/3/5/7/10/15 liters |
Diameter to height ratio | 1:2~3 |
Liquid filling factor | 70% |
Tank body | High temperature resistant, corrosion resistant silicon boron glass tank body, 316L stainless steel tank cover, bottom and temperature control jacket, which conform to the fermentation process, mechanical seal, air inlet sterilization filter, exhaust condenser |
Ventilation | Rotameter display, adjust gas flow according to process requirements |
Sterilization | Off-site sterilization of sterilization pot |
Control system | German Siemens |
Stirring speed | 50~1000rpm stepless speed; accuracy: ±1rpm |
PH control | Range 2~12ph; control accuracy: ±0.02ph, resolution: 0.01ph |
DO control | Can be associated with rotate speed; range: 0~100%, control accuracy: ±3%; resolution: 0.1%; |
Temperature control | The large-area stainless steel jacket ensures sufficient heat exchange and sterilization, and the cooling water temperature is +5~55℃; accuracy: ±0.1℃; resolution: 0.1℃; |
Foam control | Electrode detection, peristaltic |
Pump supplement defoamer | Automatic control |
Ventilation | Manual adjustment, flow meter display |
Tank pressure | Manual adjustment, pressure gauge display; range: 0~0.20Mpa |
Optional function | |
A: Tank weighing | |
B: Weighing with replenishing balance | |
C: Automatic control of air flow | |
D: Online detection and control of methyl alcohol content | |
E: Bypass pure oxygen | |
F: Online detection of redox potential | |
G: Tank pressure detection | |
H: Online detection of O2 and CO2 content in tail gas | |
I: Automatic tank cleaning function | |
J: Automatic sterilization function | |
K: Tank cover automatic lifting function | |
