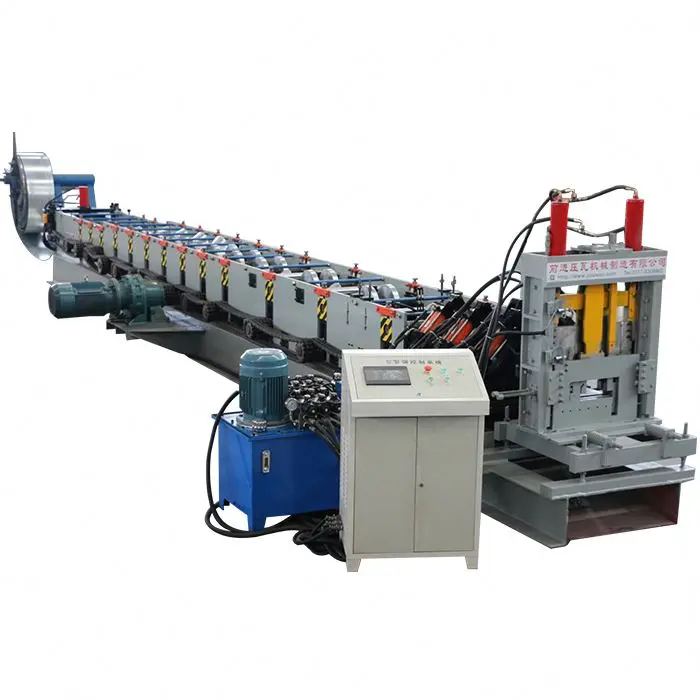

Botou Steel Metal c Purlin Frame Profile Roll Forming Machine













Product Description

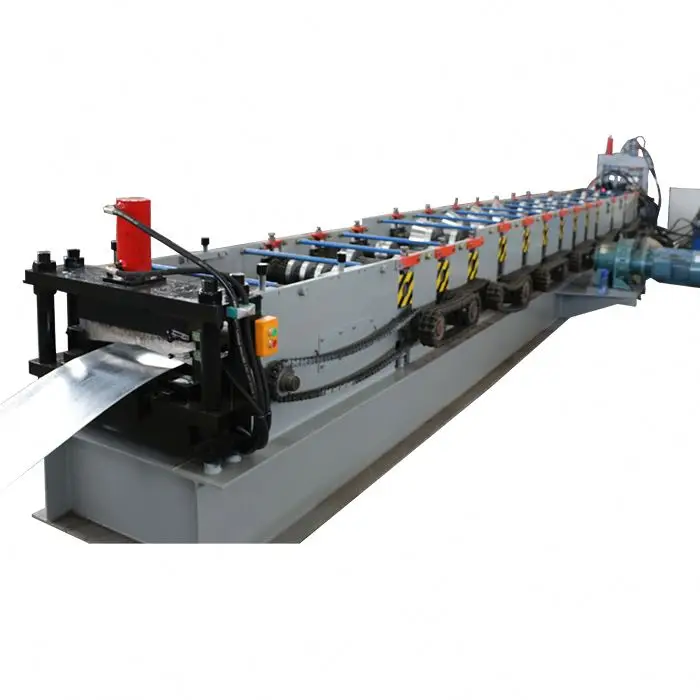

Roll Forming Machine Specs

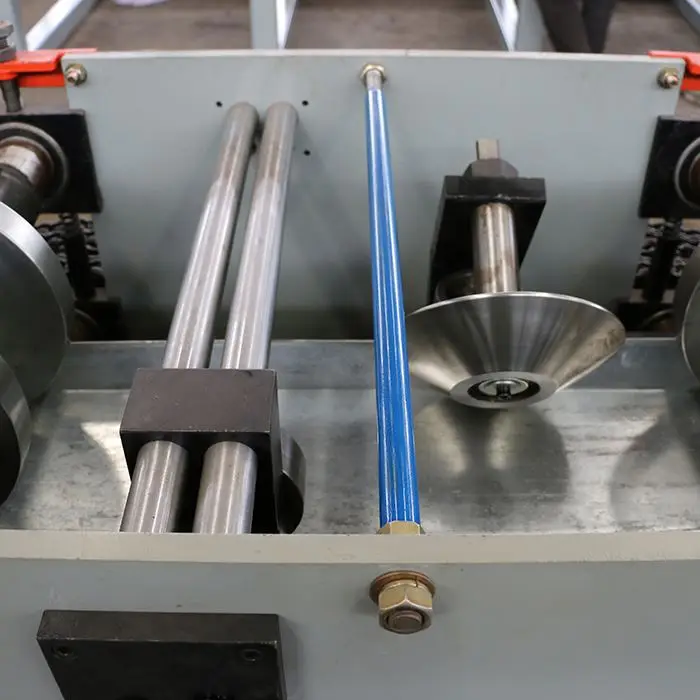

Guiding Rollers



Two units 45# forging steel with treatment

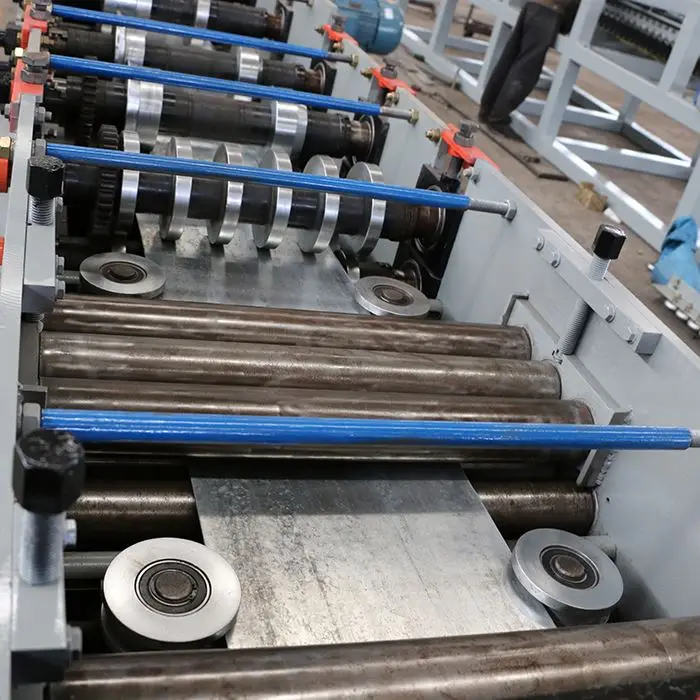

Leveling Rollers



Up 2 down 3, 45# forging steel with treatment

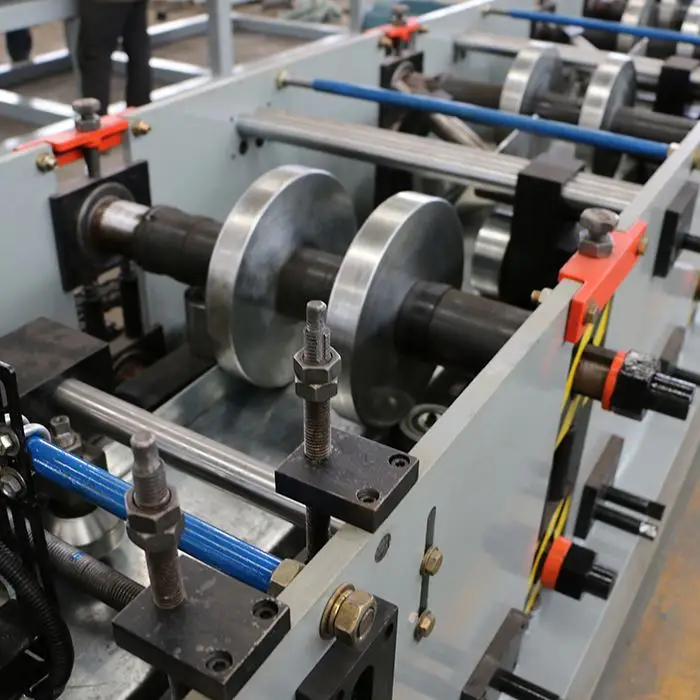

Roller station



13 forming units



Under Frame



350H-beam, Welded structure



Sidewall Thickness



18mm 45# Steel Plate



Sidewall Connect Bar



25mm



Shaft diameter(Solid)



70mm-0.01~-0.03(with key-way)



Shaft material(Hard)



High grade 45# steel,heated and quenched cylindrical grinding,



Roller material(Hard)



High grade GCr15 bearing steel,heated and quenched



Roller Surface



hard chrome coated 0.05mm



Bearing Type



Standard 6210



Screw&Bolt



Self-made



Transmission Chain



1.5 inch(Jindun,Hangzhou)



Motor Power



11 KW(Lichao,Shanghai)



Forming Speed



12-15m/min



Hydraulic Punching Device



Hole size



15mm

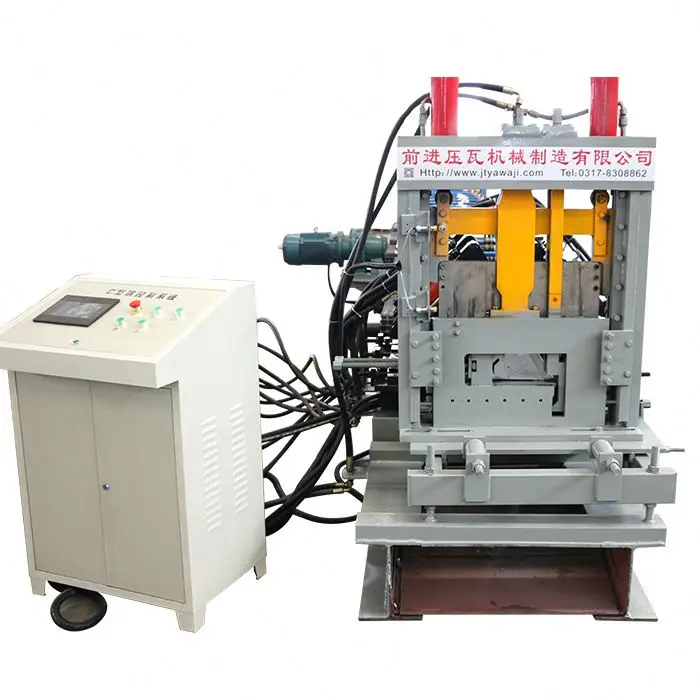

Hydraulic Cutting Device Specs



Main Structure



Welded Structural Steel



Steel Plate



18mm A3 Steel



Cutting type



Hydraulic Operation,Stop to post and post to cut



Cylinder Quantity



One unit



Pump power



5.5KW,25 Mpa Hydraulic Pressure



Cutting die



Cr12Mov, Quenched processed



Automatic Computer Control System



Length tolerance



10m+/-1.5mm



PLC System



Delta PLC Program



Length Controller



Omron,Japan



Operation



Touch-Win Screen,Jiangsu



Inverter



Delta,Taiwan



Voltage Standard



220V/3Phases/60Hz



3 Ton Manual Uncoiler


Link-connect expanding system



Coil Inner-diameter



480-510mm



Coil Outer-diameter



Max. 1000mm



Load Capacity



Max. 3 Tons



Coil Width



Max. 650mm







Operation Flow








  • Main Components:













Product Categories


















Trade Shows












Company Information






Sale Terms



  • Payment Method


30% as deposit ,balance payment after inspection while before delivery.



  • Production Period


30 days after the 30% deposit.



  • Packing Method


Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.



  • After-sell Service


In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.



  • Installation


 If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.


 Position the machine in the buyer’s factory.


 Prepare necessary electric wiring.


 Prepare material of trial running.


 Provide labors for assistance and installation during installation.





Packaging & Shipping






FAQ


Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.


After we get down payment, we will arrange production. About 30-45 days for delivery.


Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.


Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts
 replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.


Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.


Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
       2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
