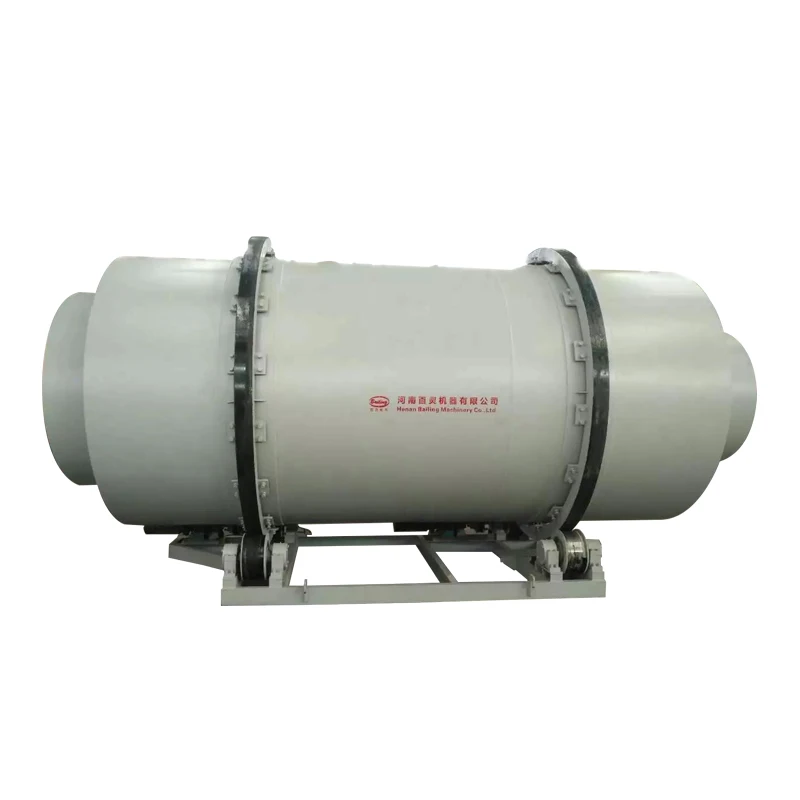

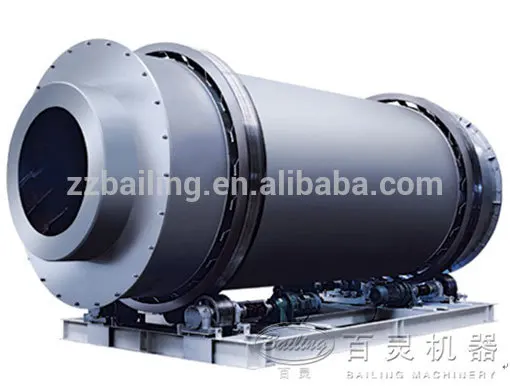

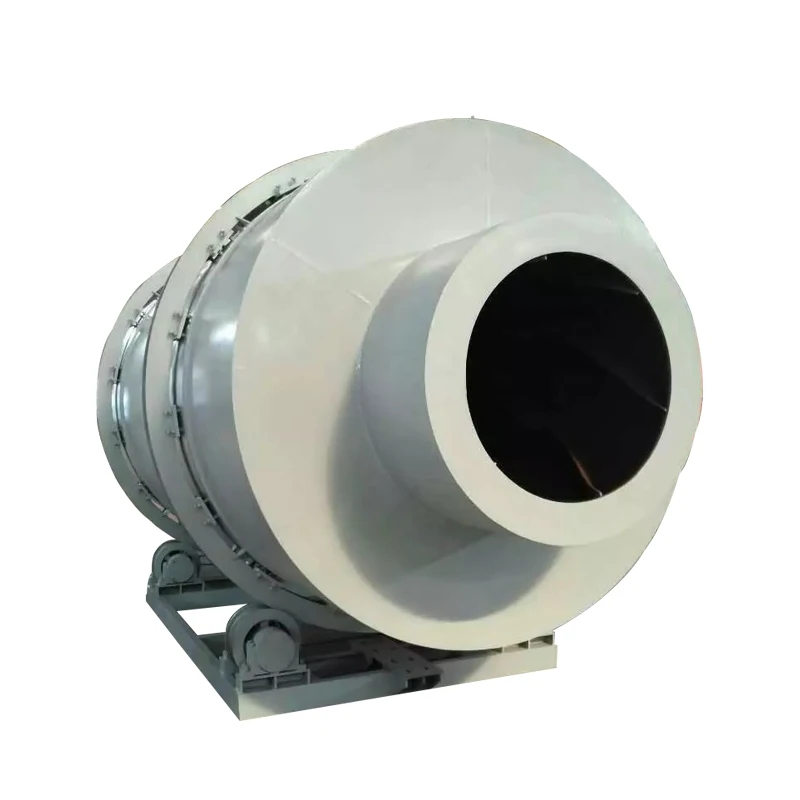

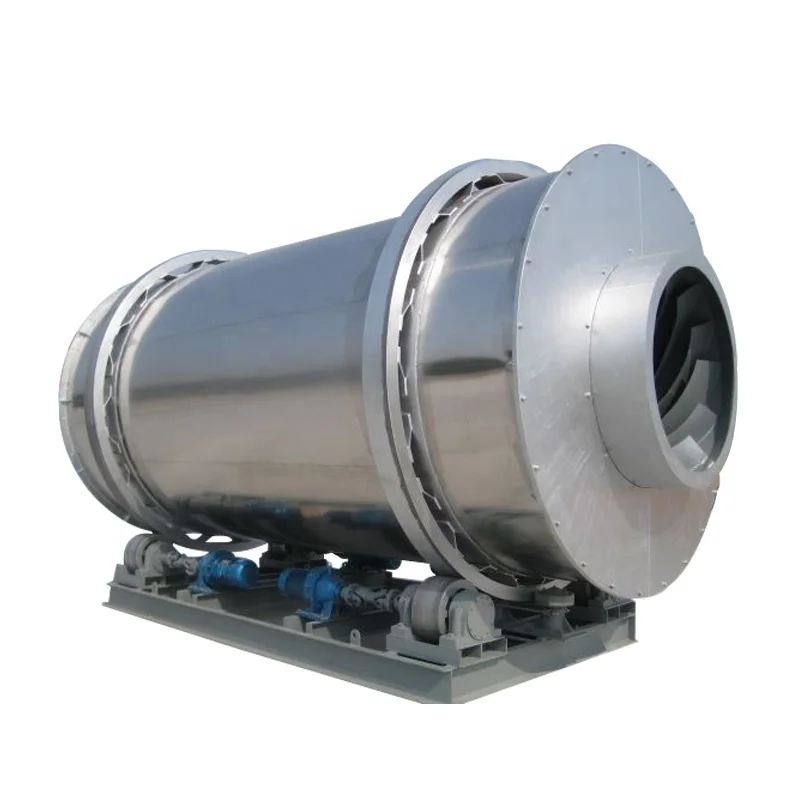

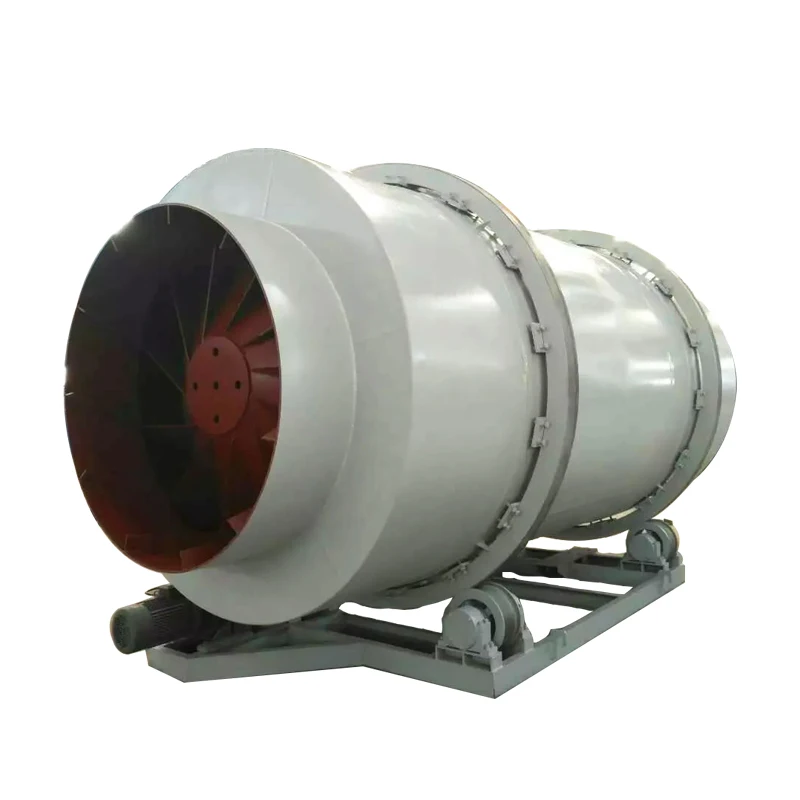

Промышленная трехцилиндровая глиняная Роторная сушилка, сделано в Китае

The Bailing three cylinder clay rotary dryer has a compact structure and reasonable layout, and improves the heat exchange rate between materials and heat. The material entering the dryer is preferably a non-stick wall and a lifting plate. The temperature of the gas entering the heat exchange in the dryer should not be higher than 750 °C. If there is special requirement for high temperature drying, the inner tube inlet of the dryer and the lifting plate can be made of heat-resistant steel.

⌈ Feed moisture ⌋:≤50%

⌈ Production capacity ⌋:1.9-115 t/h

⌈ Applicable material ⌋:It is mainly used for drying granular materials in a certain humidity and particle size range such as yellow sand, cement slag, clay, coal gangue, mixture, clay, gypsum and iron powder. According to the requirements of different industries for the final moisture content of the dried materials, the moisture content of the dried materials can reach 1 to 0.5%.

Clay dryer principle:

The clay enters the inner layer of the rotary drum of the three cylinder clay rotary dryer through the feeding device to achieve downstream drying. The materials are continuously picked up and scattered under the copying board in the inner layer and spirally conveyed to achieve heat exchange. The material is moved to the inner layer. The other end enters the middle layer and is countercurrently dried. clay is repeatedly raised in the middle layer, and it is a two-step backward travel mode. In the middle layer, clay fully absorbs the heat emitted by the inner drum and absorbs the middle drum. The heat, at the same time, prolongs the drying time, and the clay achieves the best dry state here.

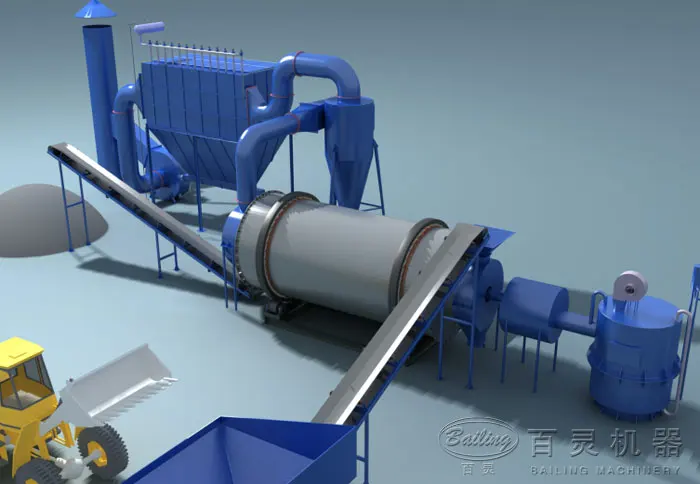

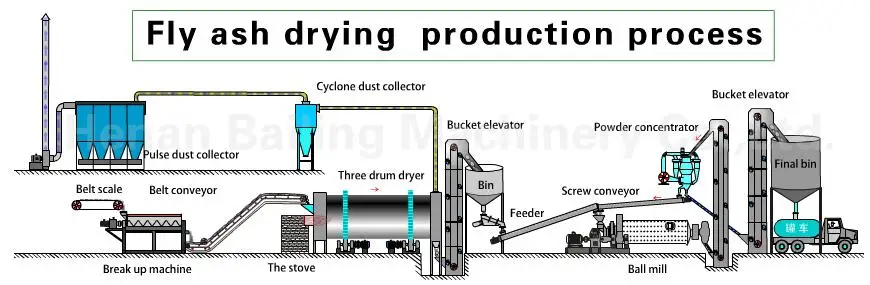

In the engineering application, Bailing three cylinder clay rotary dryer should be combined with other equipment to form a drying system. Different materials are different in configuration equipment. Our common drying system is equipped with gas generator, combustion chamber or supporting hoist, belt conveyor, dosing machine, dust collector and induced draft fan.

1.Good raw materials
Domestic high quality raw materials are used on key components, and the motors are made by famous domestic manufacturers.

2.High environmental protection
The multi-stage dust removal method is adopted, and the exhaust gas is cleanly discharged, which fully meets the requirements of national environmental protection standards.

3.Low energy consumption
Reasonable operating parameters are selected for the dryer in our factory. The coal consumption and electricity consumption are reduced by 20-30% compared with the general dryer.

4.Less wearing parts
Both the idler and the ring gear are modern heat treatment processes with a replacement cycle of 5000 hours.

5.Full automation
The whole production process only needs one person to supervise, and the finished products are packaged and stored directly.

6.High production capacity
The output increased by more than 20%, which has been widely used in cement and mineral processing enterprises.

Q: 1.Are you factory or trade company?

A:We are factory.

Q: 2. To which country your products have been exported before?

A: Our products have been sold to America, Brazil, Chile, Sudan, Zambia, Kenya,Turkey, Indonesia,Malaysia, Philipines, Australia, Iran, India and so on.

Q: 3. How will you help the customer install the equipment?

A: Our senior engineer will guide the installation and commissioning as well as the initial production at

Q: 4. How about the wear parts supply?

A: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.

Q: 5.What about the payment method?

A:T/T, Paypal, Western Union, L/C is available

Q: 6.What about the Shipment?

A:We'll choose proper transportation mode based on the weight of goods, usually arrange shipment such as DHL,FEDEX,TNT or UPS.

Q: 7.What about after-sale service?

A:12 months warranty for all kinds of products;
