Высокоскоростной цилиндрический сепаратор-центрифуга для осветления масла, разделения фруктового сока, жидкости, твердой пищевой промышленности

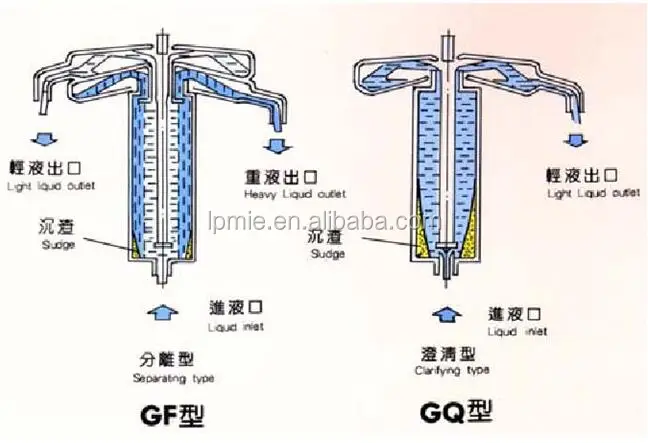

This kind of separator is consisted of main body, driving device, bowl, collecting pan and liquid-in bearing seats. The upper part of the bowl is flexible mainshaft and the lower part of the bowl is damp floating bearing. The mainshaft connected with a driven wheel by the buffer coupling seat, power transmitted by the motor to the drive wheel through the transmission belt and the tensioner to make the bowl rotate around its own axis at a high speed therefore it forms a strong centrifugal force field. The product sprays into the liquid inlet by the bottom liquid inlet; liquid is forced by centrifuge force to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.

GF/GQ Model Tubular Separatoris used for separating various emulsion, especially for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as transformer oil, turbine oil, lubricant, fuel oil, dye, fat, sapnificatio and various micropowder and for purifying span-80 liquid separating various oral liquid and medical liquid and "920" and plasma and biologic medicine, extracting plasma from animals' blood, refining phosphatide of bean, etc. and treating sewage and separating oil and water.

Type GQ separator is used for separation of various suspension which is difficult to be separated especially for separation of solid-liquid suspension which has low concentration, high viscosity, small granularity and very small difference of solid-liquid gravity, such as clarification of various oral liquid, desludgemetn of coal tar and graphite, extraction of protein, seaweed and jelly, refinement molasses, separation of blood and settlement of vaccine hypha and various dextroses and purifying paint, dye, various resin and rubber solution molasses and refinement or vegetable oil.

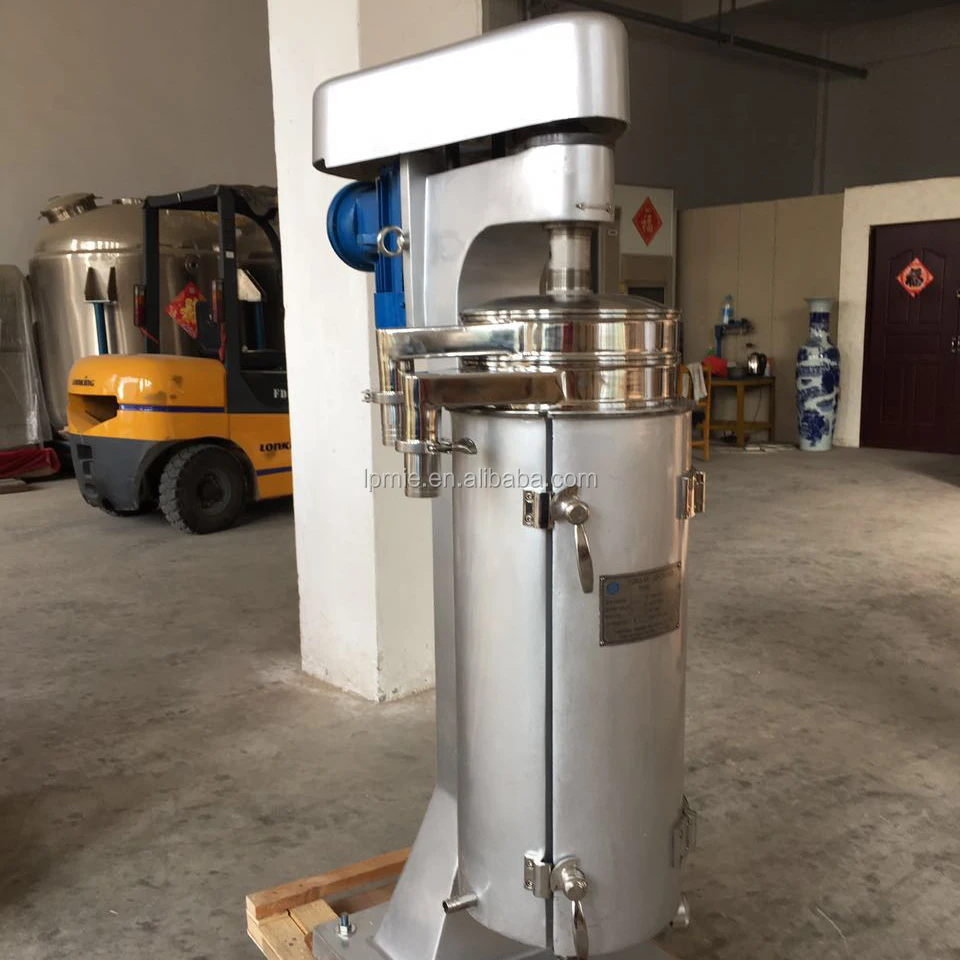

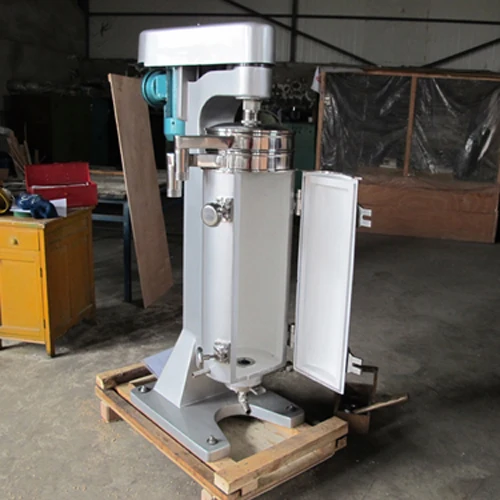

Tubular Centrifuge Separator GF Type ( Front View)

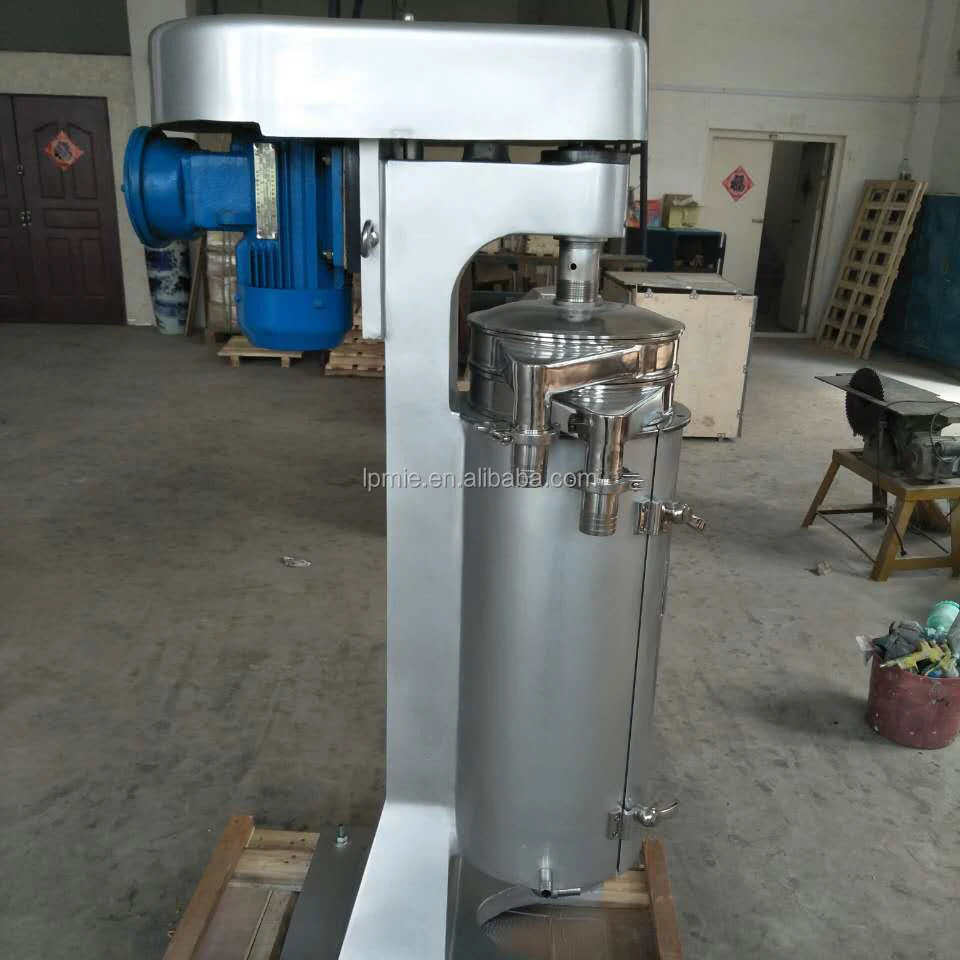

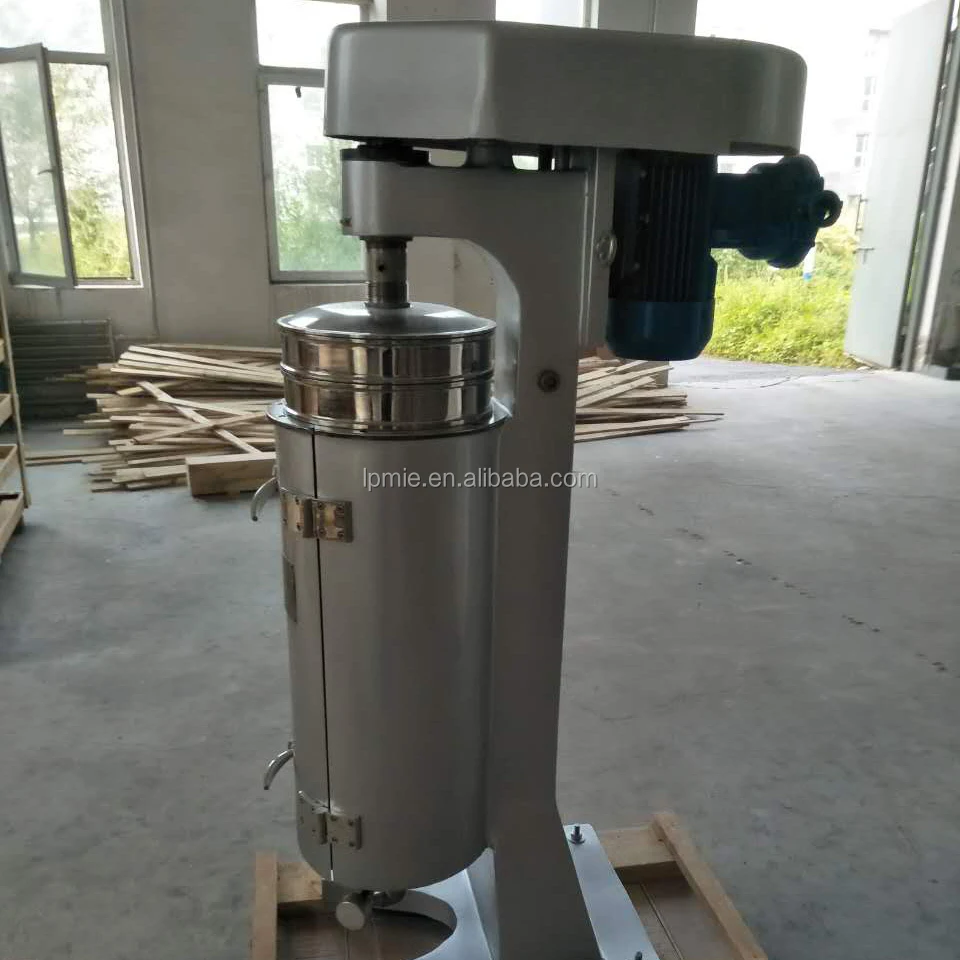

Tubular Centrifuge Separator GF Type ( Side View)

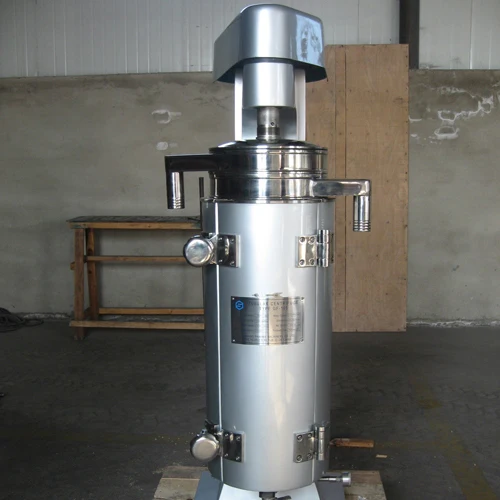

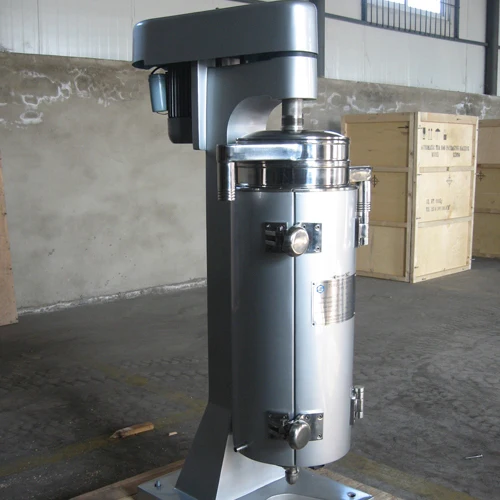

Tubular Centrifuge Separator GF Type ( Side View)

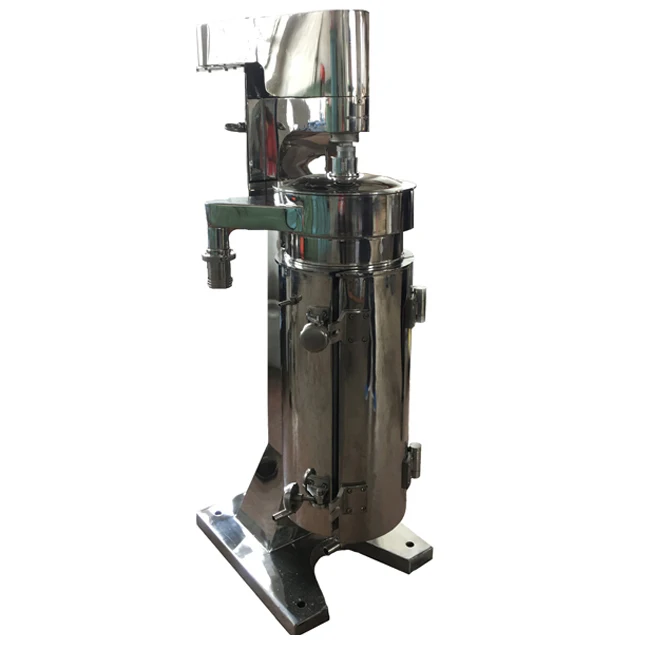

Tubular Centrifuge Separator GF Type ( side View)

Tubular Centrifuge Separator GF Type ( side View)

You may also interested in other  type Centrifuge, Please visit the following website or picture as:

                       Tubular Centrifuge                                                    Peeler Centrifuge

                       Disc Ceentrifuge                                                    Decanter Centrifuge

                Top Discharge Centrifuge                                              Marine Oil Separator

  Liaoyang Pharma Machinery Co.,Ltd is a grouping enterprise which contributes to production and sale of pharmaceutical,chemical and packaging machinery, the group consists of several subbranches, pharmaceutical machinery factory, packaging machinery factory and plastic machinery factory, Clean-room Factory and 2 offices, her products are popular in the whole nation, furthermore exported over 70 countries and regions in the world, such as: USA,Japan, Sweden, France, Spain, Canada, Australia, Thailand, Vietnam and Indian etc, the producs are beyond 800 kinds, includes Blender, tablet press, capsule filler, dryer, blister packing machine,teabag packing machine, centrifuge, Glass-lined Reactor clean-room equipment and instruments etc. she also provided the whole set of pharmaceutical, chemical and packaging line for the customers from UAE, Romania, Nigeria, Georgia, Pakistan and Ethiopia.

 For detialed technical specification of such equipment, please contact me in the following items:

1. Contact person name: Ms. Daisy Liu

2. Contact e-mail address:  daisy (at) lpmie.net
